16 high-quality two-piece shelf supports, made of brass, load capacity: 20 kg (45 lbs), nickel-plated finish, SS-319W and SS-319M. Shelf supports for shelves, cabinet shelves, shelves, and much more, from Sugatsune / LAMP® (Japan)

16 high-quality two-piece press-in shelf supports, consisting of a dowel and pin, made of solid and robust brass, surface: nickel-plated, SS-319W and SS-319M, load capacity: 20 kg (45 lbs)

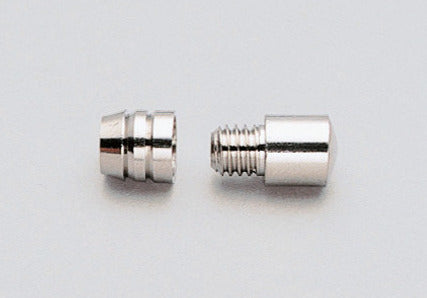

Application: Shelf supports for shelves, cabinet floors, shelves and much more. [caption id="attachment_151539" align="alignnone" width="420"] High-quality two-piece shelf bracket, SS-319W and SS-319M, from Sugatsune, load capacity: 20 kg (45 lbs), nickel-plated. Application[/caption] The high-quality SS-319W and SS-319M press-in shelf supports are heavy-duty and durable. They are ideal for furniture with drill holes of Ø8 mm (5/16″). The shelf supports SS-319W and SS-319M consist of two parts, are very stable and have an excellent load capacity of 20 kg (45 lbs). The solid shelf supports SS-319W and SS-319M have an excellent appearance, are very firmly connected to the furniture body and can be easily unscrewed and screwed back in if necessary. The SS-319W and SS-319M shelf supports have rounded ends to protect hands during use and provide an exclusive look. The high-quality shelf supports SS-319W and SS-319M are ideal for, among others:

• Cabinets
• shelves
• kitchen furniture
• office cabinet
• bedroom furniture
• Home furniture
• Shelves
• Shelves
• Cabinet shelves
• Shelves

Material:

• The shelf supports SS-319W and SS-319M are made of solid and robust brass
• Brass components, fasteners and furniture fittings are particularly durable and corrosion-resistant, making them ideal for long-term use
• They offer an elegant, timeless look that is equally appealing in classic and modern interior styles
• In addition, brass is ideal for hygienic applications due to its antibacterial properties

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that is modern yet timeless
• They are also easy to maintain, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• The shelf supports SS-319W and SS-319M consist of a dowel and a pin
• The dowels are pressed into the holes with a diameter of Ø8 mm (5/16″)
• The depth of the mounting holes must be at least 9 mm (23/64″)
• The pins are then screwed firmly into the dowels
• The shelf is placed on the shelf supports
• The center of the mounting hole on the cabinet wall must be positioned 4 mm (5/32″) below the desired position of the shelf (for further details see assembly drawing )

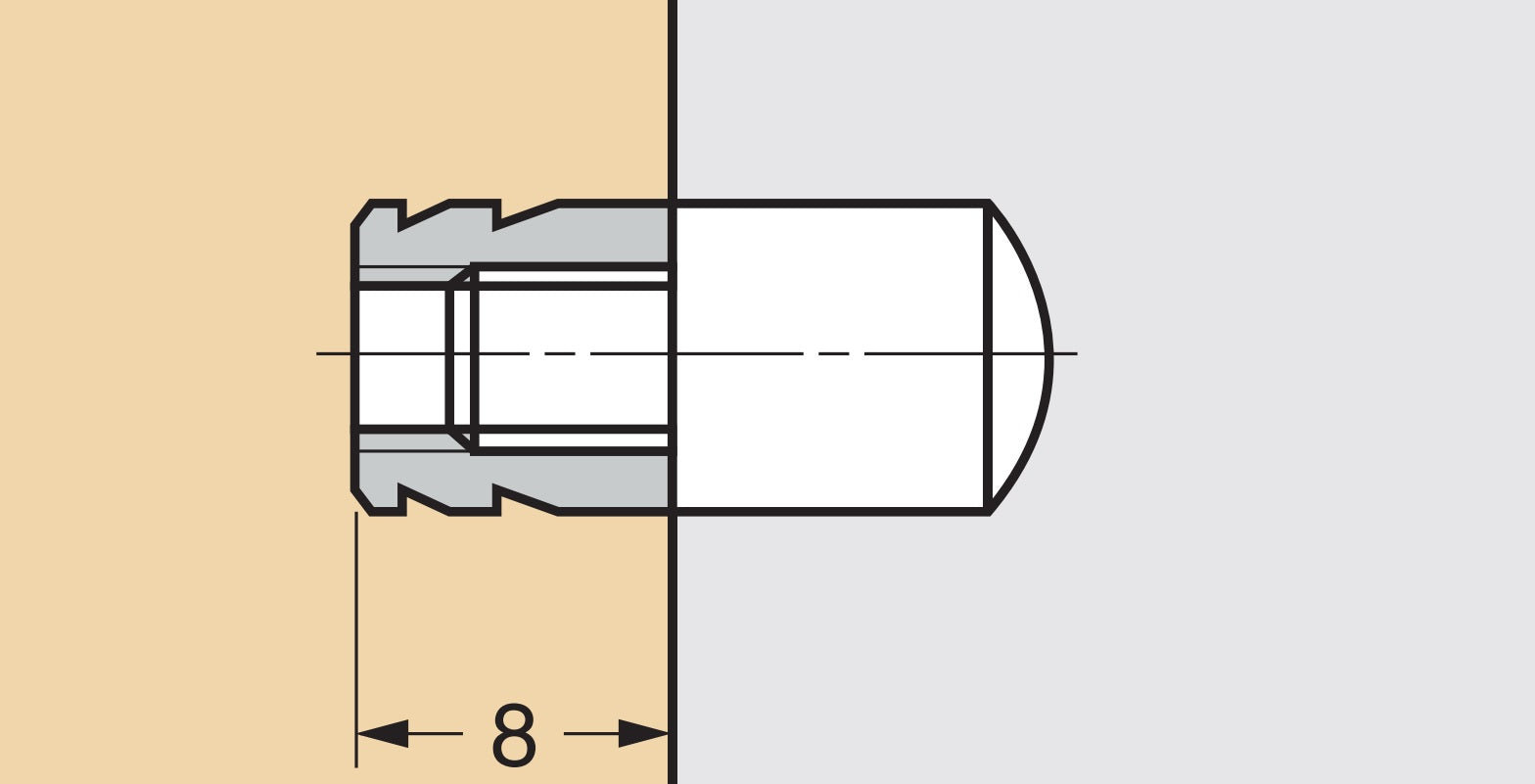

[caption id="attachment_151549" align="alignnone" width="420"] High-quality two-piece shelf brackets, SS-319W and SS-319M, from Sugatsune, load capacity: 20 kg (45 lbs), nickel-plated. Assembly drawing[/caption] Characteristics:

• Weight: 5.6 g
• Load capacity: 20 kg (45 lbs) - for 4 pieces
• Size: 14 mm (35/64″)
• easy to assemble
• practical
• stable
• two-part
• rounded
• for screwing in
• nickel-plated
• solid
• robust
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Shelf support diameter: Ø8 mm (5/16″)
• Total length: 14 mm (35/64″)
• Pin length: 8 mm (5/16″)
• Thread length: 6 mm (15/64″)
• Length of the dowel: 8 mm (5/16″)

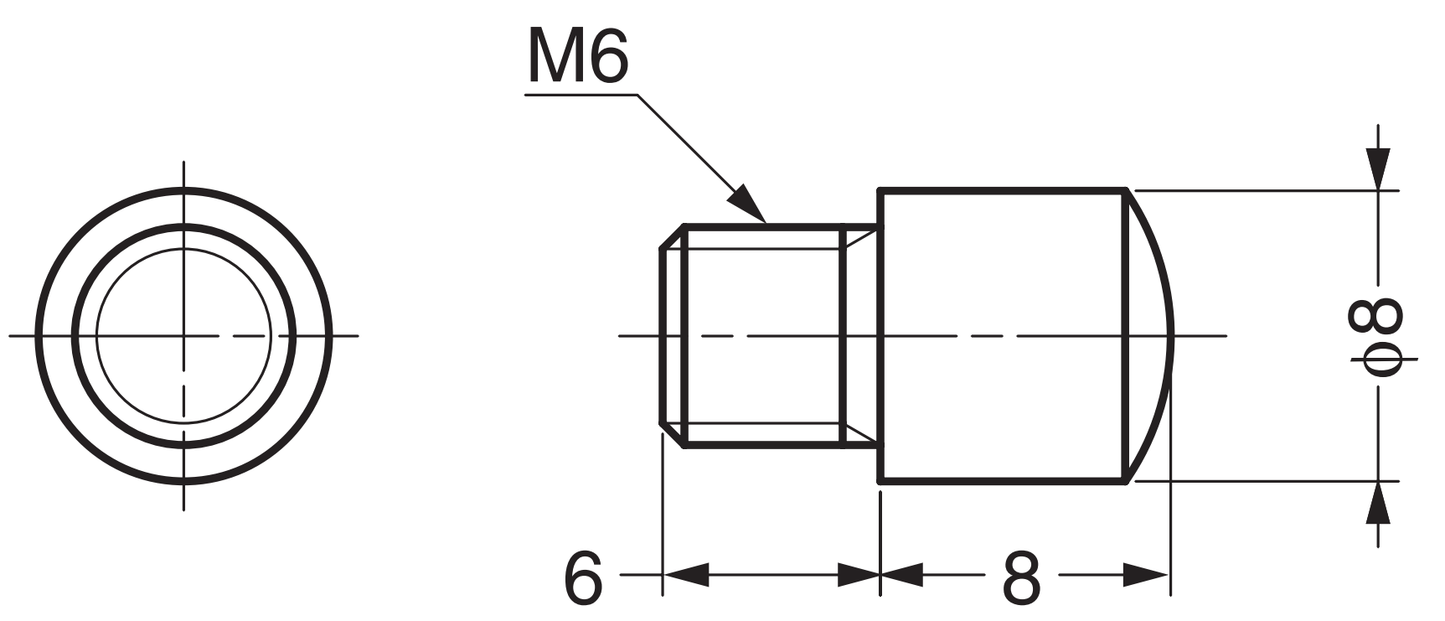

[caption id="attachment_151559" align="alignnone" width="420"] High-quality two-piece shelf brackets, SS-319W and SS-319M, from Sugatsune, load capacity: 20 kg (45 lbs), nickel-plated. Technical drawing[/caption] Included in delivery:

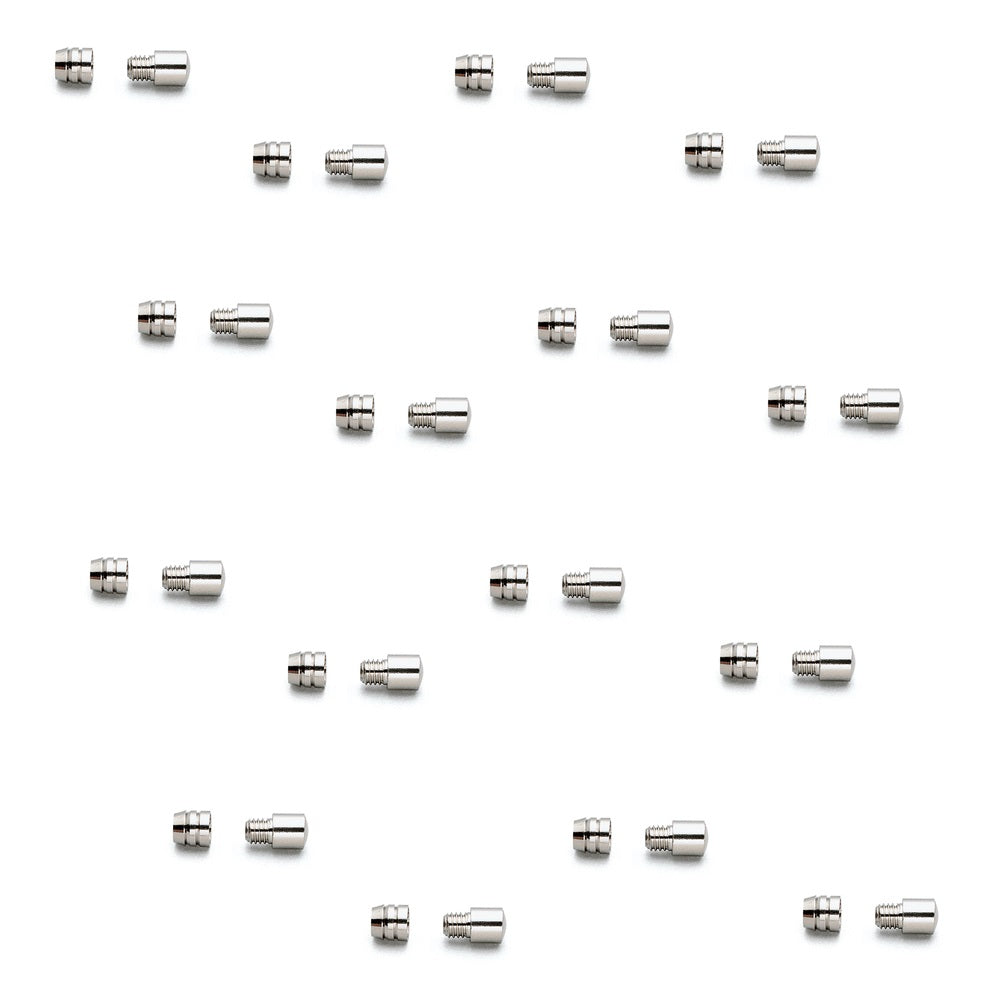

• 16 pieces shelf supports SS-319W and SS-319M made of solid and robust brass, nickel-plated
• Each shelf support is a set consisting of a dowel SS-319W and a pin SS-319M

Manufacturer reference number:

• Article number: 120-041-338 and 120-041-339
• Item number: SS-319W and SS-319M
• EAN number: 4510932015431 and 4510932015424

Manufacturer: Sugatsune / LAMP® (Japan)
