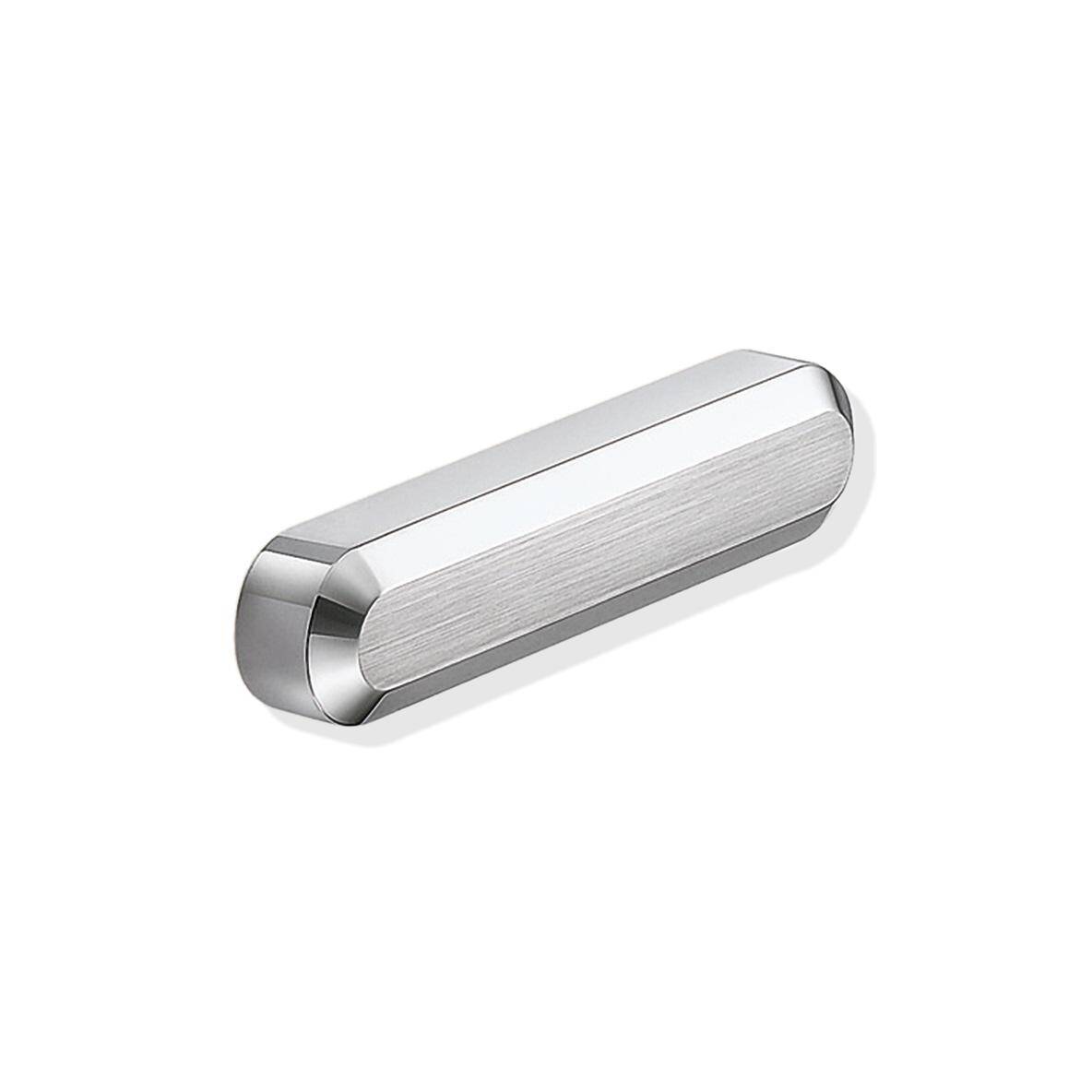

ZweiL® stainless steel furniture knob, 121 mm (4.8") ZL-2503-96. Furniture handle made of the finest V4A (SUS316) stainless steel for exclusive interior design and high-quality furnishings by Sugatsune / LAMP® (Japan).

Exclusive ZweiL® stainless steel button ZL-2503-96

Application: Furniture handle knob made of the finest stainless steel V4A (SUS316) for exclusive interior design and high-quality furnishings. The SUS316 stainless steel gives the ZL-2503-96 furniture knobs unique properties. The surface is partly high-gloss and partly satin, creating unique optical and tactile effects. The ZL-2503-96 furniture knobs are ideal for:

• Cruise ships
• yachts
• boats
• Private aircraft
• Outdoor area
• coastal facilities
• Luxury hotels
• exclusive bathrooms
• Luxury facilities

Material: The ZL-2503-96 handle knobs are made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. ZL-2503-96 handle knobs made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• ZweiL® stands for exclusive quality of the stainless steel surface
• The high-quality surface is elaborately processed and has a unique structure and appearance
• The lines are straight, clear and sharp
• The stainless steel buttons ZL-2503-96 appear solid and extremely high quality

Assembly:

• The mounting is done using the screws included in delivery (M5 x 28 mm)
• The fastening screws are also made of stainless steel

Characteristics:

• Weight: 334 g
• Size: 121 mm (4.8″)
• Elaborately finished surface
• Corrosion-resistant
• Exclusive high-quality optics

Dimensions: For further dimensions and details see technical drawing .

• Handle length: 121 mm (4.77″)
• Grip width: 25 mm (0.99″)
• Grip depth: 16 mm (0.63″)
• The distance between the drill holes is: 96 mm (3.78″)
• Inner handle width: 84 mm (3.31″)
• Inner grip depth: 10 mm (0.4″)
• Mounting hole depth: 12 mm (0.48″)

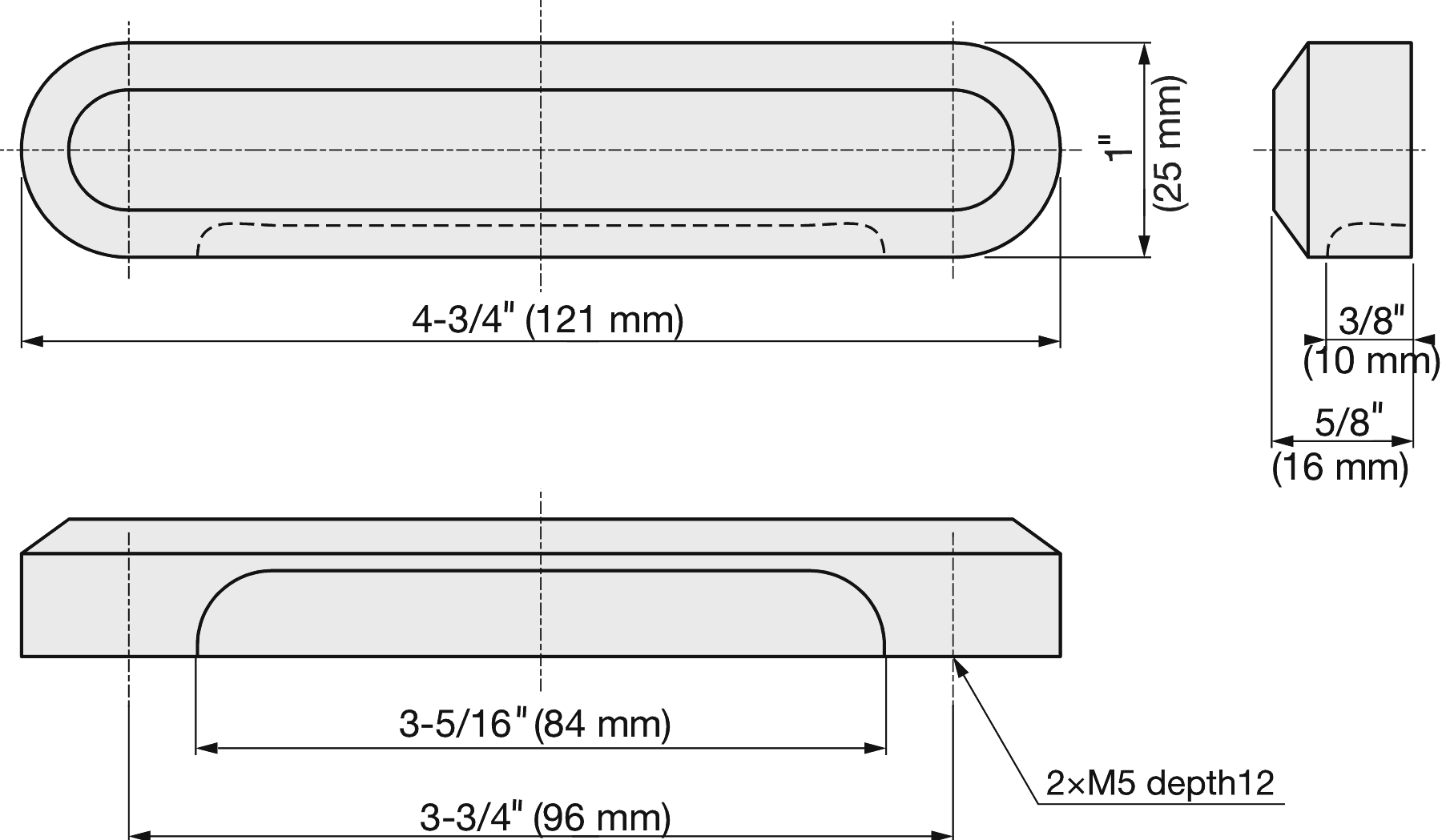

[caption id="attachment_39797" align="alignnone" width="420"] Two-piece stainless steel cabinet knob from Sugatsune, ZL-2503-96 (121 mm). Technical drawing[/caption] Included in delivery:

• 1 piece furniture handle ZL-2503-96 made of stainless steel SUS316 (V4A)
• 2 pieces of truss head screws M4 × 25 (made of stainless steel)

Watch product video: Manufacturer reference number:

• Article number: 100-010-975
• Article name: ZL-2503-96
• EAN number: 4510932011198

Manufacturer: SUGATSUNE / LAMP® (Japan)
