ZweiL® snap fastener with handle function, made of SUS316 stainless steel, ZL-2901. High-quality, solid and elegant snap fastener made of the finest V4A (SUS316) stainless steel for exclusive interior design, from ZweiL® / Sugatsune (Japan)

1 piece exclusive snap fastener ZL-2901 made of stainless steel SUS316, made of high-quality stainless steel SUS316 (V4A), surface: matt and polished

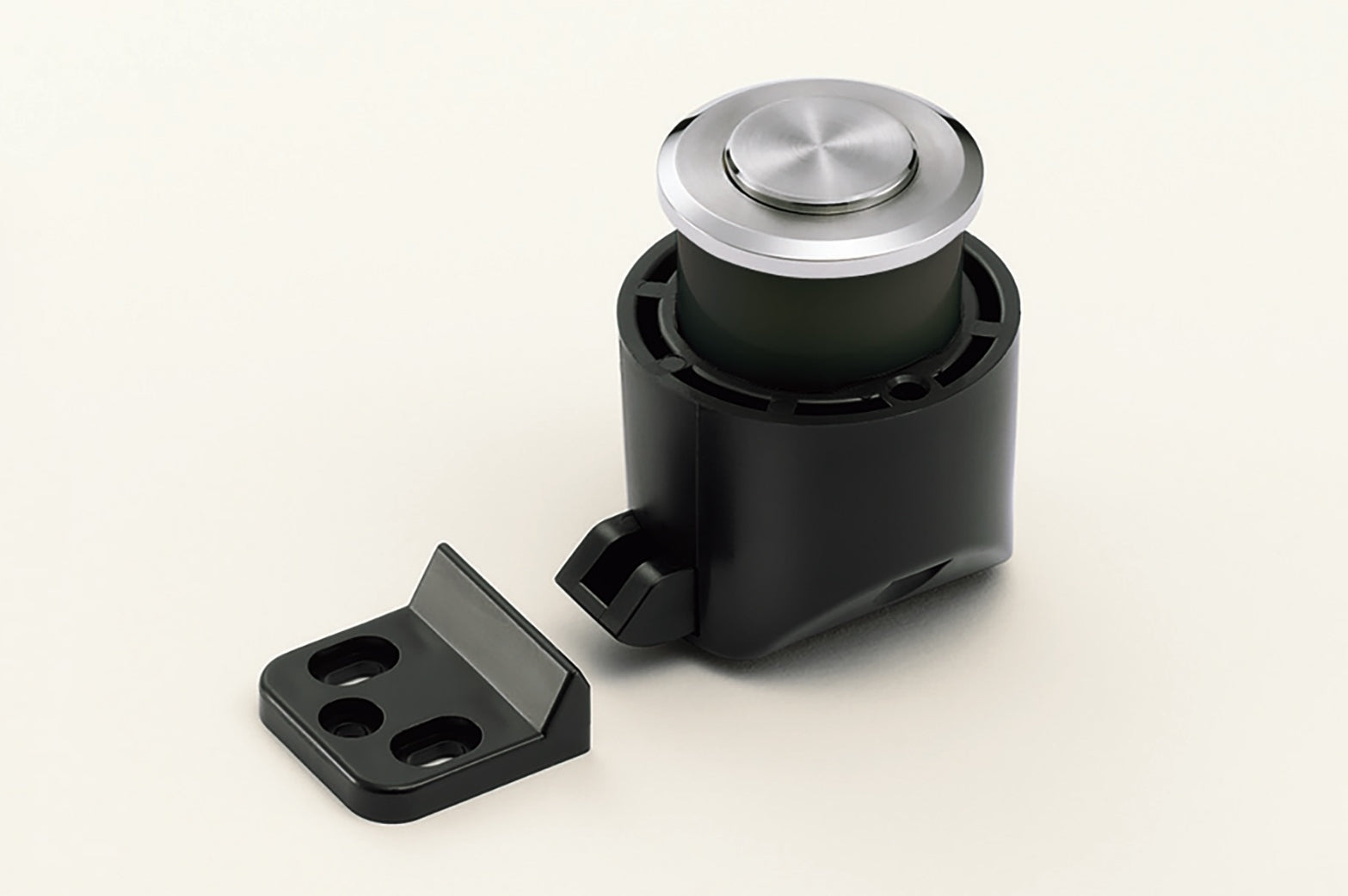

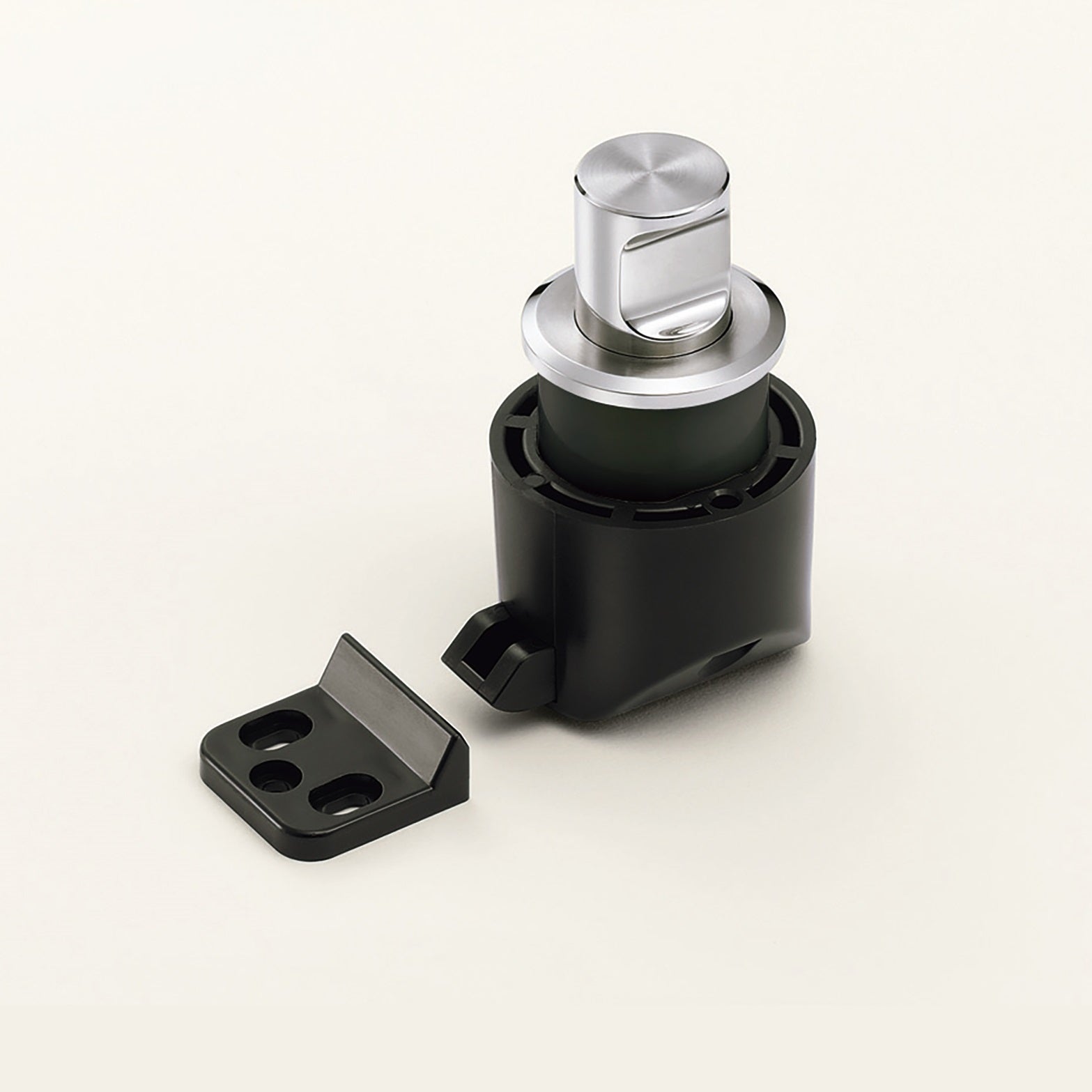

Application: High-quality, solid and elegant push button made of the finest stainless steel V4A (SUS316) for exclusive interior design. [caption id="attachment_151714" align="alignnone" width="420"] ZweiL Snap Fastener with Handle, ZL-2901, from ZweiL. Application Example[/caption] The SUS316 stainless steel gives the ZL-2901 snap fasteners unique properties. The surface is partly high-gloss and partly satin, creating unique optical and tactile effects. The corrosion-resistant push-button lock ZL-2901 ensures, when recessed, that furniture or cabinet doors do not open accidentally while driving or flying. When closed, the push button is recessed and is thus protected from collisions. To open the furniture door, the handle of the push-button lock ZL-2901 must be pressed and thus released. The push button ZL-2901 serves as a practical handle when opened. These features make the ZL-2901 snap fastener ideal for luxury yachts, private aircraft and mobile homes. ZL-2901 snap fasteners made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, humid and warm climates, regions with humid salty air, etc. The ZL-2901 push button is suitable for doors with a thickness of 13 mm (33/64″) to 23 mm (29/32″). The high-quality snap fasteners ZL-2901 are ideal for, among others:

• Cruise ships
• yachts
• boats
• Private aircraft
• Outdoor area
• coastal facilities
• Luxury hotels
• Luxury facilities
• exclusive bathrooms

Material:

• The snap fasteners ZL-2901 are made of high-quality stainless steel SUS316 (V4A)
• SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
• Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast

Surface:

• Matt and polished
• The surface is partly high-gloss and partly satin matt, creating unique optical and haptic effects
• ZweiL® stands for exclusive quality of the stainless steel surface
• The high-quality surface is elaborately processed and has a unique structure and appearance
• The lines are straight, clear and sharp
• The snap fasteners ZL-2901 appear solid and extremely high quality

Assembly:

• The mounting is done using the three screws included in the delivery (round-head wood screws: two pieces 3.1 x 10 mm and one piece 3.1 x 28 mm)
• For installation, a hole with a diameter of Ø28 mm (1-7/64″) and a depth of 13 mm (33/64″) must be drilled in the front
• Furthermore, a hole with a diameter of Ø40 mm (1-37/64″) must be drilled on the back of the door
• The distance between the door edge and the hole is 32 mm (1-17/64″)
• The push button ZL-2901 is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the body side using the screws provided (for further details see assembly drawing ).

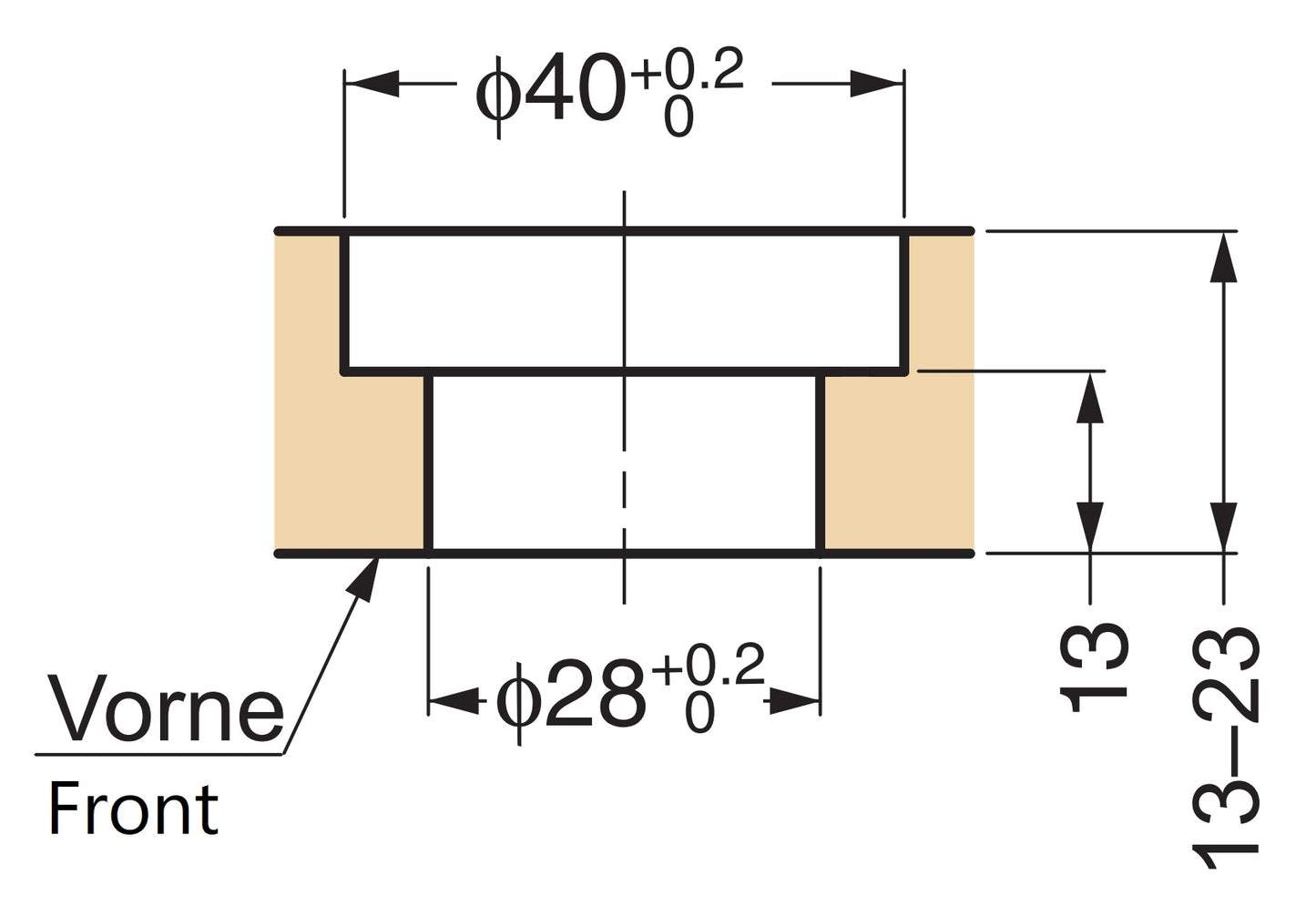

[caption id="attachment_151724" align="alignnone" width="420"] ZweiL Snap Fastener with Handle, ZL-2901, by ZweiL. Assembly Drawing[/caption] Characteristics:

• Weight: 100 g
• Load capacity: 40 kg (89 lbs) - for 4 pieces
• Size: 32 mm (1-17/64″)
• easy to assemble
• practical
• stable
• Elaborately finished surface
• Corrosion-resistant
• Exclusive, high-quality look
• matt and polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from ZweiL® / Sugatsune

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the snap fastener: Ø32 mm (1-17/64″)
• Diameter of the push button: Ø19 mm (3/4″)
• Total length: 32 mm (1-17/64″)
• Maximum door thickness: 23 mm (29/32″)

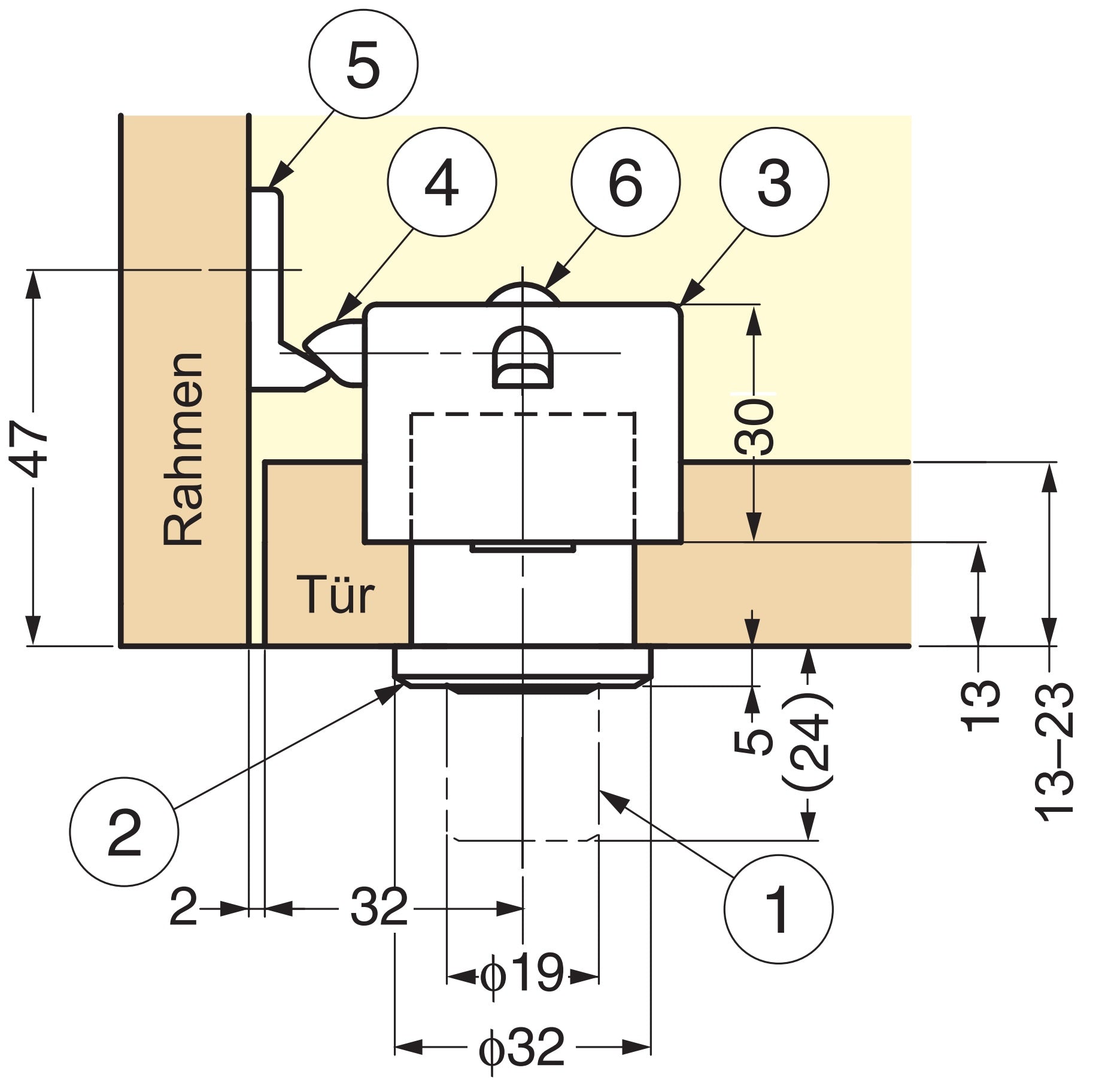

[caption id="attachment_151734" align="alignnone" width="420"] ZweiL Snap Fastener with Handle, ZL-2901, by ZweiL. Technical Drawing[/caption] Included in delivery:

• 1 piece snap fastener ZL-2901 made of high-quality stainless steel SUS316, matt and polished
• Three round-head wood screws: two 3.1 x 10 mm and one 3.1 x 28 mm made of stainless steel
• 1 piece housing
• 1 piece locking plate

Watch product video: Additional Information:

• • Download assembly instructions

Manufacturer reference number:

• • • Article number: 140-050-403
    • Item number: ZL-2901
    • EAN number: 4510932016735

Manufacturer: ZweiL® / Sugatsune (Japan)
