Hidden push-button latch handle, surface: white, AK-60WT and AK-C60WT for yacht interiors, motorhome interiors, caravan furniture, camper

Hidden push-button latch handle, made of robust polyacetal (POM), surface: white, AK-60WT and AK-C60WT

Application:

Practical safety latch handle for yacht interior fittings, motorhome fittings, caravan furniture, campers and much more.

The AK-60WT safety latch handle is used to securely lock hinged and revolving doors and prevents unintentional opening in the event of shocks.

When closing, the mechanism of the AK-60WT push-button latch handle engages automatically and reliably holds the door closed with 196 N.

The AK-60WT push-button latch handle is suitable for door thicknesses from 15 mm (19/32″) to 25 mm (63/64″).

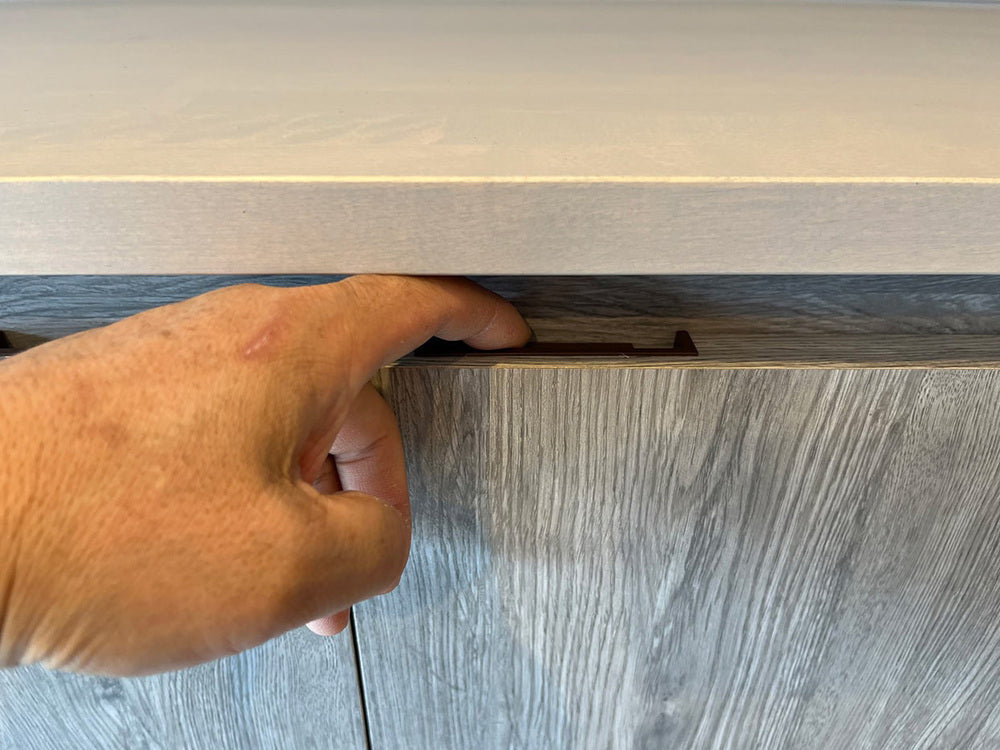

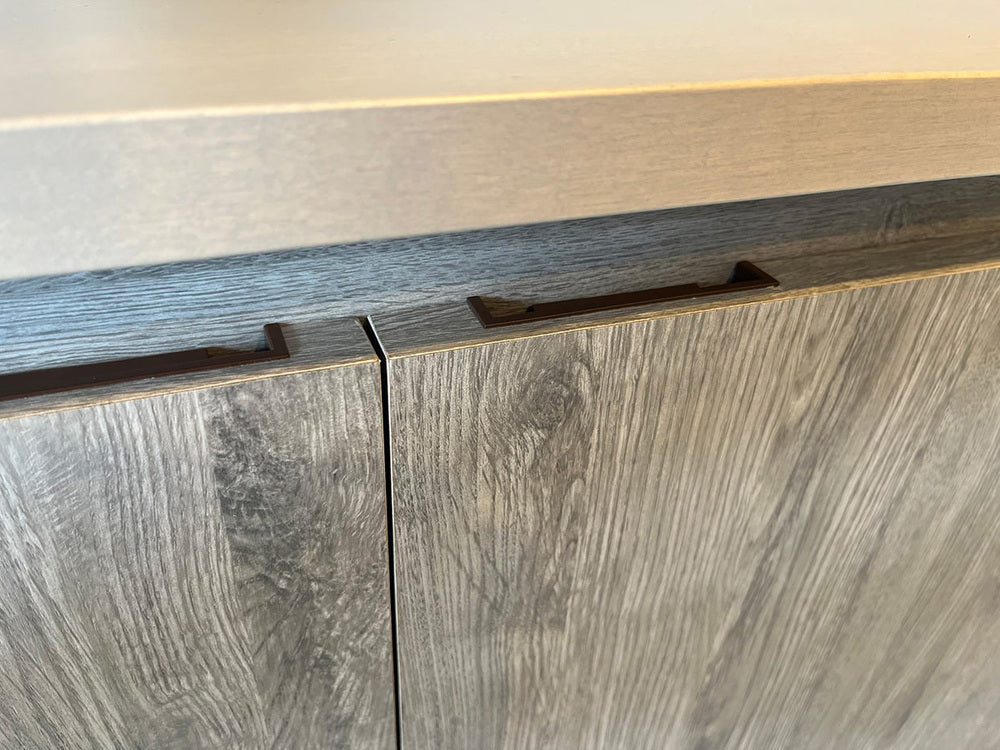

To open, simply press the push button recessed into the door front; there are no handles or knobs, maintaining a smooth appearance.

The housing made of robust polyacetal (POM) is corrosion-resistant and suitable for furniture and yacht applications.

The spacers included in delivery allow adaptation to different panel thicknesses.

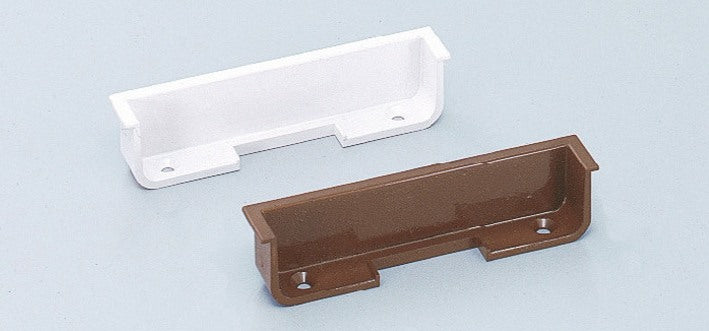

The AK-C60WT cover cap, which is also included in the scope of delivery, can be used if necessary and neatly conceals cutting edges.

The product thus combines safety, ease of use and aesthetic restraint.

The high-quality push-button latch handles 140-050-215 and 140-050-213 are ideal for, among others:

• Motorhome
• Shopfitting
• Furniture doors
• Succeed
• Cabinet doors
• Kitchen wall cabinets
• Yacht interior fittings
• Motorhome conversion
• Caravan furniture
• camper

Material:

• The push-button latch handles 140-050-215 and 140-050-213 are made of robust polyacetal (POM)
• Polyacetal (POM) combines very high abrasion and wear resistance with a low coefficient of friction, so that fittings function smoothly over the long term
• Thanks to its high dimensional and form stability, even with changing humidity, the fitting accuracy of hinges, drawers or locks is maintained

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The mounting is carried out using the six screws included in the delivery (round head screws, self-tapping (2 pieces 3.5 x 15 mm, 2 pieces 3.5 x 20 mm and 2 pieces 4.0 x 15 mm))

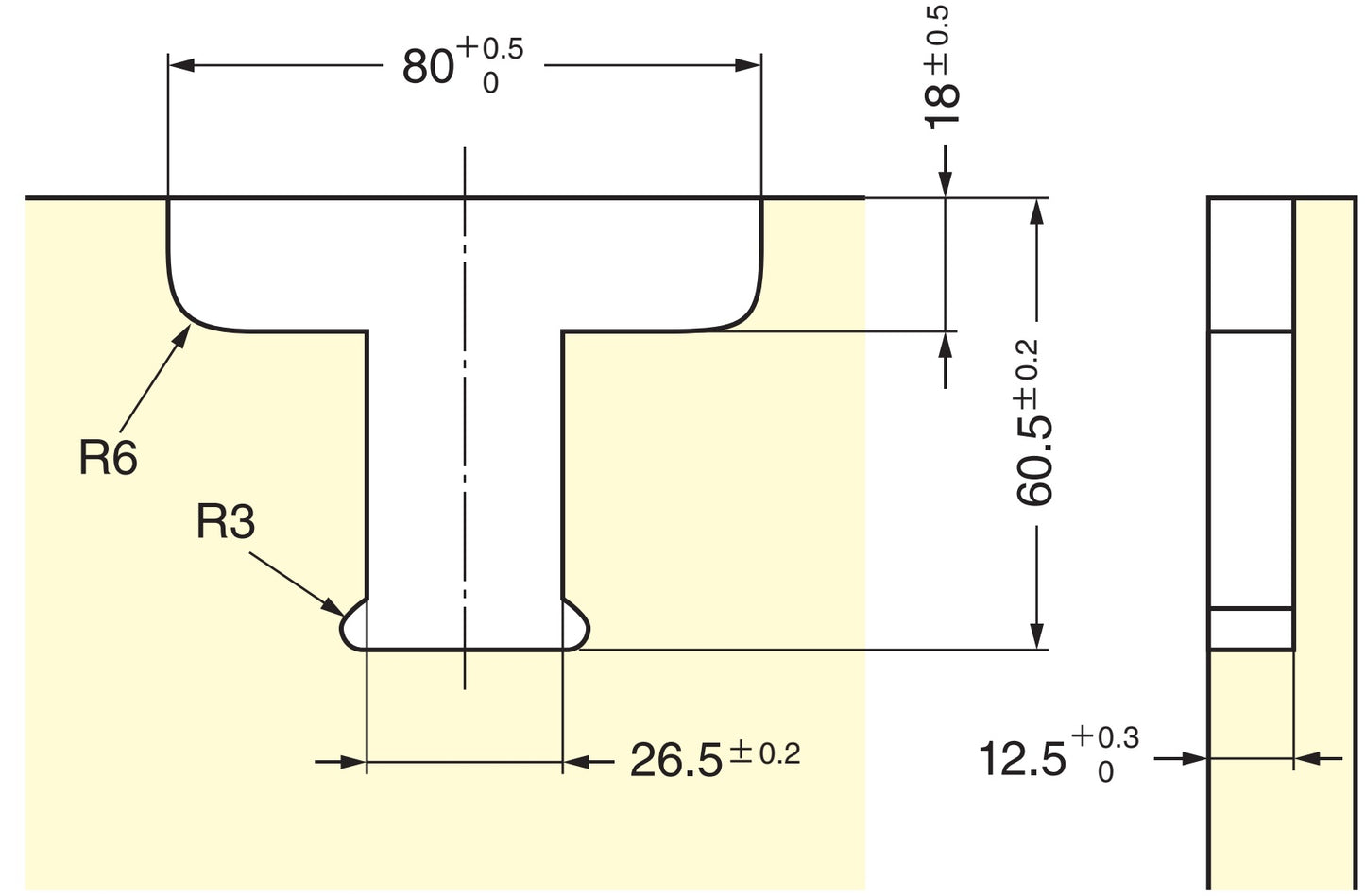

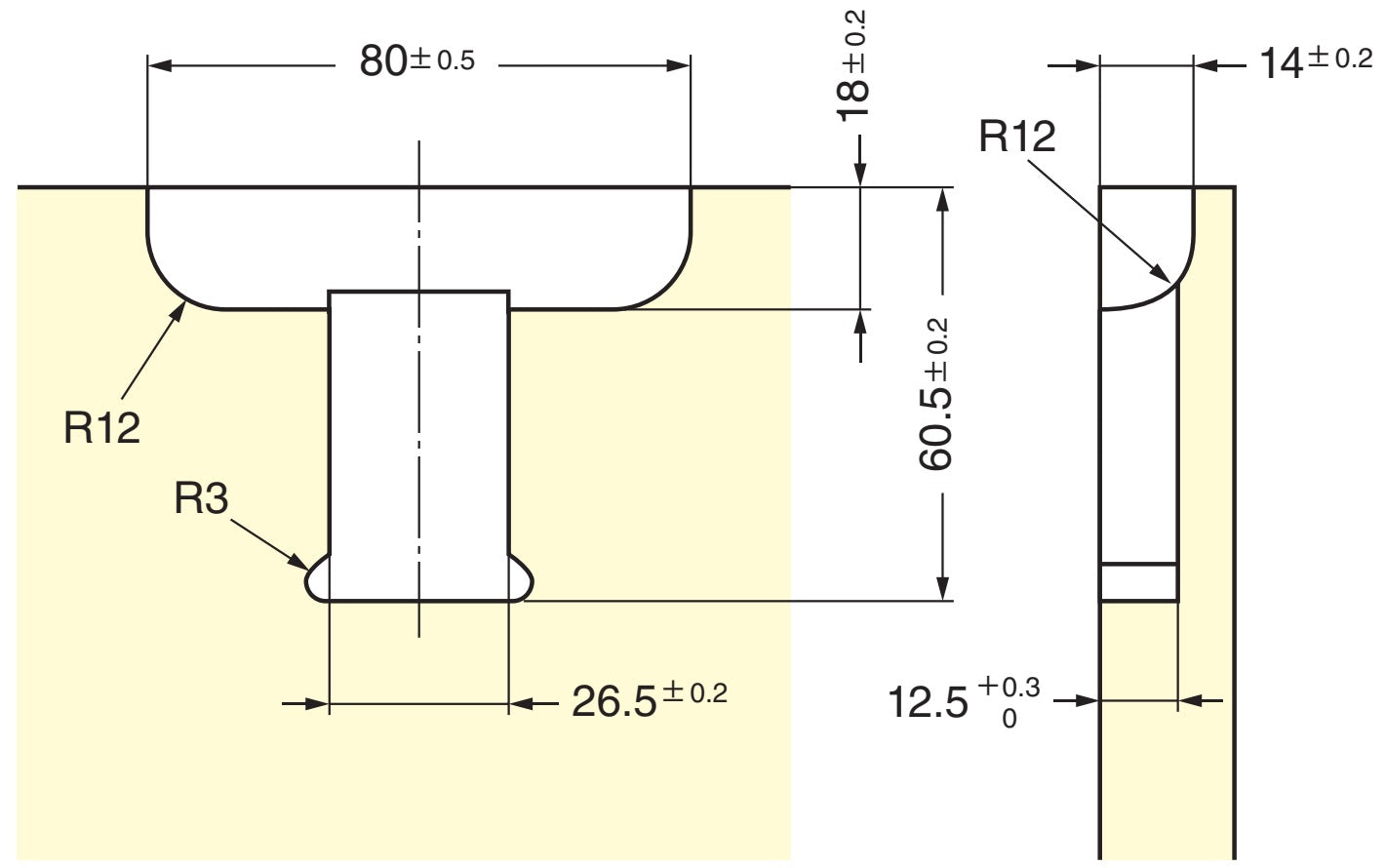

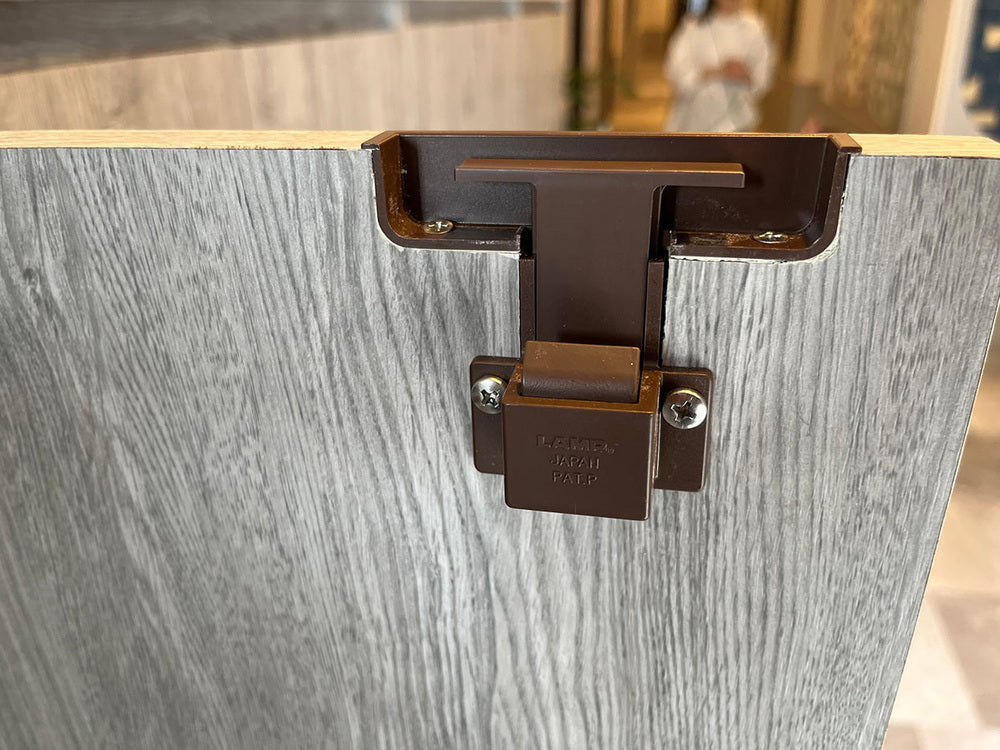

• First, a milling cut must be made on the inside of the door
• The snap fastener is inserted flush and screwed with binding head self-tapping screws 3.5 x 15 mm or 3.5 x 20 mm
• The counter plate is positioned in the body with a center distance of 60.5 mm (2-3/8″) and screwed tight
• For panel thicknesses below 25 mm (63/64″), the supplied spacer plates are placed between

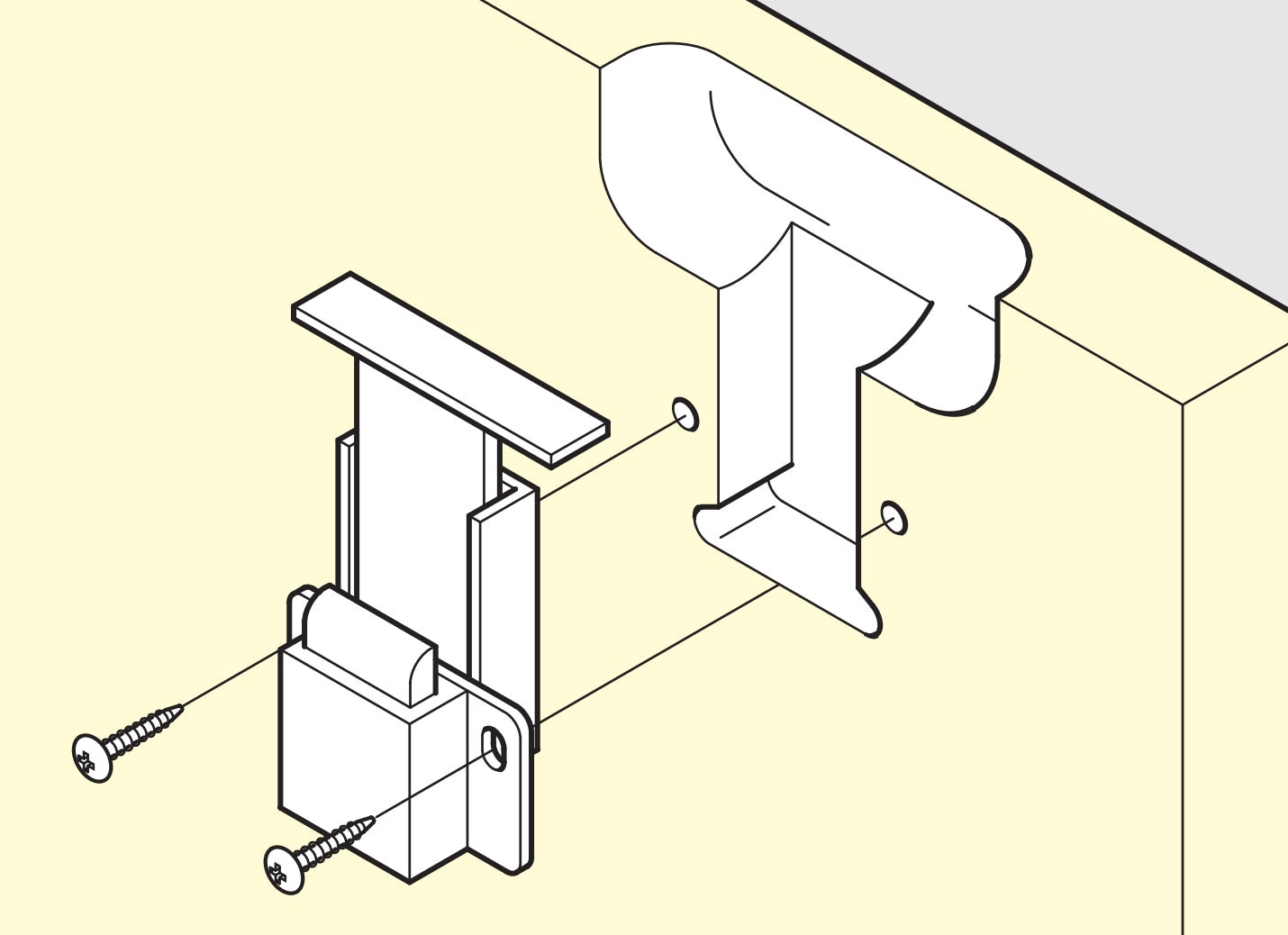

• Finally, the function is tested by closing the door and opening it by pressing (for further details see assembly drawing ).

Characteristics:

• Weight: 69 g
• Load capacity: 196 N (20 kp)
• Size: 80 mm (3-5/32″)

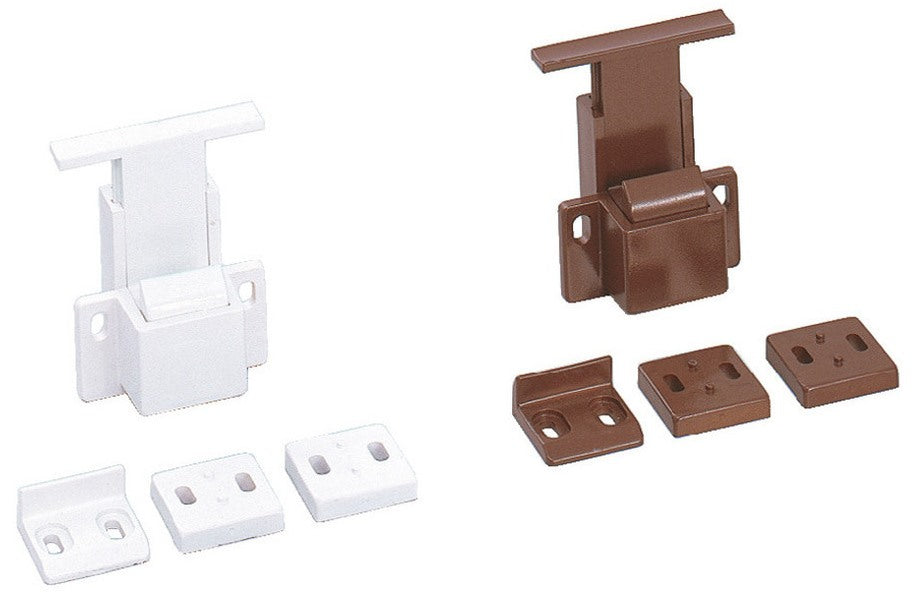

• Available in white and brown
• easy to assemble
• practical
• stable
• For surface-mounted doors
• Self-locking push mechanism
• Recessed mounting
• Keeps doors securely closed
• For door thicknesses from 15 mm (19/32″) to 25 mm (63/64″)
• For doors with a maximum height of 700 mm (27-9/16″)
• For doors with a maximum width of 500 mm (19-11/16″)
• Quiet opening at the push of a button
• Incl. cover cap
• Easy adjustment to different door thicknesses
• Suitable for furniture, vehicles and marine
• Low weight
• white
• robust
• light
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Push-button latch handle width: 50 mm (1-31/32″)
• Handle width: 80 mm (3-5/32″)

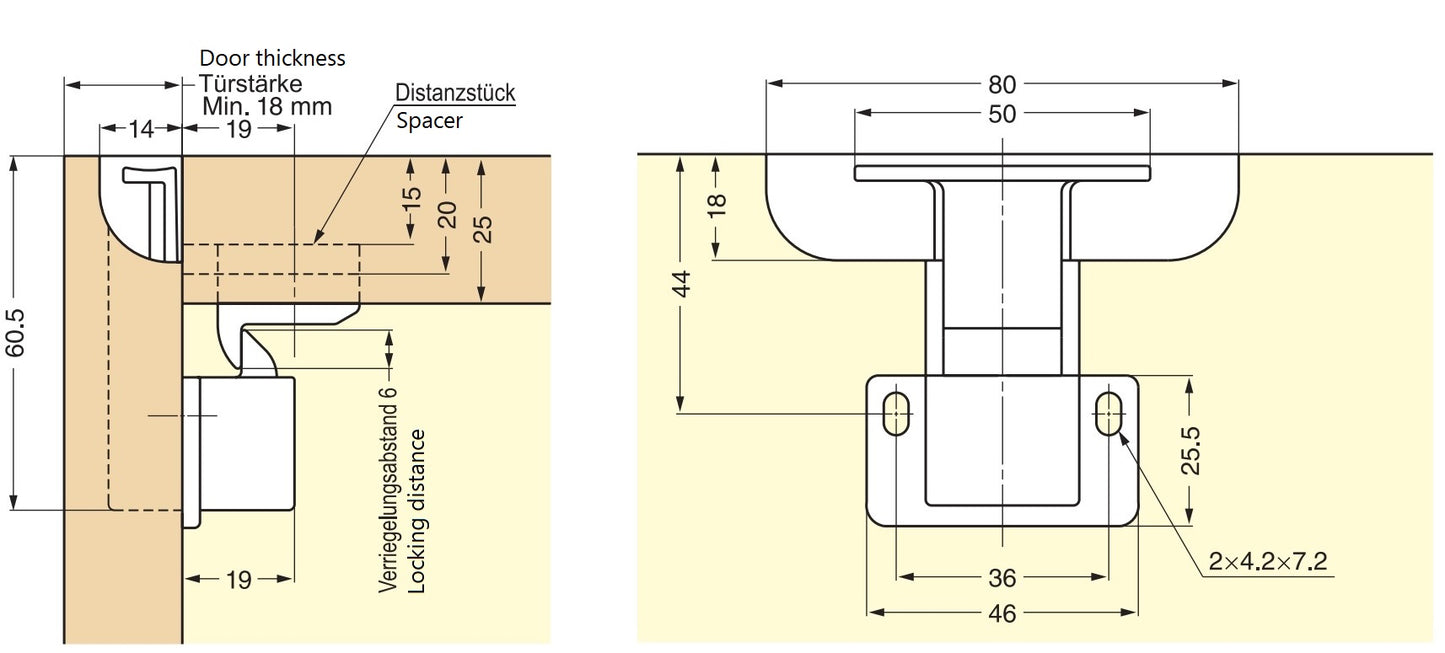

For further dimensions and details see technical drawing .

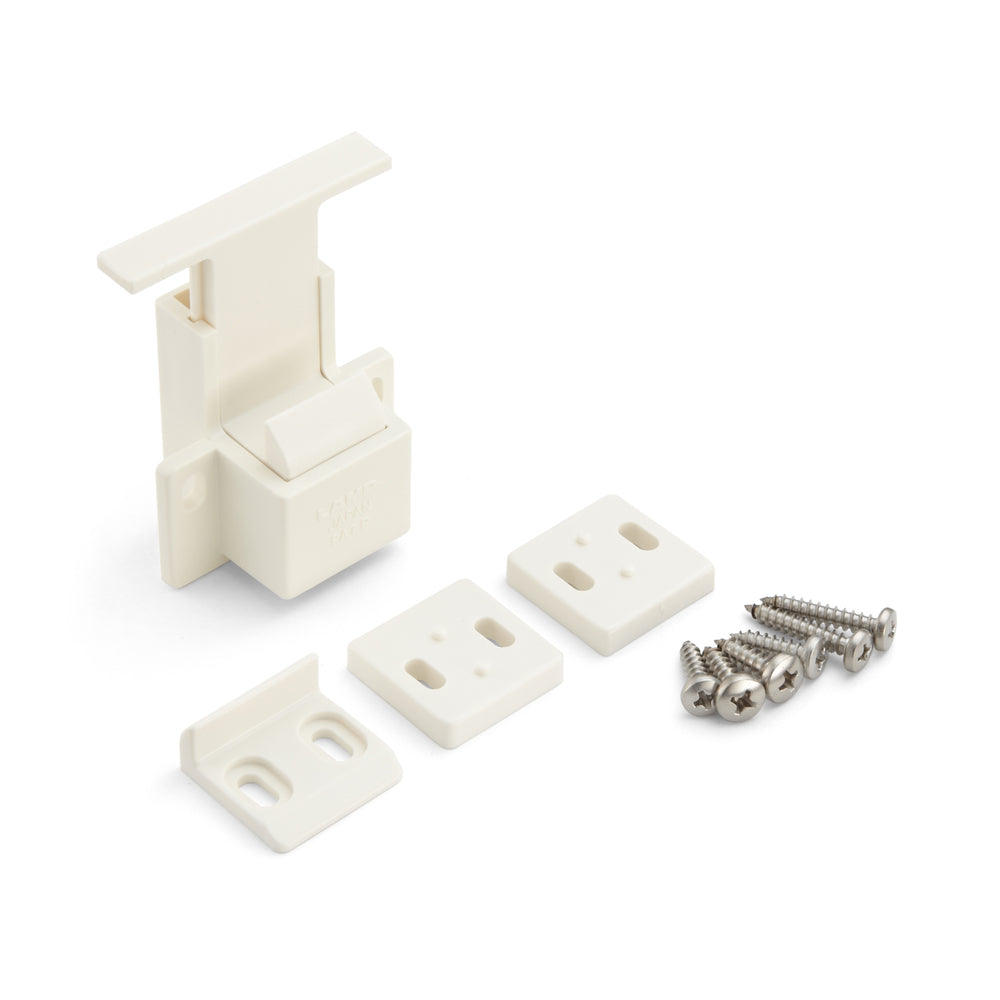

Included in delivery:

• 1 piece push-button latch handle 140-050-215 and 140-050-213 made of robust polyacetal, white
• 1 piece cover cap AK-C60WT

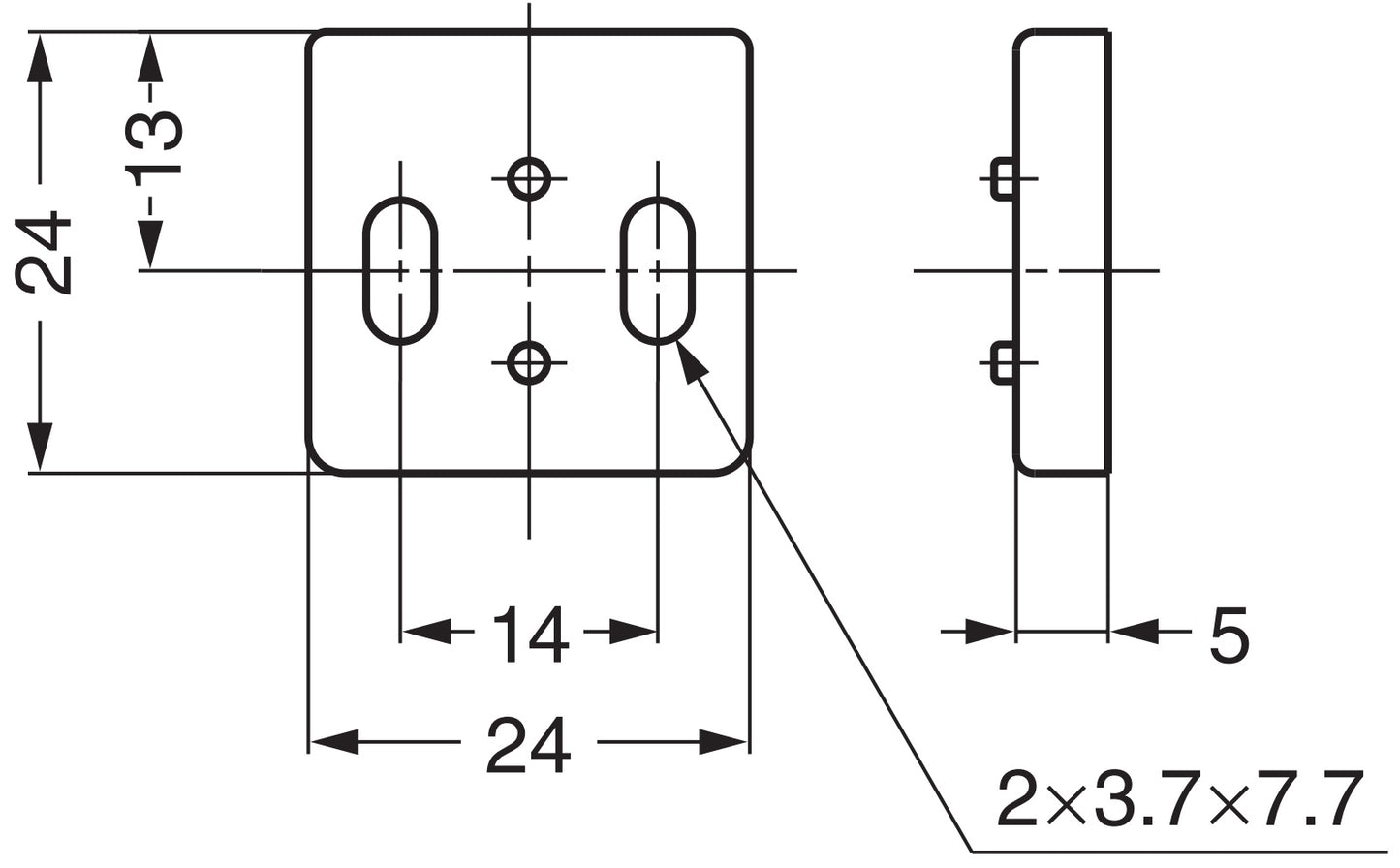

• 2 pieces of 5 mm spacer plate for thin doors

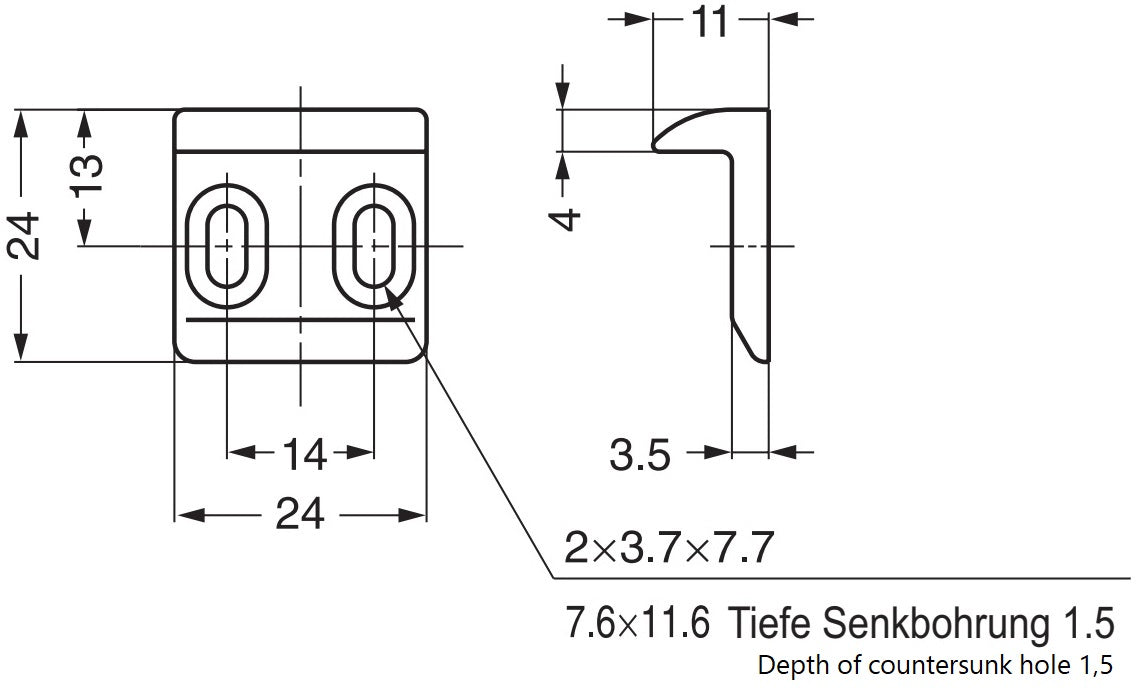

• 1 piece locking plate
• 6 self-tapping lens head screws (2 3.5 x 15 mm, 2 3.5 x 20 mm and 2 4.0 x 15 mm)

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article number: 140-050-215 and 140-050-213
• Item number: AK-60WT and AK-C60WT
• EAN number: 4510932000369 and 4510932000352

Manufacturer:Sugatsune / LAMP® (Japan)
