High-quality universal hook for ceiling or under-shelf mounting, made of solid stainless steel, 70 mm (2.8"), DS-H-50. Ceiling hook for humid environments, outdoor use, shipbuilding, and much more, from Sugatsune / LAMP® (Japan)

Weather-resistant universal hook with rounded tip, made of solid stainless steel (SUS304, V2A), surface: glossy polished, DS-H-50, size: 70 mm (2.8")

Application: Ceiling hooks for damp environments, outdoor use, shipbuilding and much more. The DS-H-50 rope hooks are made of extra thick 10 x 5 mm SUS304 stainless steel, which ensures durability and longevity. [caption id="attachment_142029" align="alignnone" width="420"] High-quality universal hook for ceiling mounting or under-shelf mounting, DS-H-50, 70 mm, from Sugatsune. Application example[/caption] The stainless steel hook DS-H-50 is very stable, has an excellent load capacity of 10 kg, with the height of the hook tip of 30 mm (1-3/16″) and is suitable for hanging various objects. The surface of the J-hook DS-H-50 is made of high-quality stainless steel, is smooth and does not hurt the hands. The edges of the hook are also bevelled for added safety. The surface structure is stable and durable, very suitable for humid environments such as bathrooms, swimming pools, hotel bathrooms or kitchens. The high-quality DS-H-50 rope hooks have a simple and robust design and are ideal for, among other things:

• humid environment
• Swimming pool
• shipbuilding
• yachts
• boats
• hobby room
• garage
• Wall
• beach hotel
• humid environment
• Outdoor area
• shipbuilding

Material:

• The DS-H-50 rope hooks are made of solid stainless steel (SUS304, V2A)

Surface:

• Shiny polished
• High-quality look

Assembly:

• The fastening is carried out using the screws included in delivery (raised countersunk head screw 4 x 20 mm)
• The fastening screws are also made of stainless steel
• The ceiling hooks DS-H-50 have two mounting holes with a diameter of ⌀4.2 mm, with countersink
• The distance between the mounting holes is 35 mm (1-3/8″)

Characteristics:

• Weight: 88 g
• Load capacity: 10 kg
• Size: 70 mm (2.8″)
• Material thickness: 10 mm (25/64″) x 5 mm (13/64″)
• available in two sizes: 70 mm and 100 mm
• practical
• high quality
• high load capacity
• no sharp edges
• rounded hook ends
• stable
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• J-hook length: 70 mm (2-3/4″)
• Hook point depth: 50 mm (1-31/32″)
• Mounting plate width: 55 mm (2-11/64″)
• Hook tip height: 30 mm (1-3/16″)

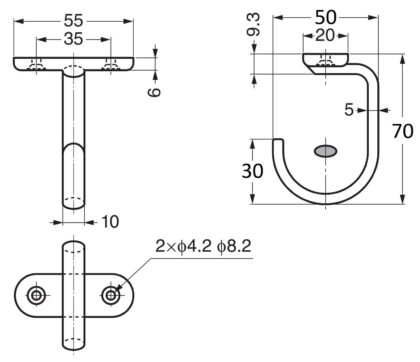

[caption id="attachment_142039" align="alignnone" width="420"] High-quality universal hook for ceiling mounting or under-shelf mounting, DS-H-50, 70 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece universal hook DS-H-50 made of solid stainless steel, shiny polished
• 2 pieces of raised countersunk head screws 4 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 110-020-205
• Item number: DS-H-50
• EAN number: 4510932013291

Manufacturer: Sugatsune / LAMP® (Japan)
