Concealed hinge, soft-close, clip-on installation, 3D adjustable, including mounting plate, surface: black nickel, surface-mounted, 1040052 for furniture, cabinets

Practical concealed hinge with soft-close, clip-on installation and three-dimensional adjustability, including mounting plate, made of robust steel, surface: black nickel, 1040052, design: surface-mounted (overlay)

Application:

Cupboard hinge for furniture, cabinets and much more.

Overlay means that the door rests on the carcass, i.e. it covers the carcass frame.

The 1040052 concealed hinge with clip-on installation and integrated soft-close damping closes doors gently and quietly at all times.

The soft-close technology protects fittings and the furniture body from impacts and extends their service life.

The three-dimensional adjustability enables millimeter-precise gap dimensions without dismantling.

With a 105° opening angle, the 1040052 hinge provides wide access to the cabinet contents and prevents door collisions.

The sturdy steel body with a nickel-plated surface ensures high corrosion resistance.

Thanks to the clip-on system, the concealed hinge 1040052 can be quickly clipped onto the supplied mounting plate 1041552 and just as easily removed again.

The high-quality concealed hinges 1040052 are ideal for, among others:

• Living room cabinets
• Wardrobes
• Office furniture
• Kitchen cabinet doors
• Bathroom cabinet doors
• Furniture
• Cabinets

Material:

• The 1040052 concealed hinges are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Black nickel
• The surface color black nickel gives a high-quality look and an elegant and modern appearance
• It offers high resistance to scratches and wear, which increases its longevity in everyday life
• In addition, black nickel is easy to clean and retains its noble shine for a long time

Assembly:

• The fastening is done with countersunk wood screws ⌀3.5 x 15 mm screws (not included)
• First, a cup hole with a diameter of 35 mm (1-3/8″) must be drilled in the door
• The distance between the door edge and the edge of the hole is 3 to 7 mm
• The cup hinge 1040052 is screwed with countersunk wood screw ⌀3.5 x 15 mm
• The distance between the fixing screws is 1.88976377952756
• The distance between the fixing screws and the center of the pot hole is: 6 mm (15/64″)
• The mounting plate 1041552 must be attached to the body side
• The mounting plate mounting holes are spaced 32 mm (1-17/64″) apart
• The distance between the mounting holes of the mounting plate and the edge of the cabinet wall is 1.45669291338583

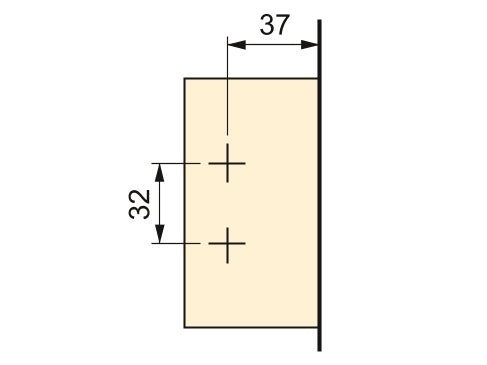

• The concealed hinge 1040052 is then clipped onto the mounting plate 1041552 included in the scope of delivery (for further details see assembly drawing ).

Characteristics:

• Design: surface-mounted (present)
• Weight: 119.75 g
• Size: 35 mm (1-3/8″)
• Pot depth: 11.7 mm
• easy to assemble
• practical
• stable
• Integrated soft-close damper
• Clip-on attachment to mounting plate
• 3D adjustment: side, height and depth adjustable
• For ⌀35 mm (1-3/8″) cup bore
• Suitable for door thicknesses from 14 mm (35/64″) to 24 mm (15/16″)
• Opening angle: 105°
• Spring-assisted opening and closing
• Black nickel
• Steel
• robust
• high brand quality from UMAXO®

The dimensions:

• Pot diameter of the pot hinge 1040052: ⌀35 mm (1-3/8″)
• Drilling distance: 48 mm (1-57/64″) / 6 mm (15/64″)
• Pot depth: 11.7 mm

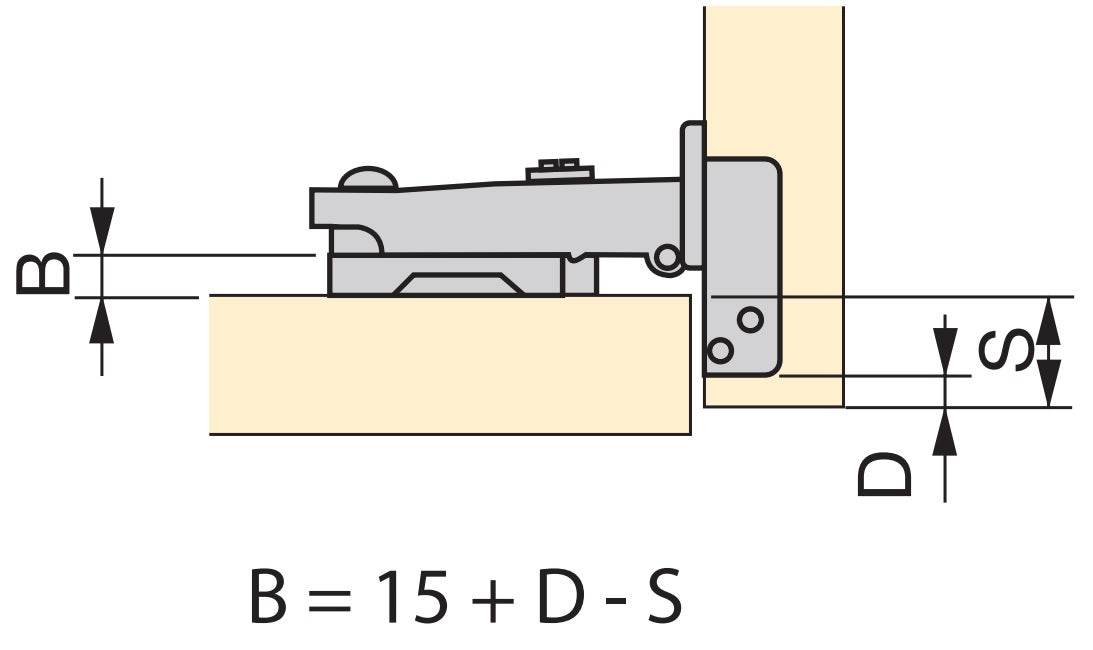

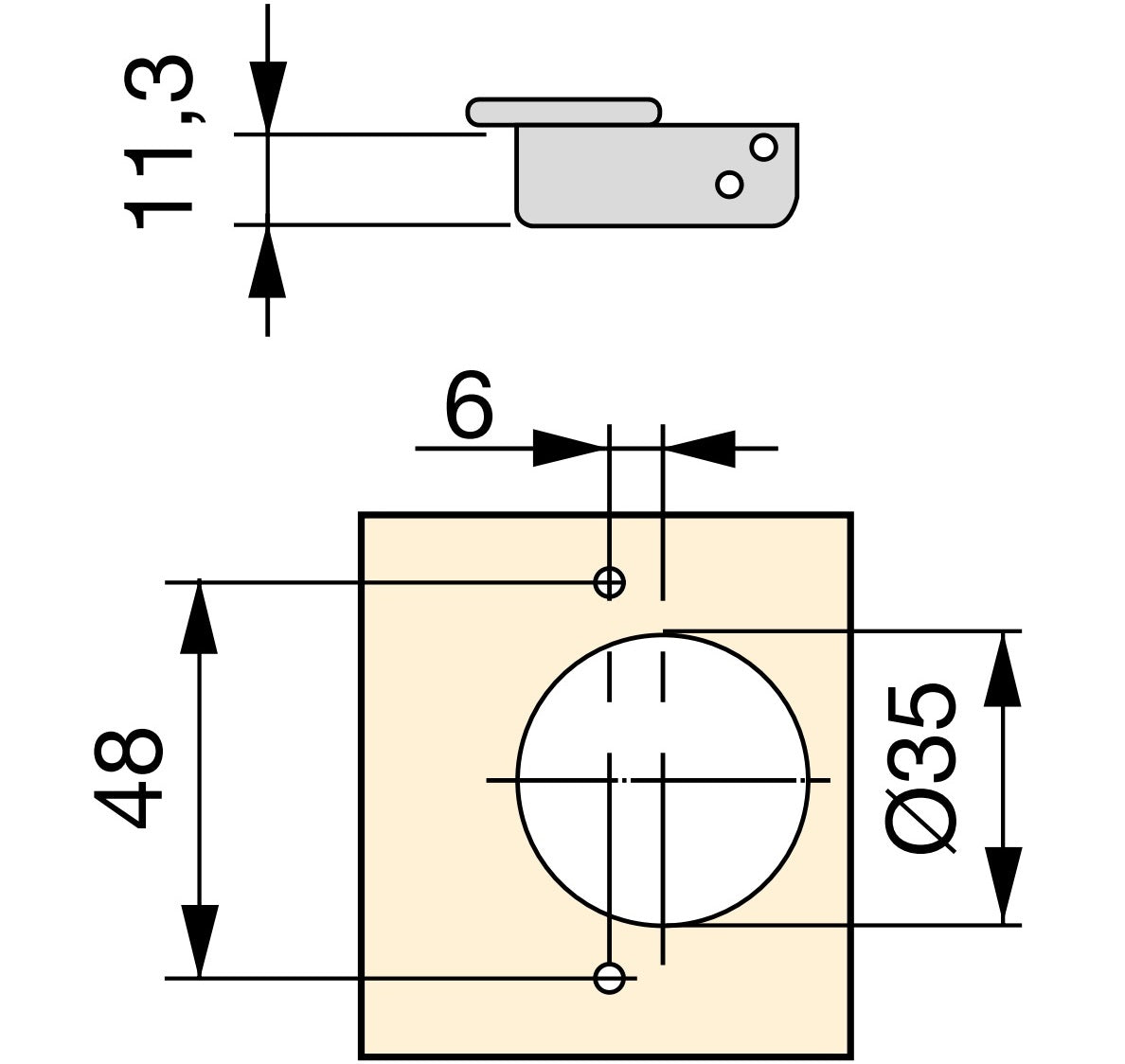

For further dimensions and details see technical drawing .

Included in delivery:

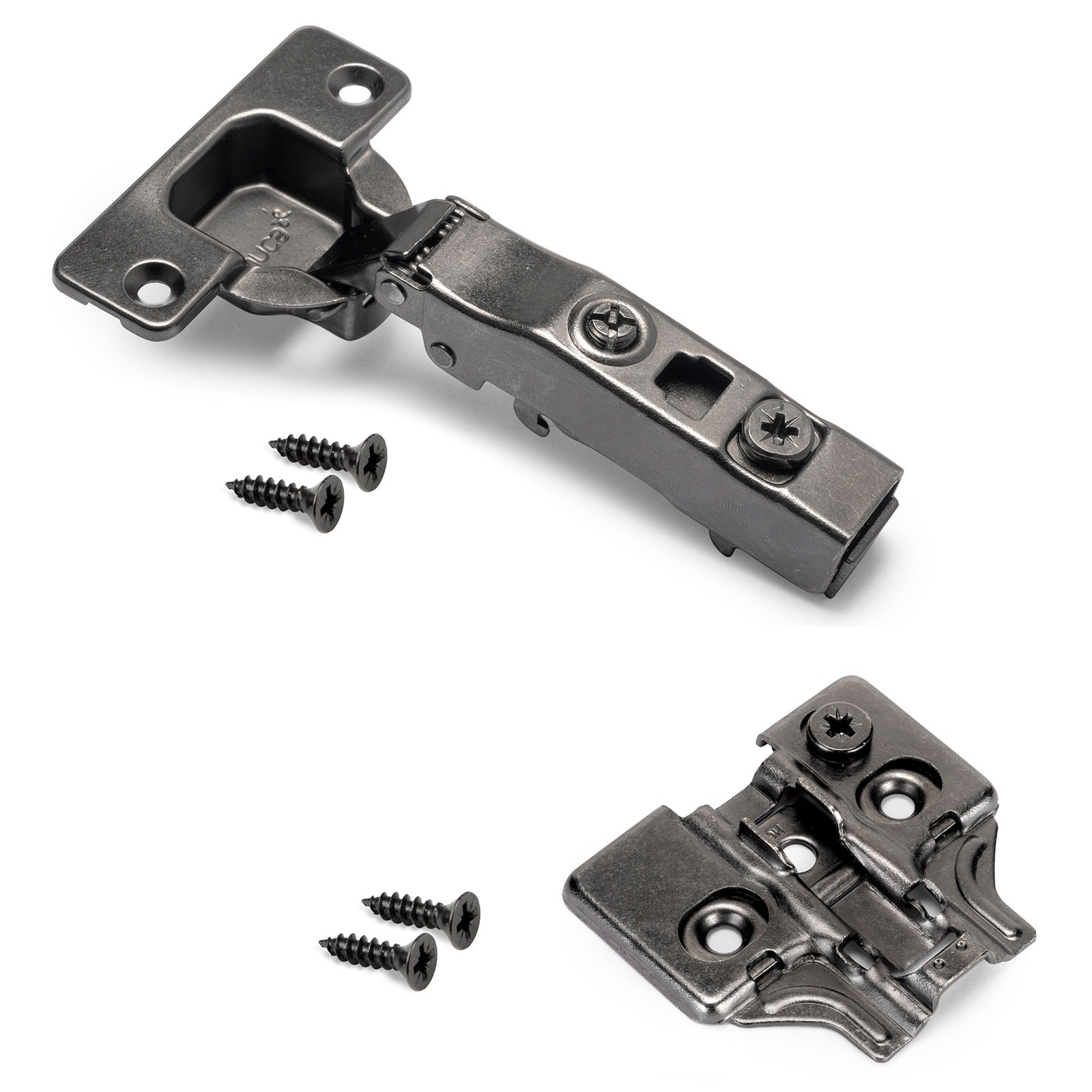

• 1 piece concealed hinge 1040052 made of robust steel, black nickel, design: surface-mounted (overlay)
• 1 piece mounting plate 1041552

Watch product video:

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article identification number: 1040052 and 1041552
• EAN number: 8432393139678 and 8432393139708

Manufacturer: EMUCA
