2 x 180° recessed table hinges made of robust nylon, beige finish, 35 mm (1.4"), 15.80.200-1. Hinge for folding tables, tabletops, table leaves, and much more, from SISO Denmark

2 table hinges, made of robust nylon (plastic) for recessing, 180°, surface: beige, 15.80.200-1, size: 35 mm (1.4")

Application: Flap hinge, for folding table, table top, table leaf and much more. The concealed furniture hinges 15.80.200-1 for recessing can be used to connect table tops or tabletops and are suitable for wood thicknesses of at least 18 mm (45/64″). [caption id="attachment_131990" align="alignnone" width="402"] Recessed table hinge, 180°, 35 mm, from SISO, beige. Application[/caption] The high-quality table hinges 15.80.200-1 have a simple and robust design and are ideal for, among others:

• Furniture flap
• folding table
• table top
• table top

Material:

• The table bands 15.80.200-1 are made of robust nylon (plastic)

Surface:

• Beige

Assembly:

• The table hinge 15.80.200-1 is for flush mounting
• Two mounting holes with a diameter of ⌀24 mm (15/16″) must be drilled in the table tops
• The mounting holes must be directly on the edge of the table
• The inlet hinge has four mounting holes for stable mounting

Characteristics:

• Weight: 27 g
• Size: 35 mm (1.4″)
• to let in
• Opening angle: 180 degrees
• robust
• stable
• beige
• nylon
• plastic
• high brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Outer diameter of the folding table hinge: ⌀35 mm (1-3/8″)
• Inner diameter: ⌀24.5 mm (31/32″)
• Depth: 16 mm (5/8″)
• Material thickness of mounting plate: 3 mm (1/8″)

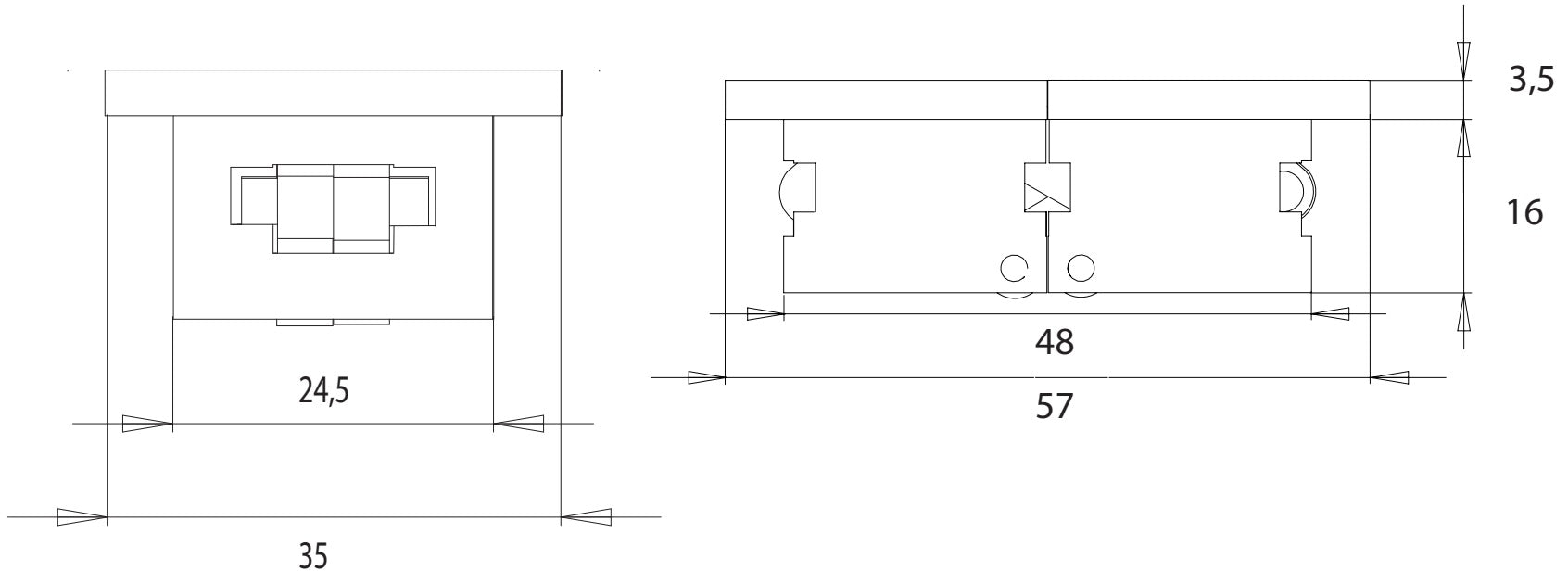

[caption id="attachment_132002" align="alignnone" width="420"] Recessed table hinge, 180°, 35 mm, from SISO, beige. Technical drawing[/caption] Included in delivery:

• 2 pieces table hinge 15.80.200-1 made of robust nylon, beige

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 15.80.200-1
• EAN number: 5704866062077

Manufacturer: SISO Denmark
