10 pieces of sturdy angle connectors with four connecting holes made of robust steel, surface: galvanized, 70 mm (2.8") 5135805. Mounting bracket E.FB.22 for shelves, bookcases, tables, cabinets and much more, by EMUCA

10 pieces 90 degree angle connectors made of robust steel, surface: galvanized 5135805

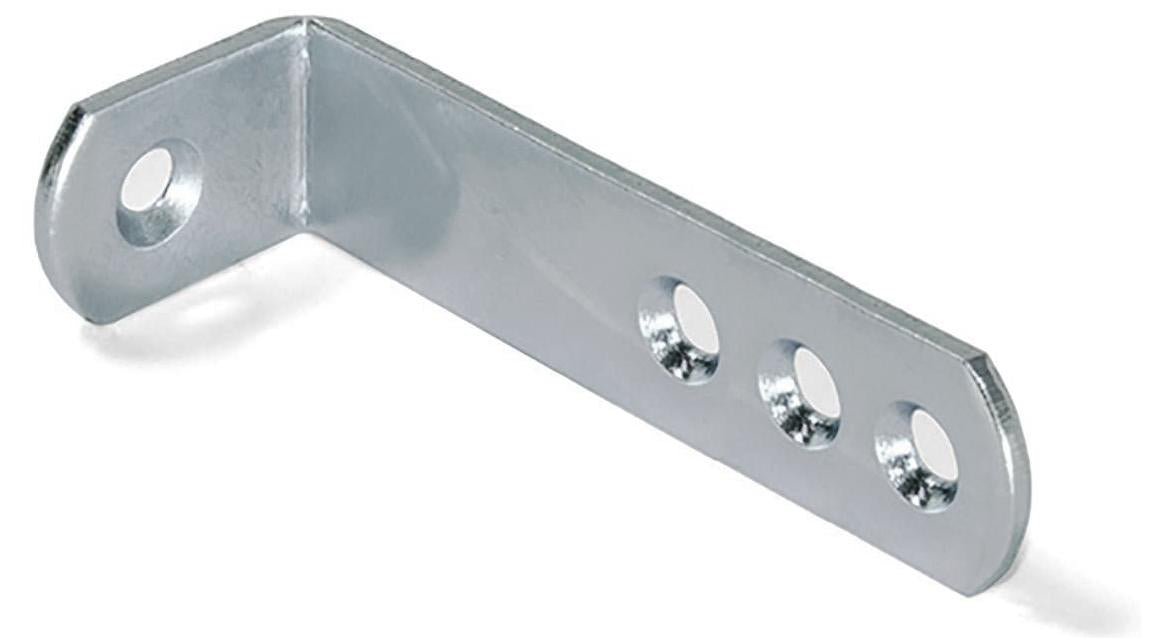

Application: [caption id="attachment_107772" align="alignnone" width="420"] Sturdy angle connector with four connection holes made of robust steel, finish: galvanized, 70 mm, from EMUCA, galvanized. Application[/caption] Mounting bracket E.FB.22 for shelves, bookshelves, tables, cupboards and much more. The sturdy steel angle connector can be used to attach all types of surfaces. The angle bracket contains one mounting hole on the shorter side and three mounting holes on the longer side of the angle. The high-quality angle connectors E.FB.22 are ideal for, among other things:

• shelf
• bookshelf
• Table
• Wardrobe

Material:

• The high-quality angle connectors E.FB.22 are made of robust steel

Surface:

• Galvanized

Assembly:

• For screwing
• Three-hole fastening on the longer side of the mounting bracket for a better hold
• The distances between the three mounting holes on the longer side of the metal bracket are 10 mm (25/64″)

Characteristics:

• Weight: 19.4 g
• Size: 70 mm (2.8″)
• With four mounting holes
• Rectangular
• Stable
• Solid
• Robust
• Galvanized
• High brand quality from UMAXO®

Dimensions: For further dimensions and details see technical drawing .

• Angle connector size: 70 mm (2-3/4″) x 22.5 mm (57/64″)
• Width: 15 mm (19/32″)
• Material thickness: 2 mm (5/64″)
• Diameter of the mounting hole on the shorter side: Φ6 mm (15/64″)
• Diameter of the mounting holes on the longer side: Φ4.5 mm (11/64″)

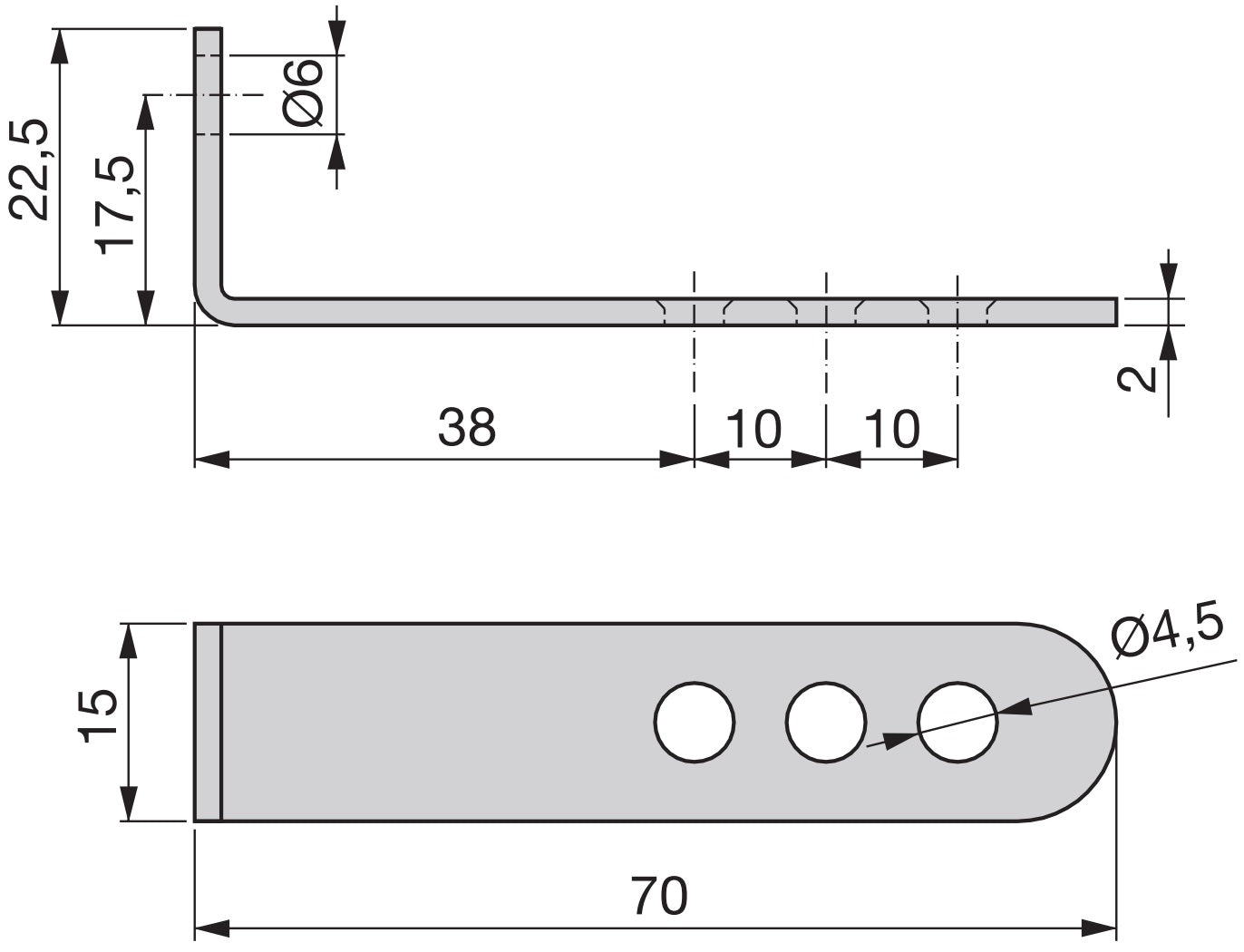

[caption id="attachment_107790" align="alignnone" width="420"] Stable angle connector with four connection holes made of robust steel, surface: galvanized, 70 mm, from EMUCA, galvanized. Technical drawing[/caption] Included in delivery:

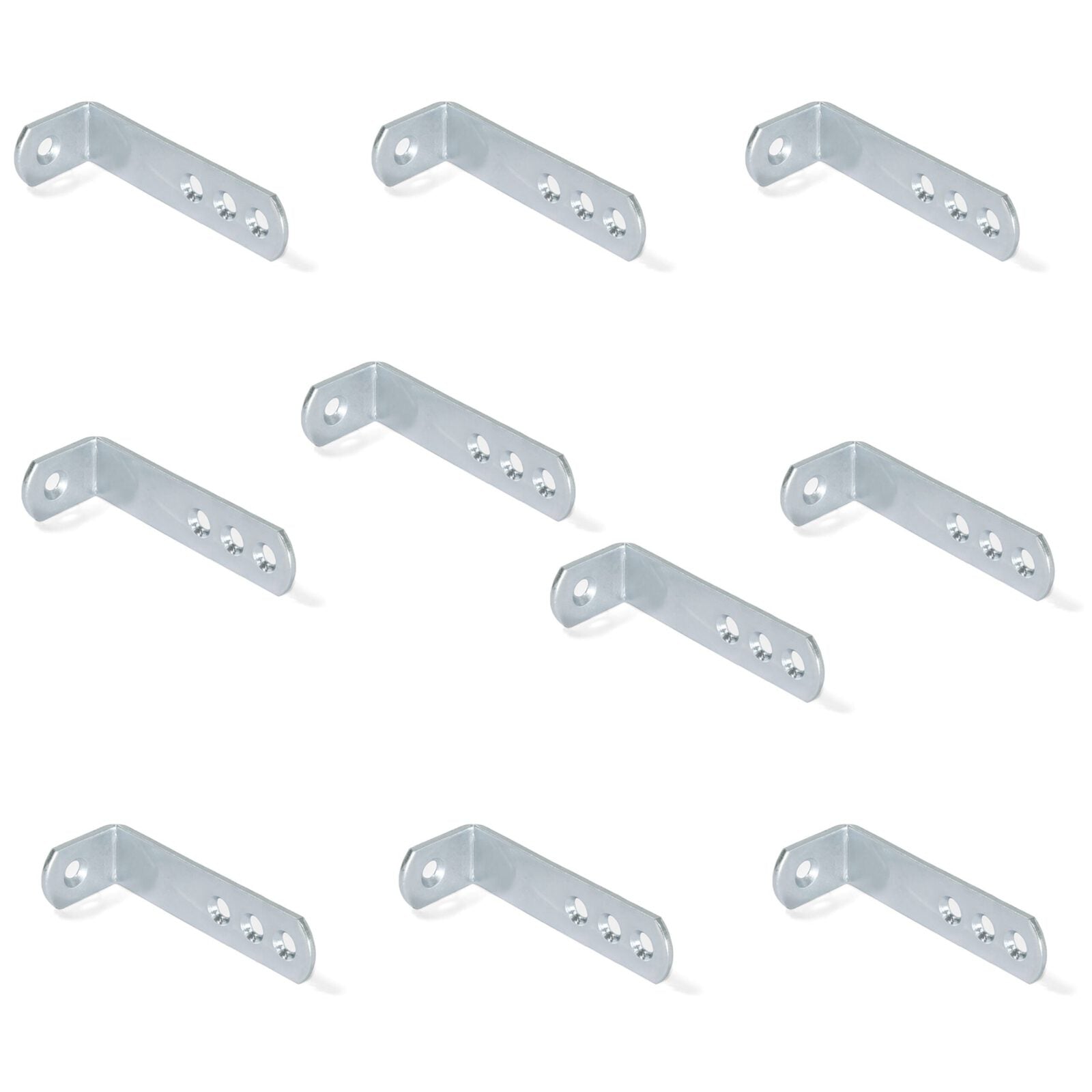

• 10 pieces of angle connectors E.FB.22 made of robust steel, galvanized

Manufacturer reference number:

• Article number: 5135805
• EAN number: 8432393112275

Manufacturer: EMUCA
