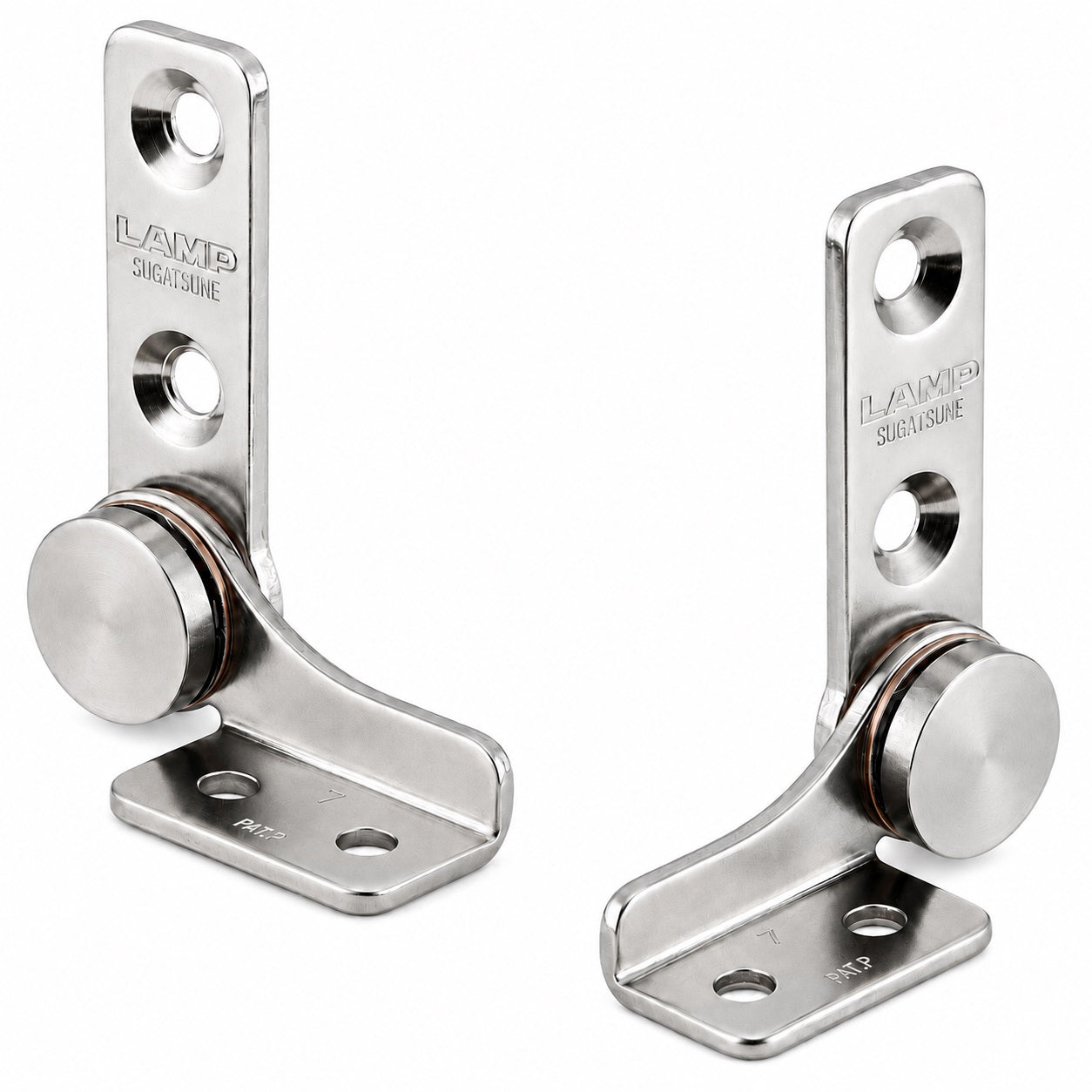

Set of 2 high-quality friction hinges (left + right), torque: 1.4 N·m, made of high-quality rustproof SUS430 stainless steel (1.4016 or X6Cr17), surface: polished gloss, HG-TB7 (HG-TB7L and HG-TB7R)

Application:

2 high-quality friction hinges for appliance lids, furniture flaps, monitor housings, and much more.

The HG-TB7 torque hinge set consists of a left (HG-TB7L) and a right (HG-TB7R) hinge for symmetrical, horizontally mounted flap guidance.

Each hinge generates a constant torque of 0.7 N·m, allowing for stepless positioning of the flap within the appropriate load range.

Together, both hinges provide a nominal total torque of 1.4 N·m and distribute the load evenly to both sides.

The free-stop function holds lids, displays, or appliance flaps in the desired position without additional detents.

The mirror-image left-right design ensures clean installation and stable, controlled movement in both directions of rotation.

The robust SUS430 stainless steel construction is particularly suitable for appliances, furniture, and technical installations.

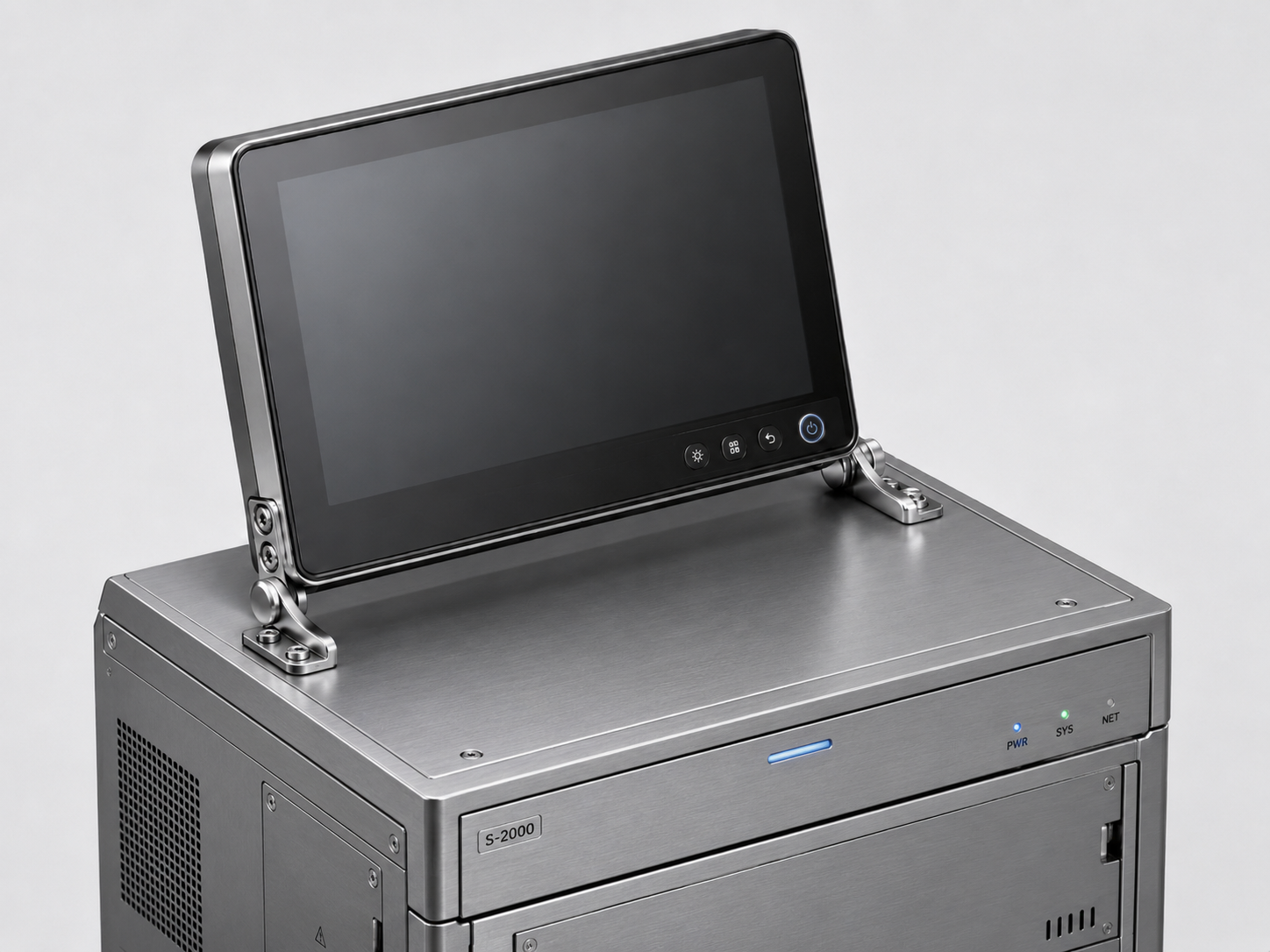

The high-quality HG-TB7 friction hinges (HG-TB7L and HG-TB7R) are ideally suited for, among other things:

• LCD mounts
• Surveillance cameras
• Control panels
• Machine covers
• Display units
• Consoles
• Technical housings
• Appliance lids
• Furniture flaps
• Monitor housings

Material:

• The HG-TB7L and HG-TB7R friction hinges are made of high-quality rustproof SUS430 stainless steel (1.4016 or X6Cr17)
• SUS430 stainless steel (1.4016) offers solid corrosion resistance for dry to moderately humid interiors, making it well-suited for furniture and industrial fittings without chloride exposure
• It is ferromagnetic, making it ideal for magnetic catches, detent mechanisms, and strike plates

Surface:

• Polished gloss
• Polished gloss surfaces on furniture fittings and components enhance aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface facilitates cleaning and reduces the adhesion of dirt and contaminants

Installation:

• First, the mounting positions on the flap and on the cabinet body or appliance housing must be marked and pre-drilled according to the technical dimension drawing
• The HG-TB7L is mounted on the left side and the HG-TB7R on the right side
• Both hinge axes must be precisely at the same height, horizontally aligned, and flush with each other
• For the necessary alignment clearance, the mounting holes must be made slightly oversized with a tolerance of C0.5 according to the manufacturer's specifications
• The vertical legs are securely fastened with M5 countersunk screws and the horizontal legs with M5 pan-head or cylinder head screws
• Then, the flap must be operated over the entire range of motion, and the secure positioning in different opening positions must be checked

Features:

• Weight: 62 g
• Size: 52.5 mm (2-1/16″)

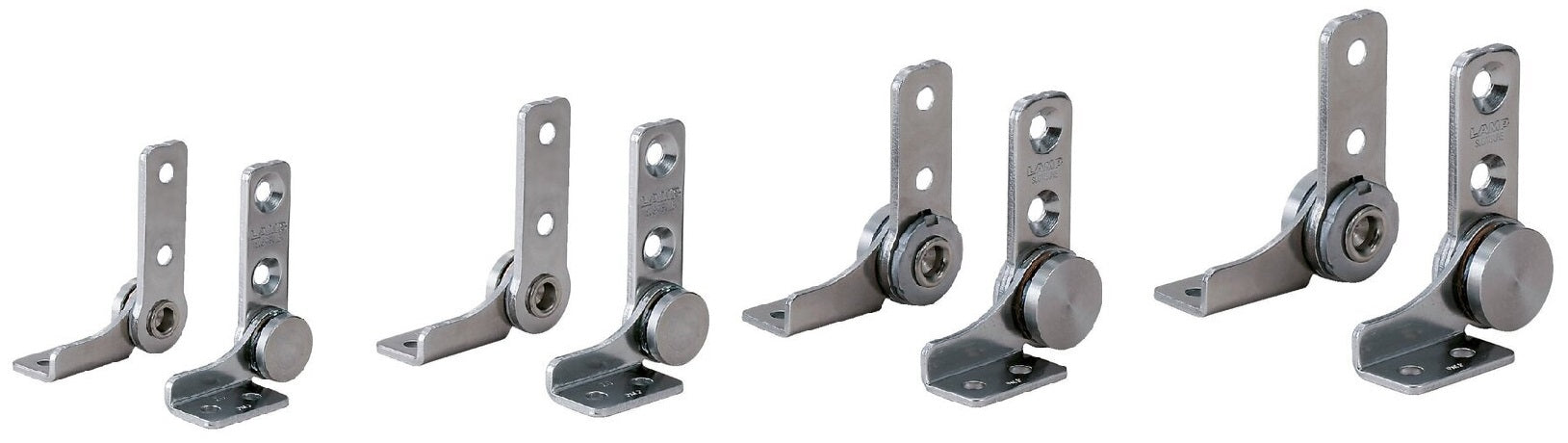

• Available in four different torque levels: 1.4 N·m (HG-TB7), 4 N·m (HG-TB20), 6 N·m (HG-TB30) and 9 N·m (HG-TB45)
• Easy to install
• Practical
• Stable
• Set of one left and one right torque hinge
• HG-TB7L for the left side
• HG-TB7R for the right side
• Constant torque in both directions of movement
• Stepless free-stop function
• Opening angle up to 360°
• For horizontal mounting
• Main material SUS430 stainless steel
• Operating temperature from 0 °C to 40 °C
• Internally tested by the manufacturer with 20,000 opening and closing cycles
• Mirror-image left-right design
• Suitable for technical and industrial applications
• Material thickness: 2.5 mm (3/32″)
• Polished gloss
• Weather-resistant
• Rustproof (corrosion-resistant)
• High brand quality from Sugatsune / LAMP®

Dimensions:

• The dimensions apply to both left and right hinges; the two versions are mirror images
• Height of the torque hinges: 52.5 mm (2-1/16″)
• Depth: 42.5 mm (1-43/64″)
• Width: 19 mm (3/4″)

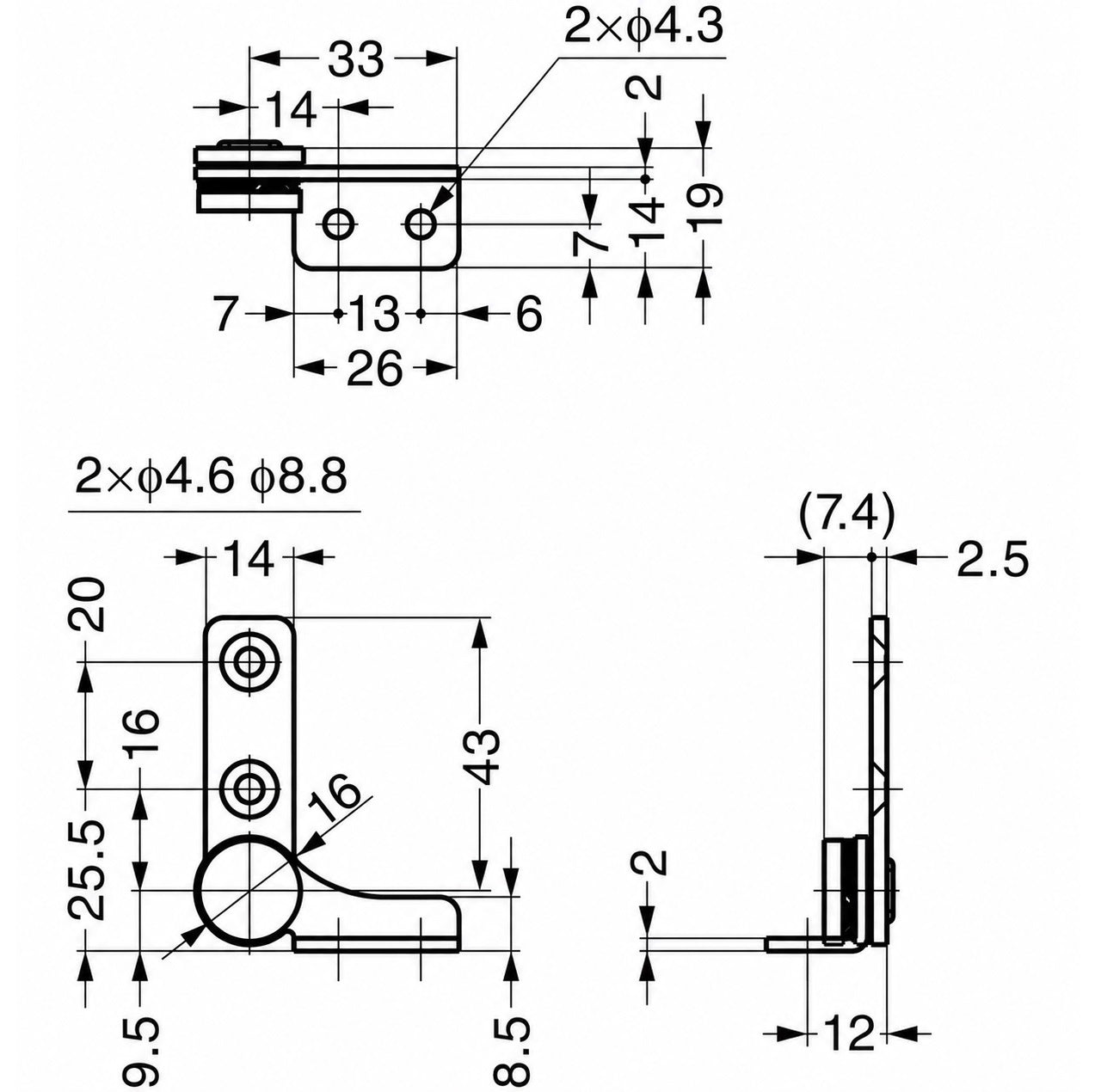

For further dimensions and details, please see technical drawing.

Included in the scope of delivery:

• 1 set of HG-TB7 torque hinges (HG-TB7L and HG-TB7R) made of high-quality rustproof SUS430 stainless steel, polished gloss
• Please note that no mounting screws are included in the scope of delivery

Watch product video:

Manufacturer's reference numbers:

• Item identifier: HG-TB7L and HG-TB7R (alternatively: 170-022-143 and 170-022-142)
• Article number: HG-TB7
• GTIN number (EAN, UPS): 4510932022965 and 4510932022958

Manufacturer: Sugatsune / LAMP® (Japan)
