2 Stück Hochwertiges Sepa-Scharnier zum Einlassen, 180°, für unsichtbaren Anschlag, Oberfläche: Edelstahl Look, 52 mm (2,1″), 15.04.076-0. Möbel-Einfrässcharnier, für Möbeltür, Schranktür, Klapptisch, Klappe, Kiste und viel mehr, von SISO Denmark

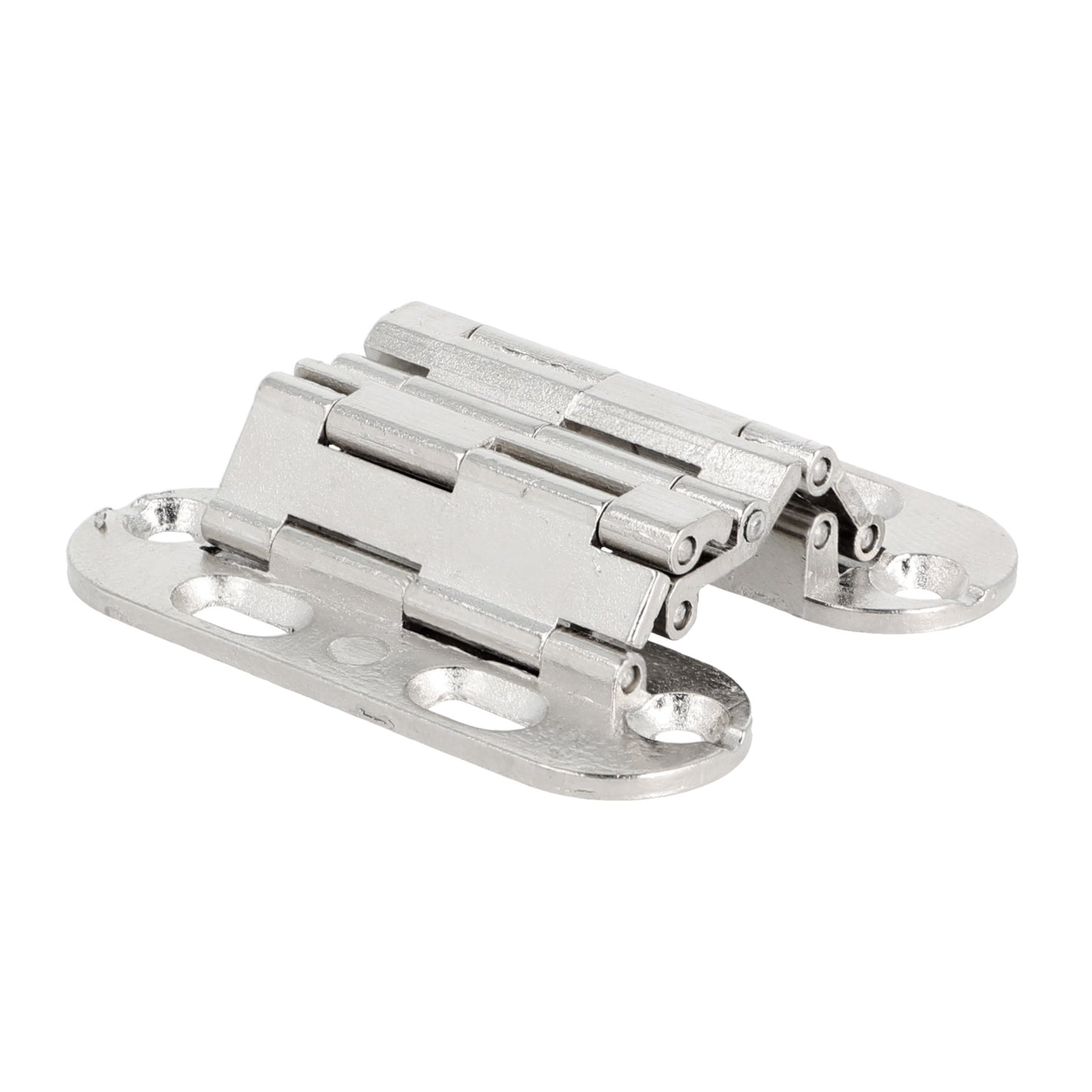

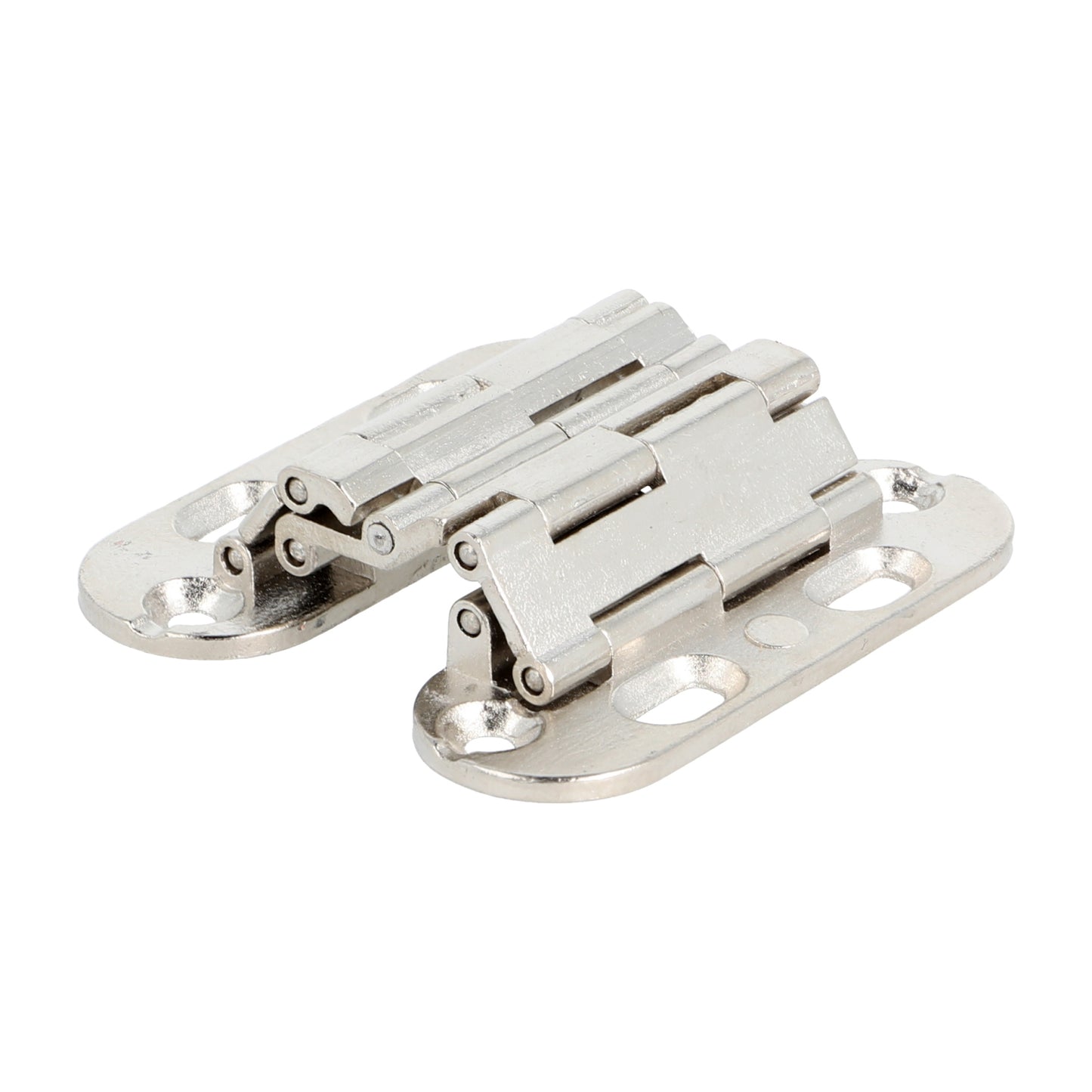

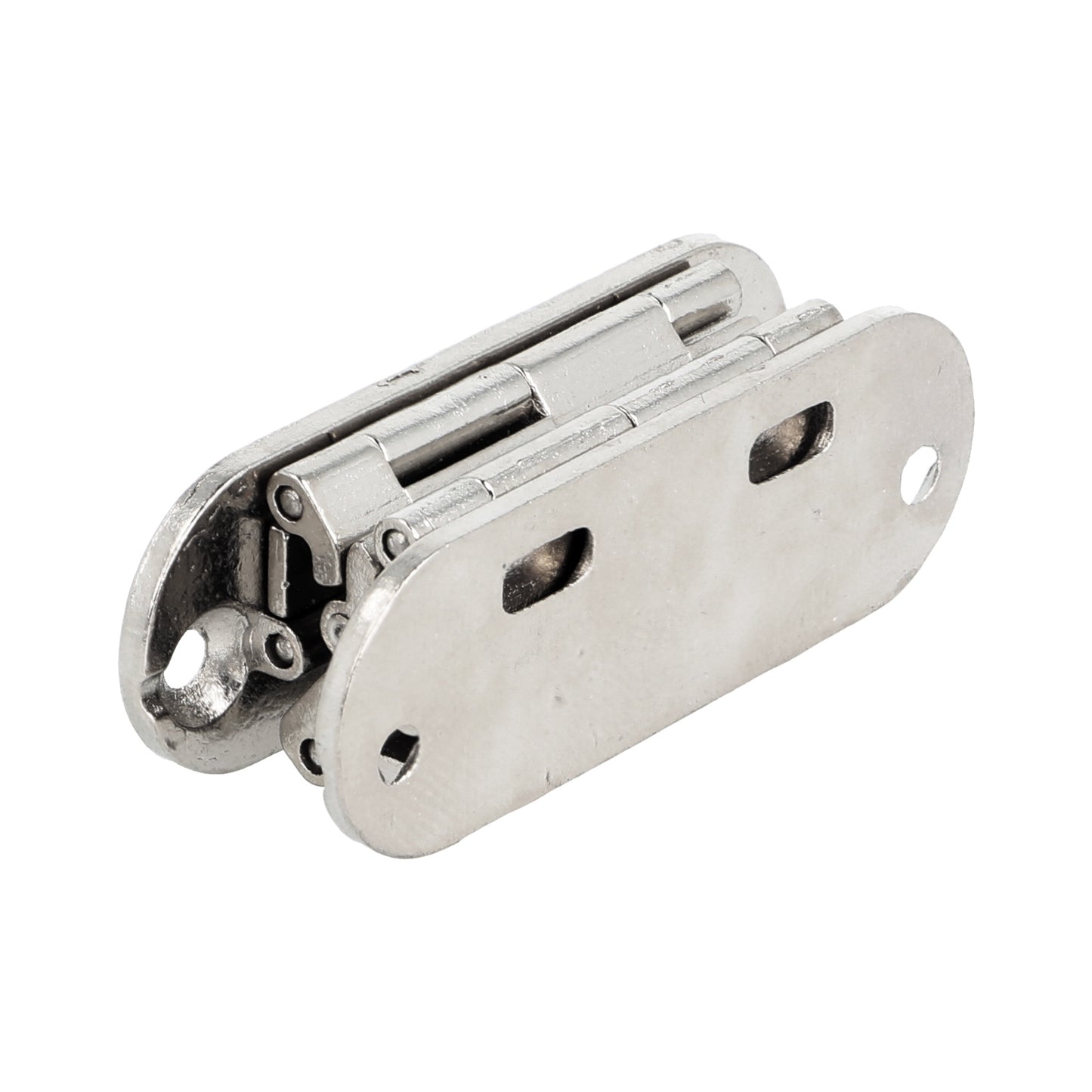

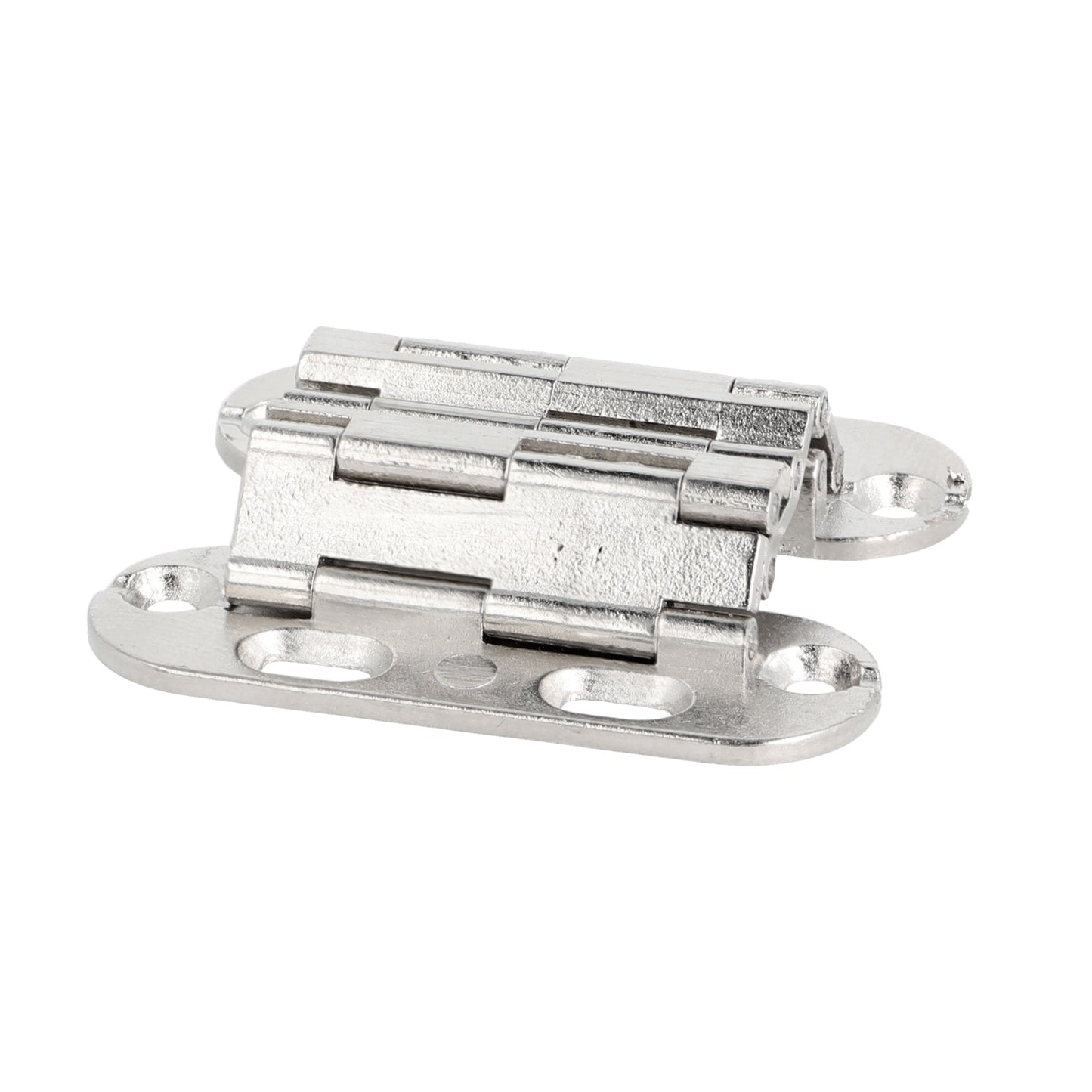

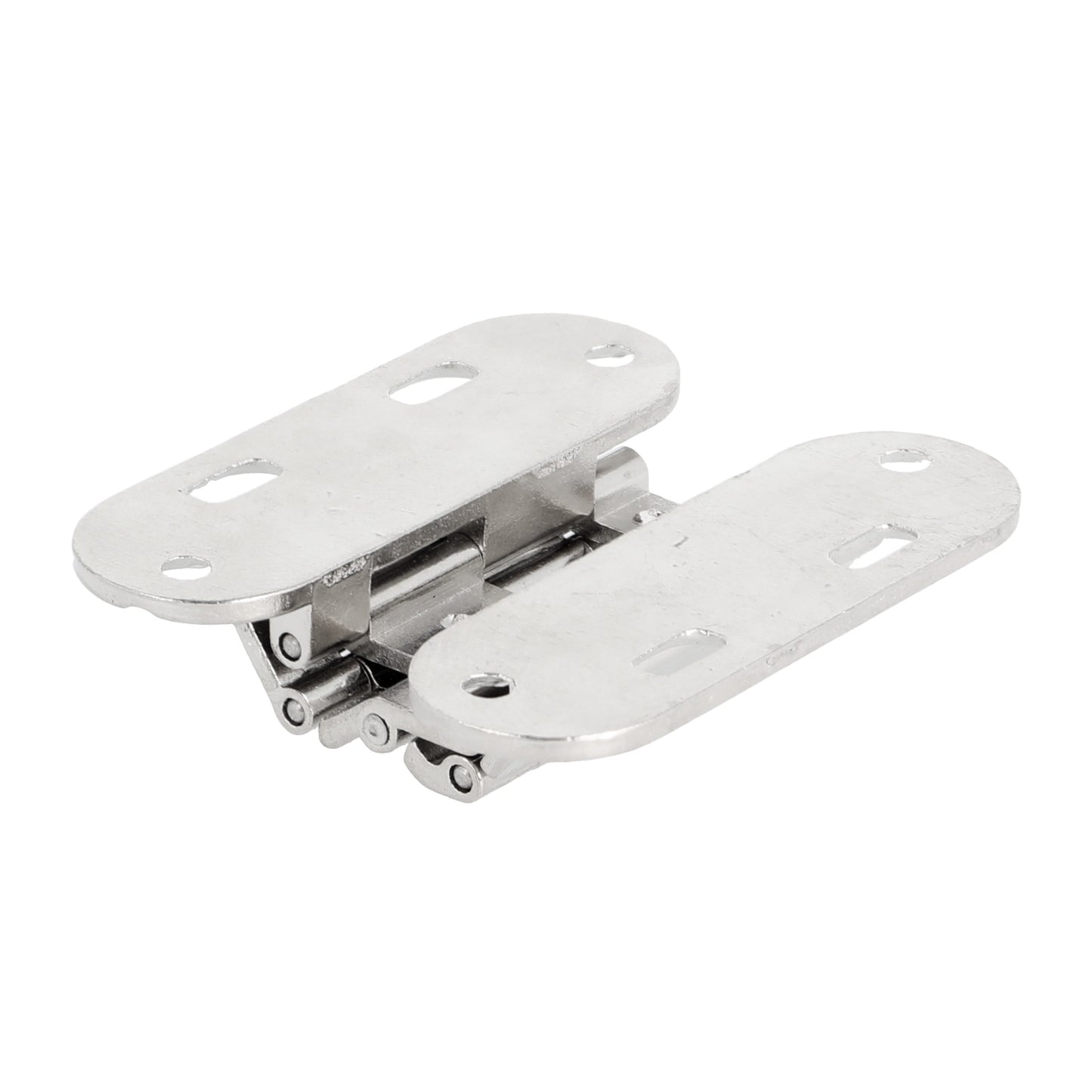

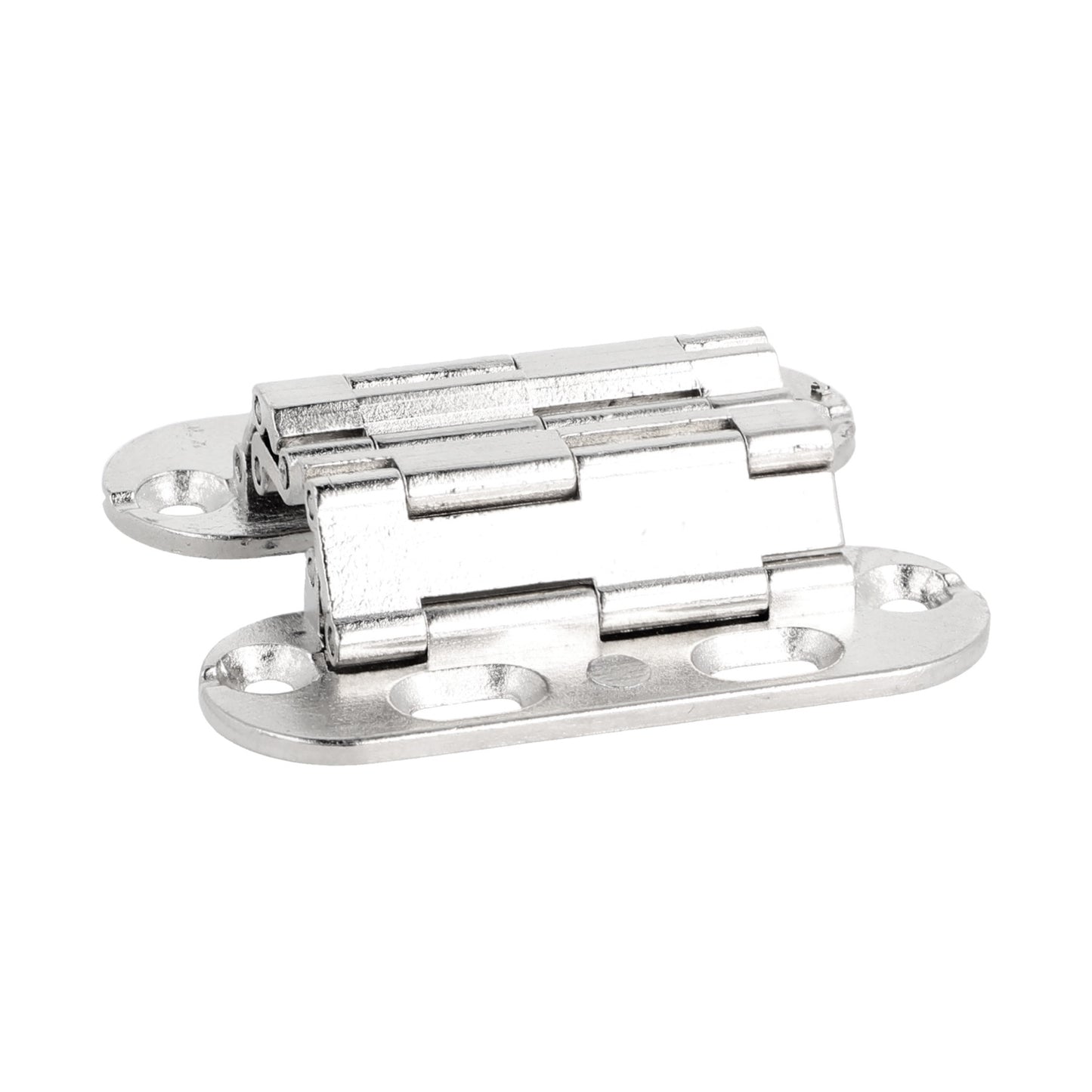

2 pieces Sepa hinge, made of solid die-cast zinc for recessing, 180°, for invisible stop, rounded, surface: stainless steel look, 15.04.076-0, size: 52 mm (2.1")

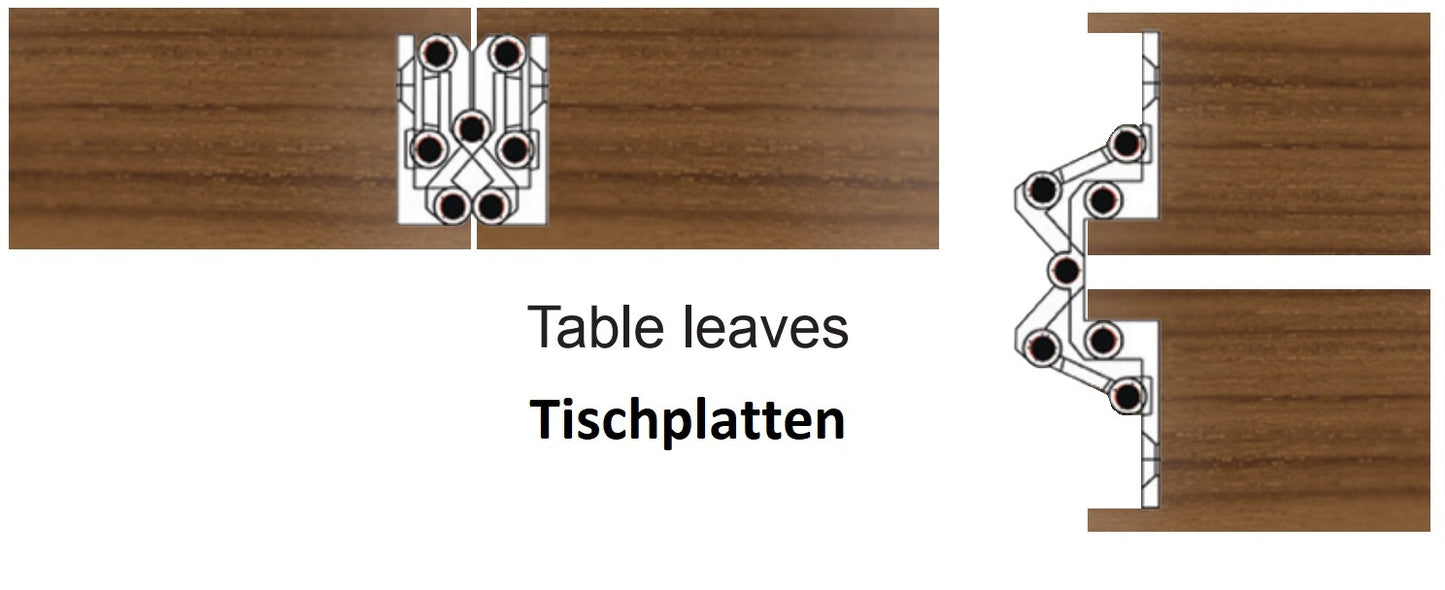

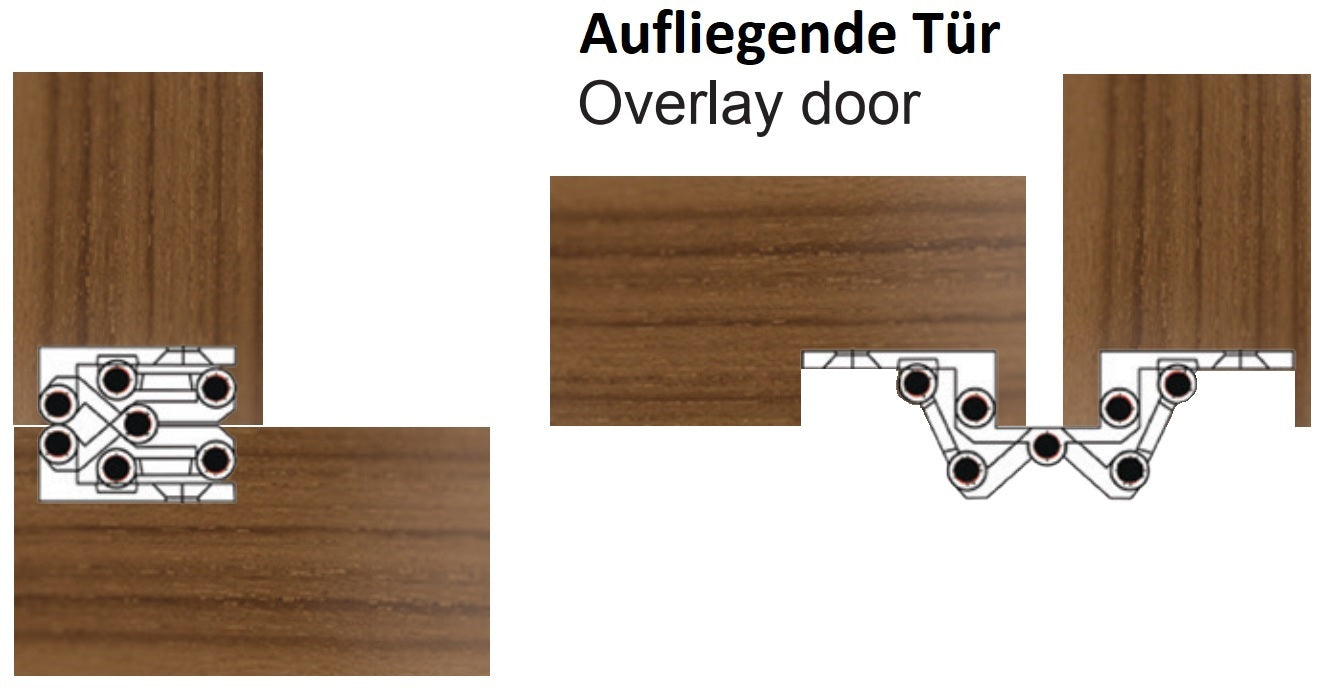

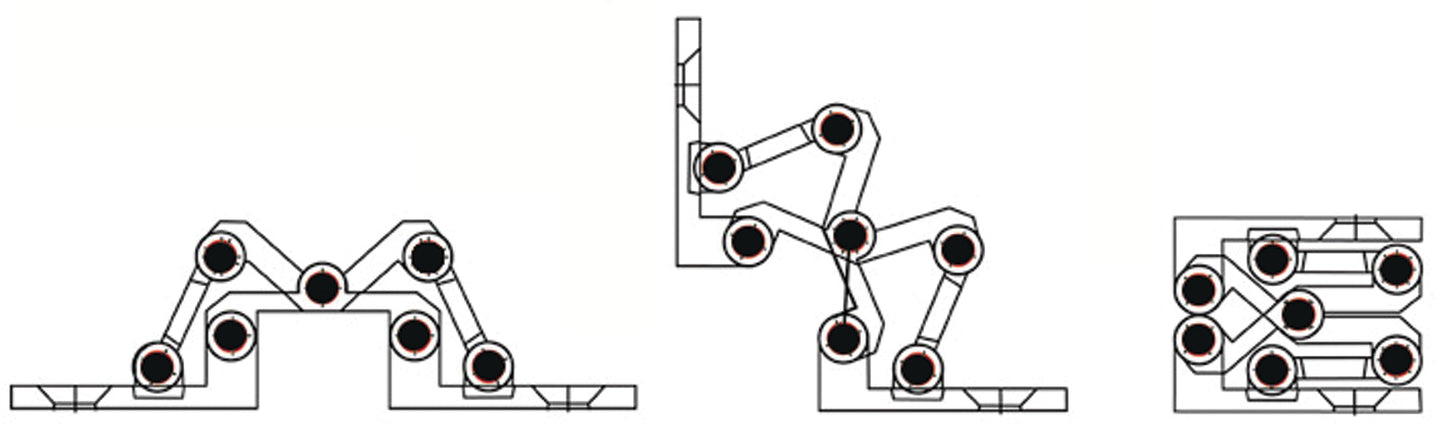

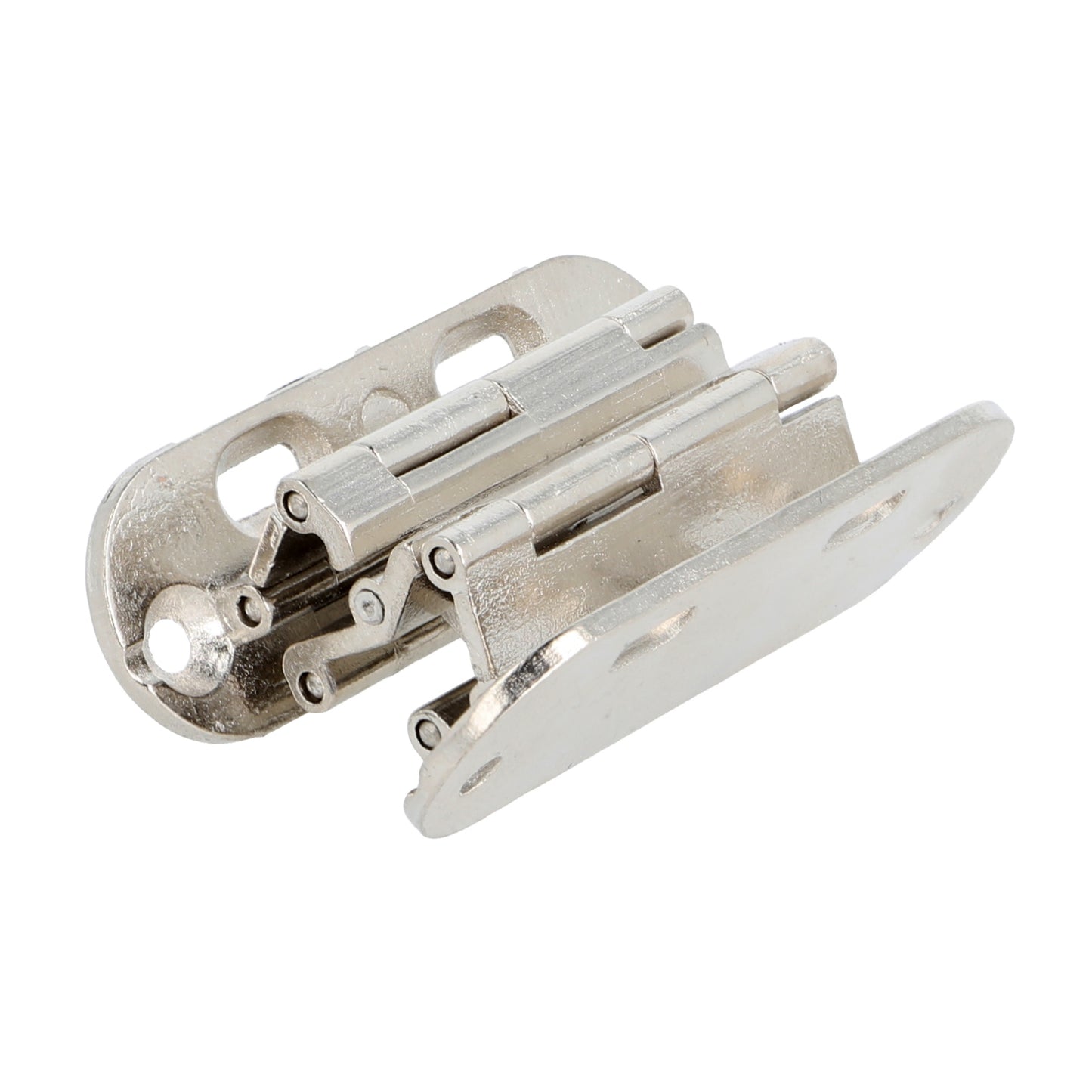

Application: Furniture milled hinge, for furniture doors, cupboard doors, folding tables, flaps, boxes and much more. The 15.04.076-0 furniture hinges for concealed mounting feature seven axes connected by robust stainless steel pins. This gives these furniture hinges exceptional movement kinematics and stability. [caption id="attachment_131807" align="alignnone" width="420"] High-quality Sepa hinge for recessed installation, 180°, for concealed mounting, 52 mm, from SISO, stainless steel look. Application: surface-mounted door[/caption] The concealed furniture hinges 15.04.076-0 can be used to connect table tops or tabletops and are suitable for wood thicknesses of at least 26 mm (1-1/32″). They are also suitable for both inset and overlay furniture doors, cupboard doors and furniture flaps of all kinds. [caption id="attachment_131819" align="alignnone" width="420"] High-quality Sepa hinge for recessed installation, 180°, for invisible mounting, 52 mm, from SISO, stainless steel look. Application: Table top.[/caption] The sturdy Sepa hinges 15.04.076-0 have a maximum load capacity of 20 kg for two hinges. The high-quality furniture hinges 15.04.076-0 have a simple and robust design and are ideal for, among others:

• Window
• Furniture door
• cabinet door
• folding table
• flap
• Box

Material:

• The furniture hinges 15.04.076-0 are made of solid die-cast zinc

Surface:

• stainless steel look

Assembly:

• The Sepa hinge 15.04.076-0 is for flush mounting
• The inlet hinge has eight mounting holes for stable mounting
• First, the wooden panels are milled out at the appropriate places
• Then the Sepa hinge is inserted into the cutout and first fixed through the slots
• If necessary, the furniture hinge must be adjusted using the slotted hole and the screws tightened
• The round holes are then also screwed (for further details see assembly drawing )

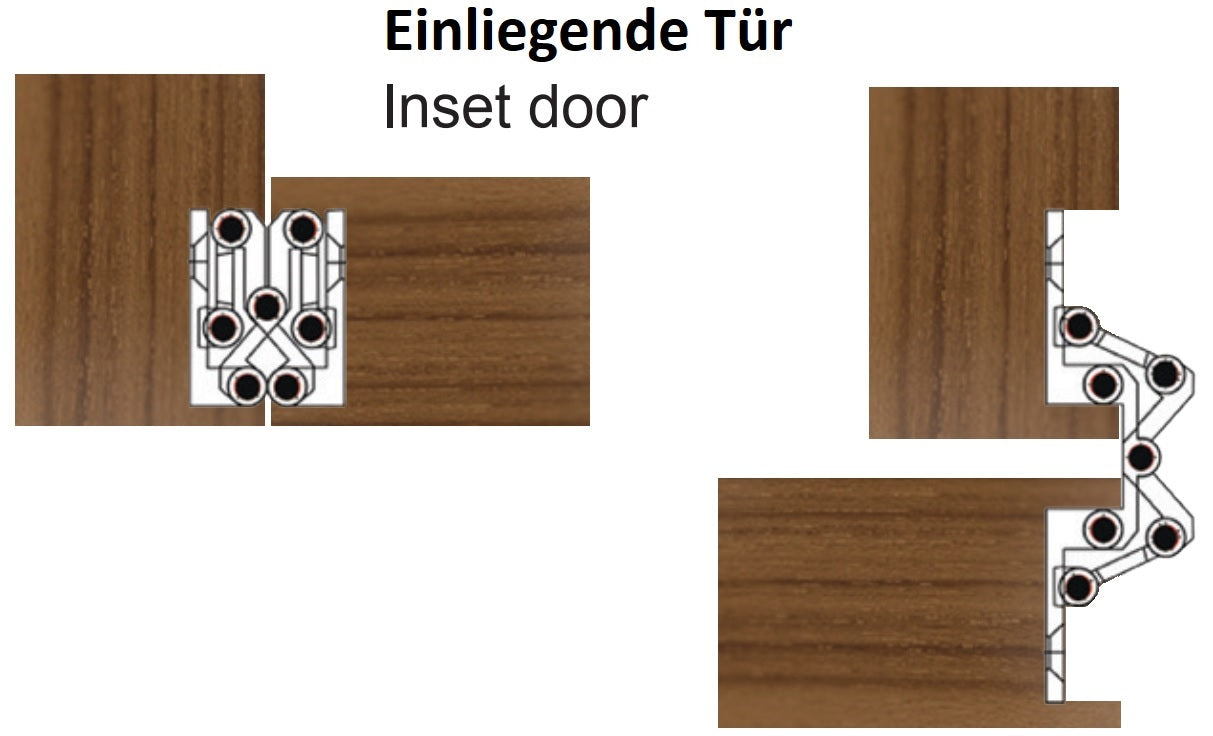

[caption id="attachment_131831" align="alignnone" width="420"] High-quality Sepa hinge for inset installation, 180°, for concealed mounting, 52 mm, from SISO, stainless steel look. Installation drawing: inset door[/caption] Characteristics:

• Weight: 46 g
• Load capacity: 20 kg for 2 pieces
• Size: 52 mm (2.1″)
• to let in
• Opening angle: 180 degrees
• Adjustment: +/- 2.5 mm via slotted holes
• with rounded tabs for machine installation
• concealed mounting
• for invisible stop
• can be used on the left or right
• high quality
• robust
• stable
• stainless steel look
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

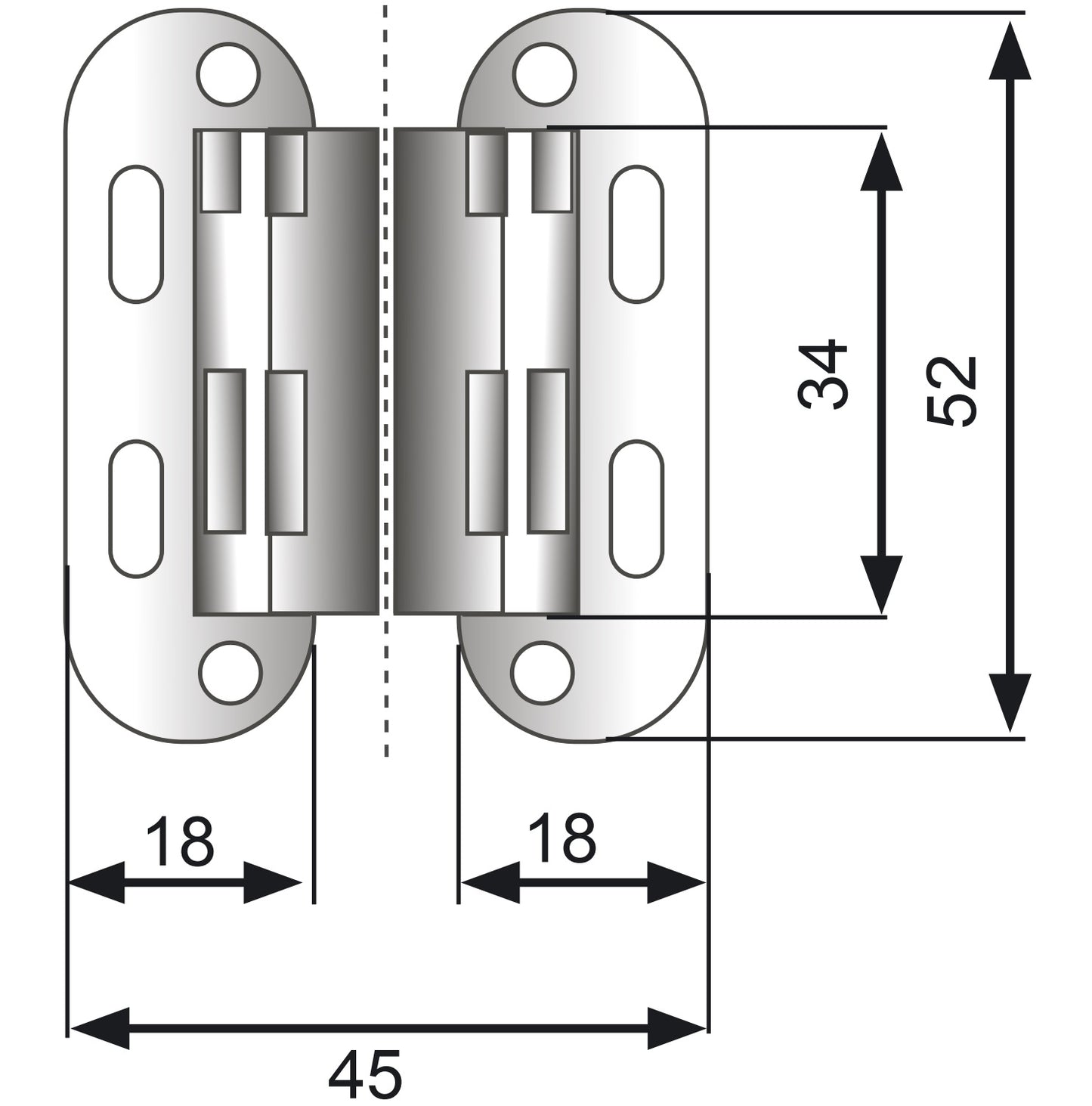

For further dimensions and details see technical drawing . The dimensions:

• Length of the furniture hinge: 52 mm (2-3/64″)
• Width of the flaps: 18 mm (45/64″)
• Depth: 11 mm (7/16″)

[caption id="attachment_131843" align="alignnone" width="415"] High-quality Sepa hinge for recessed installation, 180°, for invisible mounting, 52 mm, from SISO, stainless steel look. Technical drawing[/caption] Included in delivery:

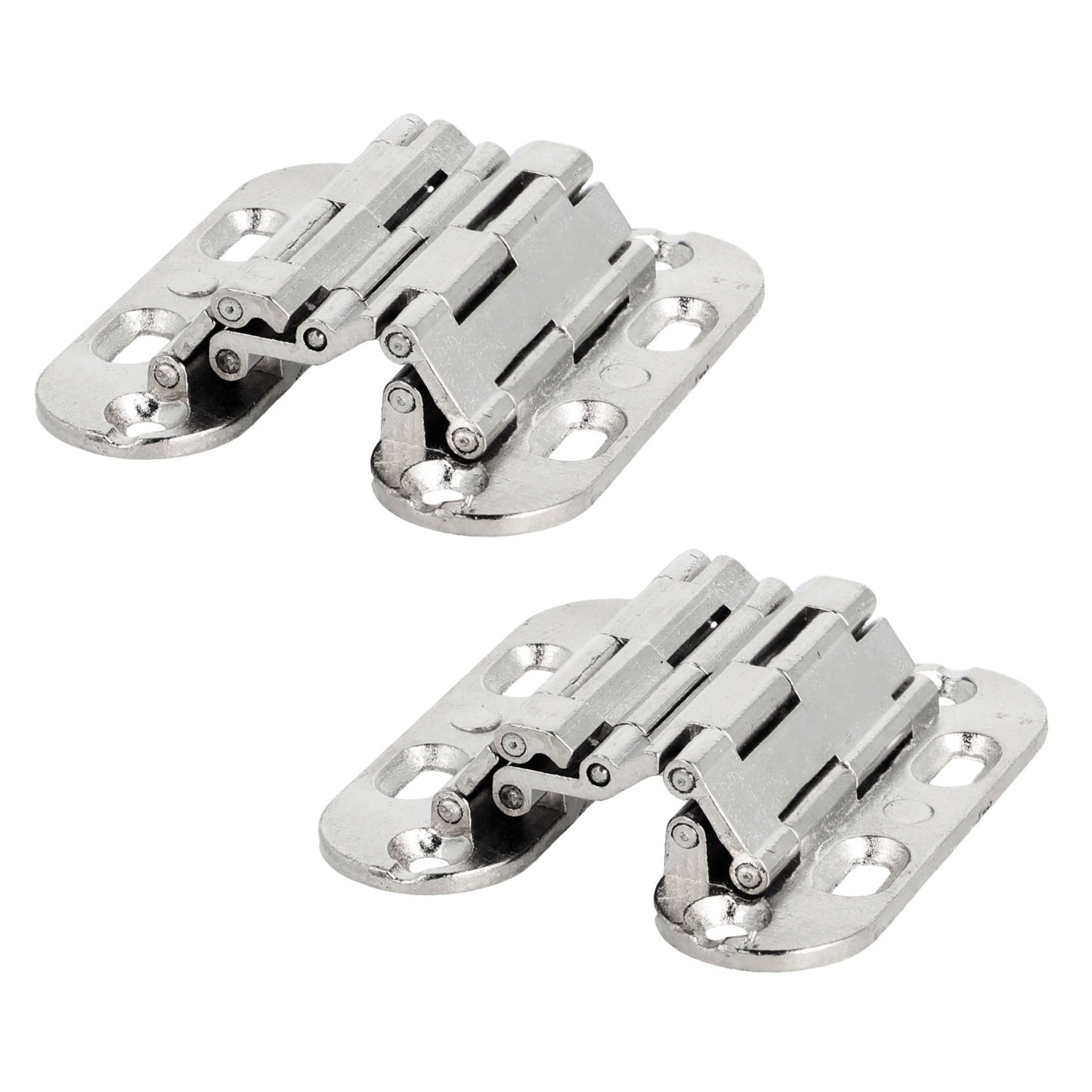

• 2 pieces Sepa hinge 15.04.076-0 made of solid zinc die-cast, stainless steel look

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 15.04.076-0
• EAN number: 5704866053419

Manufacturer: SISO Denmark
