2 high-quality heavy-duty mounting brackets, load capacity: 30 kg (67 lbs), finish: black, 86 mm (3.4"), BTK-85B. Heavy-duty shelf brackets for shelves, dividers, shelves, corner joints, and much more, from Sugatsune / LAMP® (Japan)

2 pieces of high-quality 5 mm thick heavy-duty mounting brackets, made of robust steel, surface: black, BTK-85B, size: 86 mm (3.4"), load capacity: 30 kg (67 lbs)

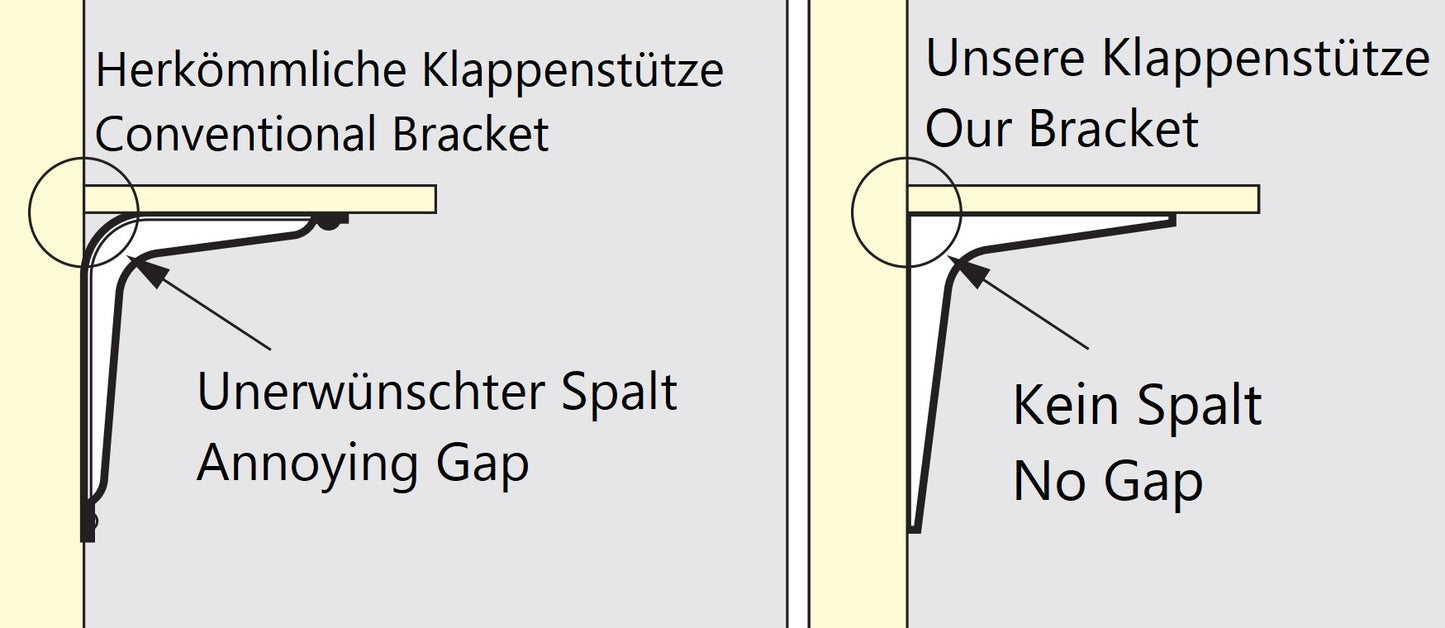

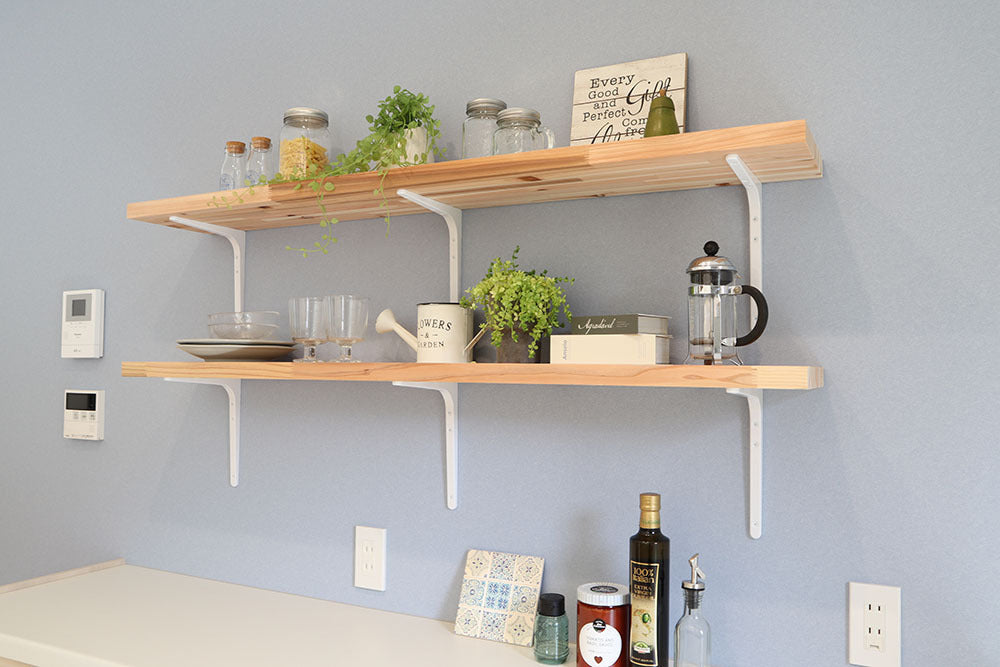

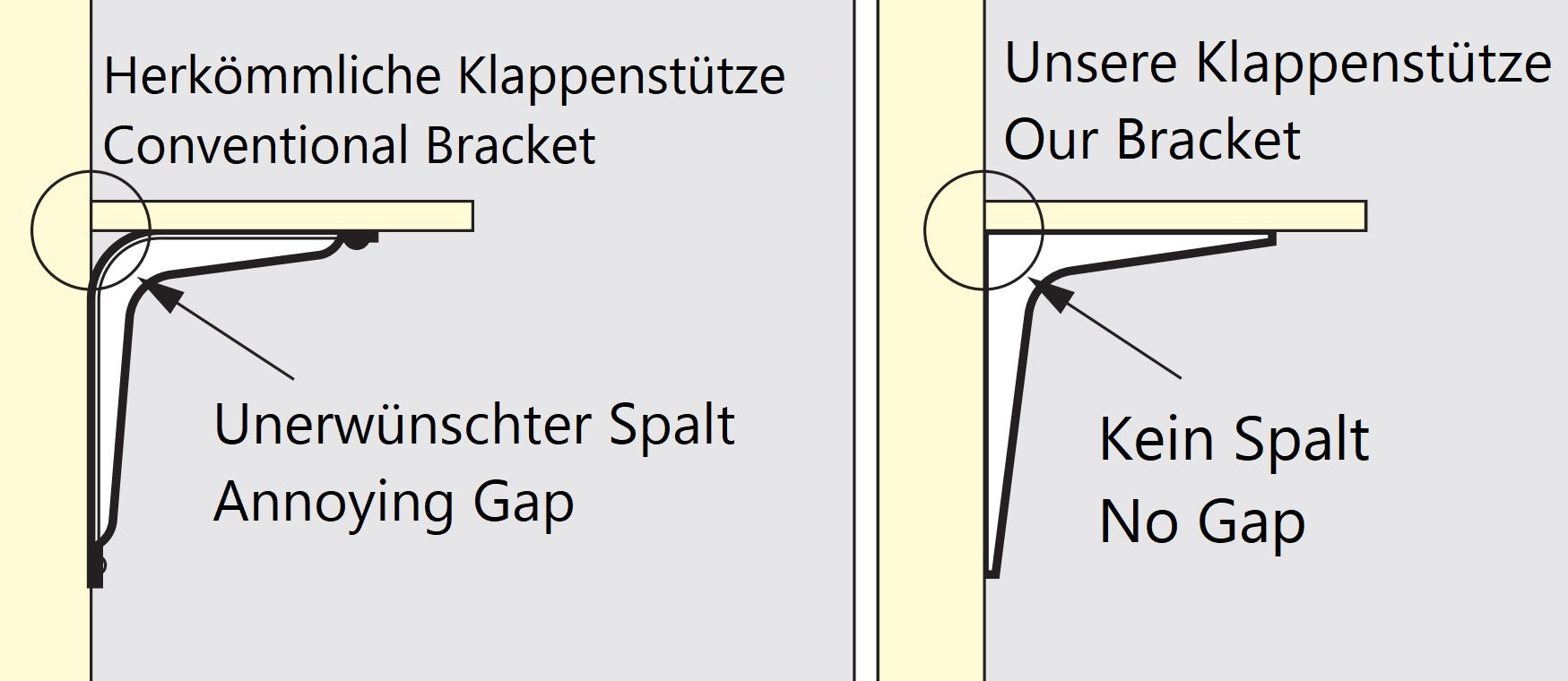

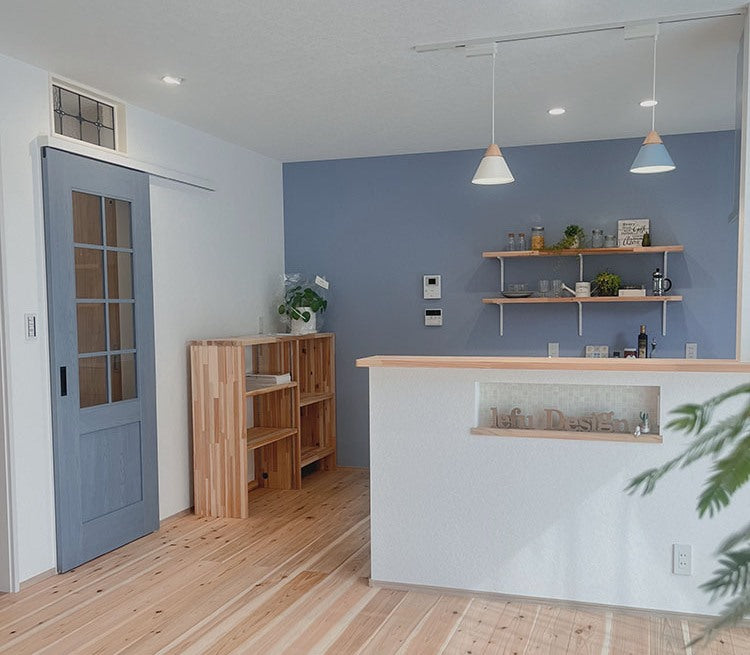

Application: Heavy-duty shelf brackets for trays, partitions, shelves, shelves, corner connections and much more. [caption id="attachment_148945" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Application example[/caption] The BTK-85B heavy-duty mounting brackets are made of solid 5 mm (13/64″) thick steel. The BTK-85B shelf brackets combine high load capacity and modern design. [caption id="attachment_148955" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Example of use in the kitchen[/caption] The supplied screws also have a black surface colour, matching the surface colour of the heavy-duty mounting bracket One of the special features of the BTK-85B heavy-duty mounting bracket is that the angle between the wall and the shelf is not rounded and is exactly 90 degrees, which means that there is no gap in the corner between the heavy-duty shelf bracket and the wall. [caption id="attachment_148965" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm, and 480 mm. The BTK-85B heavy-duty shelf bracket is very stable, has an excellent load capacity of 30 kg (67 lbs), and a support surface length of 86 mm (3.4"). The high-quality heavy-duty mounting brackets BTK-85B are ideal for, among other things:

• shelf
• partition
• shelf
• shelf
• Corner connection

Material:

• The heavy-duty mounting brackets BTK-85B are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Black
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish
• While interior design styles may change, black always remains a safe choice that can easily be adapted to new trends
• Black surfaces can be used in different rooms, be it the kitchen, living room or office

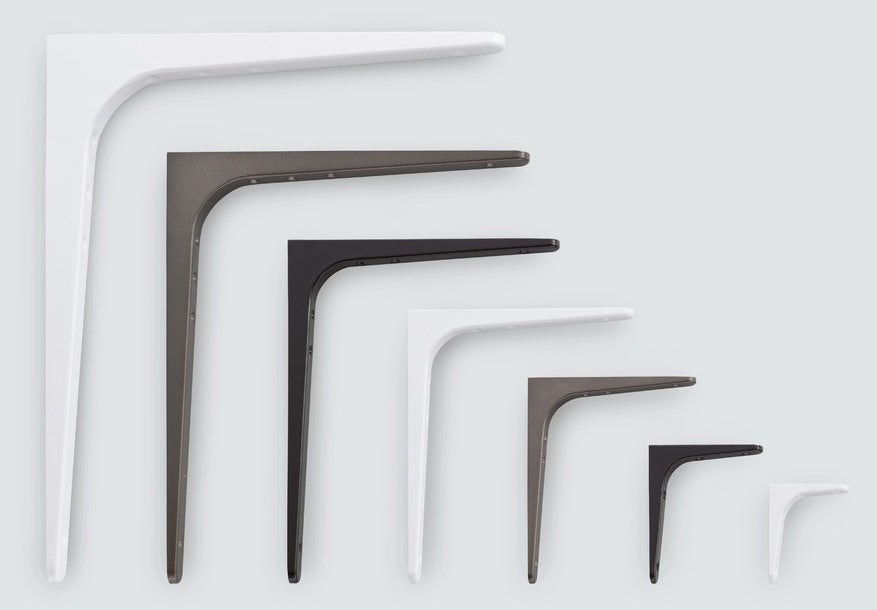

[caption id="attachment_148975" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Available in four colors: matte stainless steel, white, black, and umber.[/caption] Assembly:

• The fastening is carried out using the screws included in the delivery (countersunk wood screws: three pieces 3.5 x 16 mm and one piece 3.5 x 25 mm)
• The BTK-85B heavy-duty shelf brackets can be mounted both vertically and horizontally, e.g., for partition walls (see the drawing below for horizontal mounting).
• The heavy-duty mounting brackets BTK-85B have four mounting holes with a diameter of ⌀4 mm (5/32″), with countersink (for further details see assembly drawing )

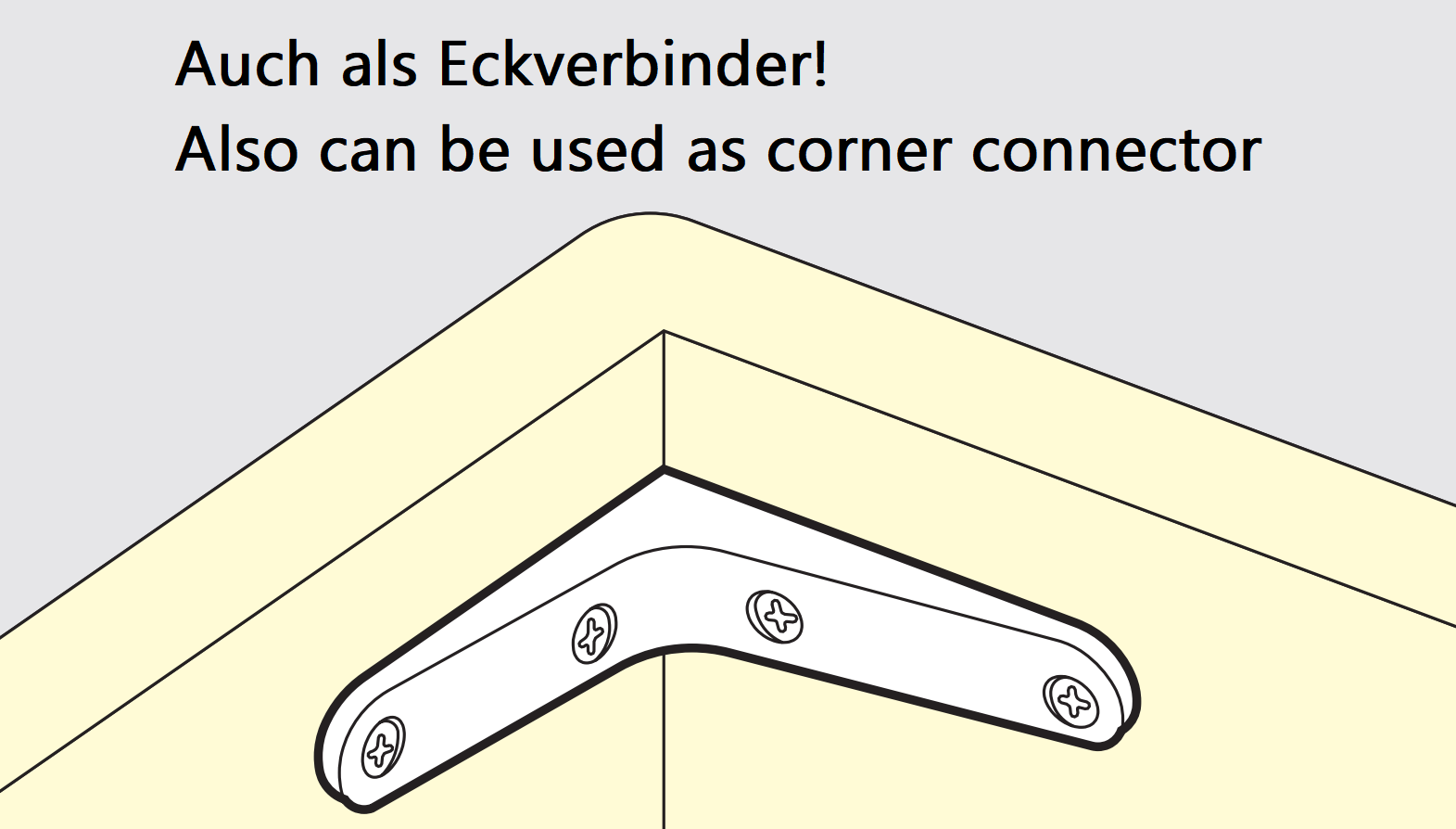

[caption id="attachment_148985" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Assembly drawing[/caption] [caption id="attachment_148995" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Installation drawing for horizontal installation, e.g., as a corner connector or for room partitioning.[/caption] Characteristics:

• Weight: 46 g
• Load capacity: 30 kg (67 lbs) - for two pieces
• Size: 86 mm (3.4″)

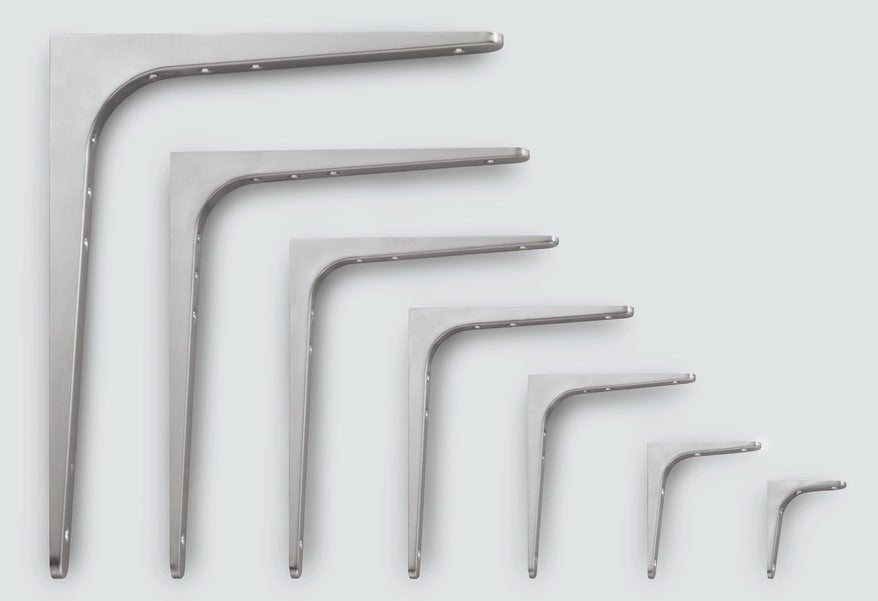

• Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, and in four colors: matt stainless steel, white, black and umber
• easy to assemble
• practical
• stable
• Material thickness: 5 mm (13/64″)
• Clean image due to the black surface color of the screws, which is identical to the surface color of the heavy-duty mounting bracket
• black
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the heavy-duty mounting bracket: 86 mm (3.4″)
• Width: 15 mm (19/32″)
• Depth: 69 mm (2-23/32″)
• Material thickness: 5 mm (13/64″)

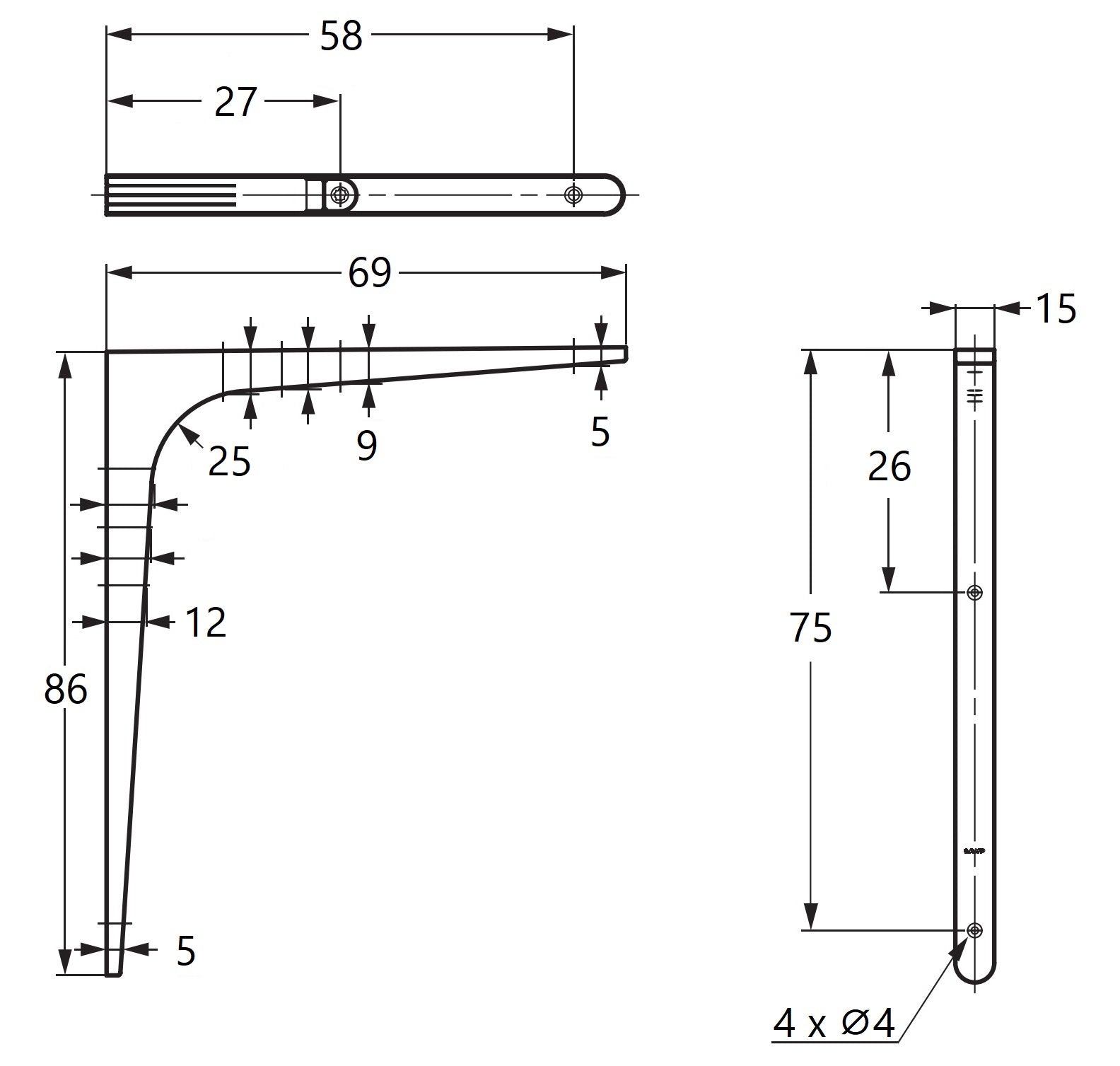

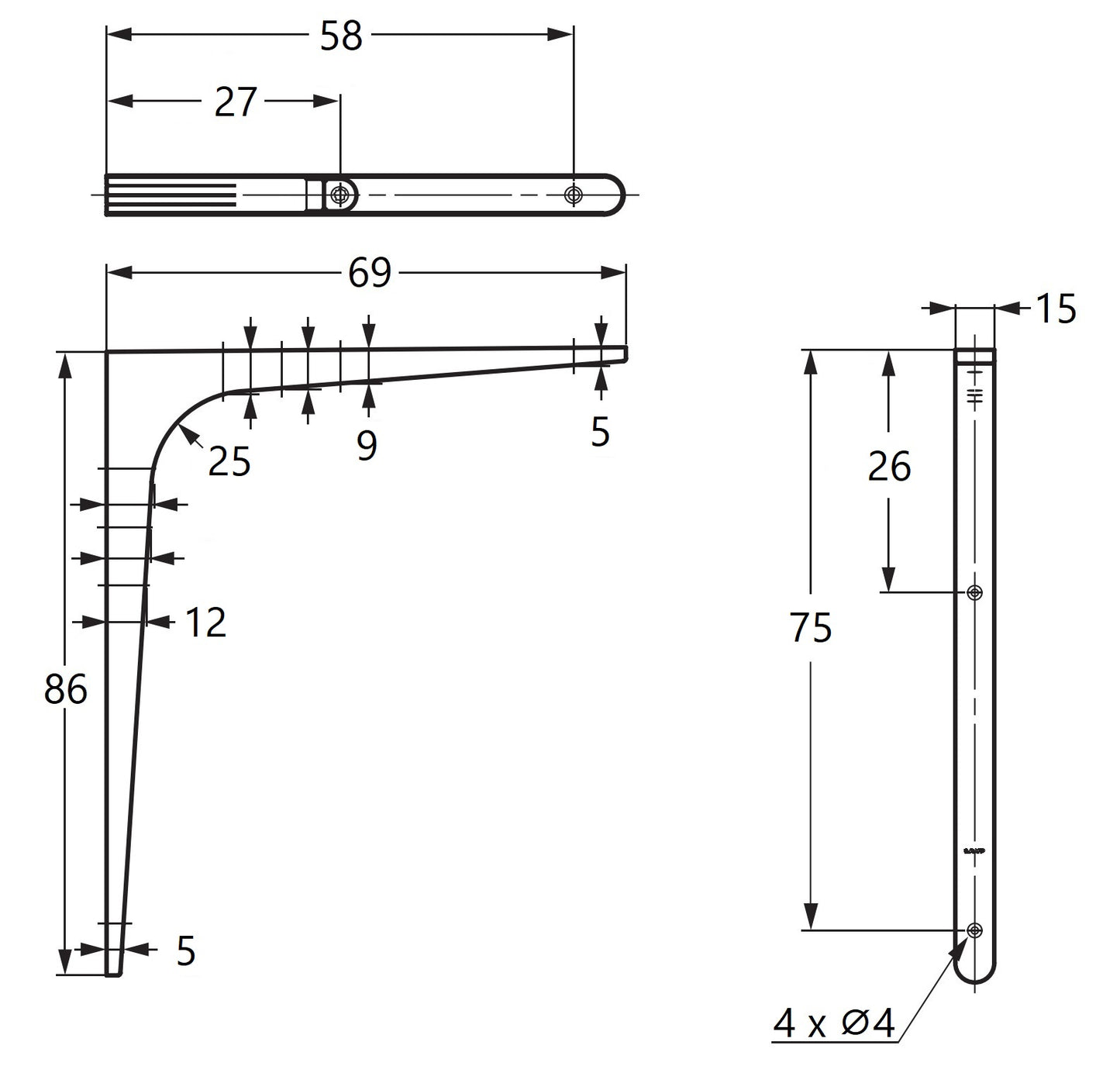

[caption id="attachment_149005" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-85B, 86 mm, from Sugatsune, load capacity: 30 kg (67 lbs), black. Technical drawing[/caption] Included in delivery:

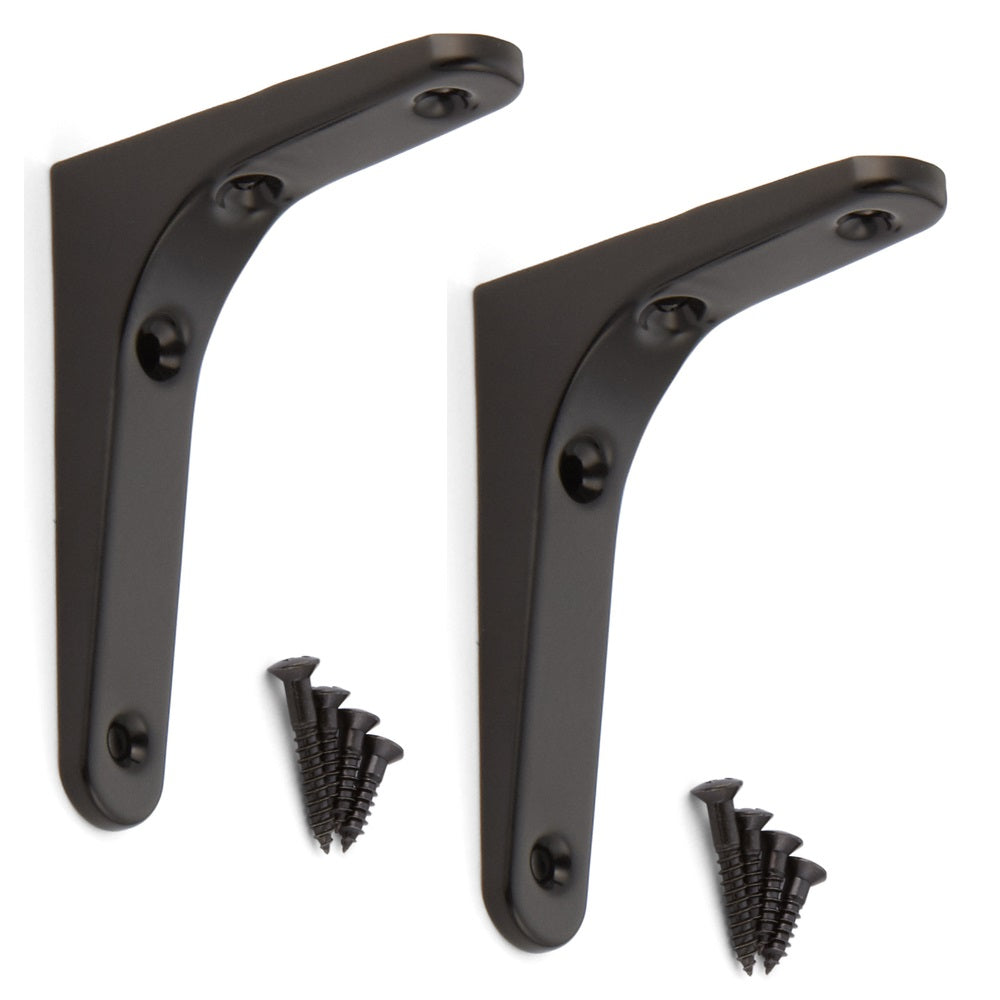

• Two heavy-duty mounting brackets BTK-85B made of robust steel, black
• Four countersunk wood screws: three 3.5 x 16 mm and one 3.5 x 25 mm made of steel

Manufacturer reference number:

• Article number: 120-030-172
• Item number: BTK-85B
• EAN number: 4510932730136

Manufacturer: Sugatsune / LAMP® (Japan)
