2 high-quality heavy-duty mounting brackets, load capacity: 130 kg (287 lbs), finish: white, 480 mm (18.9"), BTK-480W. Heavy-duty shelf brackets for shelves, dividers, shelves, corner joints, and much more, from Sugatsune / LAMP® (Japan)

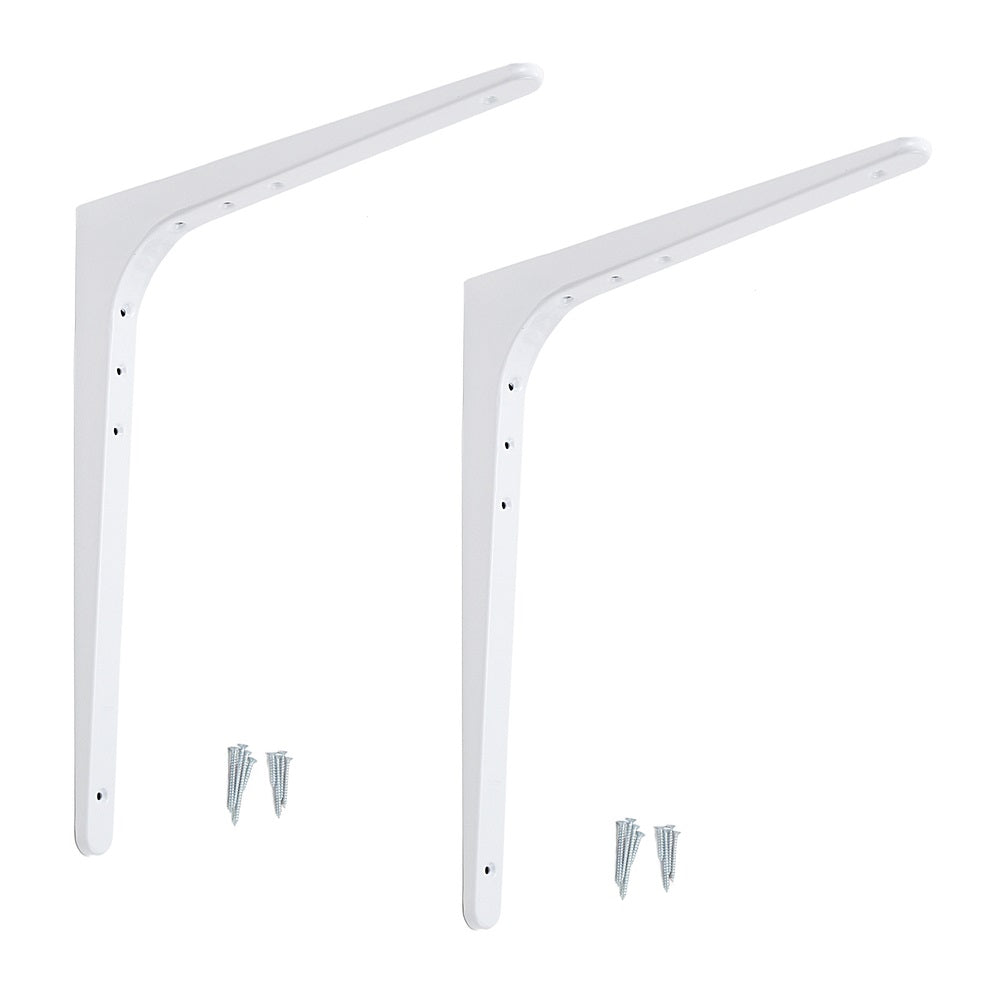

Two high-quality 14 mm thick heavy-duty mounting brackets, made of robust steel, finish: white, BTK-480W, size: 480 mm (18.9"), load capacity: 130 kg (287 lbs)

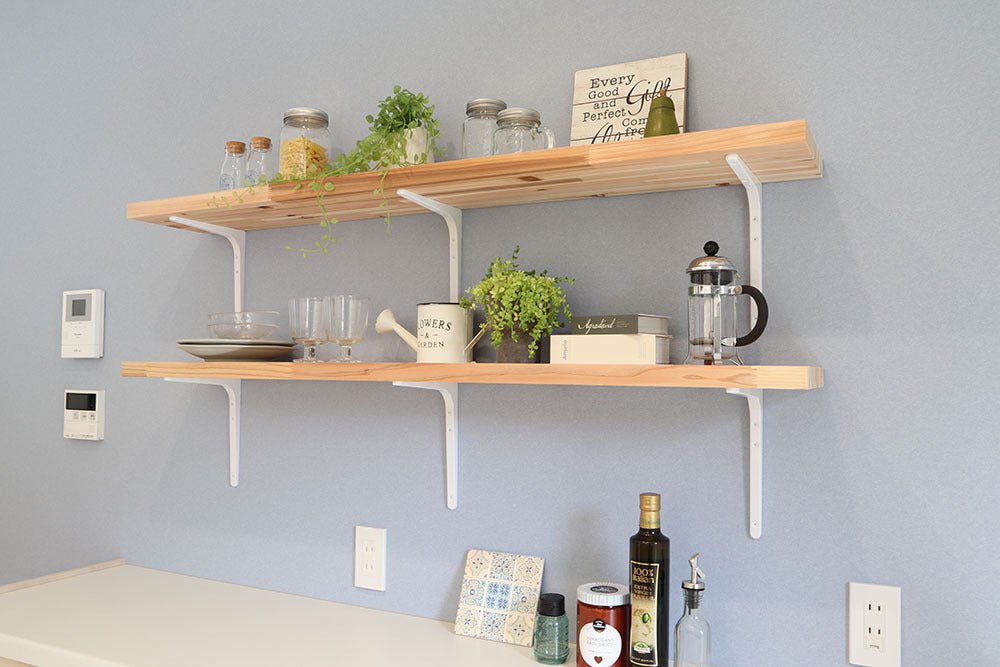

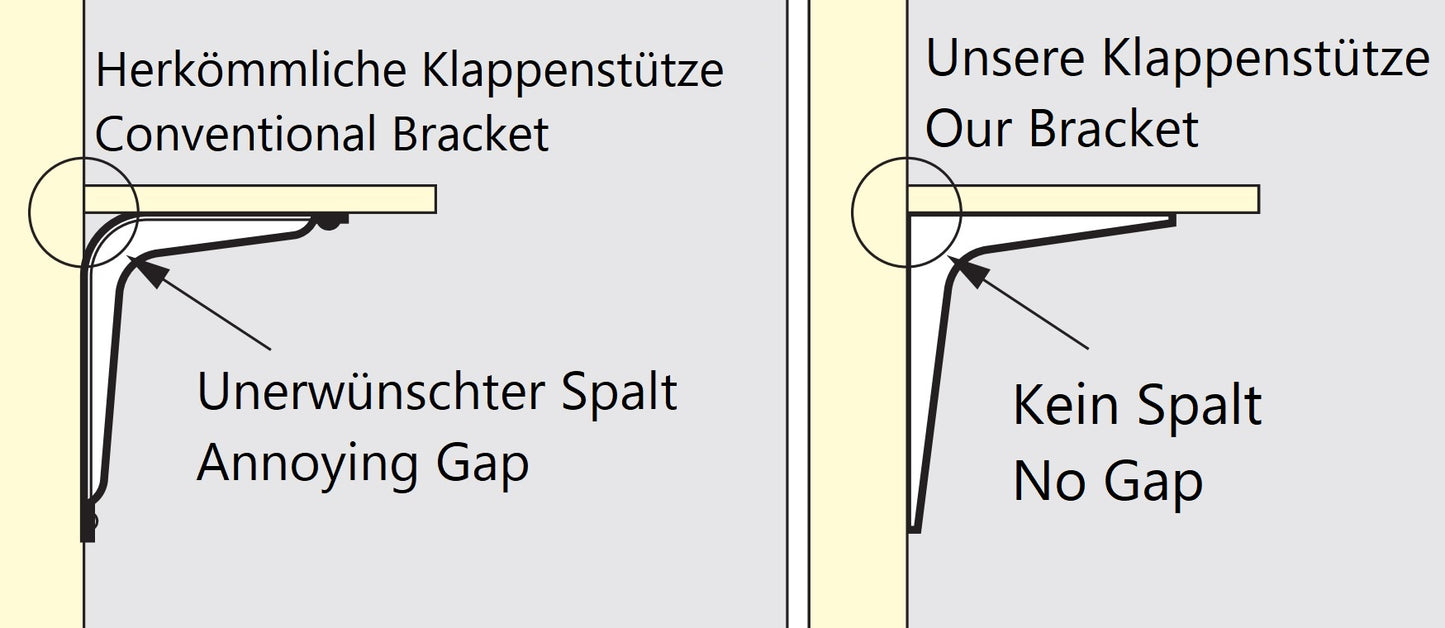

Application: Heavy-duty shelf brackets for trays, partitions, shelves, corner connections and much more. [caption id="attachment_150545" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Application example[/caption] The BTK-480W heavy-duty mounting brackets are made of solid 14 mm (35/64″) thick steel. The BTK-480W shelf brackets combine high load capacity and modern design. [caption id="attachment_150555" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Example of use in the kitchen[/caption] The supplied screws also have a white surface color, matching the surface color of the heavy-duty mounting bracket. One of the special features of the BTK-480W heavy-duty mounting bracket is that the angle between the wall and the shelf is not rounded and is exactly 90 degrees, which means that there is no gap in the corner between the heavy-duty shelf bracket and the wall. [caption id="attachment_150565" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm, and 480 mm. The BTK-480W heavy-duty shelf bracket is very stable, has an excellent load capacity of 130 kg (287 lbs), and a support surface length of 480 mm (18.9″). The high-quality heavy-duty mounting brackets BTK-480W are ideal for, among others:

• shelf
• shelf
• partition
• shelf
• Corner connection

Material:

• The heavy-duty mounting brackets BTK-480W are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger

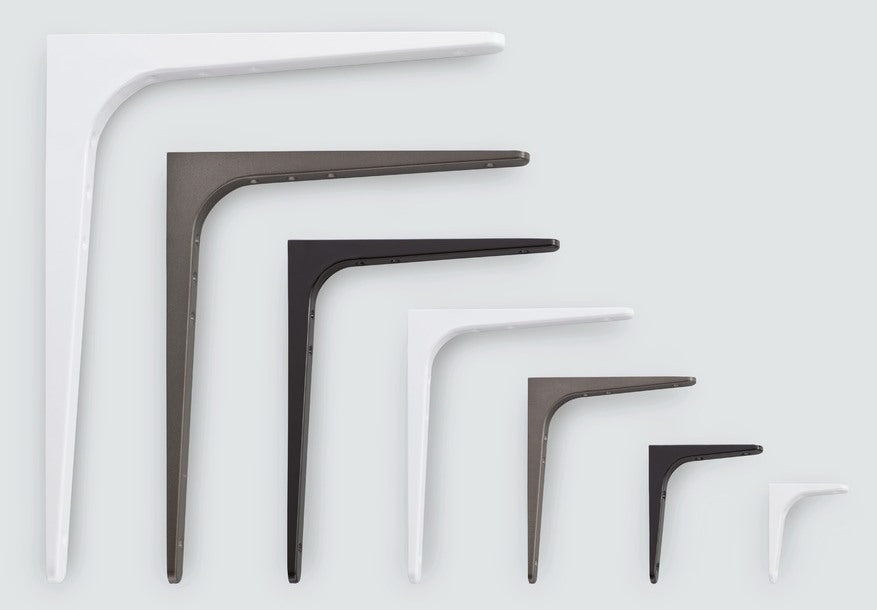

[caption id="attachment_150575" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Available in four colors: matte stainless steel, white, black, and umber.[/caption] Assembly: [caption id="attachment_150585" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Assembly drawing[/caption]

• The mounting is carried out using the eight screws included in the delivery (countersunk wood screws: two pieces 5 x 30 mm, two pieces 5 x 40 mm, three pieces 5 x 50 mm and one piece 5 x 60 mm)
• The BTK-480W heavy-duty shelf brackets can be mounted both vertically and horizontally, e.g., for partition walls (see the drawing below for horizontal installation).
• The heavy-duty mounting brackets BTK-480W have eight mounting holes with a diameter of ⌀5.5 mm (7/32″), with countersink (for further details see mounting drawing )

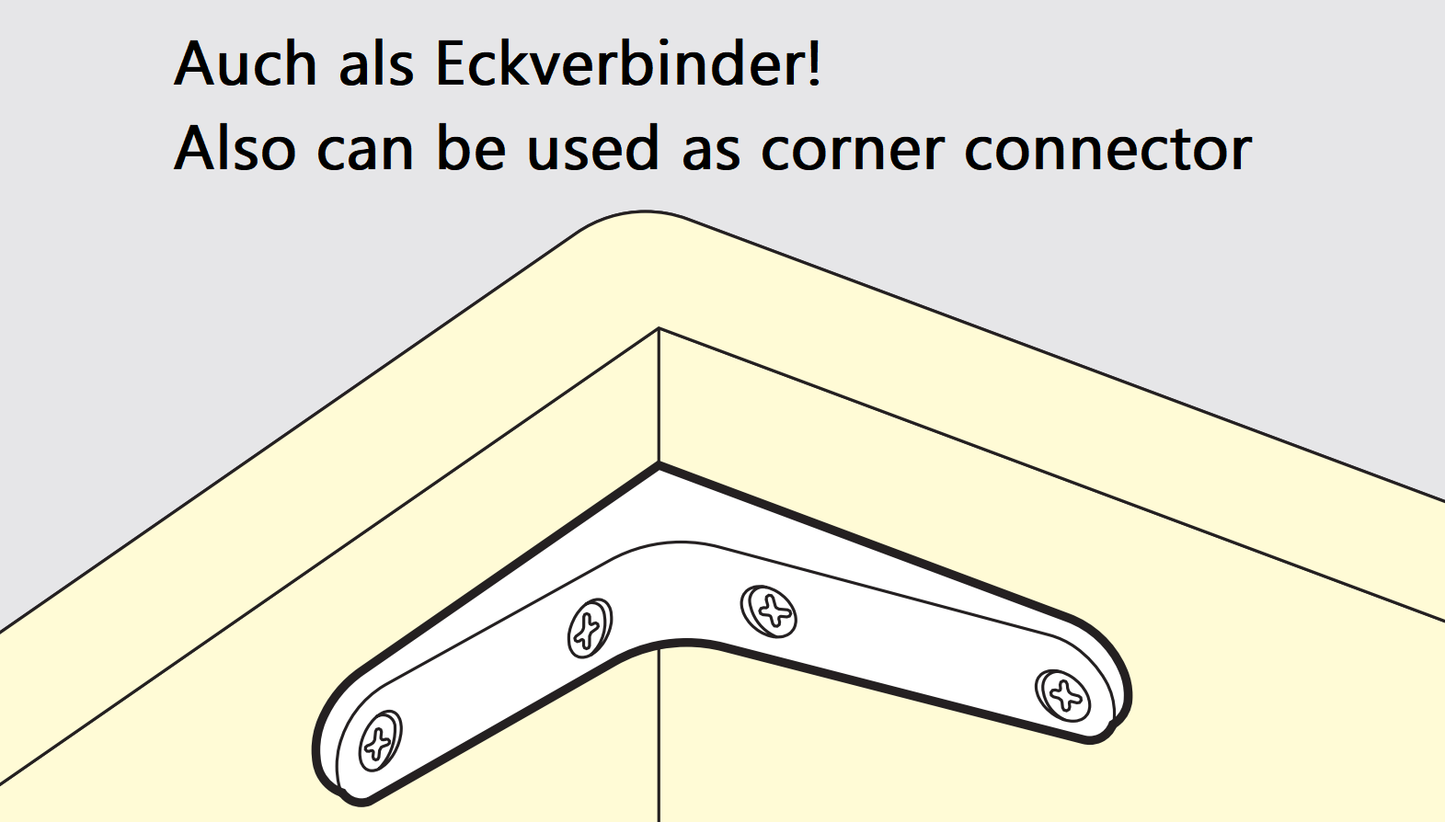

[caption id="attachment_150595" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Installation drawing for horizontal mounting, e.g., as a corner connector.[/caption] Characteristics:

• Weight: 1230 g
• Load capacity: 130 kg (287 lbs) - for two pieces
• Size: 480 mm (18.9″)

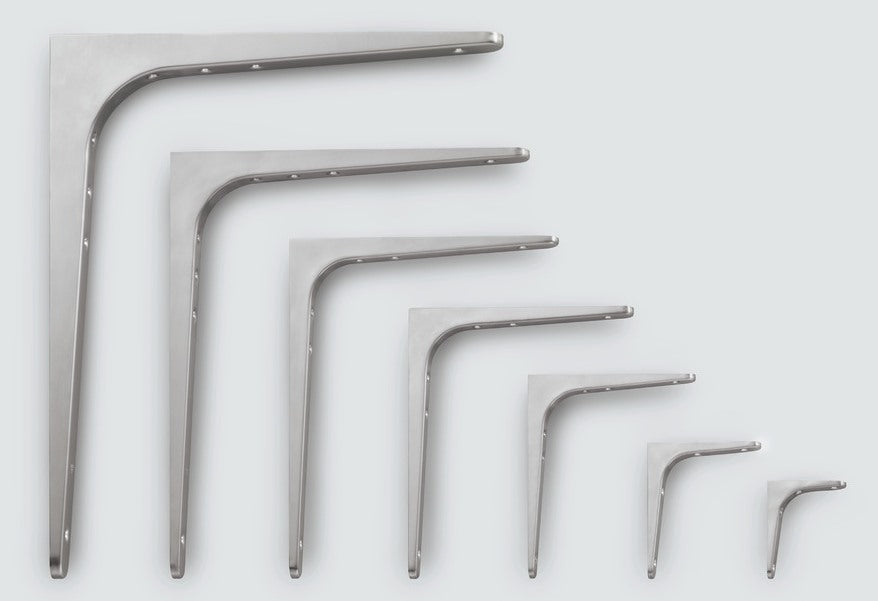

• Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, and in four colors: matt stainless steel, white, black and umber
• easy to assemble
• practical
• stable
• Material thickness: 14 mm (35/64″)
• Clean image due to the white surface color of the screws, which is identical to the surface color of the heavy-duty mounting bracket
• white
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the heavy-duty mounting bracket: 480 mm (18.9″)
• Width: 30 mm (1-3/16″)
• Depth: 400 mm (15-3/4″)
• Material thickness: 14 mm (35/64″)

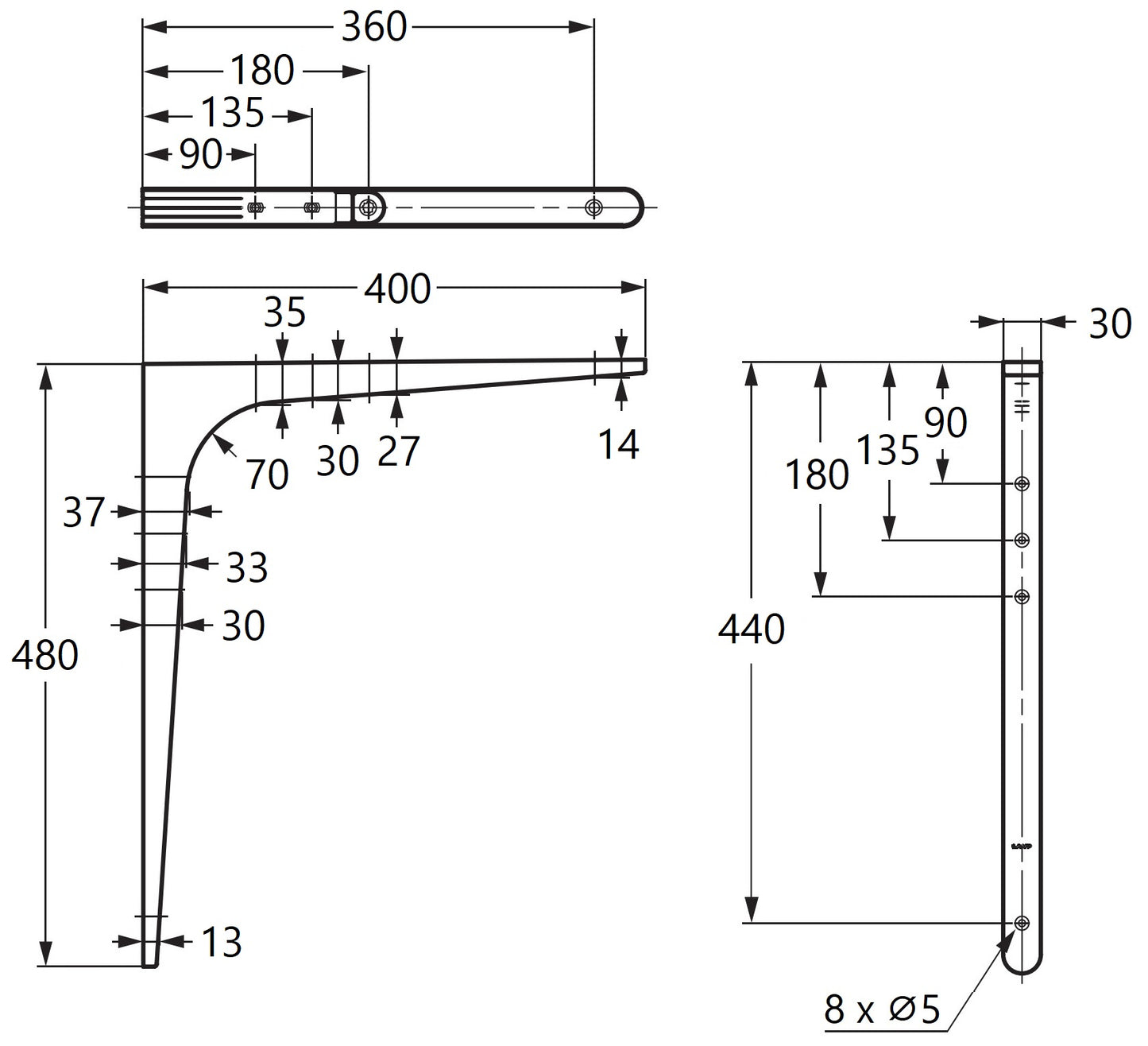

[caption id="attachment_150605" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-480W, 480 mm, from Sugatsune, load capacity: 130 kg (287 lbs), white. Technical drawing[/caption] Included in delivery:

• Two heavy-duty mounting brackets BTK-480W made of robust steel, white
• Eight countersunk wood screws: two 5 x 30 mm, two 5 x 40 mm, three 5 x 50 mm and one 5 x 60 mm made of steel

Manufacturer reference number:

• Article number: 120-030-156
• Item number: BTK-480W
• EAN number: 4510932730839

Manufacturer: Sugatsune / LAMP® (Japan)
