2 high-quality heavy-duty mounting brackets, load capacity: 70 kg (155 lbs), finish: black, 301 mm (11.9"), BTK-300B. Heavy-duty shelf brackets for shelves, dividers, shelves, corner joints, and much more, from Sugatsune / LAMP® (Japan)

2 pieces of high-quality 8 mm thick heavy-duty mounting brackets, made of robust steel, surface: black, BTK-300B, size: 301 mm (11.9"), load capacity: 70 kg (155 lbs)

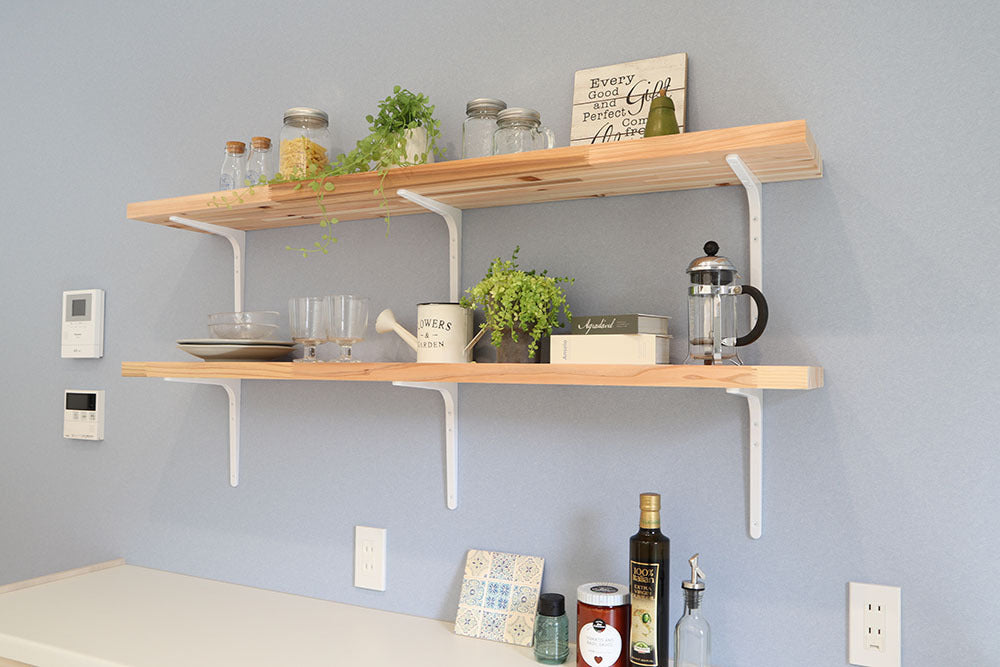

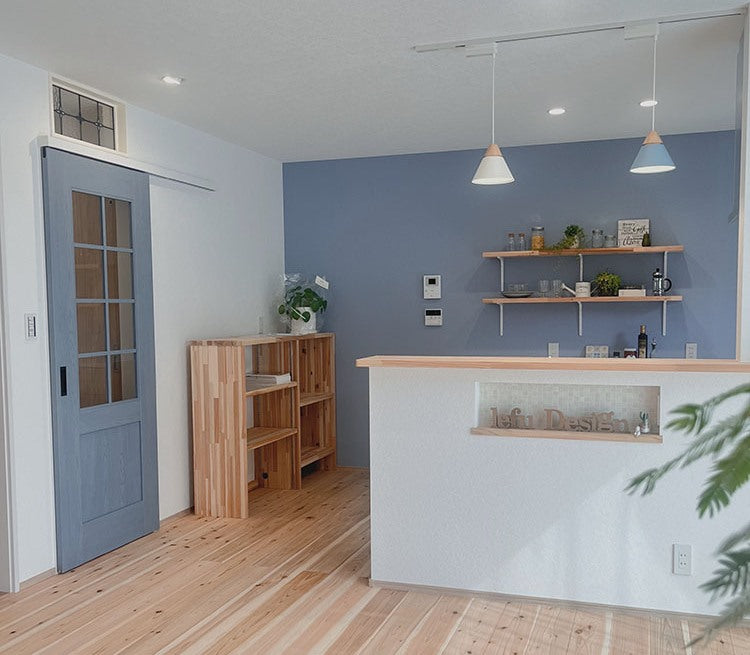

Application: Heavy-duty shelf brackets for trays, partitions, shelves, corner connections and much more. [caption id="attachment_150066" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Application example[/caption] The BTK-300B heavy-duty mounting brackets are made of solid 8 mm (5/16″) thick steel. The BTK-300B shelf brackets combine high load capacity and modern design. [caption id="attachment_150076" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Example of use in the kitchen.[/caption] The supplied screws also have a black surface color, matching the surface color of the heavy-duty mounting bracket. One of the special features of the BTK-300B heavy-duty mounting bracket is that the angle between the wall and the shelf is not rounded and is exactly 90 degrees, which means that there is no gap in the corner between the heavy-duty shelf bracket and the wall. [caption id="attachment_150086" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm, and 480 mm. The BTK-300B heavy-duty shelf bracket is very stable, has an excellent load capacity of 70 kg (155 lbs), and a support surface length of 301 mm (11.9″). The high-quality heavy-duty mounting brackets BTK-300B are ideal for, among other things:

• shelf
• shelf
• partition
• shelf
• Corner connection

Material:

• The heavy-duty mounting brackets BTK-300B are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Black
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish
• While interior design styles may change, black always remains a safe choice that can easily be adapted to new trends
• Black surfaces can be used in different rooms, be it the kitchen, living room or office

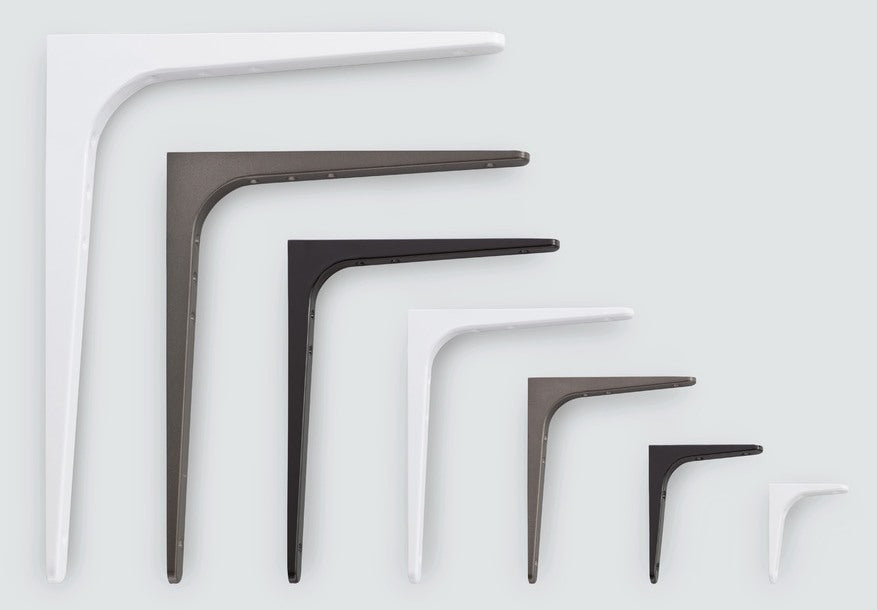

[caption id="attachment_150096" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Available in four colors: matte stainless steel, white, black, and umber.[/caption] Assembly:

• The fastening is carried out using the screws included in the delivery (countersunk wood screws: 1 piece 3.5 x 16 mm, two pieces 3.5 x 25 mm, 1 piece 3.5 x 32 mm and two pieces 3.8 x 38 mm)
• The BTK-300B heavy-duty shelf brackets can be mounted both vertically and horizontally, e.g., for partition walls (see the drawing below for horizontal mounting).
• The heavy-duty mounting brackets BTK-300B have six mounting holes with a diameter of ⌀4 mm (5/32″), with countersink (for further details see assembly drawing )

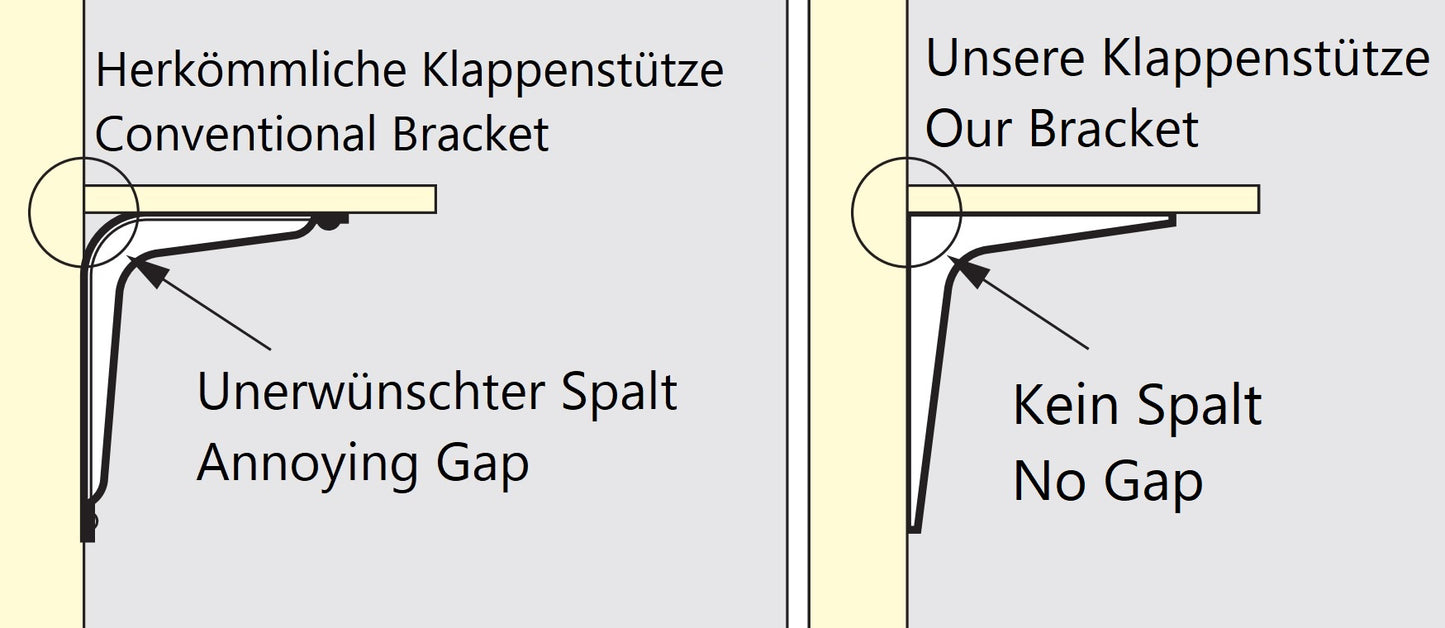

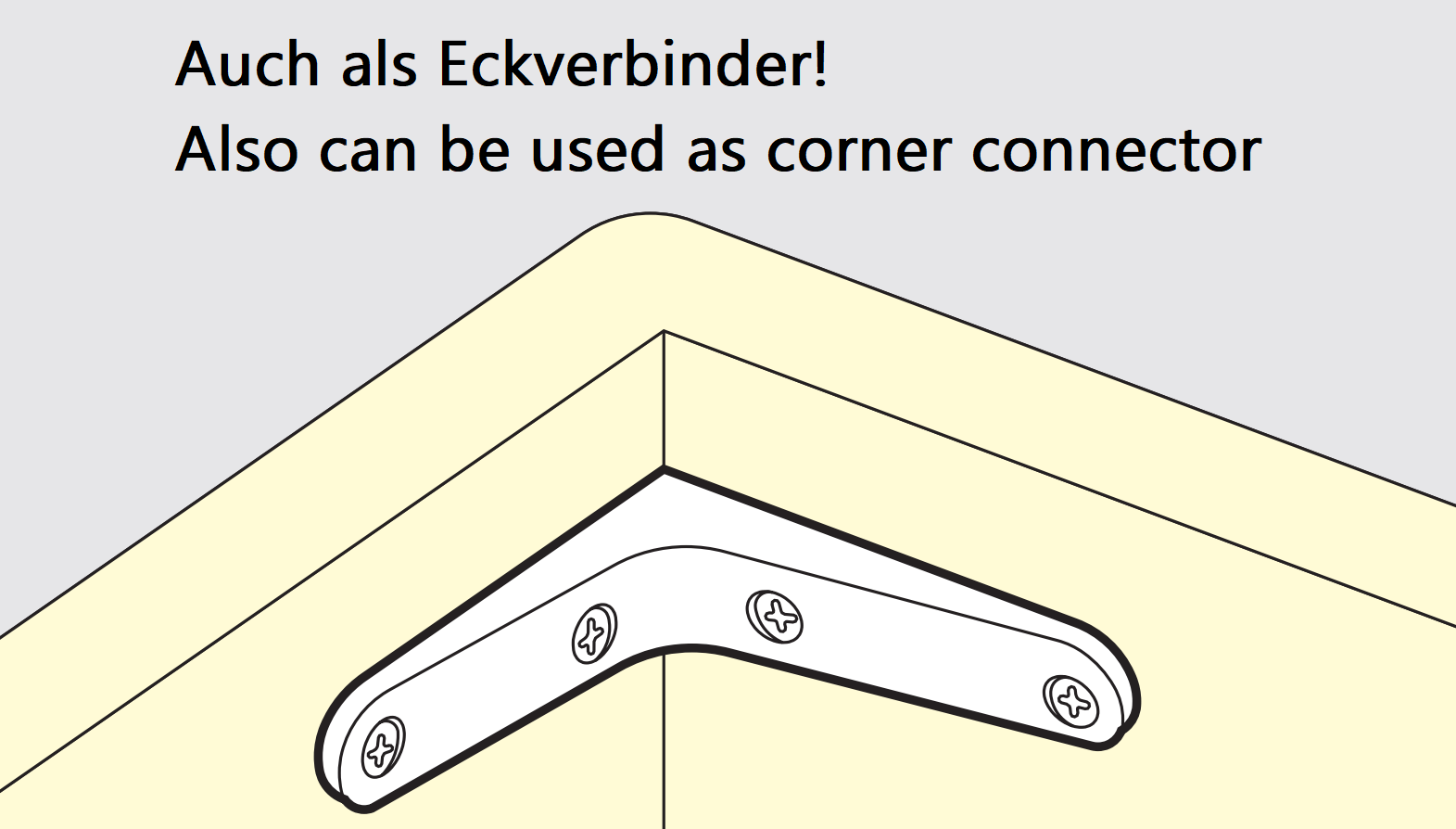

[caption id="attachment_150106" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Assembly drawing[/caption] [caption id="attachment_150116" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Installation drawing for horizontal mounting, e.g., as a corner connector.[/caption] Characteristics:

• Weight: 323 g
• Load capacity: 70 kg (155 lbs) - for two pieces
• Size: 301 mm (11.9″)

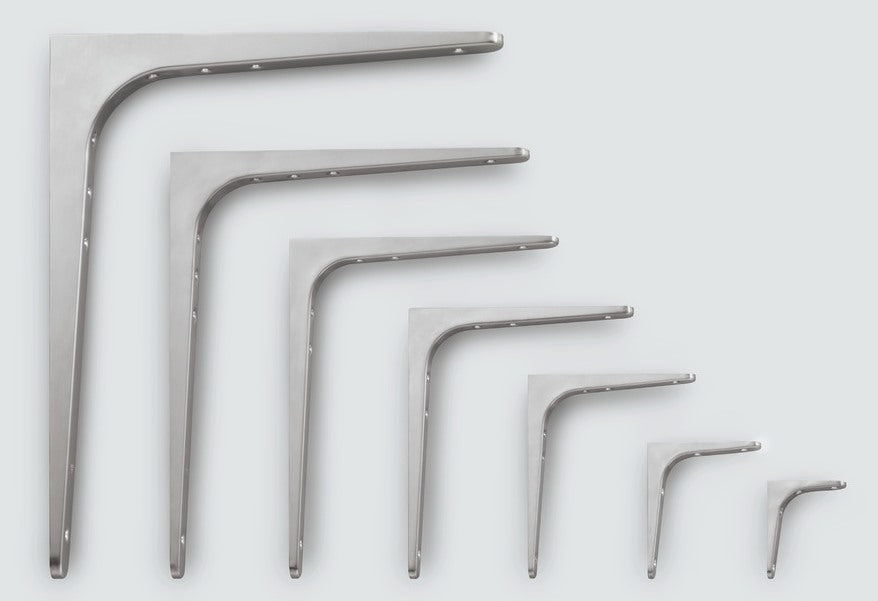

• Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, and in four colors: matt stainless steel, white, black and umber
• easy to assemble
• practical
• stable
• Material thickness: 8 mm (5/16″)
• Clean image due to the black surface color of the screws, which is identical to the surface color of the heavy-duty mounting bracket
• black
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the heavy-duty mounting bracket: 301 mm (11.9″)
• Width: 20 mm (25/32″)
• Depth: 238.5 mm (9-25/64″)
• Material thickness: 8 mm (5/16″)

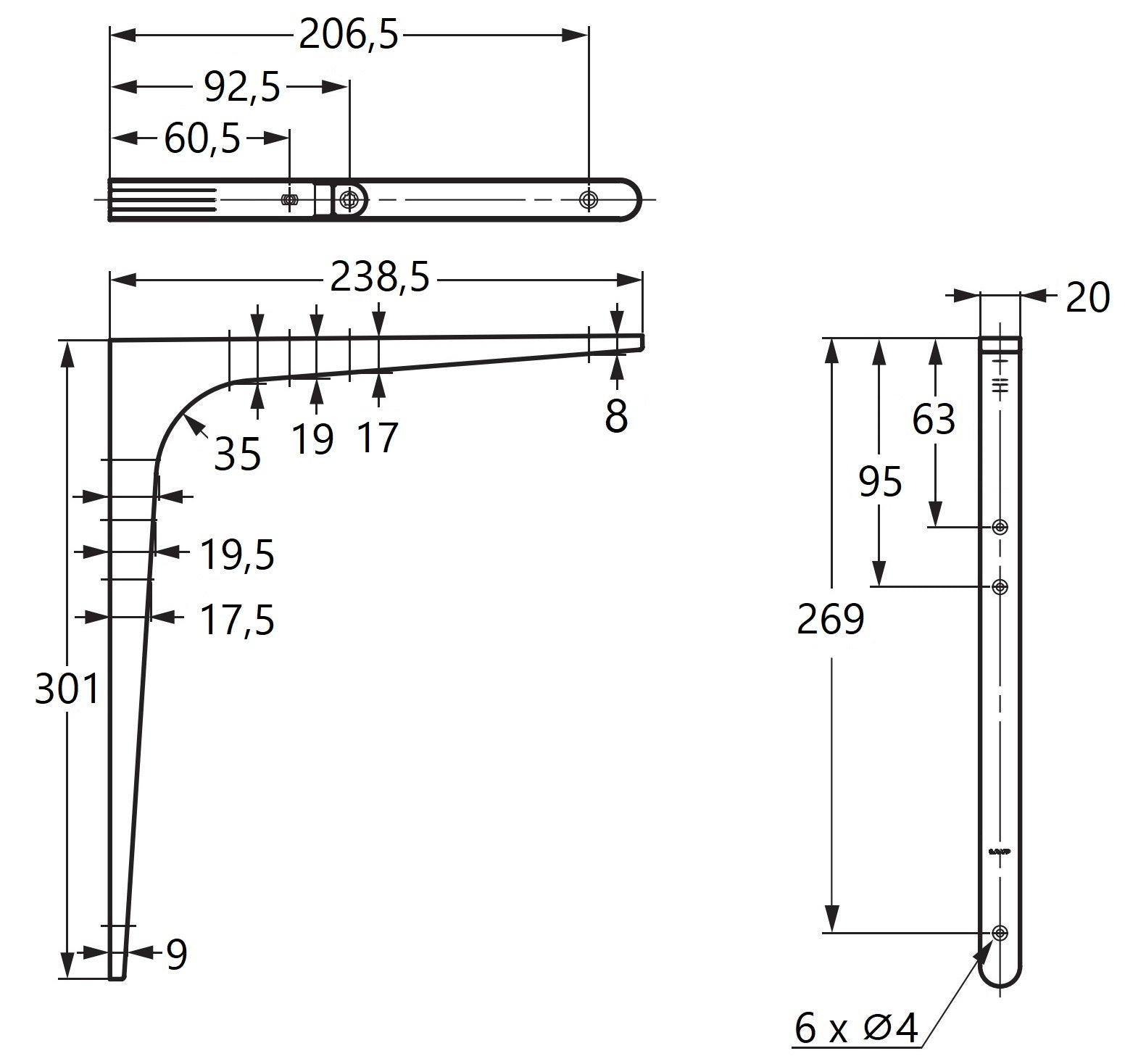

[caption id="attachment_150126" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-300B, 301 mm, from Sugatsune, load capacity: 70 kg (155 lbs), black. Technical drawing[/caption] Included in delivery:

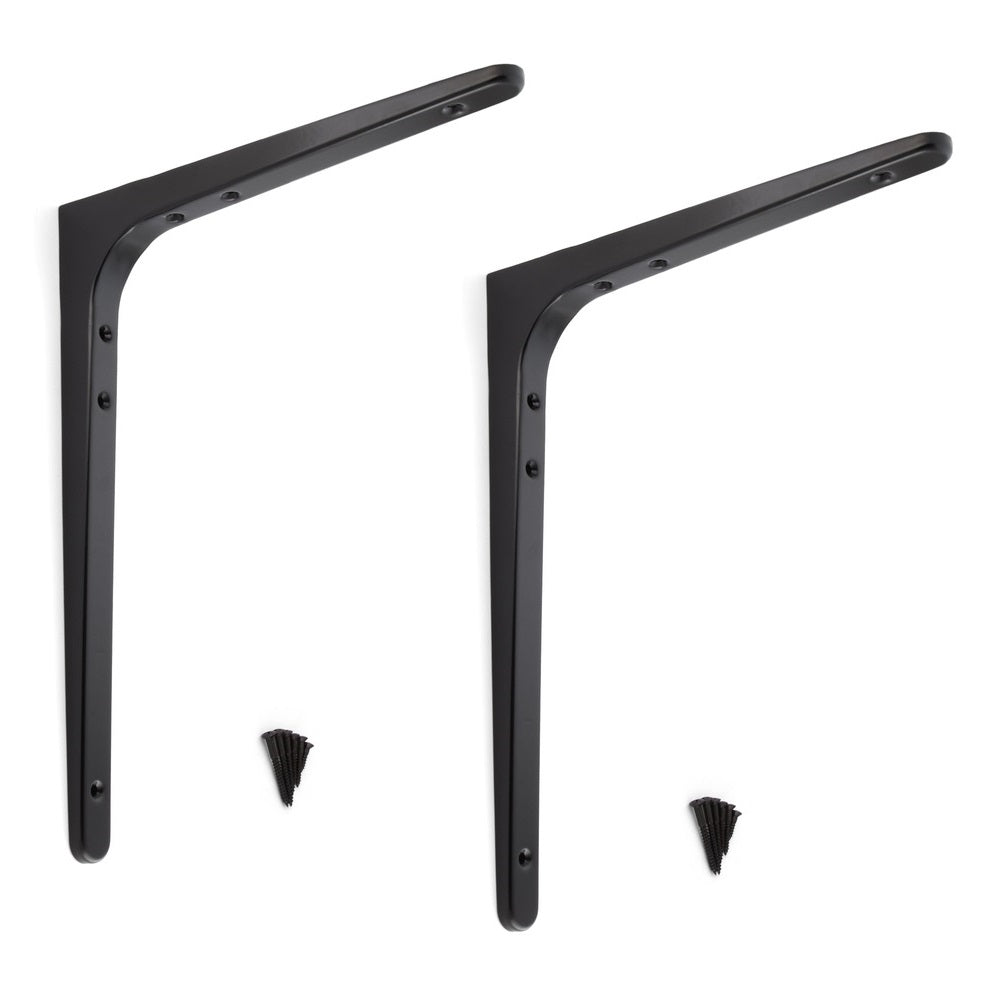

• Two heavy-duty mounting brackets BTK-300B made of robust steel, black
• Six countersunk wood screws: 1 piece 3.5 x 16 mm, two pieces 3.5 x 25 mm, 1 piece 3.5 x 32 mm and two pieces 3.8 x 38 mm made of steel

Manufacturer reference number:

• Article number: 120-030-176
• Item number: BTK-300B
• EAN number: 4510932730174

Manufacturer: Sugatsune / LAMP® (Japan)
