2 high-quality heavy-duty mounting brackets, load capacity: 50 kg (111 lbs), finish: white, 180.5 mm (7.2"), BTK-180W. Heavy-duty shelf brackets for shelves, dividers, shelves, corner joints, and much more, from Sugatsune / LAMP® (Japan)

2 pieces of high-quality 5 mm thick heavy-duty mounting brackets, made of robust steel, surface: white, BTK-180W, size: 180.5 mm (7.2"), load capacity: 50 kg (111 lbs)

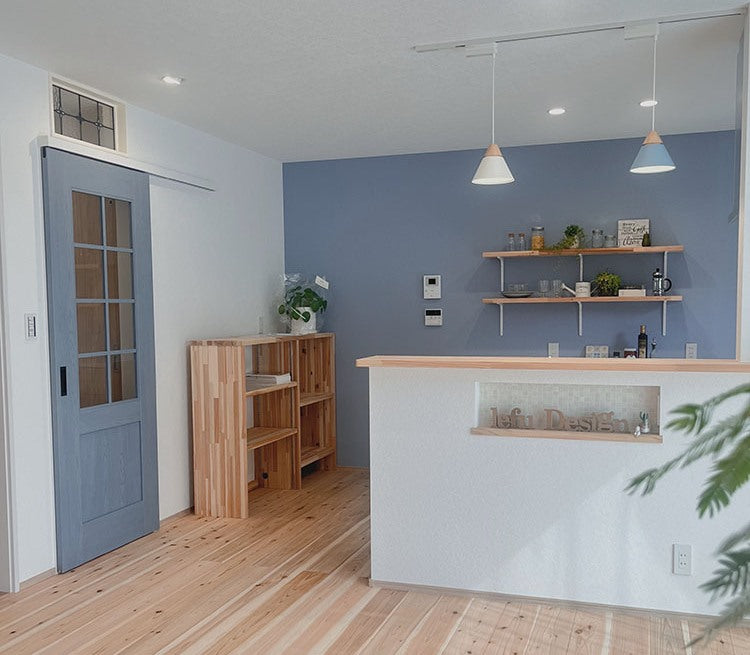

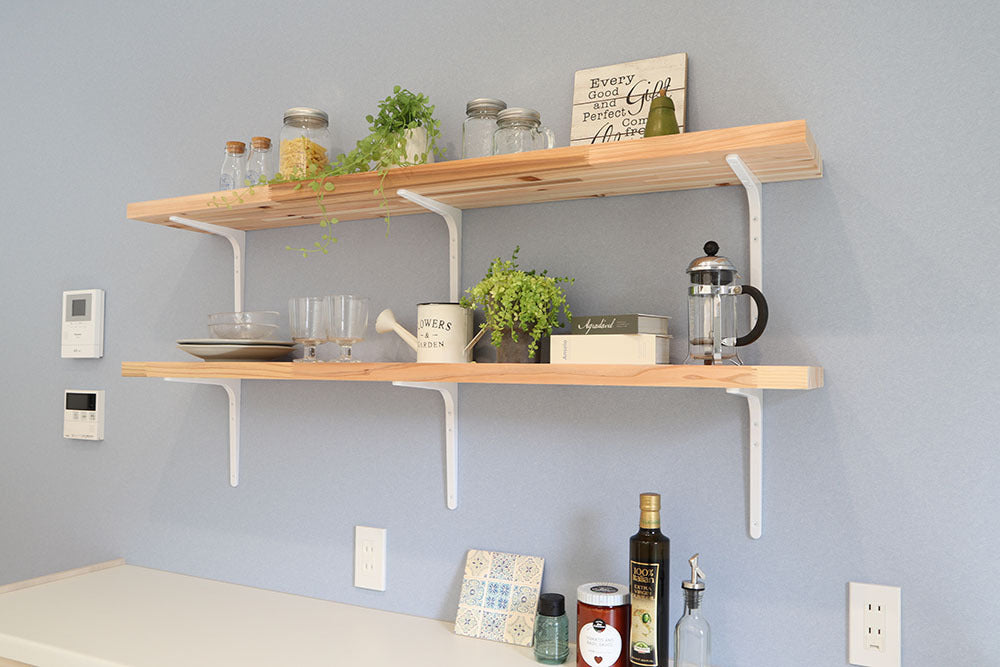

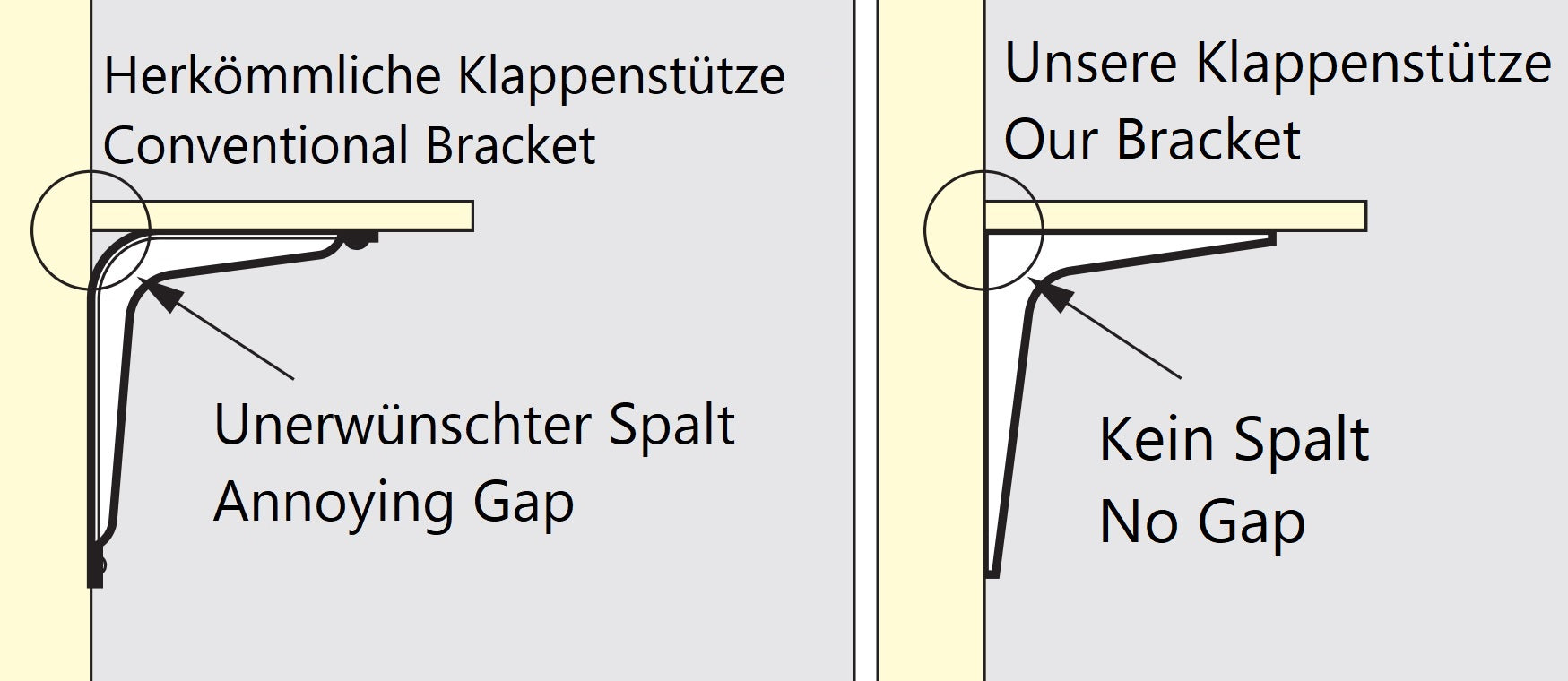

Application: Heavy-duty shelf brackets for trays, partitions, shelves, shelves, corner connections and much more. [caption id="attachment_149414" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Application example[/caption] The BTK-180W heavy-duty mounting brackets are made of solid 5 mm (13/64″) thick steel. The BTK-180W shelf brackets combine high load capacity and modern design. [caption id="attachment_149424" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Example of use in the kitchen[/caption] The supplied screws also have a white surface color, matching the surface color of the heavy-duty mounting bracket. One of the special features of the BTK-180W heavy-duty mounting bracket is that the angle between the wall and the shelf is not rounded and is exactly 90 degrees, which means that there is no gap in the corner between the heavy-duty shelf bracket and the wall. [caption id="attachment_149434" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm, and 480 mm. The BTK-180W heavy-duty shelf bracket is very stable, has an excellent load capacity of 50 kg (111 lbs), and a support surface length of 180.5 mm (7.2″). The high-quality heavy-duty mounting brackets BTK-180W are ideal for, among other things:

• shelf
• partition
• shelf
• shelf
• Corner connection

Material:

• The heavy-duty mounting brackets BTK-180W are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger

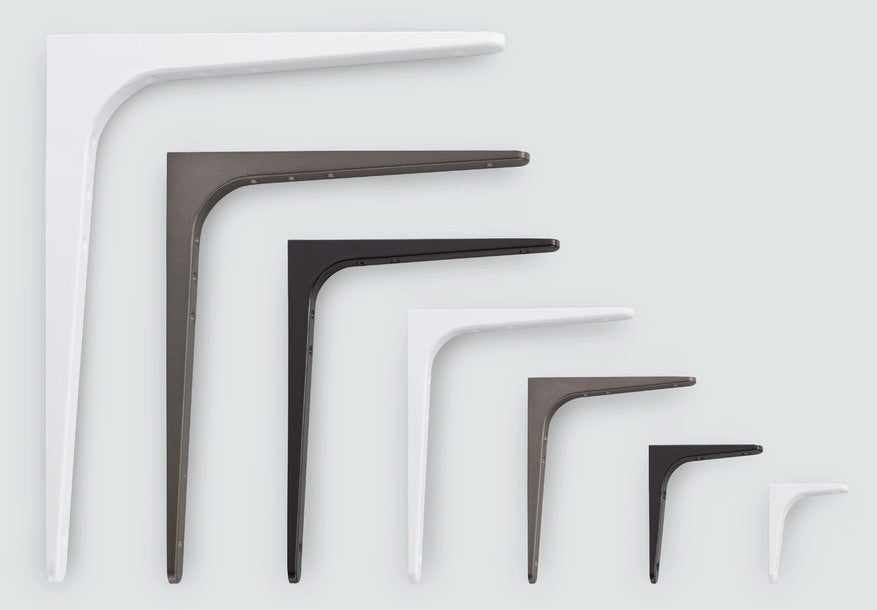

[caption id="attachment_149444" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Available in four colors: matte stainless steel, white, black, and umber.[/caption] Assembly:

• The mounting is done using the screws included in delivery (countersunk wood screws: two pieces 3.5 × 16 mm, 1 piece 3.5 × 20 mm, 1 piece 3.5 × 25 mm, two pieces 3.8 × 32 mm)
• The BTK-180W heavy-duty shelf brackets can be mounted both vertically and horizontally, e.g., for partition walls (see the drawing below for horizontal installation).
• The heavy-duty mounting brackets BTK-180W have six mounting holes with a diameter of ⌀4 mm (5/32″), with countersink (for further details see assembly drawing )

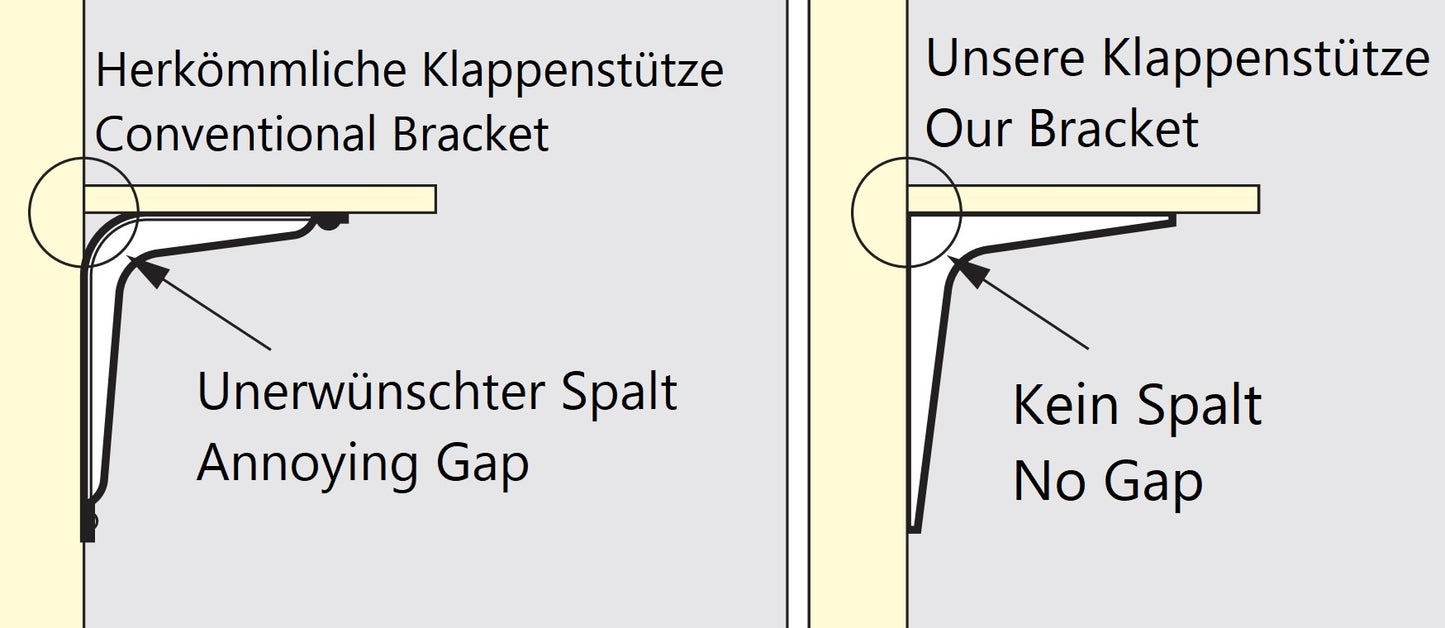

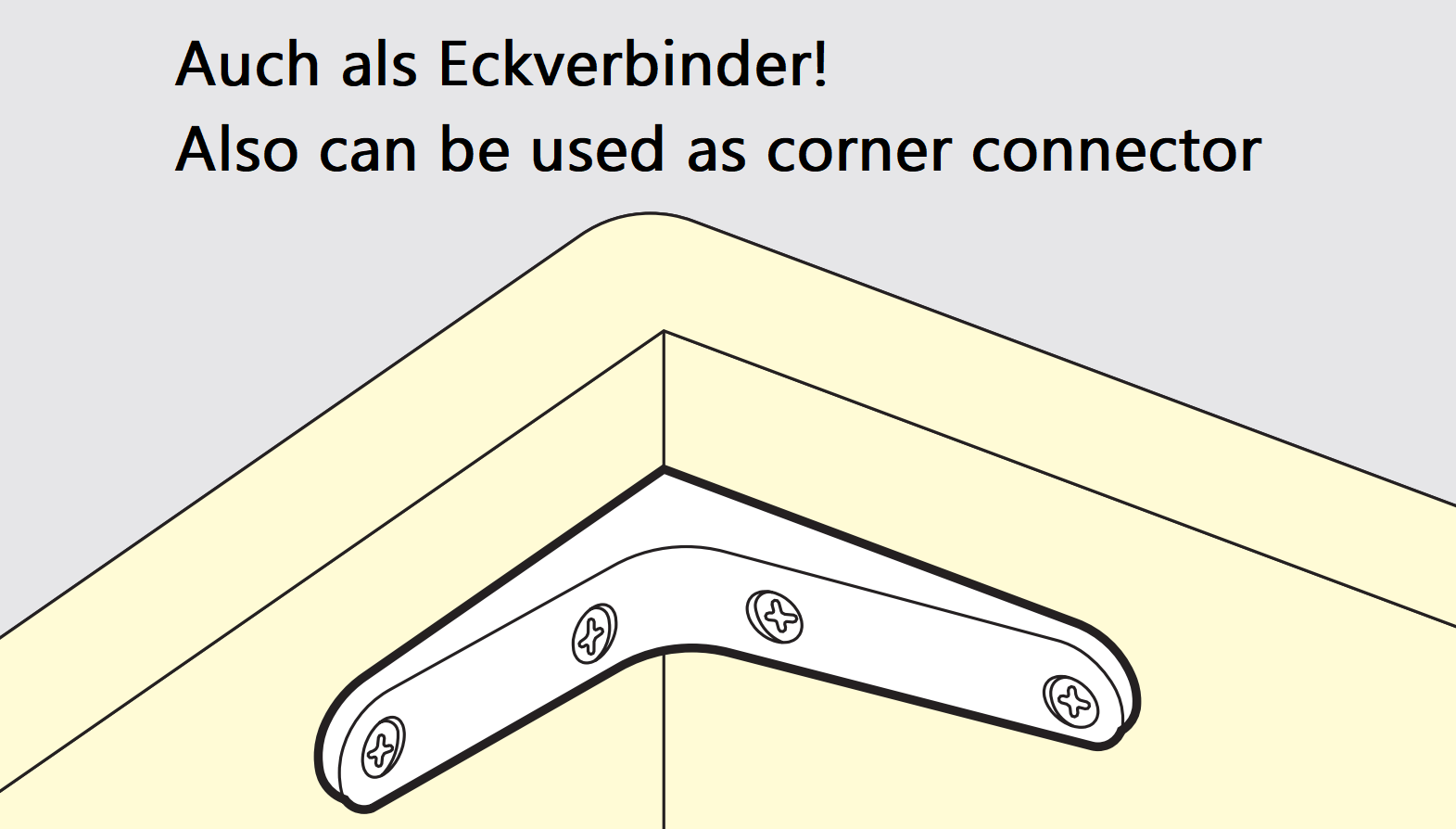

[caption id="attachment_149454" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Assembly drawing[/caption] [caption id="attachment_149464" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Installation drawing for horizontal mounting, e.g., as a corner connector.[/caption] Characteristics:

• Weight: 124 g
• Load capacity: 50 kg (111 lbs) - for two pieces
• Size: 180.5 mm (7.2″)

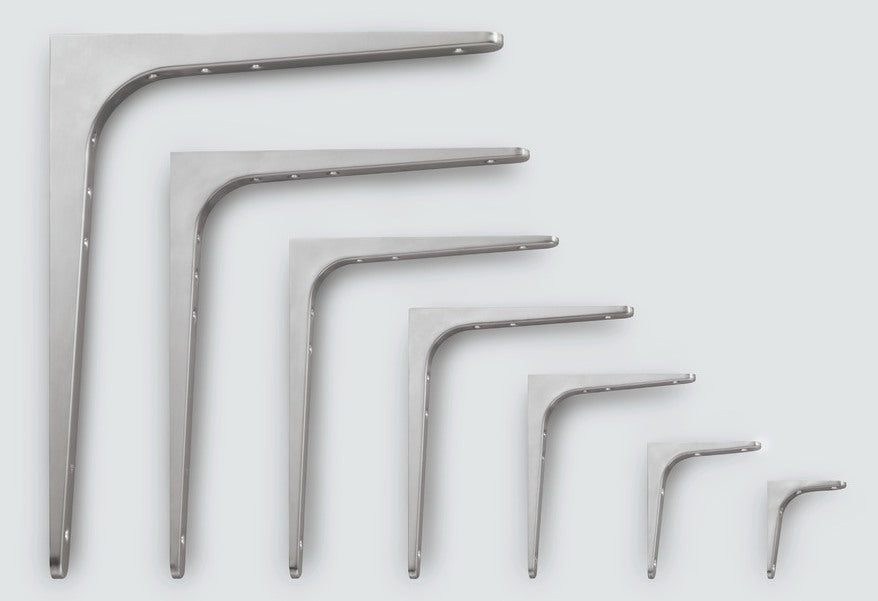

• Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, and in four colors: matt stainless steel, white, black and umber
• easy to assemble
• practical
• stable
• Material thickness: 5 mm (13/64″)
• Clean image due to the white surface color of the screws, which is identical to the surface color of the heavy-duty mounting bracket
• white
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the heavy-duty mounting bracket: 180.5 mm (7.2″)
• Width: 15 mm (19/32″)
• Depth: 148.5 mm (5-27/32″)
• Material thickness: 5 mm (13/64″)

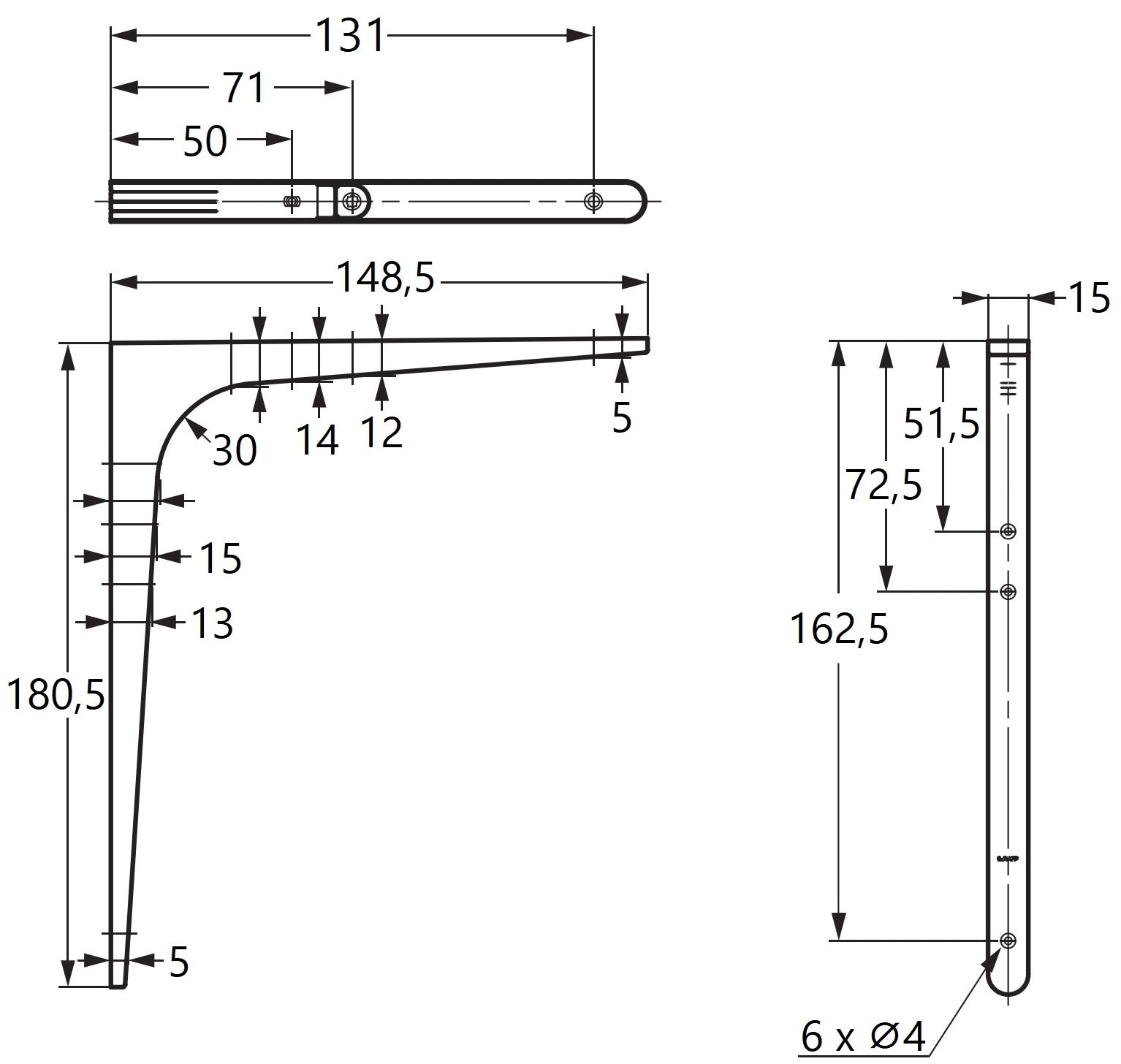

[caption id="attachment_149474" align="alignnone" width="420"] High-quality heavy-duty mounting bracket, BTK-180W, 180.5 mm, from Sugatsune, load capacity: 50 kg (111 lbs), white. Technical drawing[/caption] Included in delivery:

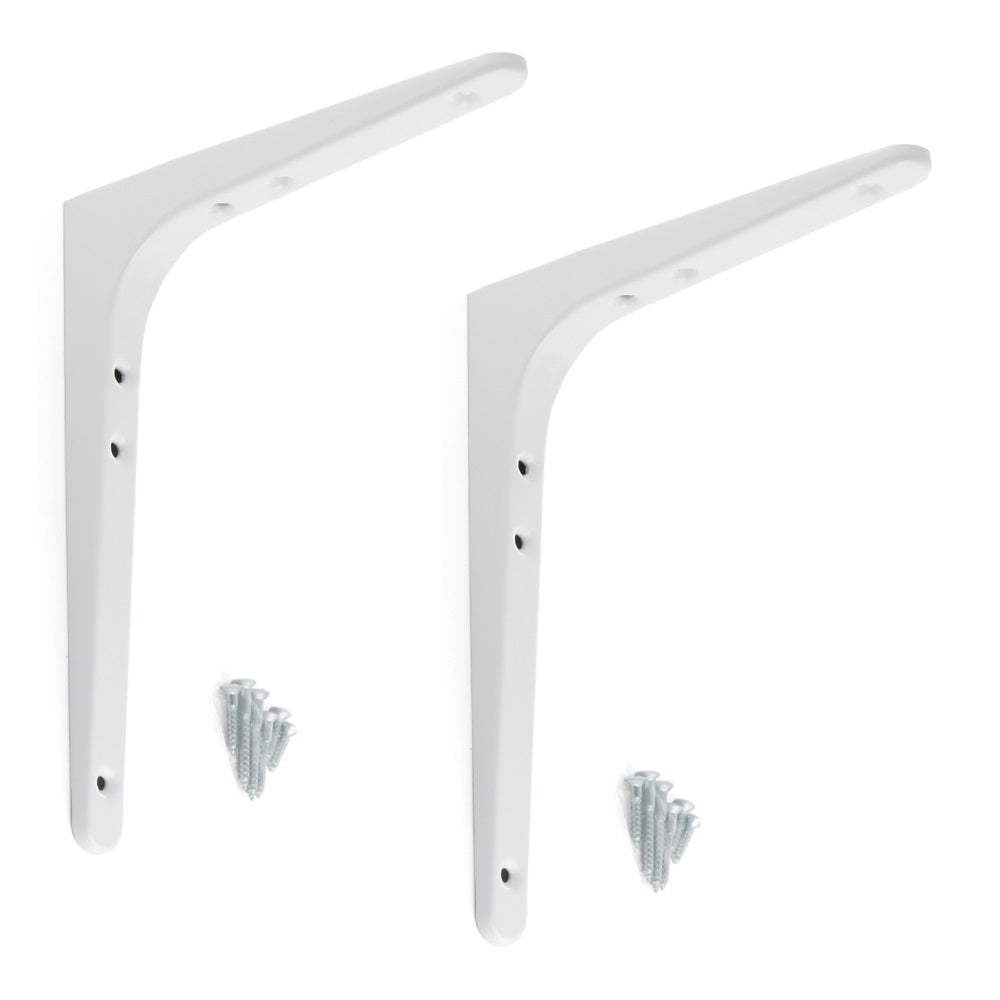

• Two heavy-duty mounting brackets BTK-180W made of robust steel, white
• Six countersunk wood screws: two 3.5 × 16 mm, one 3.5 × 20 mm, one 3.5 × 25 mm, two 3.8 × 32 mm made of steel

Manufacturer reference number:

• Article number: 120-030-095
• Item number: BTK-180W
• EAN number: 4510932730204

Manufacturer: Sugatsune / LAMP® (Japan)
