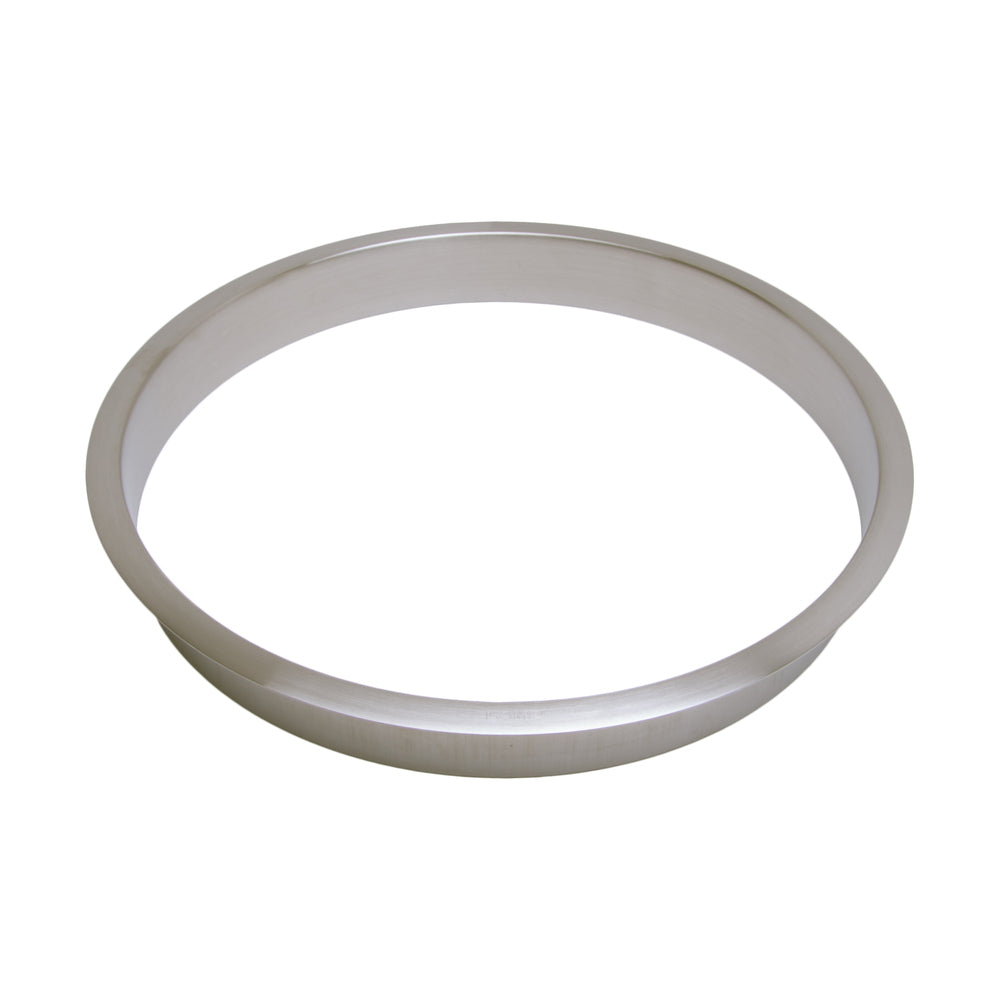

High-quality round waste chute, made of stainless steel, surface: satin matte, 300 mm (11.9"), AN-DH028-HL. Stainless steel waste chute, for system catering, shopfitting, catering, medical applications, and much more, from Sugatsune / LAMP® (Japan)

High-quality round waste disposal unit, made of stainless steel (V2A), surface: satin matt, AN-DH028-HL, size: 300 mm (11.9")

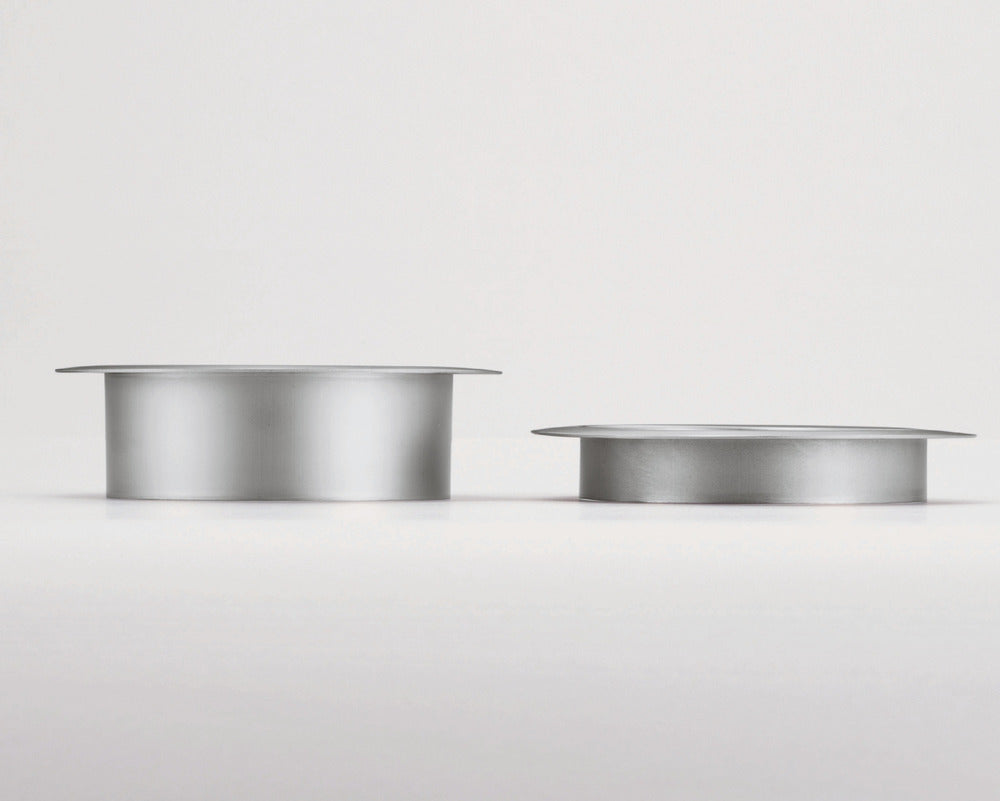

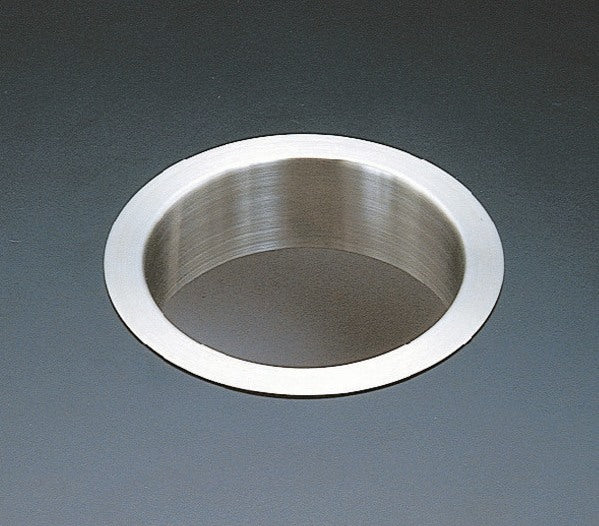

Application: Stainless steel waste disposal unit, for system catering, shopfitting, catering, medical sector and much more. [caption id="attachment_138125" align="alignnone" width="420"] High-quality round waste chute, AN-DH028-HL, 300 mm, from Sugatsune, satin finish. Application example[/caption] The high-quality stainless steel waste chute AN-DH028-HL made of rust-proof V2A stainless steel (SUS304) has a round shape and is elaborately crafted. The edges are softened and rounded to avoid injuries during use. [caption id="attachment_138135" align="alignnone" width="420"] High-quality round waste chute, AN-DH028-HL, 300 mm, from Sugatsune, satin finish. Available in two versions: shallow (22 mm) and deep (36 mm).[/caption] The stainless steel waste chute AN-DH028-HL can also be used in humid areas, such as in the medical sector, in laboratories, bathrooms, saunas, etc. Overall, the AN-DH028-HL garbage disposals make a very high-quality impression. [caption id="attachment_138145" align="alignnone" width="420"] High-quality round waste chute, AN-DH028-HL, 300 mm, from Sugatsune, with a satin finish. Available in three different finishes: glossy polished, satin finish, and 24K gold-plated, as well as six different diameters: 82 mm - 300 mm. The high-quality AN-DH028-HL garbage disposals are ideal for, among others:

• doctor's office
• gastronomy
• professional kitchen
• Drugstore furniture
• Hospital furniture
• kitchen furniture
• Beauty salon
• System catering
• Shopfitting
• Catering
• Medical field

Material:

• The AN-DH028-HL waste disposal units are made of stainless steel (V2A)

Surface:

• Satin matt
• The matte surface ensures fewer visible fingerprints and looks high-quality

Assembly:

• For insertion
• To install the AN-DH028-HL waste disposal unit, a cutout with a diameter of ⌀278 mm (10-15/16″) must be made in the body wall (for further details see installation drawing ).

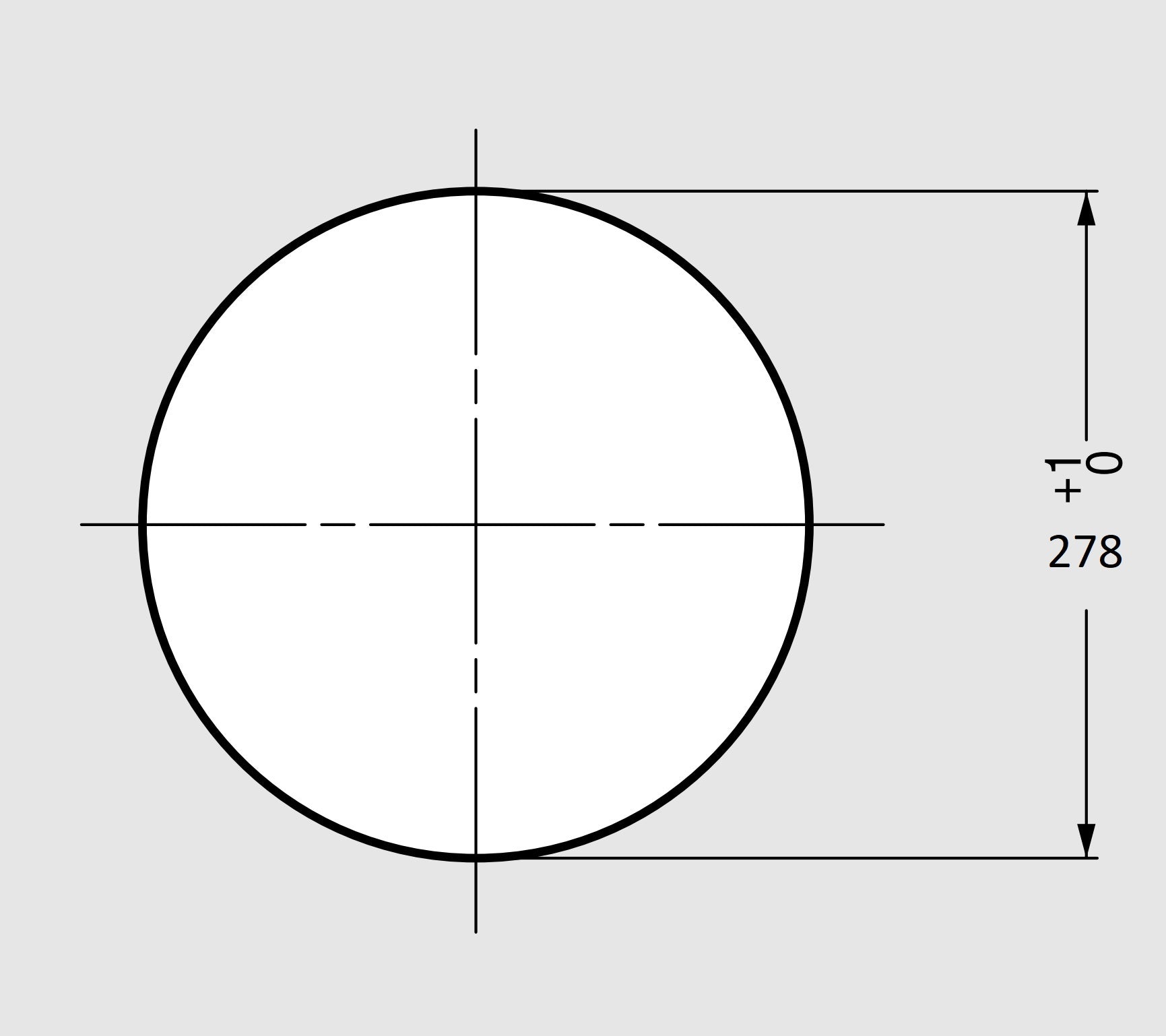

[caption id="attachment_138155" align="alignnone" width="420"] High-quality round waste chute, AN-DH028-HL, 300 mm, from Sugatsune, satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 290 g
• Size: 300 mm (11.9″)
• elaborately processed
• Shape: round

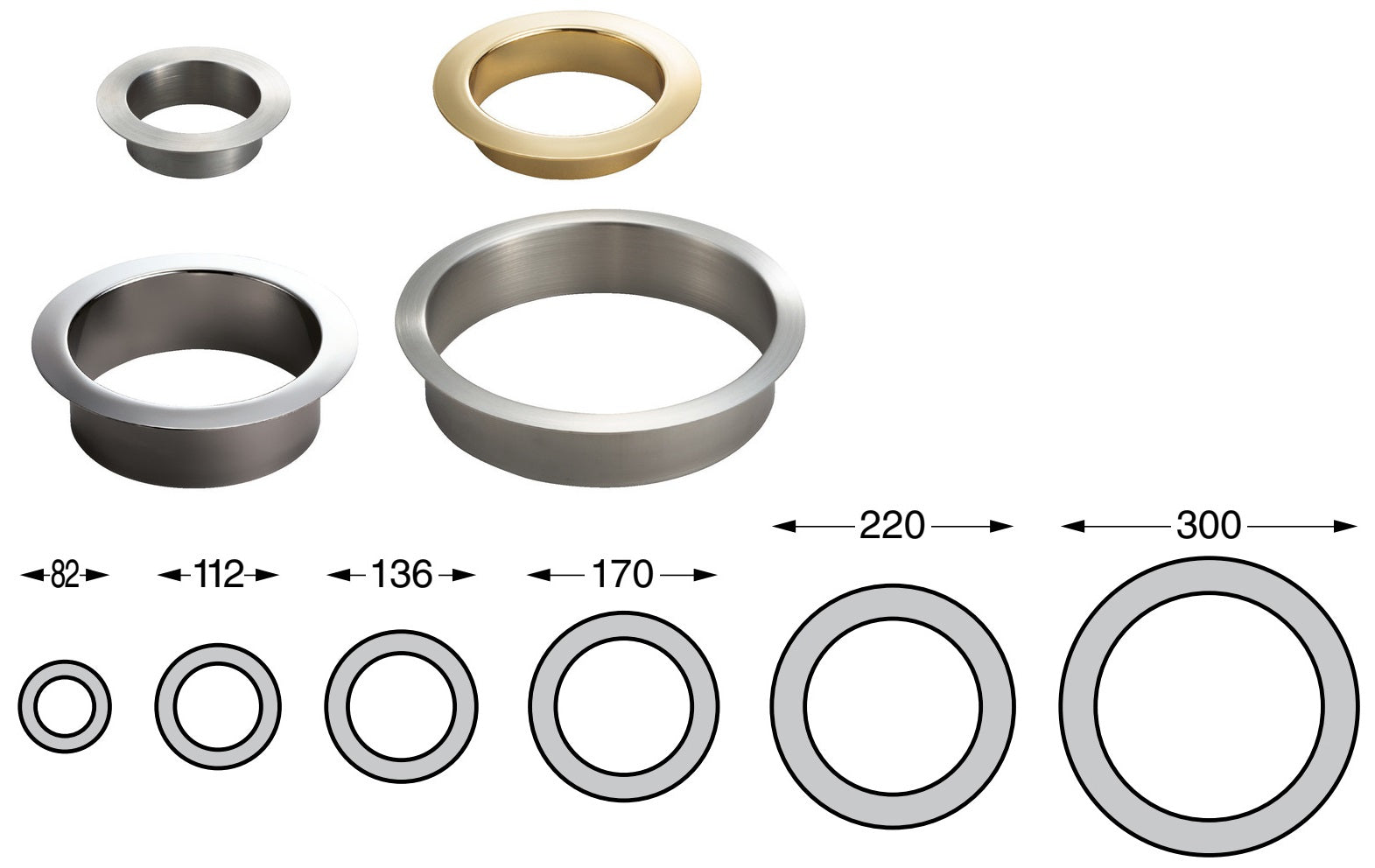

• Available with three different finishes: glossy polished, satin matt and 24K gold plated
• Available in six different diameters: ⌀82 mm - ⌀300 mm
• Available in two versions: flat (22 mm) and deep (36 mm)
• high quality
• satin matt
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the waste disposal opening: ⌀300 mm (11-13/16″)
• Inner diameter: ⌀276 mm (10-55/64″)
• Depth of the garbage disposal: 36 mm (1-27/64″)
• Material thickness: 1 mm (3/64″)
• Width of the collar or edge: 12 mm (15/32″)

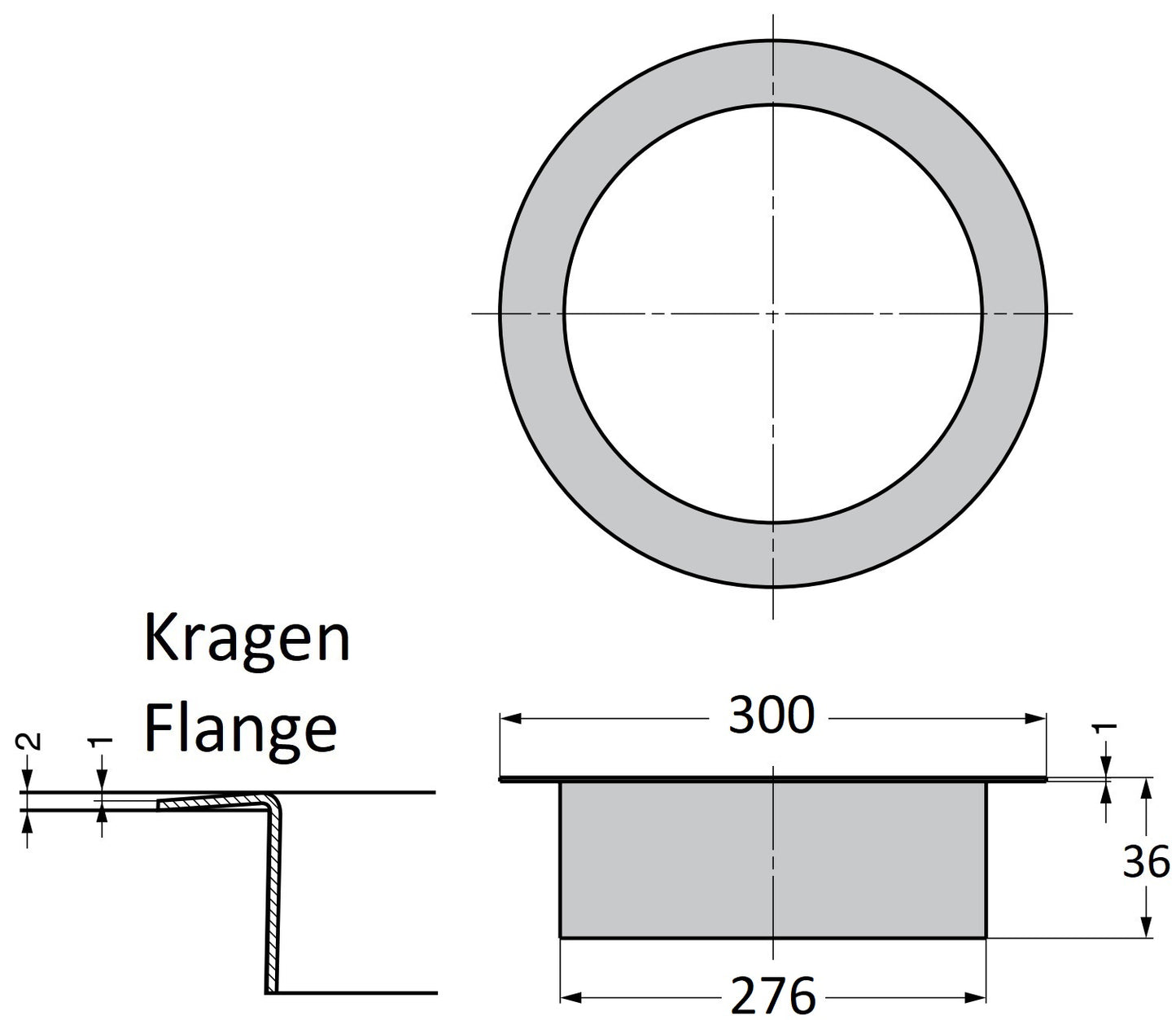

[caption id="attachment_138165" align="alignnone" width="420"] High-quality round waste chute, AN-DH028-HL, 300 mm, from Sugatsune, satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece AN-DH028-HL garbage disposal made of stainless steel, satin matt

Manufacturer reference number:

• Article number: 210-044-813
• Item number: AN-DH028-HL
• EAN number: 4510932180313

Manufacturer: Sugatsune / LAMP® (Japan)
