4 pieces round screw-on plates with M14 thread, mounting plate, made of solid zinc alloy, 35 mm (1.4"), AD-559M14. Mounting plate, for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet, and much more, from Sugatsune / LAMP® (Japan)

4 pieces round screw-on plate with M14 thread and three mounting holes, screw-on plate, made of solid zinc alloy (ZDC), surface: natural, AD-559M14, size: 35 mm (1.4")

Application: Mounting plate for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet and much more. The AD-559M14 mounting plate is used to attach furniture feet, leveling feet, etc. under furniture, sofas, appliances, machines, etc. Also suitable for replacing defective furniture feet, furniture casters or sofa feet. The galvanized surface of the screw plate protects it from rust and corrosion. The high-quality screw-on plates 200-141-311 are ideal for:

• Device feet
• Leveling feet
• Cabinet casters
• Articulated feet
• Adjustable feet
• Adjustable feet
• Roll container
• Furniture feet
• Furniture casters
• Machine feet
• Cabinet legs
• Sofa feet

Material:

• The AD-559M14 mounting plates are made of solid zinc alloy (ZDC)

Surface:

• Natural

Assembly:

• The mounting plate has three mounting holes with a diameter of ⌀3.6 mm (9/64″) and is attached to the lower surface of the furniture with three screws (not included).
• The furniture feet or castors, which are equipped with a screw, are then screwed into the thread of the mounting plate AD-559M14 and tightened

Characteristics:

• Weight: 23.5 g
• Size: 35 mm (1.4″)
• with M14 thread
• around
• with three mounting holes
• robust
• stable
• natural
• zinc alloy
• ZDC
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the mounting plate: ⌀35 mm (1-3/8″)
• Height: 14 mm (35/64″)
• Thread: M14
• Mounting hole diameter: ⌀3.6 mm (9/64″)
• Threaded nut diameter: ⌀18 mm (45/64″)

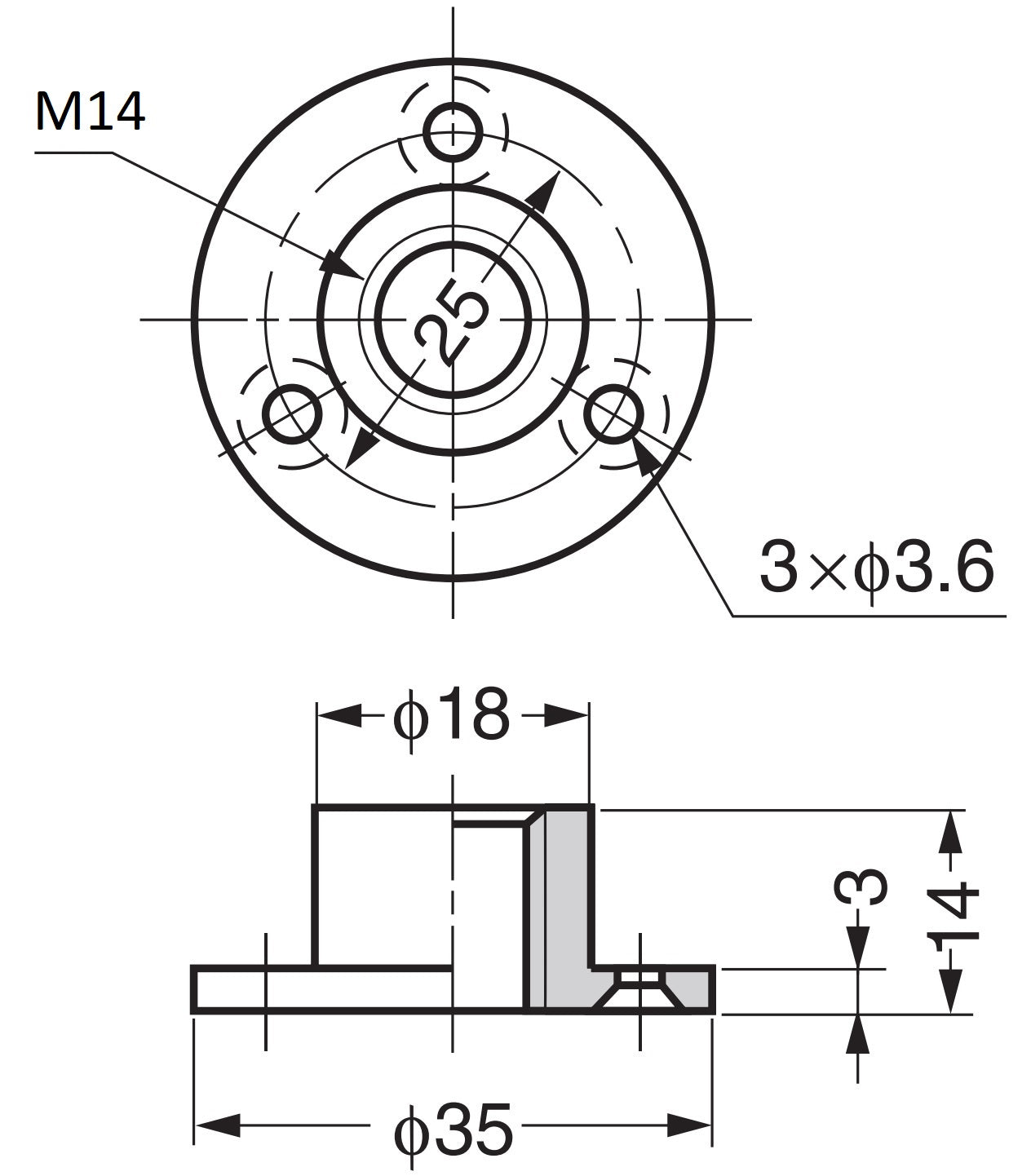

[caption id="attachment_132440" align="alignnone" width="368"] Round mounting plate with M14 thread, mounting plate, AD-559M14, 35 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

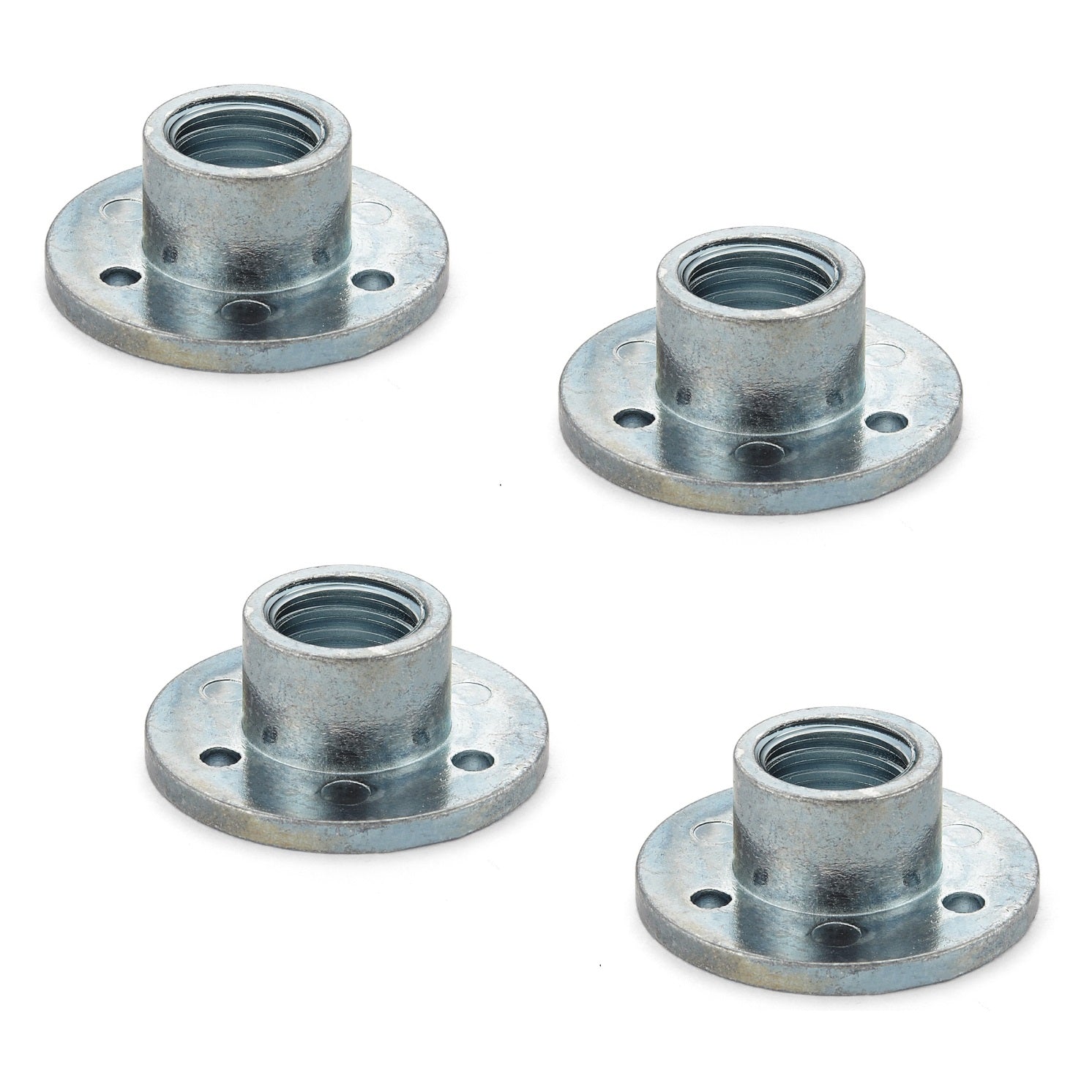

• 4 pieces of screw plate AD-559M14 made of solid zinc alloy, natural

Manufacturer reference number:

• Article number: 200-141-311
• Item number: AD-559M14
• EAN number: 4510932034593

Manufacturer: Sugatsune / LAMP® (Japan)
