2 high-quality rust-proof mounting brackets, made of solid stainless steel, load capacity: 18 kg (40 lbs), 180 mm (7.1"), SU-A180M. Shelf brackets for outdoor use, swimming pools, bathrooms, boats, and much more, from Sugatsune / LAMP® (Japan)

2 pieces of high-quality 6 mm thick mounting brackets, made of solid stainless steel (SUS304, V2A), surface: glossy polished, SU-A180M, size: 180 mm (7.1"), load capacity: 18 kg (40 lbs)

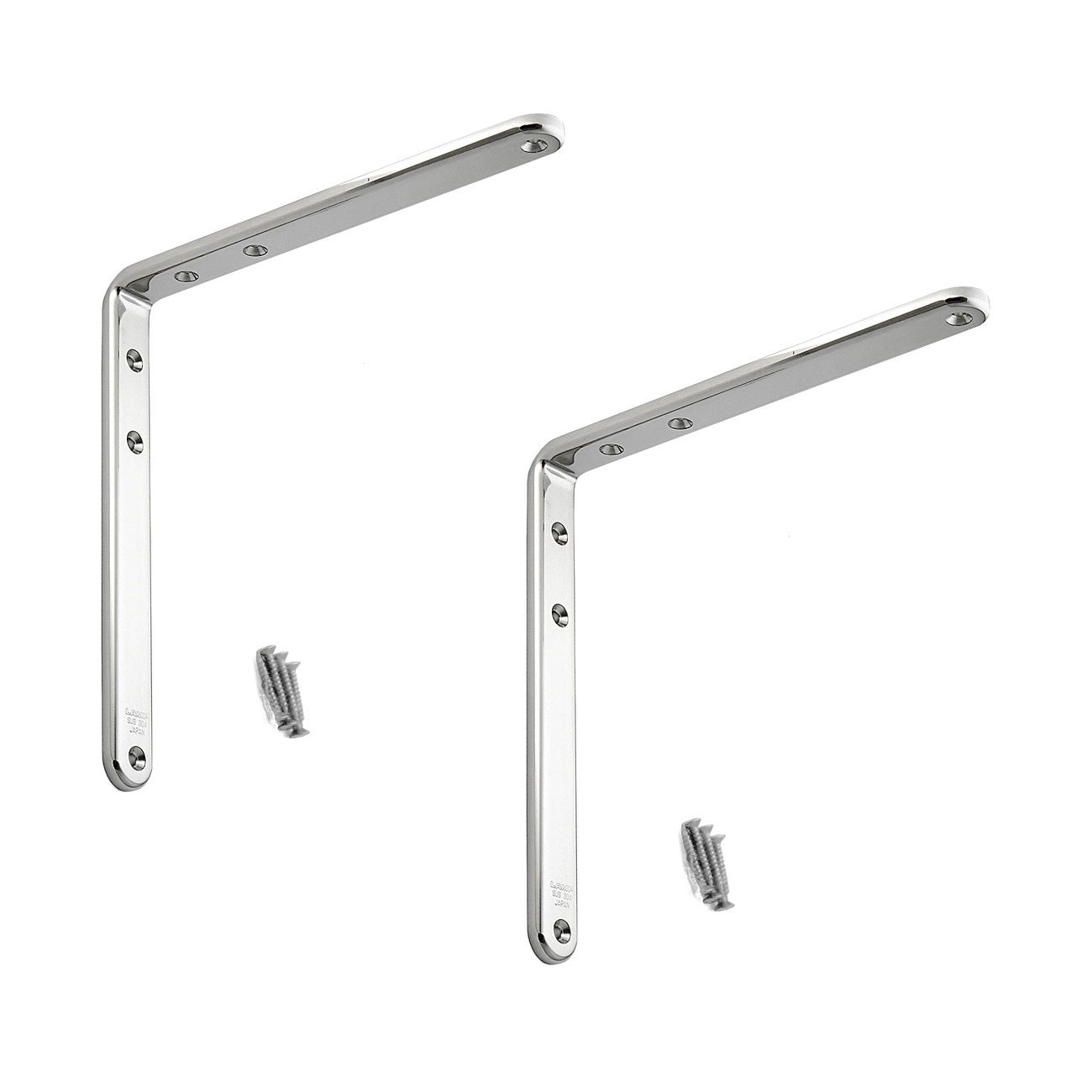

Application: Shelf brackets for outdoor use, swimming pools, bathrooms, boats and much more. The SU-A180M mounting brackets are made of solid 6 mm (15/64″) thick SUS304 stainless steel. [caption id="attachment_147709" align="alignnone" width="420"] High-quality stainless steel mounting bracket, SU-A180M, 180 mm, from Sugatsune, load capacity: 18 kg (40 lbs). Available in five sizes: 70 mm, 90 mm, 120 mm, 150 mm, and 180 mm.[/caption] The SU-A180M shelf brackets combine high load capacity with excellent corrosion resistance. The SU-A180M shelf bracket is very stable, has an excellent load capacity of 18 kg (40 lbs), and a support surface length of 180 mm (7.1″). The high-quality mounting brackets SU-A180M are ideal for, among others:

• shelf
• partition
• shelf
• yachts
• shelf
• ships
• hotel
• Outdoor area
• Swimming pool
• bathroom
• boats

Material:

• The mounting brackets SU-A180M are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Shiny polished
• Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and impurities

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head self-tapping screw 4 x 25 mm)
• The fastening screws are also made of stainless steel
• The mounting brackets SU-A180M have six mounting holes with a diameter of ⌀4.2 mm (11/64″), with countersunk

Characteristics:

• Weight: 320 g
• Load capacity: 18 kg (40 lbs) - for two pieces
• Size: 180 mm (7.1″)
• Available in five sizes: 70 mm, 90 mm, 120 mm, 150 mm and 180 mm
• easy to assemble
• practical
• stable
• Material thickness: 6 mm (15/64″)
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

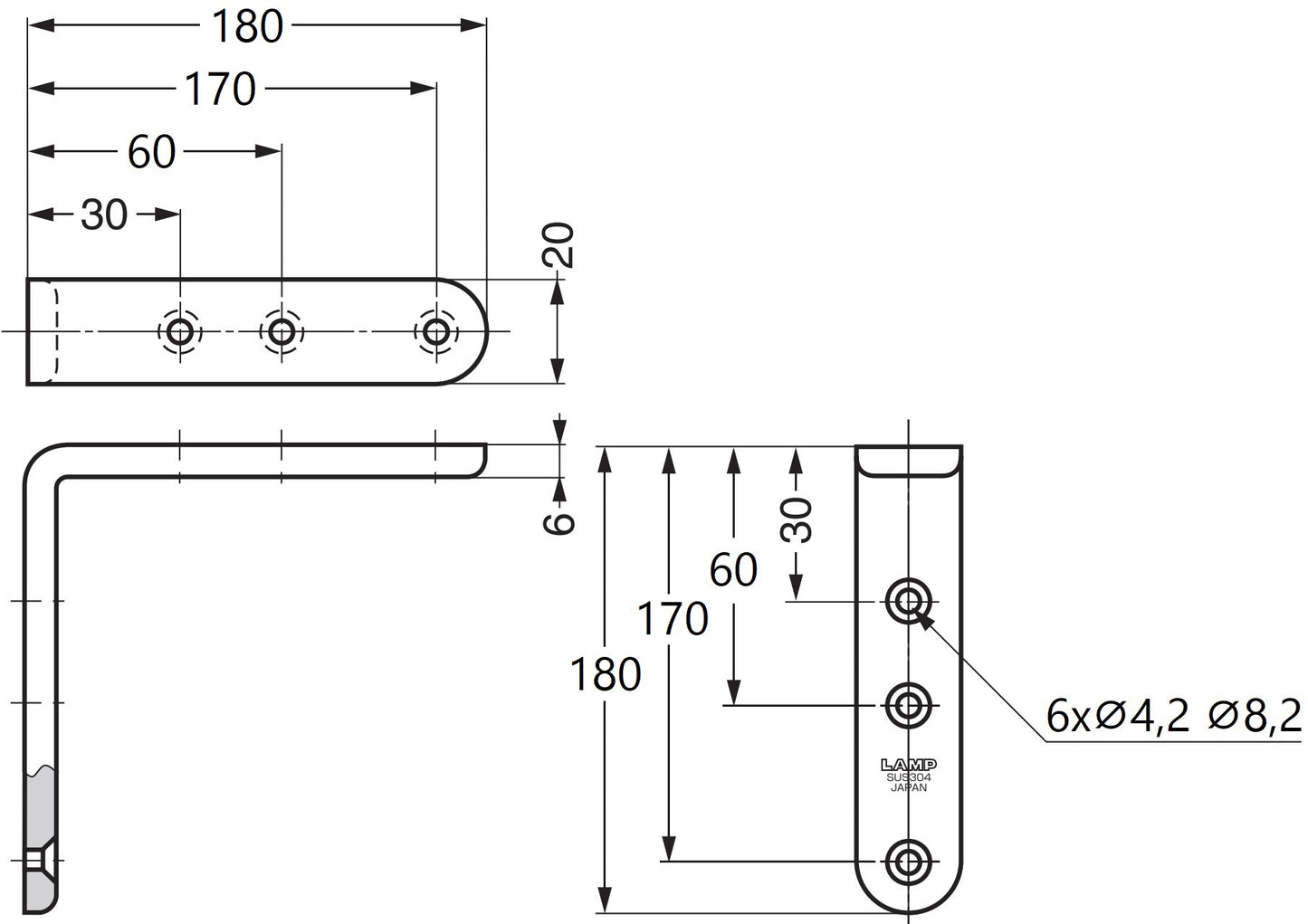

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 180 mm (7.1″)
• Width: 20 mm (25/32″)
• Depth: 180 mm (7.1″)
• Material thickness: 6 mm (15/64″)

[caption id="attachment_147719" align="alignnone" width="420"] High-quality stainless steel mounting bracket, SU-A180M, 180 mm, from Sugatsune, load capacity: 18 kg (40 lbs). Technical drawing[/caption] Included in delivery:

• Two mounting brackets SU-A180M made of solid stainless steel, shiny polished
• Six 4 x 25 mm stainless steel raised countersunk head self-tapping screws

Manufacturer reference number:

• Article number: 120-030-179
• Item number: SU-A180M
• EAN number: 4510932014274

Manufacturer: Sugatsune / LAMP® (Japan)
