Robust, high-quality heavy-duty furniture hinge, including screws, made of solid stainless steel (similar to V2A, SUS304), surface: black, satin matte, F136-50-BK, size: 120 mm (4-23/32″)

Application:

Heavy-duty hinge for heavy doors, heavy flaps and much more.

The heavy-duty furniture hinge F136-50-BK is designed for applications where high strength and robust support are required.

The stainless steel cast body provides a very stable base for long-lasting connections.

The stainless steel pivot axis ensures smooth, backlash-free operation even with frequent opening and closing.

The large contact surfaces distribute the load better across the door and frame, reducing tearing and warping.

The designed screw heads sit flush with the surface, improving both appearance and safety.

This makes the heavy-duty hinge F136-50-BK particularly suitable for demanding constructions in furniture and interior design, including high-quality interior fittings for ships and yachts (e.g. for heavy doors, flaps and service hatches in the interior).

The high-quality heavy-duty furniture hinges F136-50-BK are ideally suited for, among other things:

• Technical housing
• Lid
• Hatches
• Covers
• heavy door
• heavy flap

Material:

• The heavy-duty furniture hinges F136-50-BK are made of solid stainless steel (similar to V2A, SUS304).
• Stainless steel rotary axis SUSXM7
• Brass washer
• Stainless steel SCS13 (similar to AISI 304 / V2A) offers very good corrosion resistance, a hygienic surface and high durability for furniture fittings and interior design – even in humid conditions, with cleaning agents and fluctuating temperatures.
• This high-quality stainless steel provides high robustness and dimensional stability for furniture fittings and ship interiors, ensuring that fittings function reliably even under frequent use, stress and vibrations.

Surface:

• Black, satin matte
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish.
• While interior design styles may change, black always remains a safe choice that can easily adapt to new trends.
• Black surfaces can be used in various rooms, be it in the kitchen, living room or office.
• Black can have a calming and grounding effect, contributing to a relaxed atmosphere.

Assembly:

• The product is fastened using the six screws included in the scope of delivery (pan head screw 6x20 mm, black painted).
• The mounting screws are also made of stainless steel.

Characteristics:

• Weight: 260 g
• Size: 120 mm (4-23/32″)
• Available in 2 surface colors: sandblasted black and sandblasted natural (raw)
• easy to assemble
• practical
• stable
• Opening angle: 180°
• Heavy-duty version with large contact surface
• Material thickness: 5.5 mm (7/32″)
• Suitable for corrosion-prone indoor applications and robust constructions
• with countersink or flat head for pan head screws
• black, satin matte
• weather-resistant
• rustproof (corrosion-resistant)
• High brand quality from Kojima (Japan)

The dimensions:

• Length of heavy-duty hinge: 120 mm (4-23/32″)
• Width: 50 mm (1-31/32″)
• Height: 11 mm (7/16″)
• Mounting hole diameter: ⌀6.2 mm (1/4″)
• Outer diameter of the mounting hole (countersink): ⌀12.5 mm (31/64″)
• Mounting hole diameter: ⌀5 mm (13/64″)

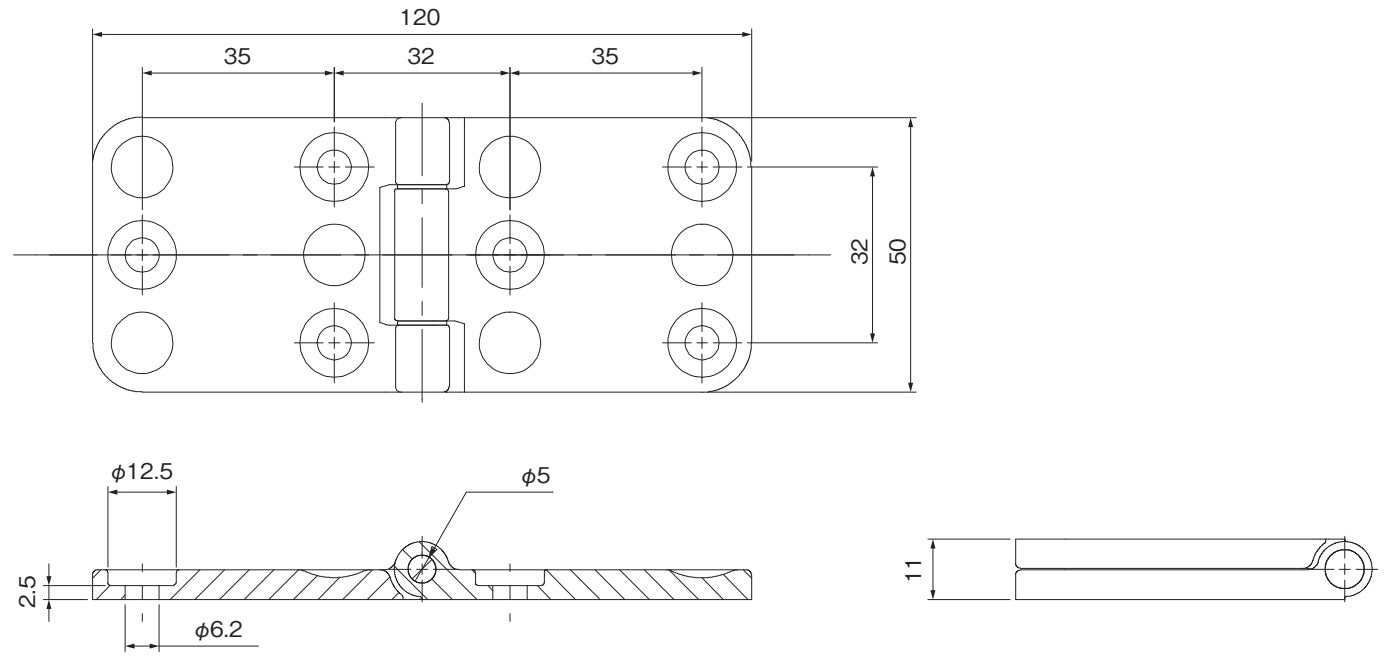

For further dimensions and details , see technical drawing .

Included in the delivery:

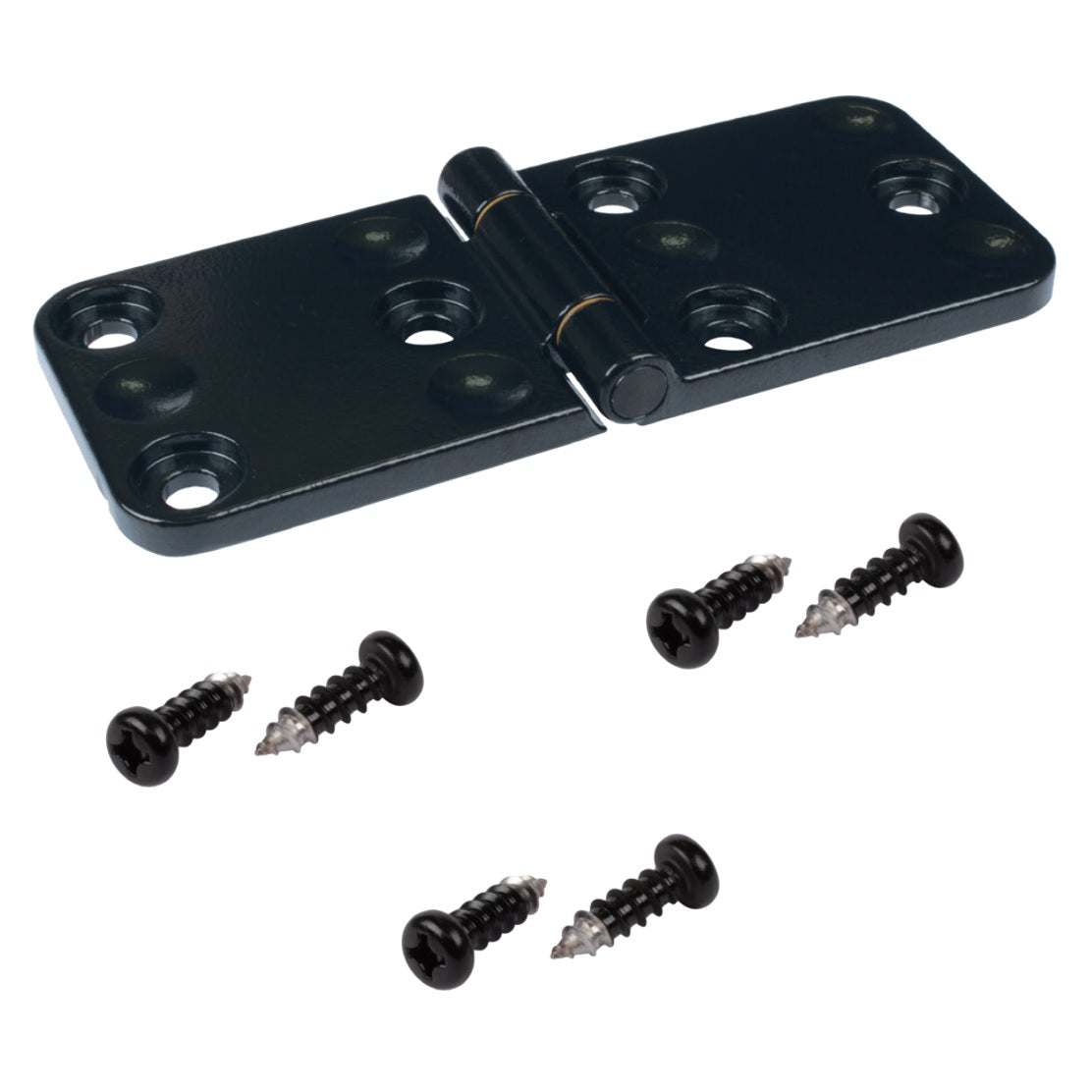

• 1 piece heavy-duty furniture hinge F136-50-BK made of solid stainless steel, black, satin matt
• 6 pieces of pan head screws 6x20 mm, black lacquered stainless steel

Manufacturer's reference number:

• Item identification number: F136-50-BK

Manufacturer: by Kojima (Japan)
