Robust snap lock with lifting handle, made of Zamak, surface: stainless steel look, design: square, 14.03.077-0 for caravans, yachts

Practical snap lock 14.03.077-0, with spring damper for gentle closing and self-locking lock, made of solid die-cast zinc, surface: stainless steel look, design: square

Application:

Lifting handle with self-locking lock and soft-close for caravans, yachts and much more.

The square design offers a modern, clean aesthetic as well as high stability and facilitates precise assembly thanks to straight edges and symmetrical shapes.

The high-quality snap lock 14.03.077-0 is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

The lifting handle 14.03.077-0 is suitable for door thicknesses between 15 mm (19/32″) and 22 mm (55/64″).

To open the furniture door, the handle of the snap lock 14.03.077-0 must be pulled and the snap lock released.

When opened, the lifting handle 14.03.077-0 serves as a practical handle with a depth of 25 mm (63/64″).

The special feature of the 14.03.077-0 snap lock is that the counterpart (strike plate) features two spring-loaded buffers. When closing, these buffers ensure that the door closes gently and makes no noise during travel or flight.

These features make the snap lock 14.03.077-0 ideal for ships, private aircraft, mobile homes and caravans.

The high-quality snap locks 14.03.077-0 are ideal for, among others:

• private jet
• Caravan
• Boat
• Motorhome
• Superyacht
• Camper Van
• Caravan
• yacht

Material:

• The snap locks 14.03.077-0 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often cheaper than solid brass or stainless steel fittings without compromising on quality

Surface:

• stainless steel look
• Stainless steel look offers a modern and timeless appearance that blends harmoniously into various interior styles
• The surface is resistant to fingerprints and scratches, which ensures long-lasting and easy-care use
• In addition, the elegant metallic shine gives a high-quality and noble appearance

Assembly:

• The attachment is done using the seven screws included in delivery
• For installation, a cutout with a height of 18 mm (45/64″) and a width of 7 mm must be made in the front
• Alternatively, a hole with a diameter of 18 mm (45/64″) can simply be drilled
• The minimum distance between the door edge and the center of the hole is 26.5 mm (1-3/64″)
• The lifting handle 14.03.077-0 is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the body side using the screws provided (for further details see assembly drawing ).

Characteristics:

• Design: square
• Weight: 110 g
• Size: 50 mm (1-31/32″)
• Available in three surface colors: chrome, black and stainless steel look
• easy to assemble
• practical
• stable
• Modern design
• high-quality optics
• Suitable for inset and overlay furniture doors
• The snap locks 14.03.077-0 appear solid and high-quality
• stainless steel look
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

The dimensions:

• Snap lock width: 49 mm (1-59/64″)
• Height: 50 mm (1-31/32″)
• Handle depth: 25 mm (63/64″)

For further dimensions and details see technical drawing .

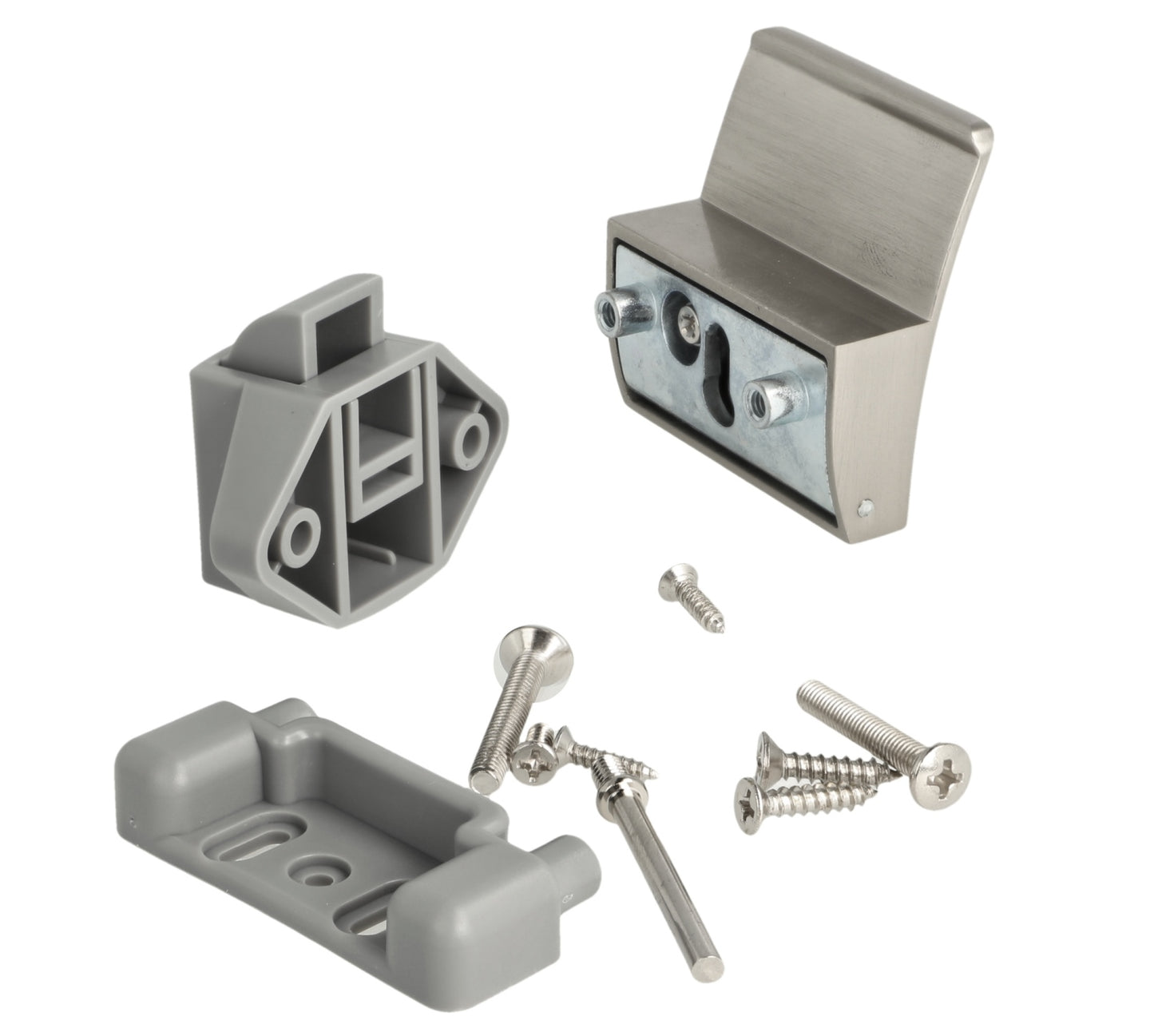

Included in delivery:

• 1 piece snap lock 14.03.077-0 made of solid zinc die-cast, stainless steel look, design: square
• Seven fastening screws
• 1 piece lock made of ABS, color: gray
• 1 piece counterpart made of ABS with spring-loaded buffers, color: gray
• 1 pen

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.03.077-0
• EAN number: 5704866518376

Manufacturer: SISO Denmark
