High-quality, robust tool handle made of reinforced nylon, black with black cover caps, 120 mm (4.8") MJH-120-BL. Machine handle MJH-120-BL for industrial cabinets, production equipment, and mechanical engineering, from Sugatsune / LAMP® (Japan)

High-quality tool handle made of reinforced nylon, black, with black cover caps MJH-120-BL

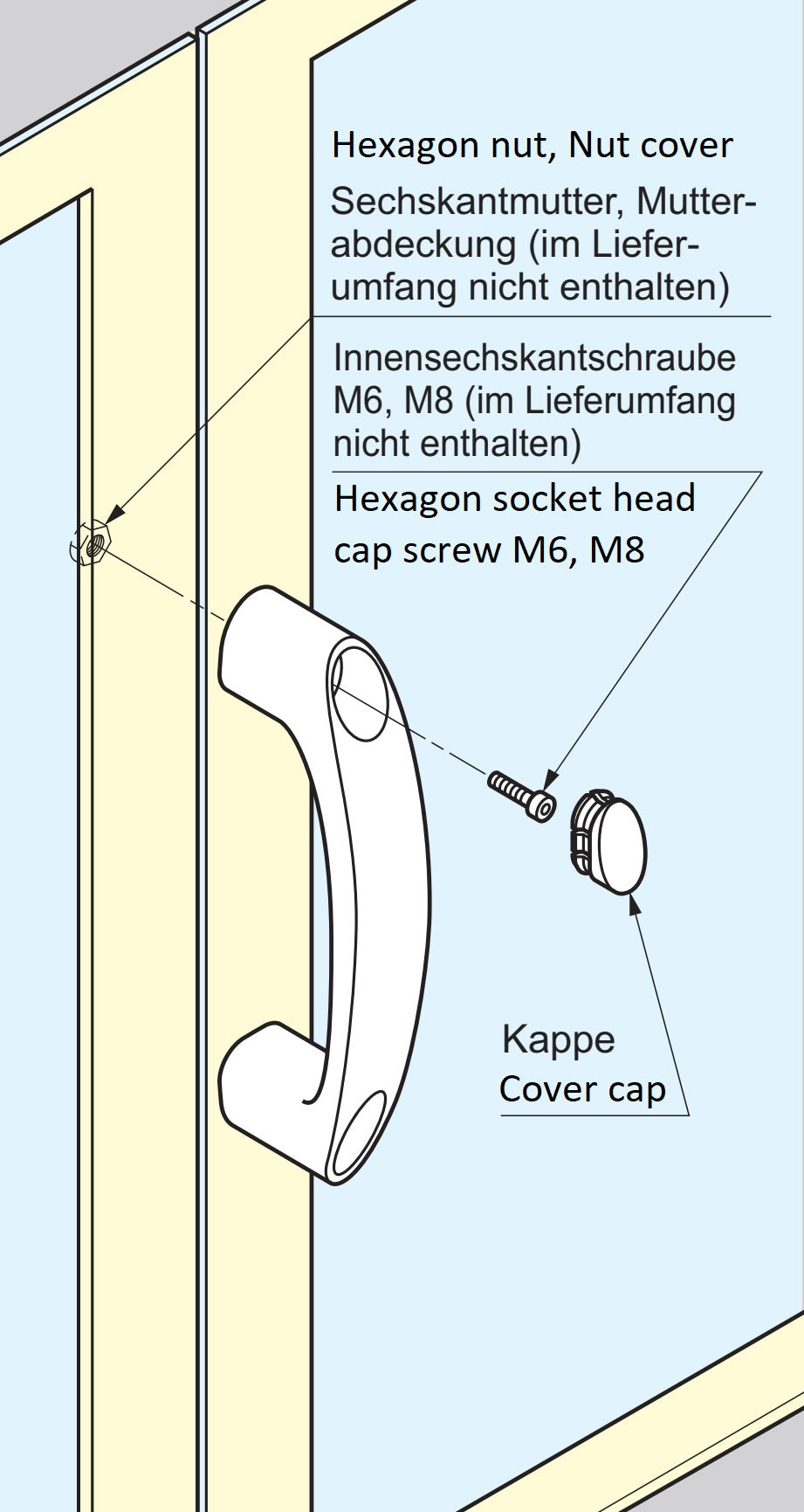

Application: [caption id="attachment_103451" align="alignnone" width="420"] High-quality, robust tool handle made of reinforced nylon, black with black cover caps, MJH-120-BL, 120 mm, from Sugatsune. Application[/caption] Machine handle MJH-120-BL for industrial cabinets, production plants, mechanical engineering. The inner surface of the industrial handle is rounded to facilitate easy and quick gripping. The cover caps are securely attached to prevent them from falling off. The places where the load capacity of the handle is applied in two directions are marked with the symbol "※" on the technical drawing. The high-quality MJH-120-BL tool handles are ideal for, among other things:

• Industrial cabinets
• Production facilities
• Mechanical engineering
• Office furniture
• Medical technology
• Electrical appliances

Material:

• The high-quality device handles MJH-120-BL are made of reinforced nylon (nylon)

Surface:

• Black
• The handles are available with cover caps in black, yellow and grey

Assembly:

• The fastening is done with hexagon socket screw M8 screws (not included in delivery)
• For installation, two holes for the fastening screws must be pre-drilled in the front with a distance (P) of 120 mm (4-23/32″)
• The handle MJH-120-BL can be installed from both the inside and outside (for further details see assembly drawing )

[caption id="attachment_103469" align="alignnone" width="420"] High-quality, robust tool handle made of reinforced nylon, black with black cover caps, MJH-120-BL, 120 mm, from Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 50.8 g
• Load capacity: 450 N (46 kp)
• Size: 120 mm (4.8″)
• Internal height of the grip area: 38.5 mm (1-33/64″)
• Ergonomic
• Solid
• Robust
• Made of reinforced nylon Reinforced nylon (nylon)
• Black
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Length of the tool handle (L1): 143 mm (5-5/8″)
• Height (H1): 47 mm (1-27/32″)
• Distance between mounting holes (P): 120 mm (4-23/32″)
• Inner grip width (L2): 96 mm (3-25/32″)
• Inner handle height (H2): 38.5 mm (1-33/64″)
• Mounting hole diameter (D): Φ8.5 mm (21/64″)
• Nut size (S): 8.5 mm (21/64″)

[caption id="attachment_103487" align="alignnone" width="420"] High-quality, robust tool handle made of reinforced nylon, black with black cover caps, MJH-120-BL, 120 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece tool handle MJH-120-BL made of reinforced nylon, black
• 2 pieces black cover cap

Manufacturer reference number:

• Article number: 100-026-534, 100-026-537
• Item number: MJH-120-BL
• EAN number: 4510932161480, 4510932161497

Manufacturer: Sugatsune / LAMP® (Japan)
