Ringförmiger Edelstahl-Klappgriff SUS304, 50 mm (2″) 980640. Drehbarer Ringförmiger Edelstahl-Klappgriff aus rostfreiem Edelstahl V2A, glänzend poliert, für Revisionsklappe, Revisionstür, feuchte Umgebung, Schiff, Caravan von Sugatsune / LAMP® (Japan)

Ring-shaped stainless steel folding handle made of stainless steel V2A (SUS304) 980640

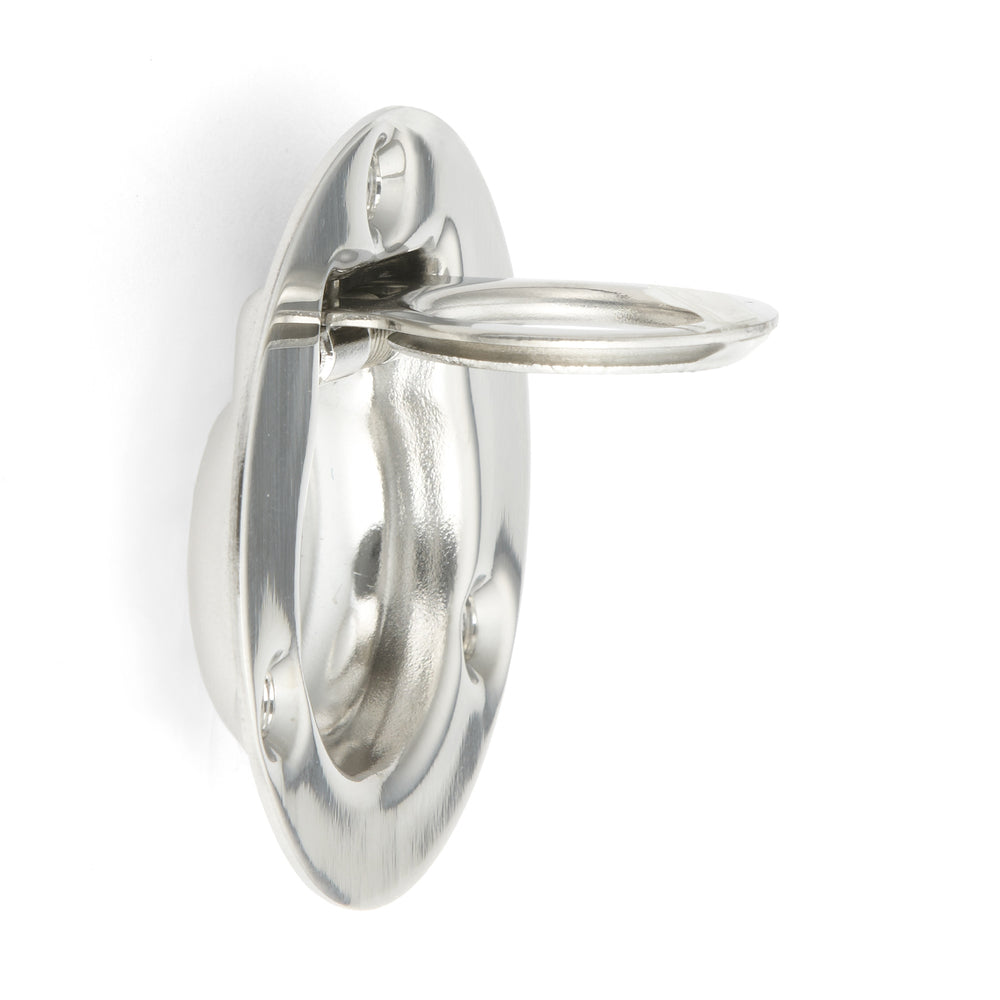

Application: [caption id="attachment_46259" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980640 (50 mm), glossy polished. Application[/caption] Rotatable ring-shaped stainless steel folding handle made of V2A stainless steel, shiny polished, for inspection hatch, inspection door, damp environment, ship, caravan. The folding handles are perfect for applications where the handle needs to remain hidden. They can be mounted both vertically and horizontally The ring-shaped stainless steel folding handles 980640 are folded closed by the built-in spring when not in use. When folded, the ring handles are flush with the surface. The ring-shaped stainless steel folding handles 980640 have a simple and elegant design and can be used in a variety of ways. The high-quality 980640 ring-shaped stainless steel folding handles are ideal for:

• Inspection hatch
• inspection door
• Maintenance door
• humid environment
• Ship
• Caravan
• cruise ship
• yacht
• boat
• Outdoor area
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: The rust-proof folding ring handles 980640 are made of solid high-quality SUS304 stainless steel. Foldable ring handle made of SUS316 stainless steel is also ideal for use in swimming pools, shipbuilding, etc. Surface:

• Shiny polished

Assembly:

• The ring-shaped stainless steel folding handles 980640 are for recessing
• The mounting is done using the screws included in delivery (3.5 × 22 mm)
• The fastening screws are also made of stainless steel

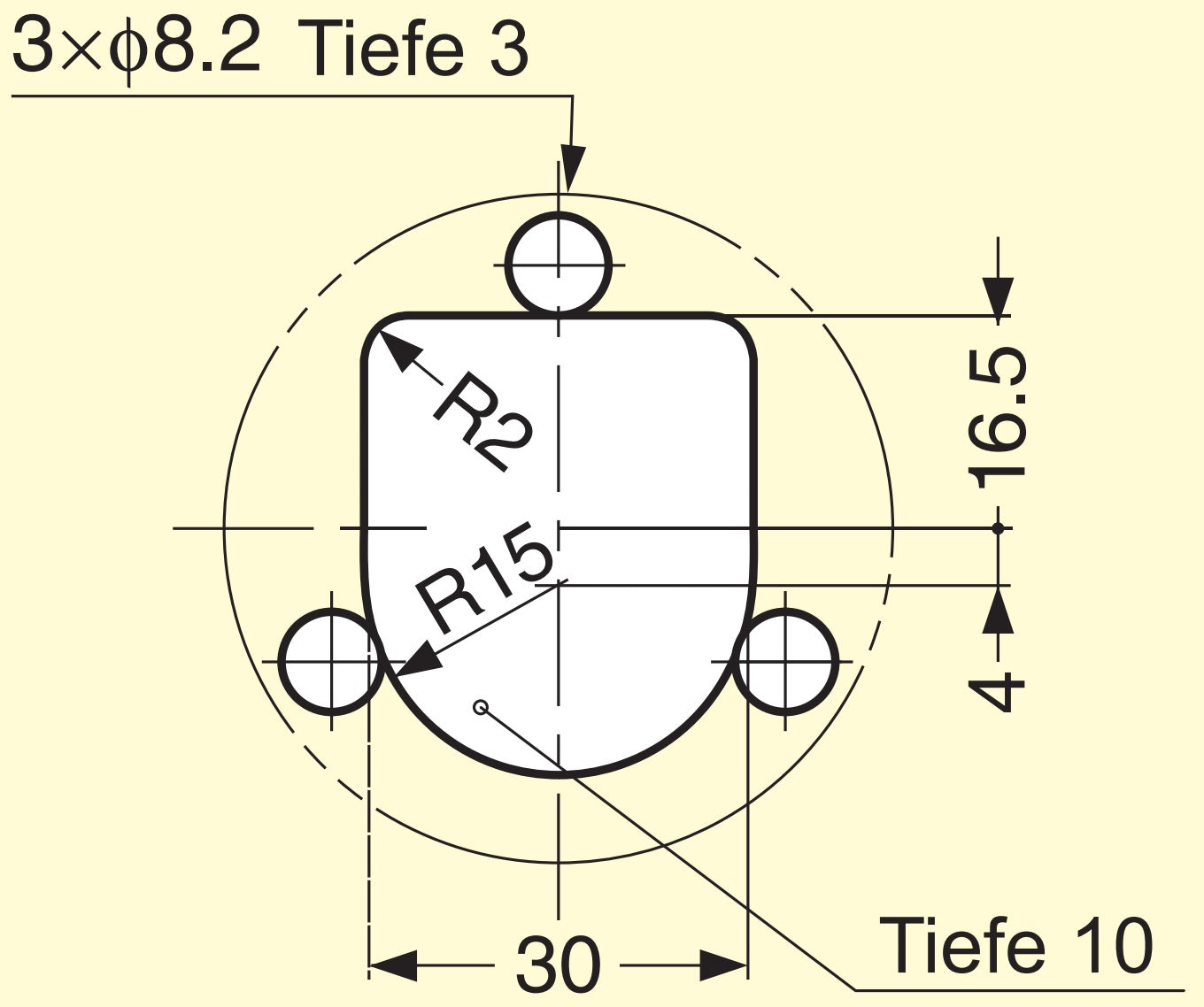

• For installation, a cutout with a depth of at least 10.5 mm (13/32″) must be made in the door (for further details see installation drawing ).
• The ring-shaped stainless steel folding handles 980640 can also be installed in sheet metal using a spacer and two M3 self-tapping screws. These are not included in delivery.

[caption id="attachment_46272" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980640 (50 mm), glossy polished. Technical drawing[/caption] [caption id="attachment_46285" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980640 (50 mm), glossy polished. Mounted in sheet metal.[/caption] Characteristics:

• Weight: 23 g
• Load capacity: 196 N (20 kp)
• Size: 50 mm (2″)
• Shape: round
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Material thickness: 1 mm

Dimensions: For further dimensions and details see technical drawing .

• Size of the ring-shaped stainless steel folding handle: 50 mm (1-31/32″)
• Grip area size: 10 mm (13/32″)

[caption id="attachment_46298" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980640 (50 mm), glossy polished. Technical drawing[/caption] Included in delivery:

• 1 piece ring-shaped stainless steel folding handle 980640 made of stainless steel SUS304 (V2A)
• 2 x 3.5 × 22 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-011-740
• Article name: 980640
• EAN number: 4510932011013

Manufacturer: SUGATSUNE / LAMP® (Japan)
