20 high-quality shelf supports, made of robust polyamide, load capacity: 200 kg (441 lbs), surface: brown, design: flat, SS-323BR. Shelf supports for shelves, cabinet shelves, shelves, and much more, from Sugatsune / LAMP® (Japan)

20 high-quality shelf supports, robust polyamide (PA, nylon), surface: brown, SS-323BR, design: flat, load capacity: 200 kg (441 lbs)

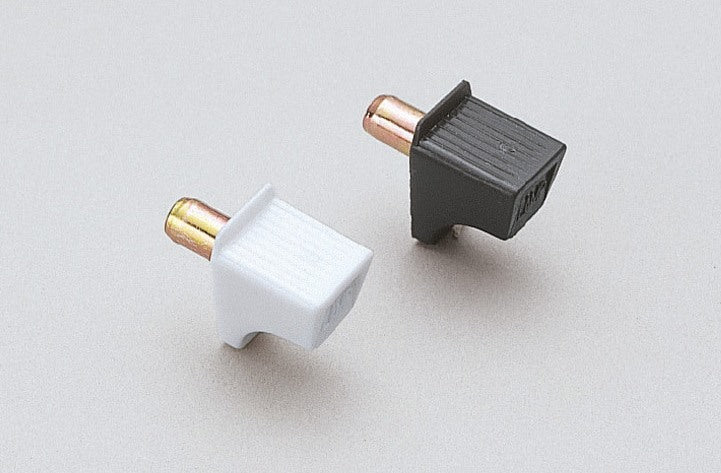

Application: Shelf supports for shelves, cabinet floors, shelves and much more. [caption id="attachment_151304" align="alignnone" width="420"] The shelf support SS-323BR is available in two colors: white and brown[/caption] The high-quality SS-323BR shelf supports are heavy-duty and durable. They are ideal for furniture with Ø5 mm (13/64″) hole rows or drill holes with a diameter of Ø5 mm (13/64″). The SS-323BR shelf support has a steel fixing pin, is very stable and has an excellent load capacity of 200 kg (441 lbs). For better locking of the shelves, the SS-323BR shelf supports have an additional fastening pin on the upper surface. The high-quality shelf supports SS-323BR are ideal for, among others:

• row of holes
• Cabinets
• shelves
• kitchen furniture
• office cabinet
• bedroom furniture
• Home furniture
• Shelves
• Shelves
• Cabinet shelves
• Shelves

Material:

• The shelf supports SS-323BR are made of robust polyamide (PA, nylon)
• The fixing pin is made of steel
• Polyamide is ideal for furniture fittings and industrial fittings because it is robust, corrosion-resistant, sound-dampening and slippery, allowing for durable and easily movable fittings.

Surface:

• Brown
• Brown conveys a feeling of warmth and comfort, creating a cozy and inviting atmosphere, ideal for living and dining areas
• Brown goes well with wood and is a versatile, neutral color that combines well with other colors and materials and exudes timeless elegance
• The shelf support SS-323BR is available in two colors: white and brown

Assembly:

• The shelf support SS-323BR is pressed into a hole with a diameter of Ø5 mm (13/64″) (ideal for the hole row)
• The depth of the mounting hole must be at least 9 mm (23/64″)
• The shelf is placed on the shelf support
• The center of the mounting hole on the cabinet wall must be positioned 4 mm below the desired position of the shelf

Characteristics:

• Design: flat
• Weight: 3.4 g
• Load capacity: 200 kg (441 lbs) - for 4 pieces
• Size: 17 mm (43/64″)
• 4 mm
• easy to assemble
• practical
• stable
• brown
• robust
• abrasion-resistant
• durable
• resistant to many chemicals
• heat-resistant
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Shelf support width: 10 mm (25/64″)
• Height: 17 mm (43/64″)
• Depth: 12 mm (15/32″)
• Length of the fixing pin: 8 mm (5/16″)
• Diameter of the fixing pin: Ø4.8 mm (3/16″)

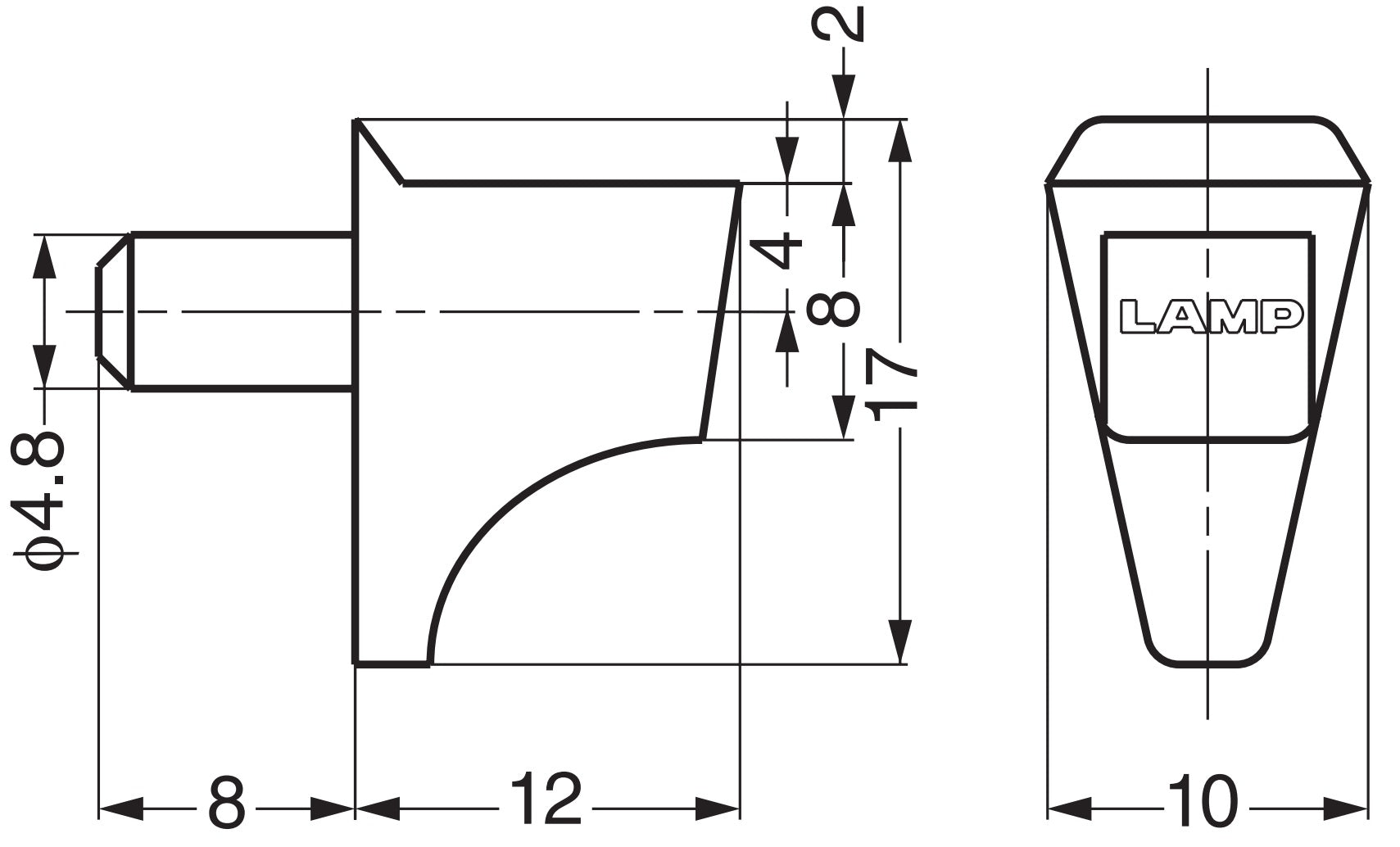

[caption id="attachment_151284" align="alignnone" width="420"] High-quality shelf bracket, SS-323BR, from Sugatsune, load capacity: 200 kg (441 lbs), brown, flat design. Technical drawing[/caption] Included in delivery:

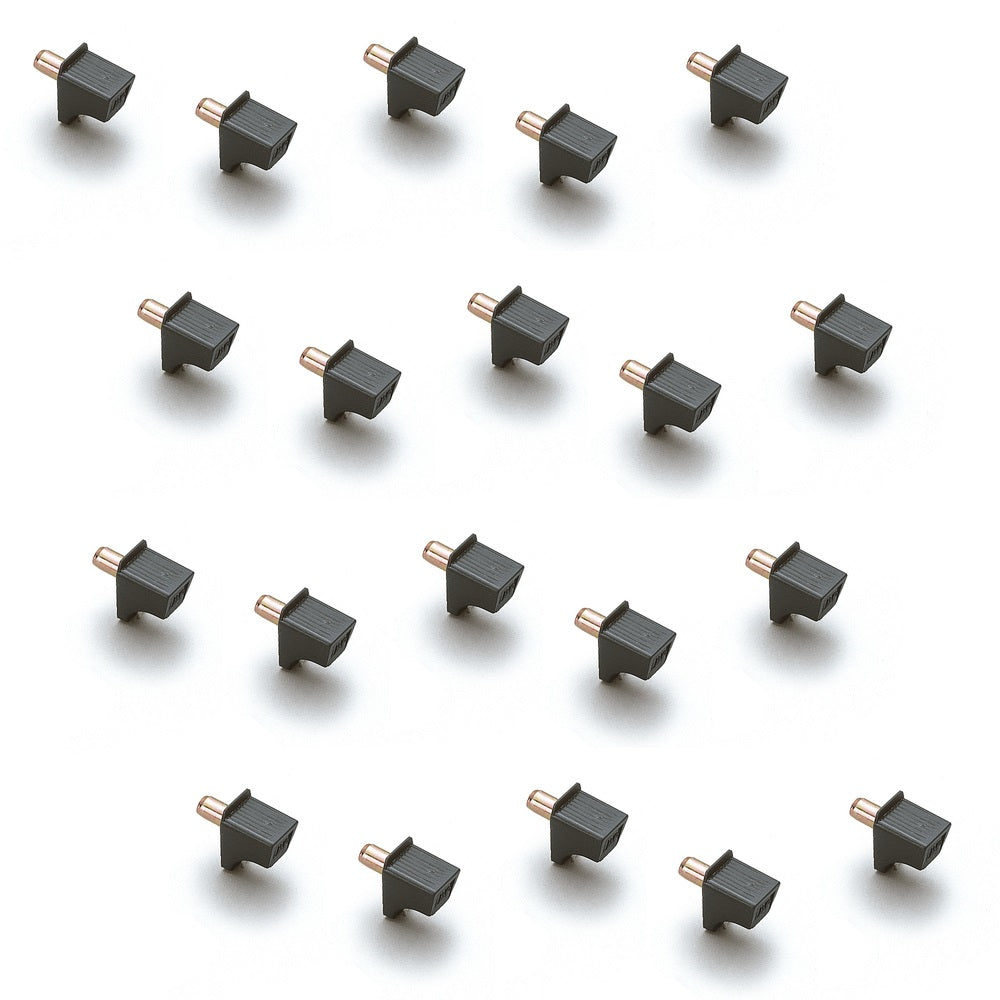

• 20 pieces shelf supports SS-323BR made of robust polyamide, brown, design: flat

Manufacturer reference number:

• Article number: 120-041-327
• Item number: SS-323BR
• EAN number: 4510932740029

Manufacturer: Sugatsune / LAMP® (Japan)
