Pack of 20 zinc alloy shelf supports, nickel-plated finish 4030407. Zinc alloy shelf supports for shelves, cabinet shelves, shelves, cabinets, racks and much more, by EMUCA

20 pieces shelf supports made of solid zinc alloy, surface: nickel-plated, 4030407

Application: Zinc alloy shelf supports for shelves, compartment floors, cabinet floors, shelves, cabinets, racks and much more. The high-quality shelf supports 4030407 are highly resilient and durable. The shelf supports have a rectangular shape to optimally support shelves. The shelf support 4030407 is ideal for, among other things:

• office cabinet
• bedroom furniture
• Home furniture
• Shelves
• Shelves
• Cabinet shelves
• Shelves
• Cabinets
• shelves

Material:

• The high-quality shelf supports 4030407 are made of solid zinc alloy (ZDC)

Surface:

• Nickel-plated

Assembly:

• The shelf support 4030407 is inserted into the pre-drilled mounting hole with a diameter of Ø5 mm (13/64″) and a depth of at least 8.5 mm (21/64″) in the cabinet wall
• At least 4 shelf supports are required to attach a shelf
• The shelf is placed on the shelf supports

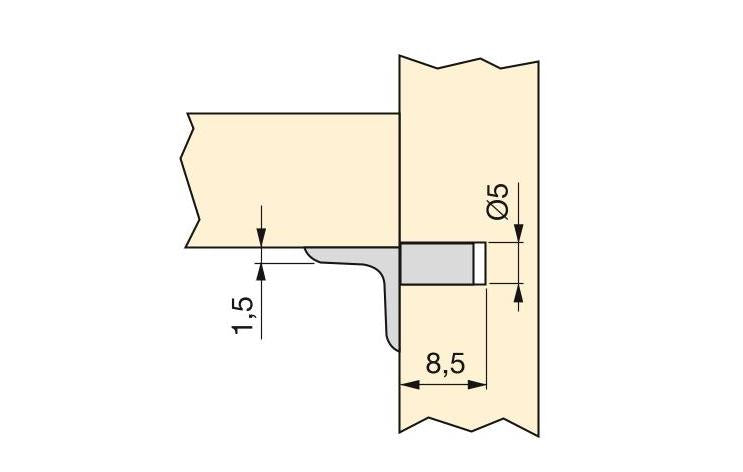

• The center of the mounting hole on the cabinet wall must be positioned 1.5 mm (1/16″) below the desired position of the shelf (for further details see assembly drawing )

[caption id="attachment_121762" align="alignnone" width="420"] Shelf support made of zinc alloy, nickel-plated finish, from EMUCA. Assembly drawing[/caption] Characteristics:

• Weight: 2.6 g
• Size: 5 mm (0.2″)
• Stable
• Solid
• Robust
• Nickel-plated
• High brand quality from UMAXO®

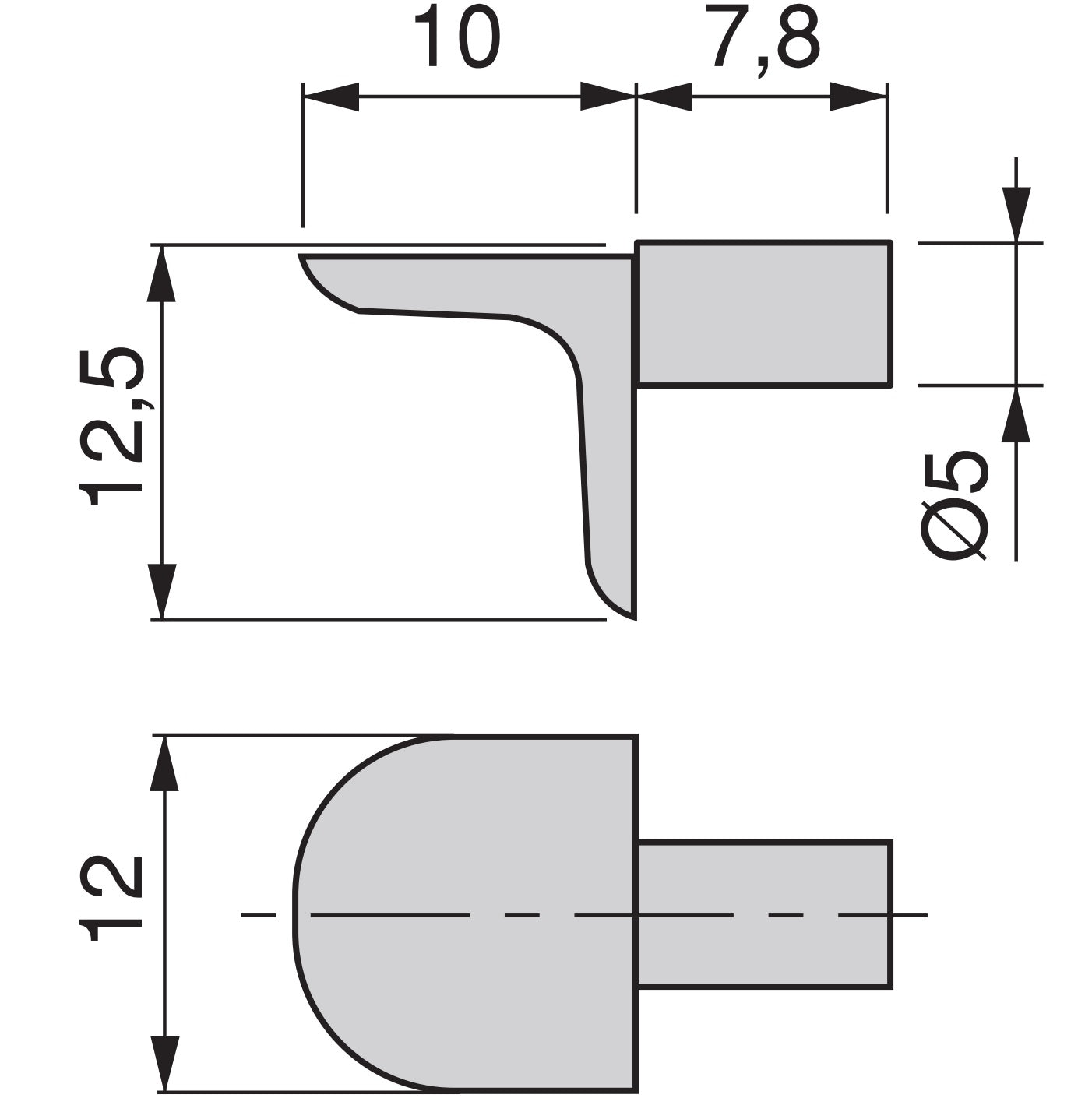

For further dimensions and details see technical drawing . The dimensions:

• The support surface of the shelf support: 10 mm (25/64″) x 12 mm (15/32″)
• Shelf support height: 12.5 mm (31/64″)
• Length of the mounting pin: 7.8 mm (5/16″)

[caption id="attachment_121775" align="alignnone" width="418"] Shelf support made of zinc alloy, nickel-plated finish, from EMUCA. Technical drawing[/caption] Included in delivery:

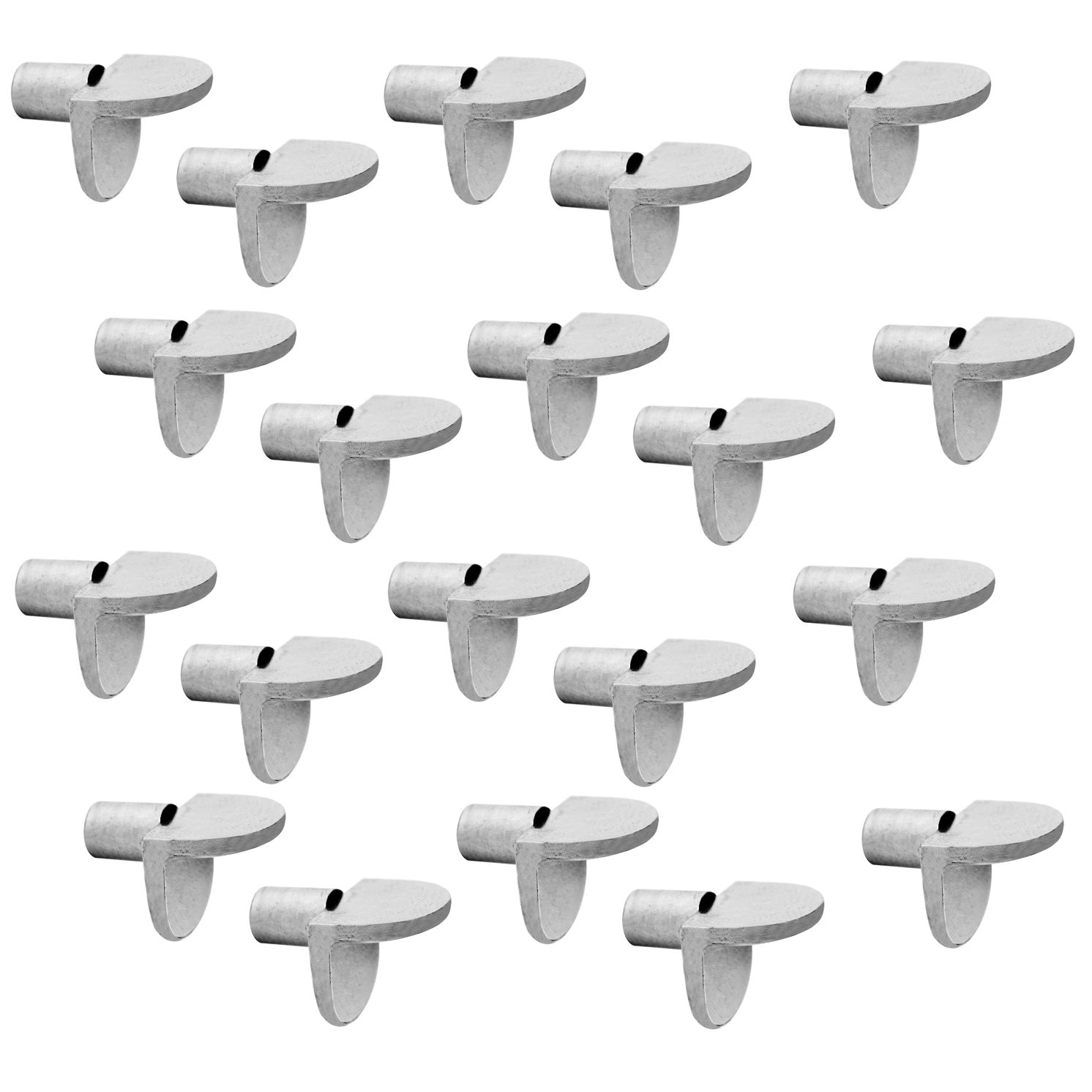

• 20 pieces shelf supports 4030407 made of solid zinc alloy, nickel-plated

Manufacturer reference number:

• Article number: 4030407
• EAN number: 8432393276762

Manufacturer: EMUCA
