Hochwertige rechteckige Griffmuschel aus robustem Kunststoff, Oberfläche: Schwarz, 110 mm (4,4″) HH-JS110-BL. Möbelgriff HH-JS110-BL für Blech, Holz, Schubkasten, Metallschrank, Holzschrank, Büromöbel, Schlafzimmermöbel, von Sugatsune / LAMP® (Japan)

High-quality handle shell made of robust plastic, surface: black, HH-JS110-BL

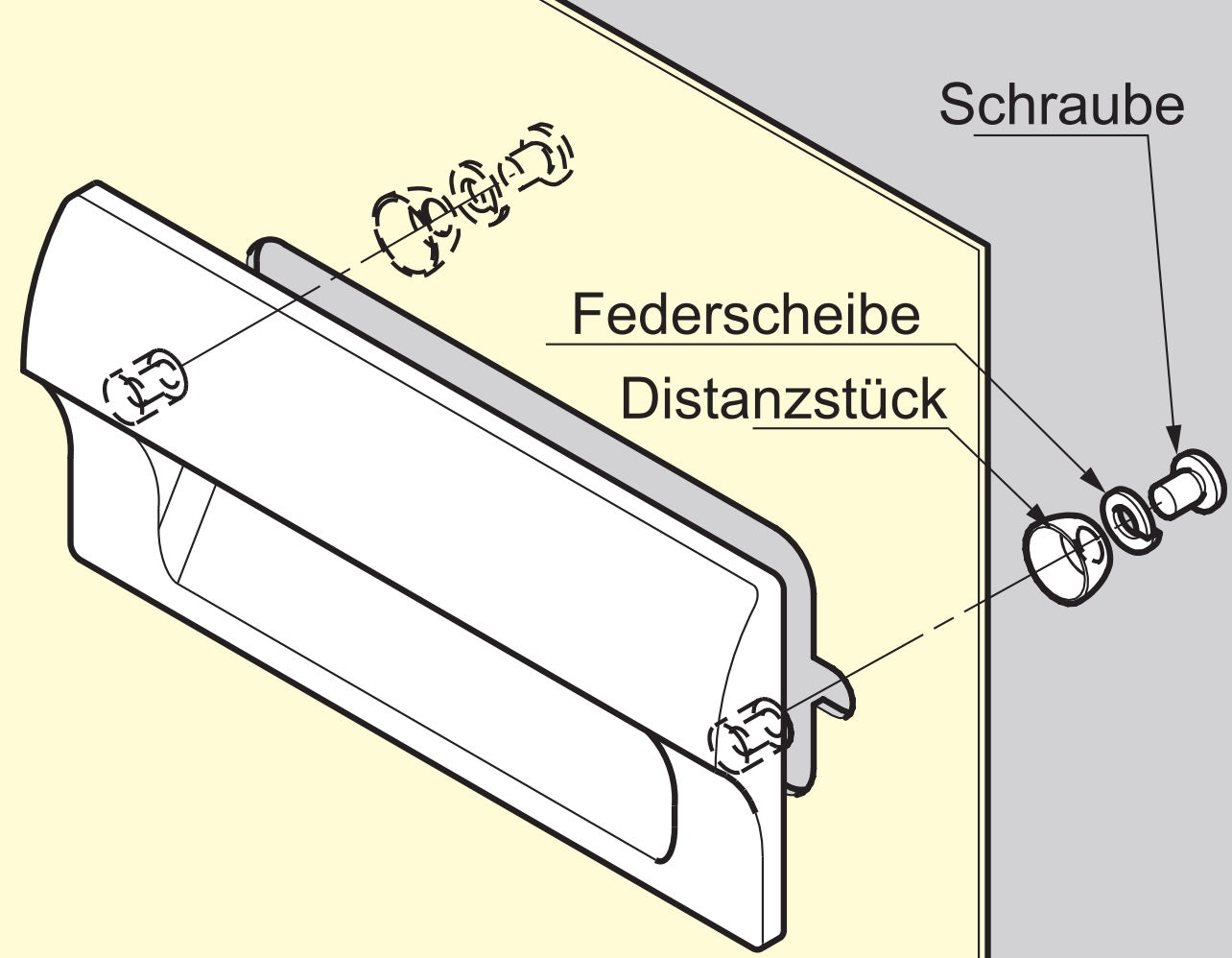

Application: [caption id="attachment_110270" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, finish: black, HH-JS110-BL, 110 mm, from Sugatsune. Application[/caption] Furniture handle HH-JS110-BL for sheet metal, wood, drawer, metal cabinet, wooden cabinet, office furniture, bedroom furniture. The high-quality HH-JS110-BL handle shells are ideal for, among others:

• Living room furniture
• kitchen furniture
• sheet metal
• Wood
• drawer
• metal cabinet
• wooden cabinet
• Office furniture
• bedroom furniture

Material:

• The high-quality handle shells HH-JS110-BL are made of ABS and polycarbonate (plastic)
• Spacer: made of steel

Surface:

• Black

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head screw M4 x 10 mm)
• For installation, a cutout in the front measuring 90 mm (3-35/64″) x 36 mm (1-27/64″) must be made
• The depth of the cutout is 12 mm (15/32″) (only relevant for installation in wood)
• Furthermore, two holes with a diameter of Φ6.5 mm must be drilled for the screws with a distance of 96 mm (3-25/32″)
• When mounting in sheet metal, the two spacers included in the delivery must be used
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

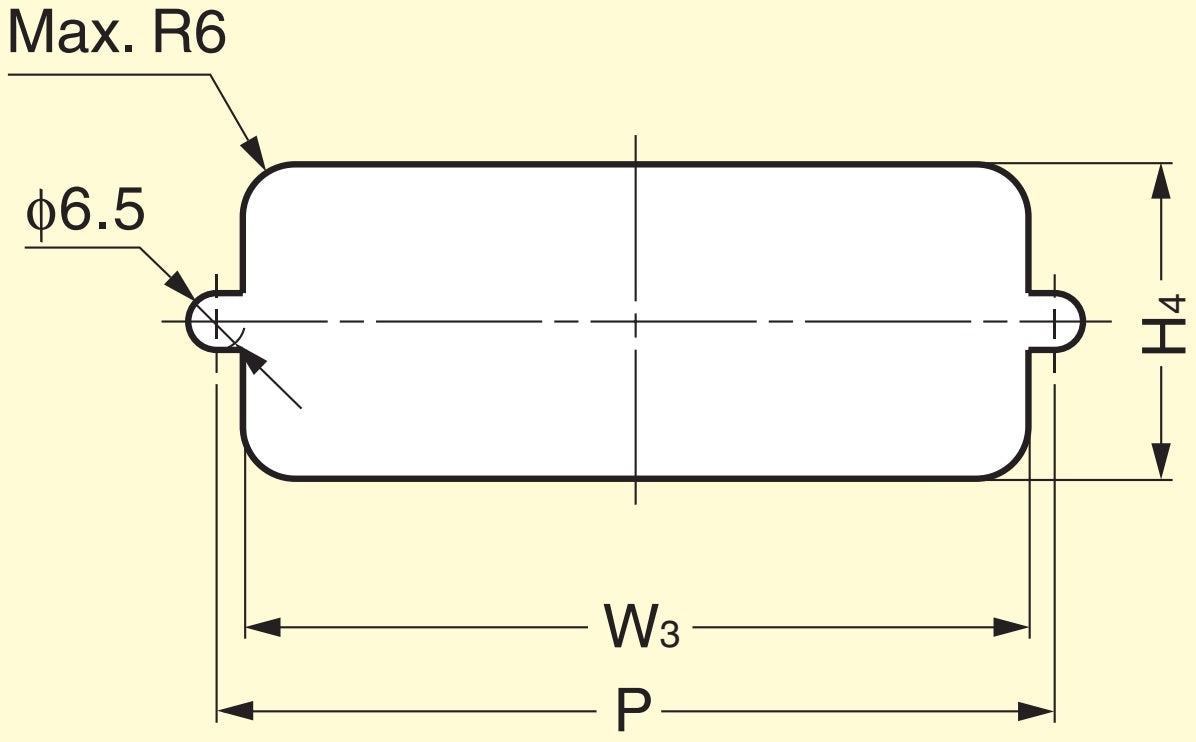

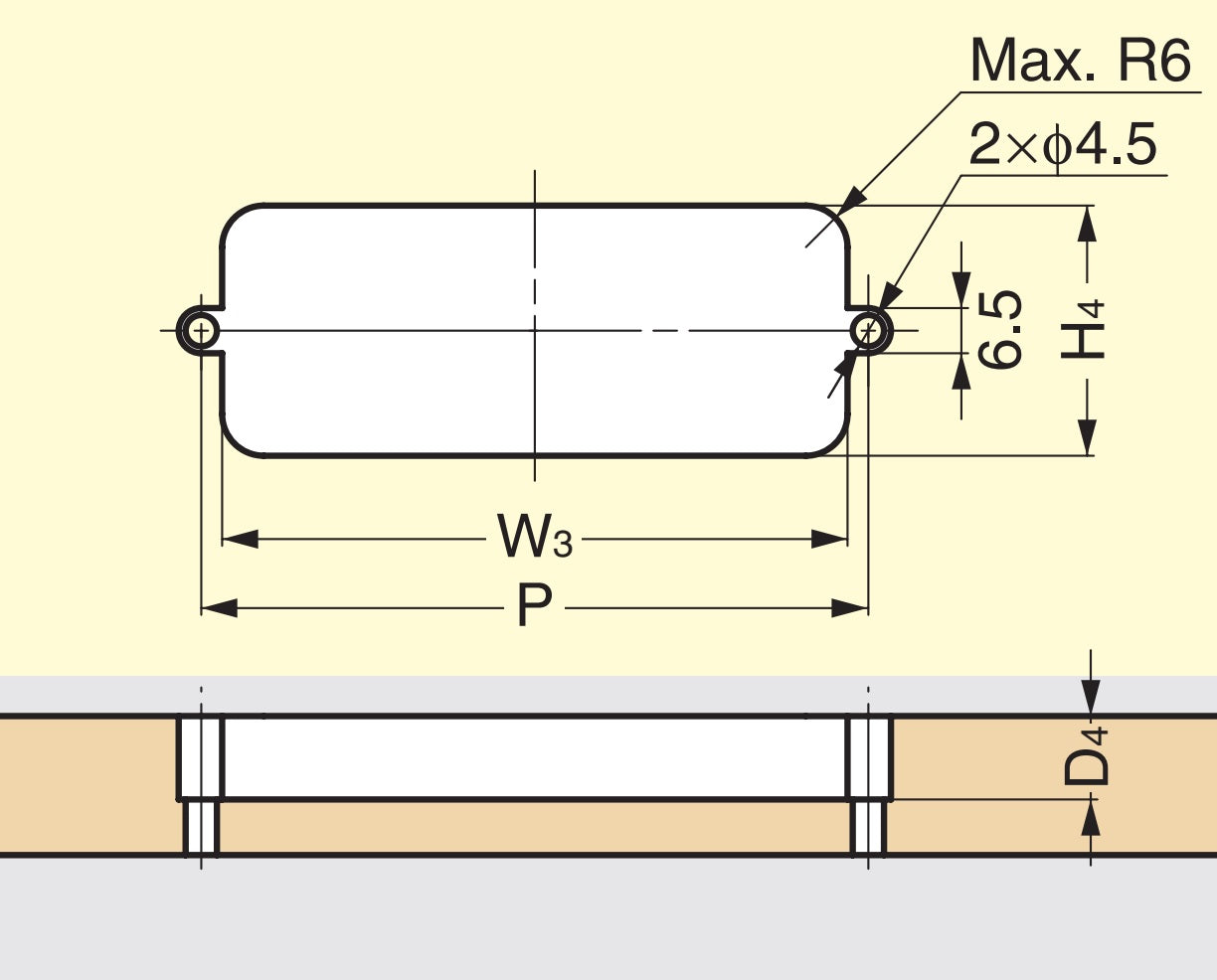

[caption id="attachment_110288" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, finish: black, HH-JS110-BL, 110 mm, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_110306" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, finish: black, HH-JS110-BL, 110 mm, from Sugatsune. Cutout for mounting in wood.[/caption] Characteristics:

• Weight: 38 g
• Size: 110 mm (4.4″)
• Elaborately processed
• Ergonomic
• Stable
• Solid
• Robust
• Black
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Width of the grip (L): 110 mm (4-21/64″)
• Height: 50 mm (1-31/32″)
• Depth of grip area: 11 mm (7/16″)

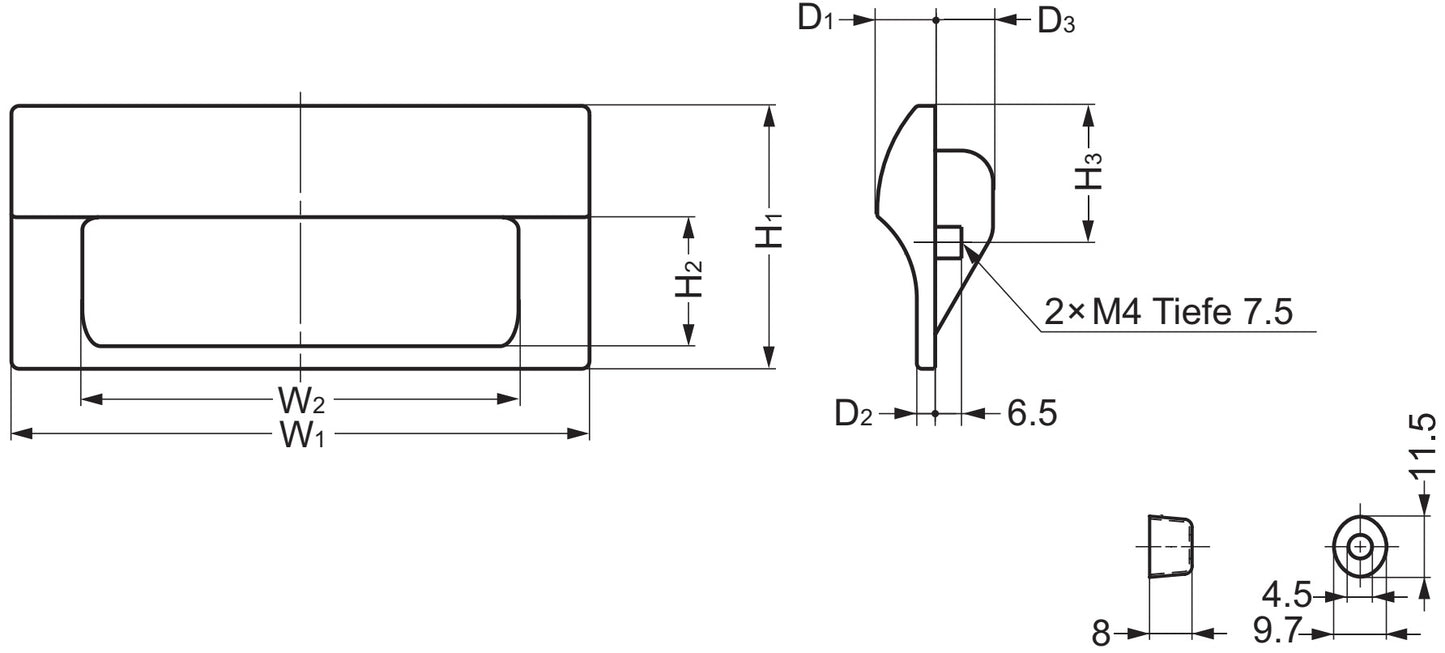

[caption id="attachment_110324" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, finish: black, HH-JS110-BL, 110 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

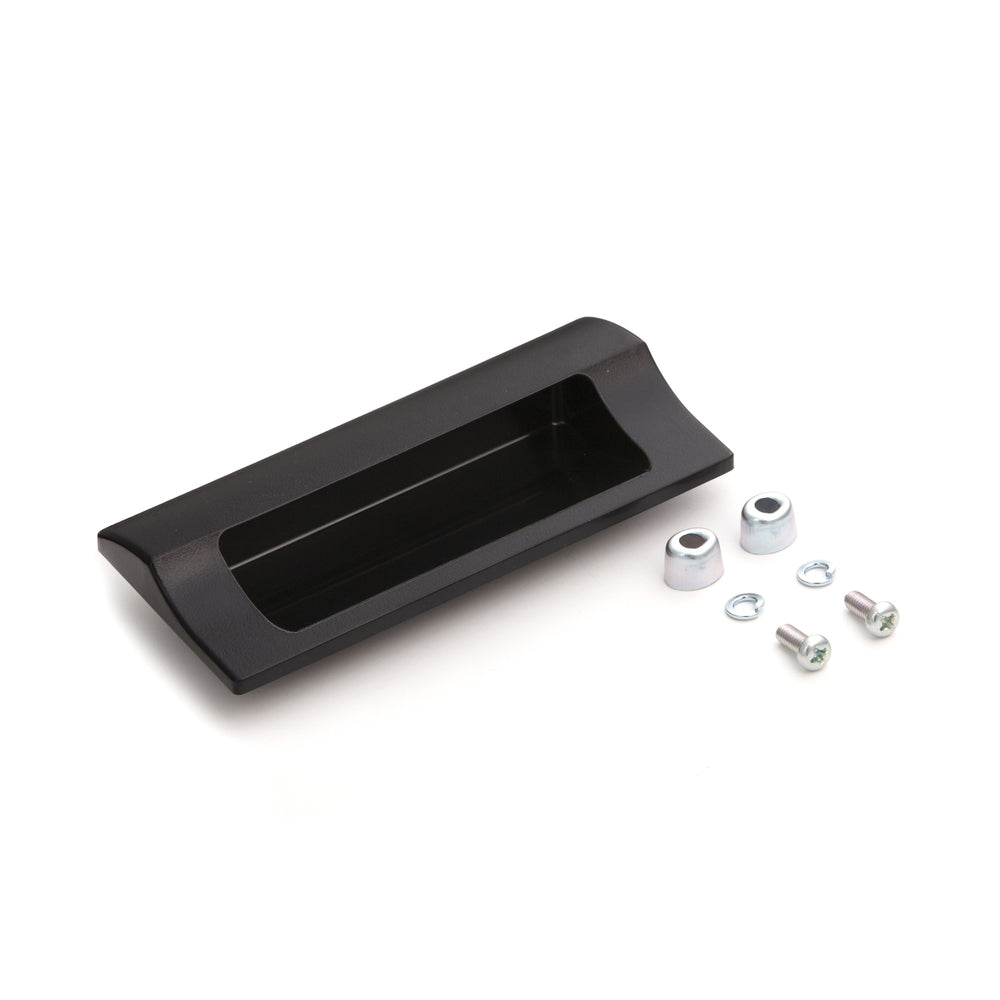

• 1 piece handle shell HH-JS110-BL made of robust plastic, black
• 2 pieces of raised countersunk head screw M4 x 10 mm made of steel
• 2 pieces spacer for sheet metal, 8 mm high
• 2 pieces spring washer

Manufacturer reference number:

• Article number: 100-024-577
• Item number: HH-JS110-BL
• EAN number: 4510932043038

Manufacturer: Sugatsune / LAMP® (Japan)
