Hochwertige rechteckige Griffmuschel aus robustem Kunststoff, Oberfläche: Elfenbein, 140 mm (5,6″) HH-JS140-IV. Möbelgriff HH-JS140-IV für Blech, Holz, Schubkasten, Metallschrank, Holzschrank, Büromöbel, Schlafzimmermöbel, von Sugatsune / LAMP® (Japan)

High-quality handle shell made of robust plastic, surface: ivory, HH-JS140-IV

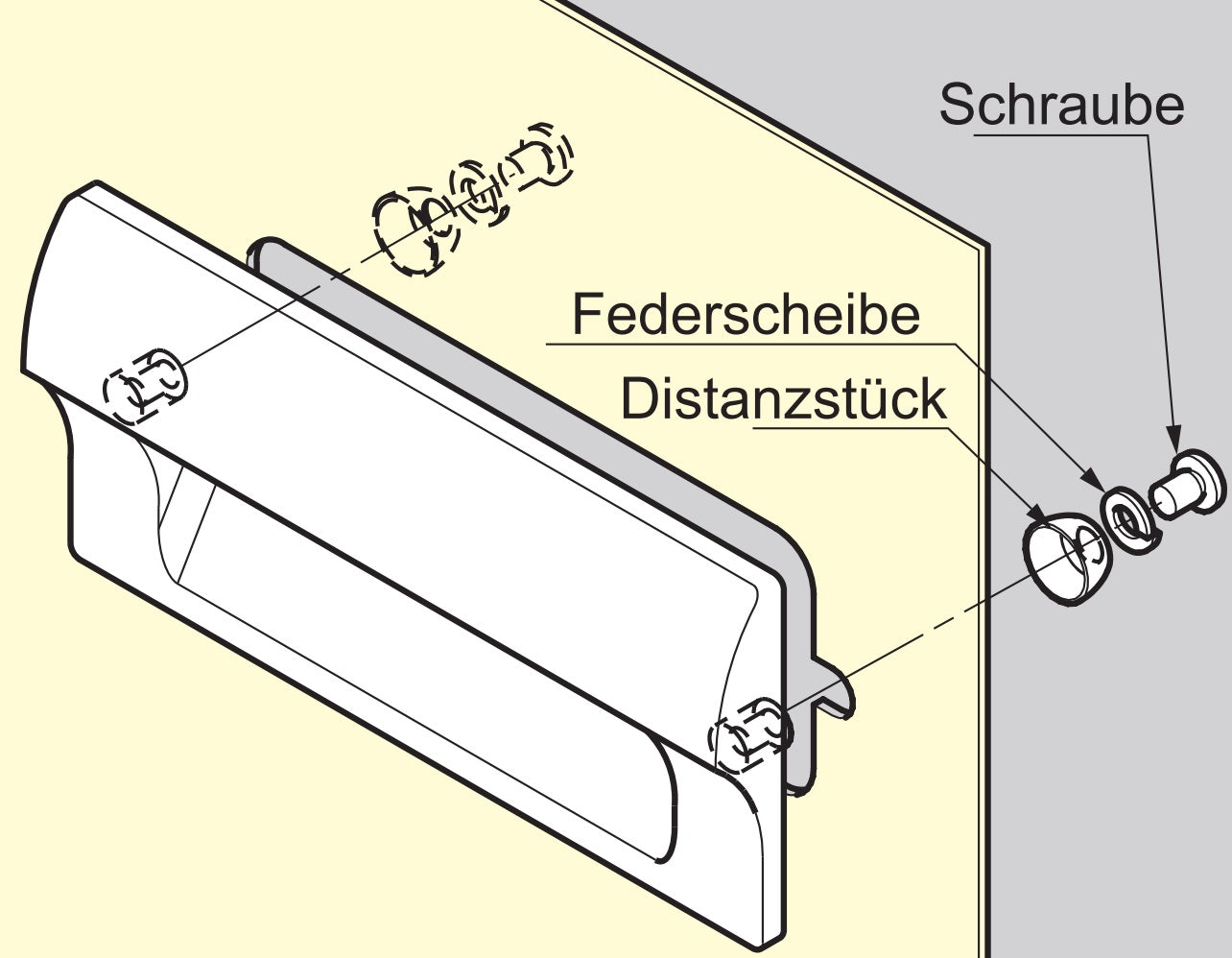

Application: Furniture handle HH-JS140-IV for sheet metal, wood, drawer, metal cabinet, wooden cabinet, office furniture, bedroom furniture. [caption id="attachment_110676" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS140-IV, 140 mm, from Sugatsune. Application[/caption] The high-quality HH-JS140-IV handle shells are ideal for, among others:

• Living room furniture
• kitchen furniture
• sheet metal
• Wood
• drawer
• metal cabinet
• wooden cabinet
• Office furniture
• bedroom furniture

Material:

• The high-quality handle shells HH-JS140-IV are made of ABS and polycarbonate (plastic)
• Spacer: made of steel

Surface:

• ivory

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head screw M4 x 10 mm)
• For installation, a cutout in the front measuring 116 mm (4-9/16″) x 48 mm (1-57/64″) must be made
• The depth of the cutout is 12 mm (15/32″) (only relevant for installation in wood)
• Furthermore, two holes with a diameter of Φ6.5 mm must be drilled for the screws with a distance of 126 mm (4-61/64″)
• When mounting in sheet metal, the two spacers included in the delivery must be used
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

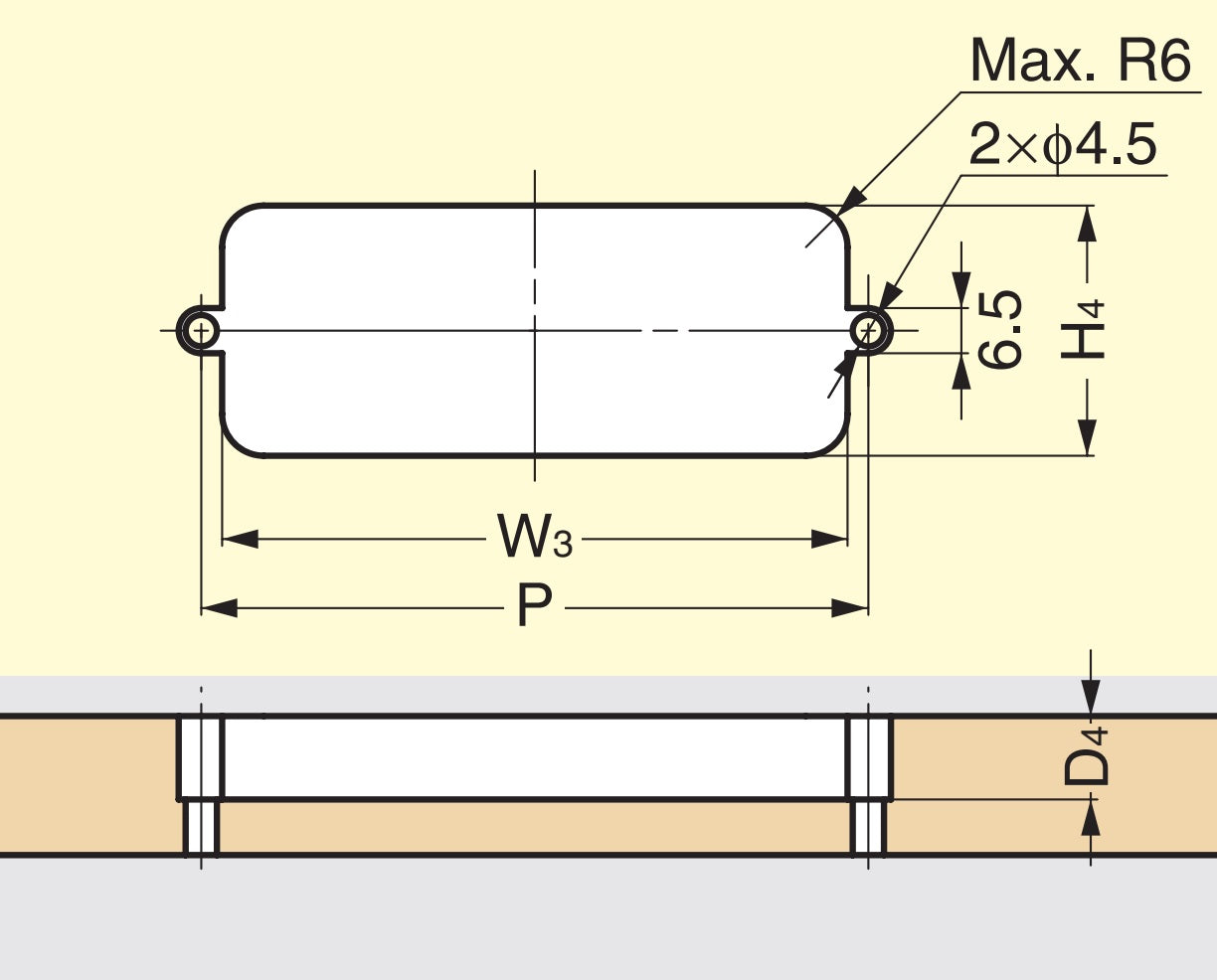

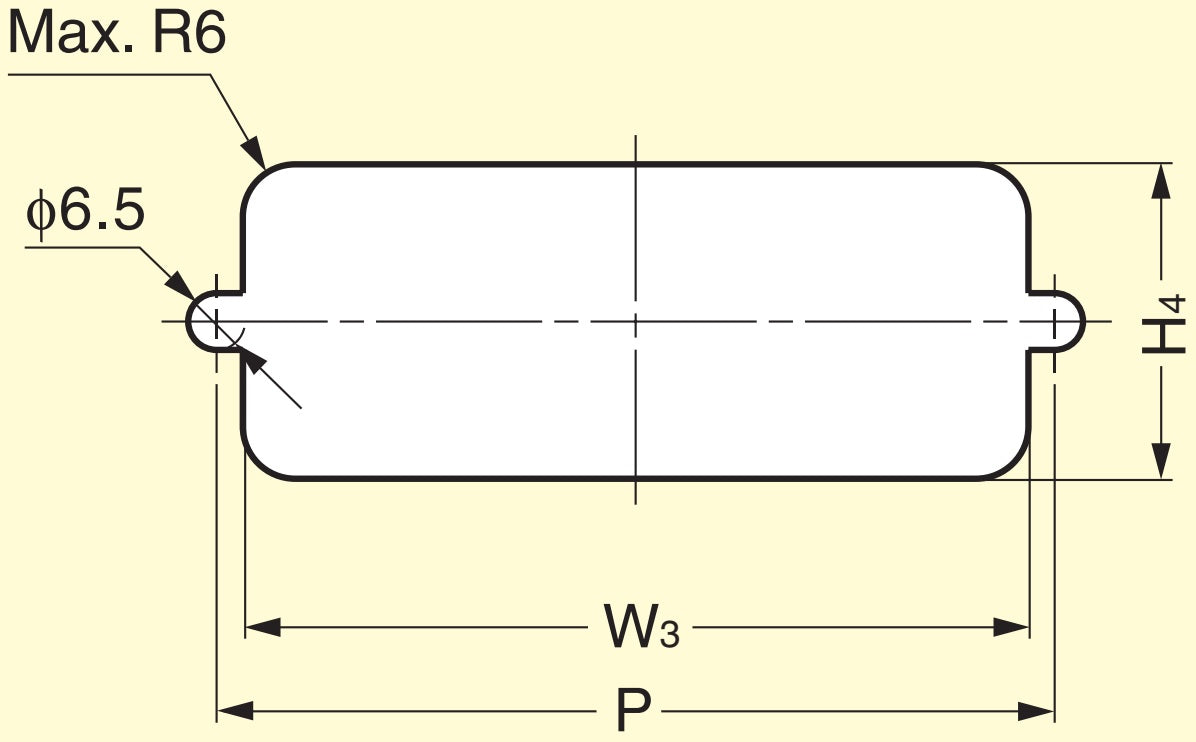

[caption id="attachment_110694" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS140-IV, 140 mm, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_110712" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS140-IV, 140 mm, from Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 56 g
• Size: 140 mm (5.6″)
• Elaborately processed
• Ergonomic
• Stable
• Solid
• Robust
• ivory
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Width of the grip shell (W1): 140 mm (5-33/64″)
• Height (H1): 64 mm (2-33/64″)
• Depth of grip area (D3): 11 mm (7/16″)

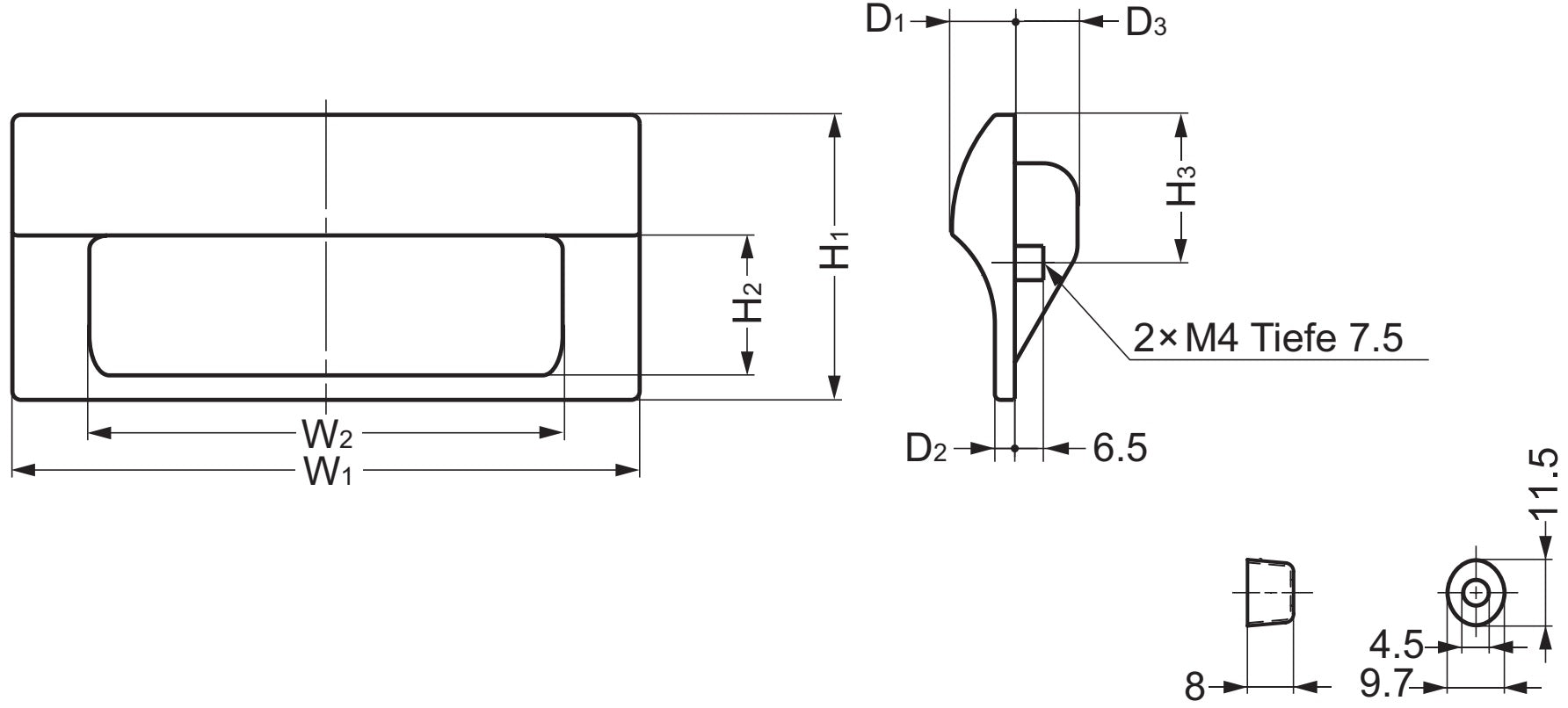

[caption id="attachment_110730" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS140-IV, 140 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

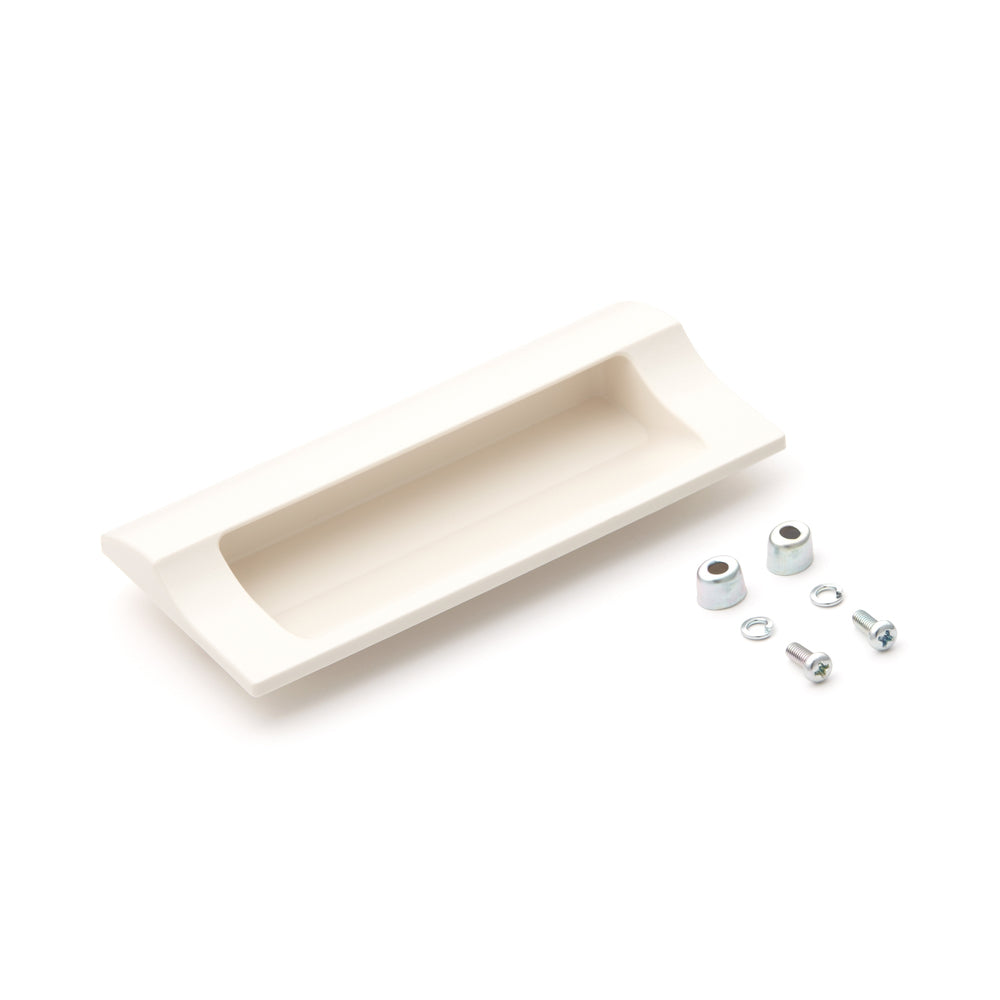

• 1 piece handle shell HH-JS140-IV made of robust plastic, ivory
• 2 pieces of raised countersunk head screw M4 x 10 mm made of steel
• 2 pieces spacer for sheet metal, 8 mm high
• 2 pieces spring washer

Manufacturer reference number:

• Article number: 100-024-580
• Item number: HH-JS140-IV
• EAN number: 4510932043069

Manufacturer: Sugatsune / LAMP® (Japan)
