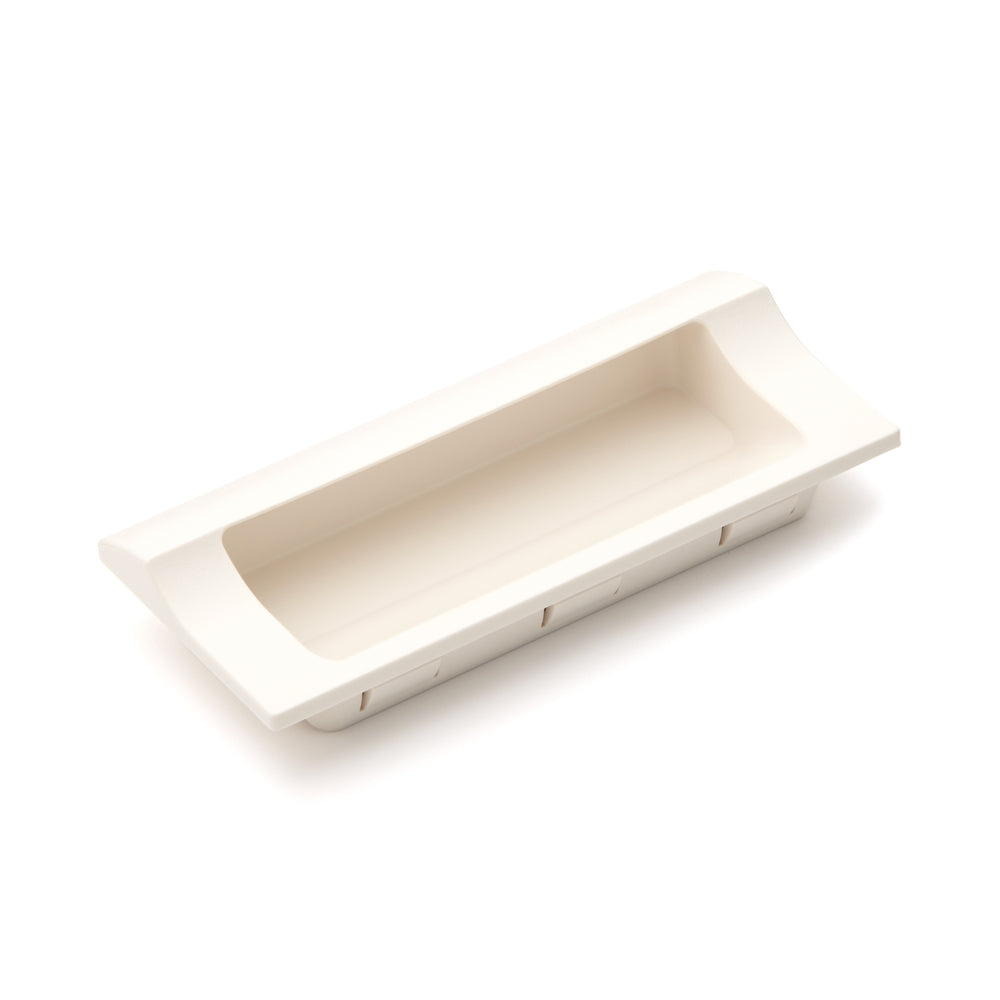

Hochwertige rechteckige Gehäusegriffmuschel für Klick-Schnellmontage im Blechgehäuse aus robustem Kunststoff, Oberfläche: Elfenbein, 140 mm (5,6″) HH-JW140-IV. Gerätegriff HH-JW140-IV für Metallschränke, Blechgehäuse, von Sugatsune / LAMP® (Japan)

High-quality housing shell made of robust plastic, surface: ivory, HH-JW140-IV

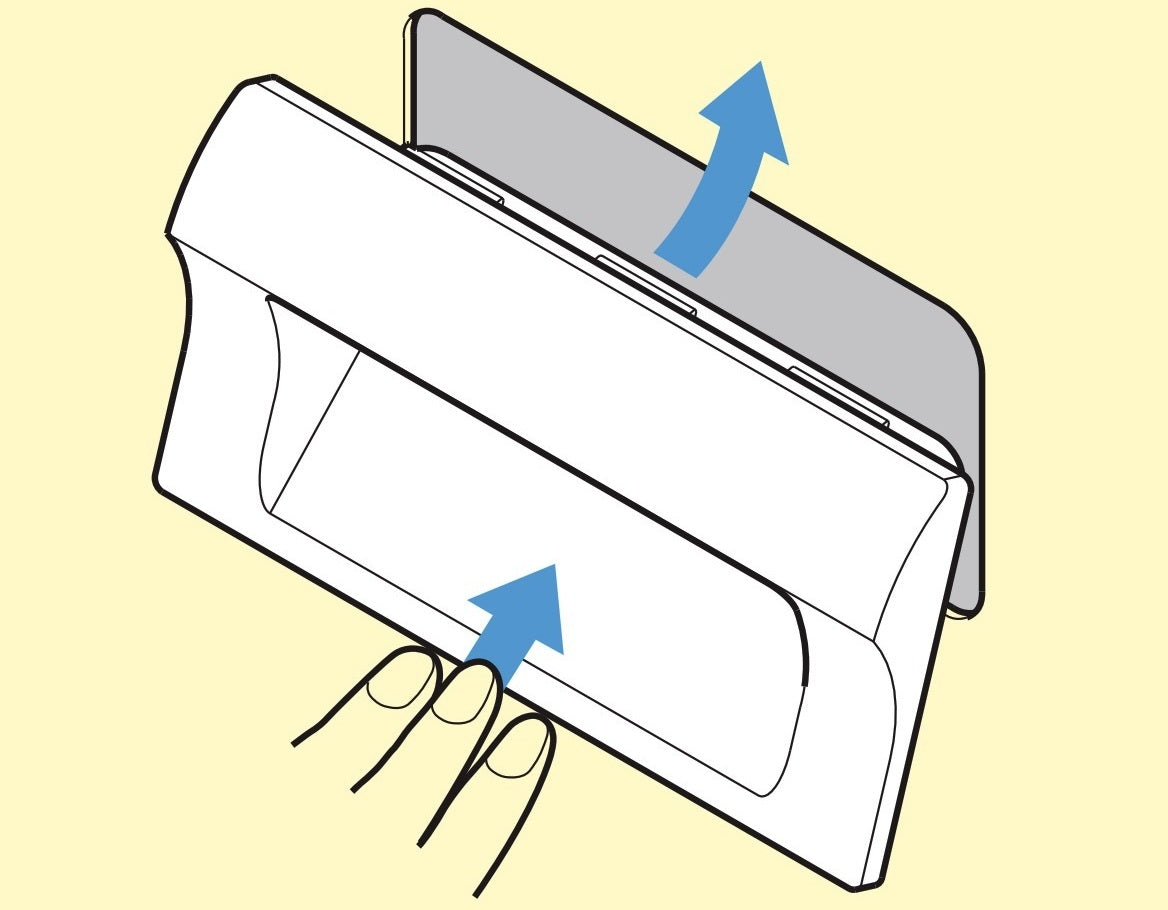

Application: [caption id="attachment_111730" align="alignnone" width="420"] High-quality rectangular housing grip for quick click-in mounting in a sheet metal housing made of robust plastic, ivory finish, HH-JW140-IV, 140 mm, from Sugatsune. Application[/caption] Device handle HH-JW140-IV for metal cabinets, sheet metal housing. The high-quality HH-JW140-IV housing grips can be attached quickly and securely to metal surfaces without the need for tools thanks to the clip mounting. The HH-JW140-IV handle is ideal for:

• Electrical appliances
• Production machines
• industrial plants
• Metal cabinets
• Sheet metal housing

Material:

• The high-quality housing grips HH-JW140-IV are made of ABS and polycarbonate (plastic)

Surface:

• ivory

Assembly:

• The housing handle HH-JW140-IV is designed for quick installation in sheet metal
• For installation, a cutout in the front with the width (W3) 114 mm (4-31/64″) must be made
• For the height of the cutout see the table below
• The device handle HH-JW140-IV is then pressed into the prepared cutout in the sheet metal and is securely fastened with a "click" (for further details see assembly drawing ).

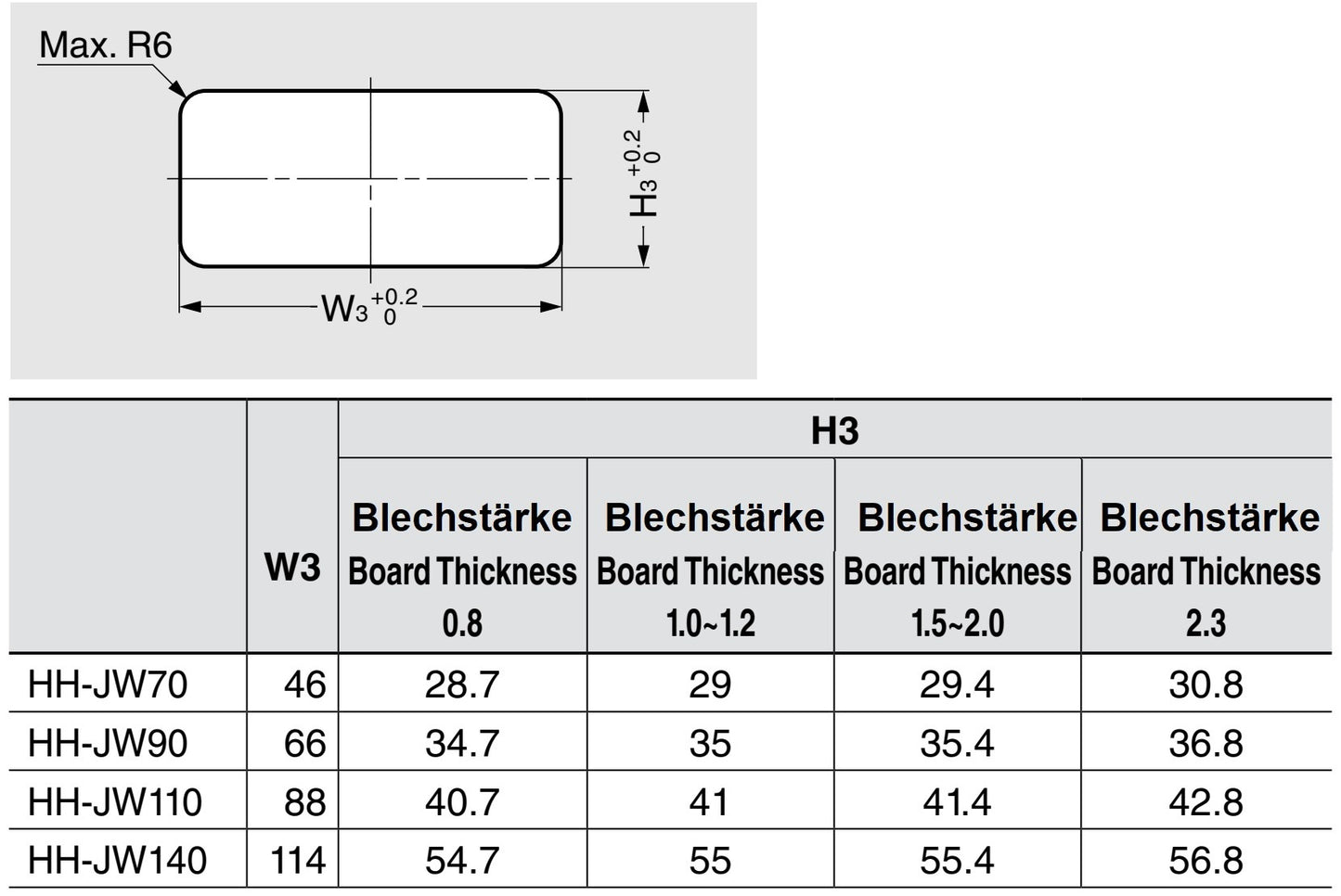

[caption id="attachment_111748" align="alignnone" width="420"] High-quality rectangular housing grip for quick click-in mounting in a sheet metal housing made of robust plastic, ivory finish, HH-JW140-IV, 140 mm, from Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 53 g
• Size: 140 mm (5.6″)
• Quick, tool-free assembly
• Elaborately processed
• Ergonomic
• Stable
• Solid
• Robust
• ivory
• High brand quality from Sugatsune / LAMP®

The dimensions: For further dimensions and details see technical drawing .

• Width of the housing grip (W1): 140 mm (5-33/64″)
• Height (H1): 64 mm (2-33/64″)
• Width of the grip area (W2): 109 mm (4-19/64″)
• Height of the grip area (H2): 37.5 mm (1-15/32″)
• Depth of grip area: 15 mm (19/32″)

[caption id="attachment_111766" align="alignnone" width="420"] High-quality rectangular housing grip for quick click-in mounting in a sheet metal housing made of robust plastic, ivory finish, HH-JW140-IV, 140 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece housing grip shell HH-JW140-IV made of robust plastic, ivory

Manufacturer reference number:

• Article number: 100-024-588
• Item number: HH-JW140-IV
• EAN number: 4510932043144

Manufacturer: Sugatsune / LAMP® (Japan)
