Push-button lock for thick furniture doors from 22 to 25 mm, surface: ivory, SL-B251-I for motorhome interiors, yacht interiors, caravan furniture

Push-button lock for thick furniture doors from 22 to 25 mm, surface: ivory, SL-B251-I for motorhome interiors, yacht interiors, caravan furniture

Regular price €19,94 EUR
Regular price Sale price €19,94 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

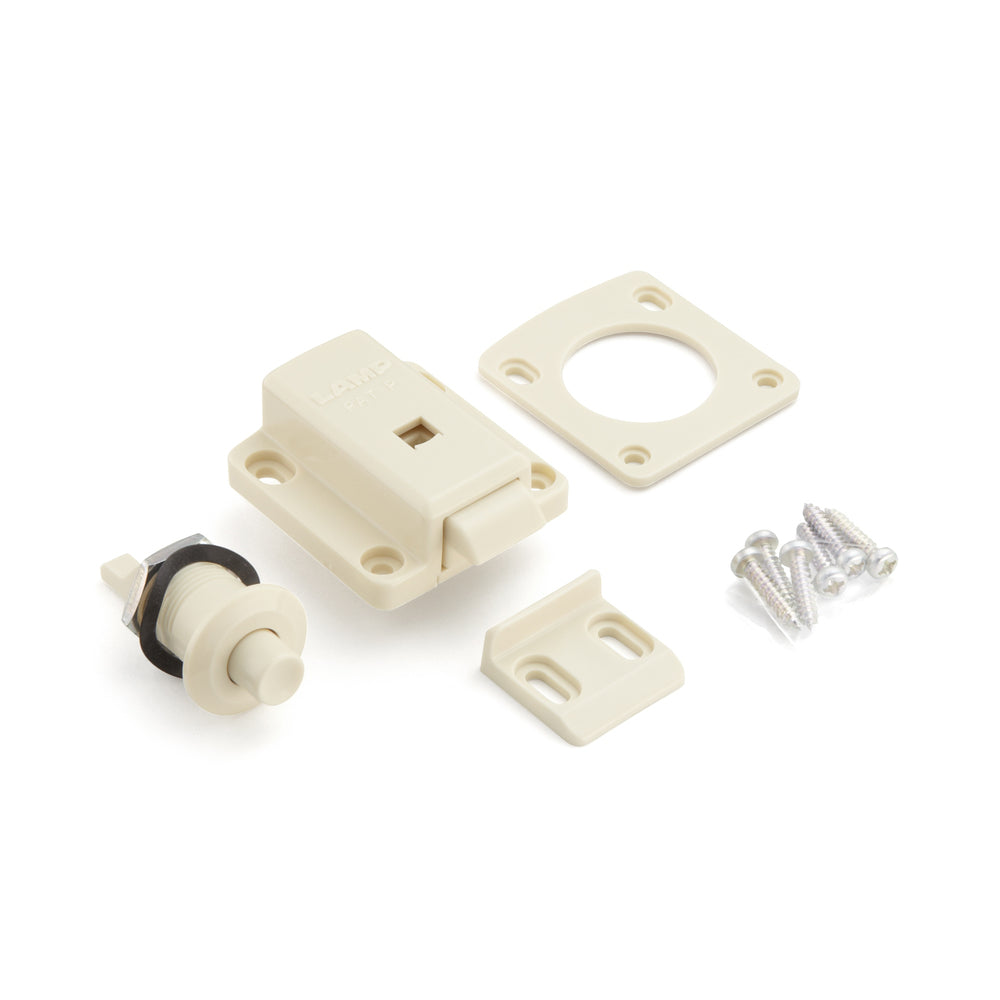

Practical push-button lock (pressure latch) for thick furniture doors 22 mm (55/64") - 25 mm (63/64"), made of robust polyamide (PA, nylon), surface: ivory, SL-B251-I


Application:

Push latch for motorhome conversions, yacht interiors, caravan furniture and much more.

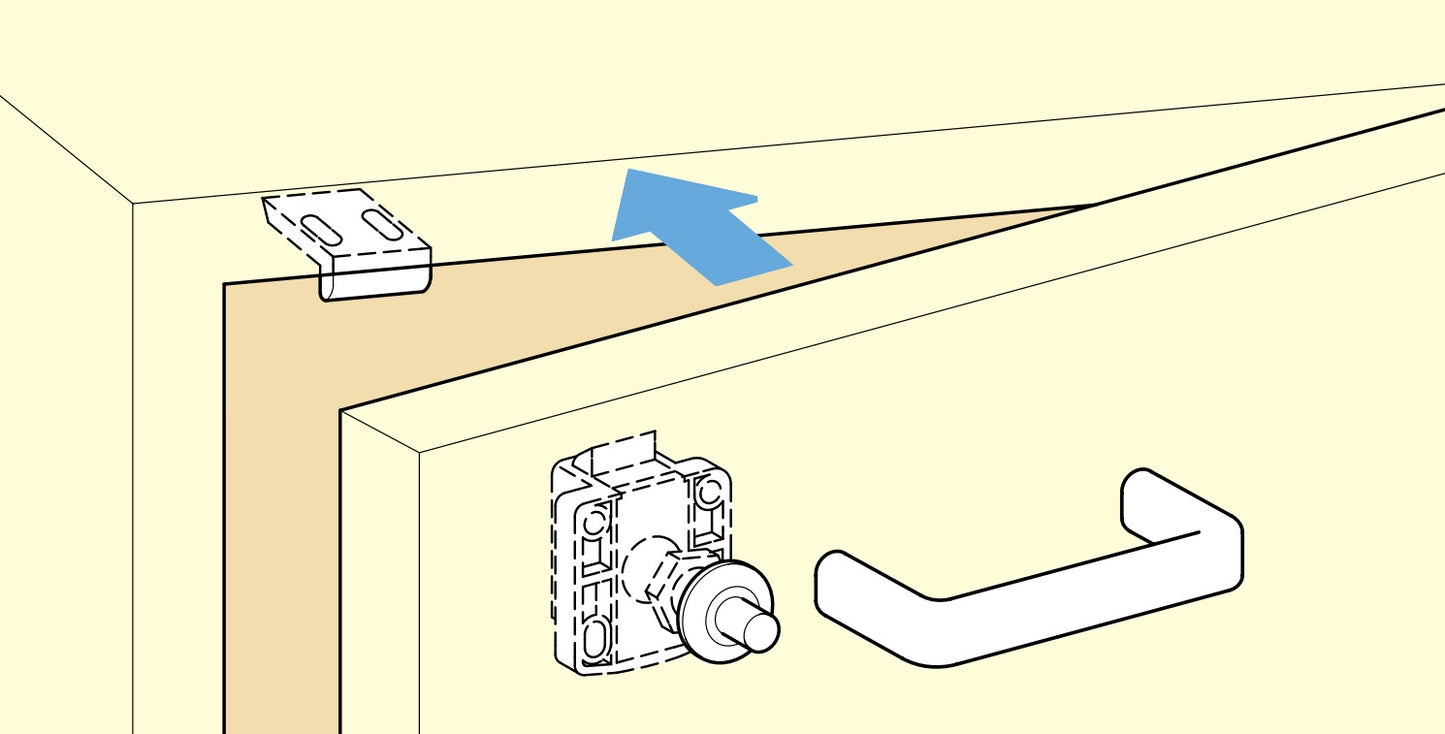

Push-button latch for thick furniture doors from 22 to 25 mm, SL-B251-I from Sugatsune, ivory. Application example


The push-button closure SL-B251-I has a push button with a sturdy sliding latch.

Its compact design requires only a 15 mm hole and hardly protrudes, allowing for a simple front design.

The integrated spring mechanism keeps the door securely closed with approximately 16 kgf – even during vibrations in vehicle or marine applications.

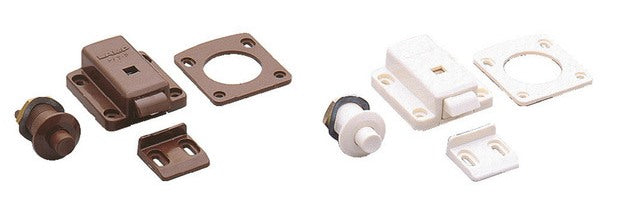

Sugatsune SL-B251-I push-button latch for furniture doors 22 to 25 mm thick, ivory. Available in ivory and brown.


A spacer ring allows adjustment to door thicknesses from 18 to 21 mm and ensures a play-free fit.

The wear-resistant polyamide housing is lightweight, corrosion-resistant and insensitive to moisture.

The high-quality push-button fasteners 140-060-016 are ideal for, among others:

  • Shopfitting
  • Exhibition furniture
  • Furniture doors
  • Succeed
  • Cabinet doors
  • Lightweight furniture
  • Kitchen wall cabinets
  • Motorhome conversion
  • Yacht interior fittings
  • Caravan furniture


Material:

  • The push-button fasteners 140-060-016 are made of robust polyamide (PA, nylon)
  • Polyamide is ideal for furniture fittings and industrial fittings because it is robust, corrosion-resistant, sound-dampening and slippery, allowing for durable and easily movable fittings.

Surface:

  • ivory
  • Ivory surfaces create a warm and inviting atmosphere that is both subtle and elegant, ideal for living rooms and bedrooms
  • In addition, ivory can be easily combined with other colours and materials, making it versatile and harmoniously complementing different interior styles


Assembly:

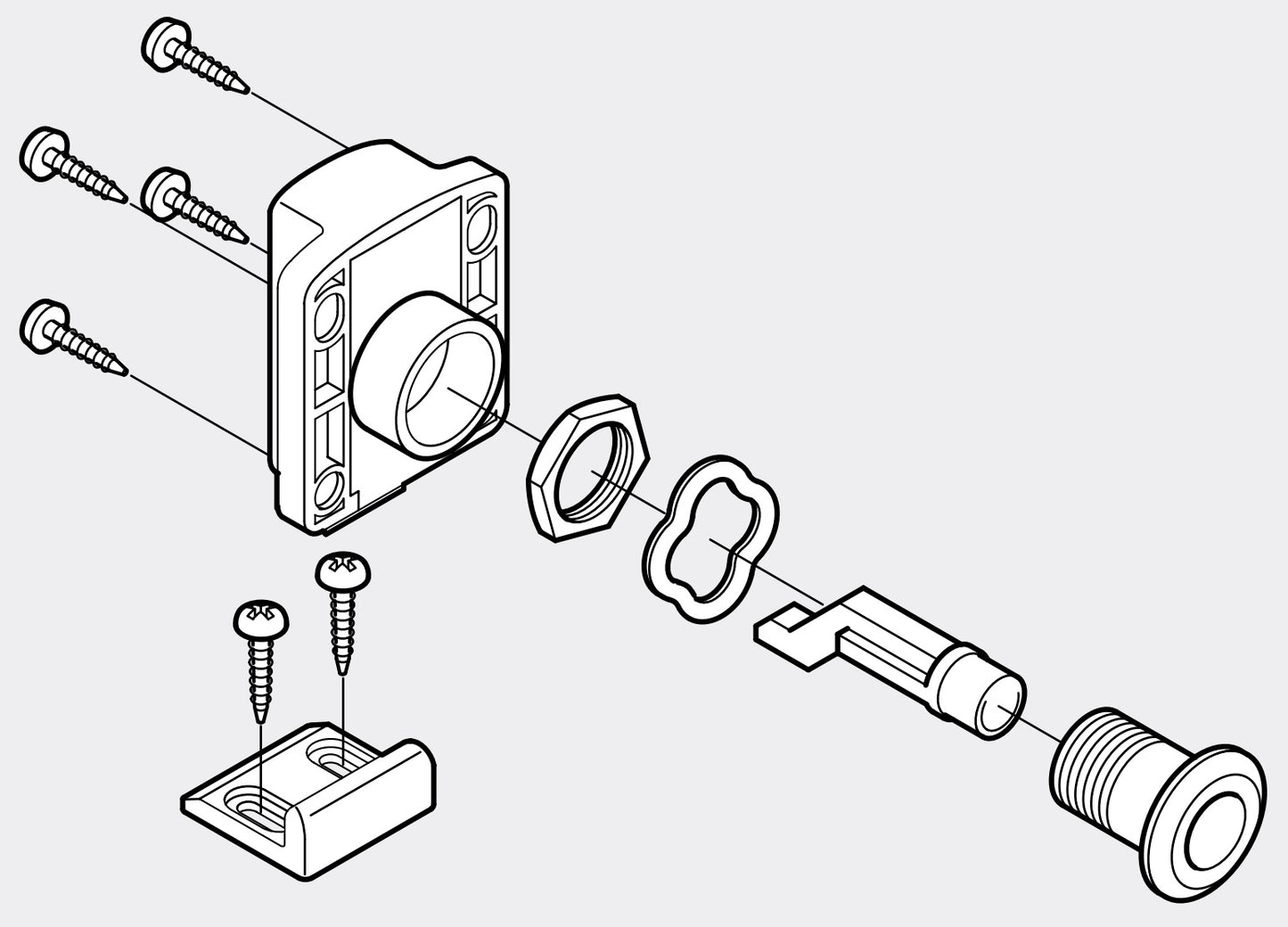

Sugatsune SL-B251-I push-button latch for furniture doors 22 to 25 mm thick, ivory. Assembly drawing
  • The fastening is carried out using the six screws included in delivery (pan-head chipboard screw 3 x 14 mm)
  • First, a main hole with a diameter of ⌀15 mm (19/32″) must be drilled
  • Then a counterbore with a diameter of 26 mm (1-1/32″) and a depth = door thickness − 8 mm must be made on the inside of the door
  • The push button is then fastened in the hole with the nut
  • The bolt body is screwed into the pre-marked slotted holes using four 3 x 14 mm chipboard screws, with the spacer ring being inserted depending on the door thickness
  • The counter plate is then aligned on the front of the body and screwed in place so that the latch snaps into place neatly
  • Finally, the locking function is checked and, if necessary, fine-tuned via the elongated holes (for further details see assembly drawing ).

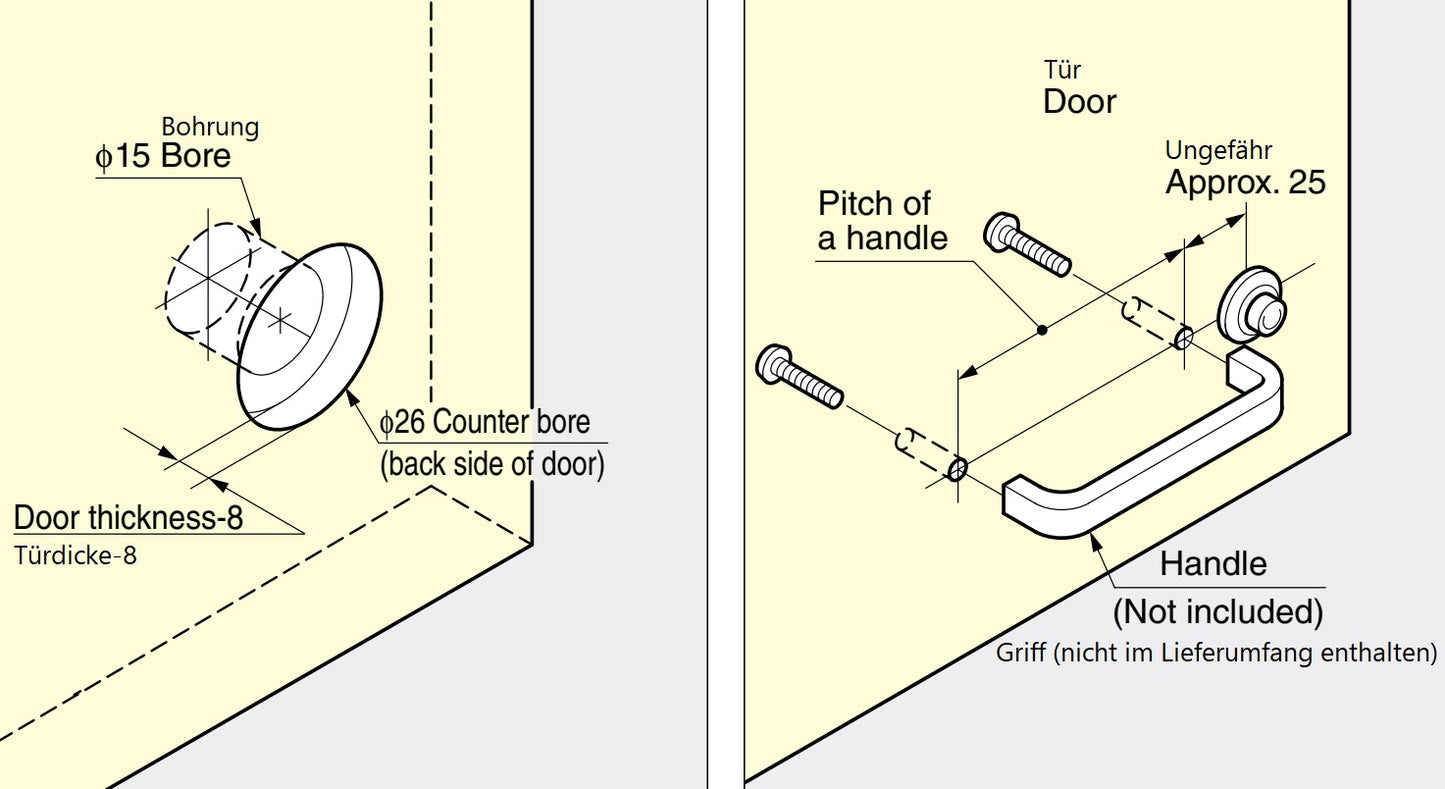

Sugatsune SL-B251-I push-button latch for thick furniture doors from 22 to 25 mm, ivory. Handle installation



Characteristics:

  • Weight: 23.5 g
  • Load capacity: 156.8 N (16 kp)
  • Size: 26 mm (1-1/32″)
  • Available in colors: ivory and brown
  • Available for normal doors (18-21 mm) and for thick doors (22-25 mm)
  • easy to assemble
  • practical
  • stable
  • Keeps doors securely closed by spring force
  • Quiet opening at the push of a button
  • Easy adjustment to different door thicknesses
  • Corrosion-resistant, impact-resistant polyamide
  • Compact installation depth, ideal for thin fronts
  • High holding force of around 16 kgf
  • Suitable for furniture, vehicles and marine
  • Low weight
  • ivory
  • robust
  • abrasion-resistant
  • durable
  • resistant to many chemicals
  • heat-resistant
  • high brand quality from Sugatsune / LAMP®


The dimensions:

  • Length of the push-button closure: 40 mm (1-37/64″)
  • Width: 36 mm (1-27/64″)
  • Depth: 15 mm (19/32″)
  • Diameter of the push button: ⌀20.5 mm (13/16″)
Push-button latch for thick furniture doors from 22 to 25 mm, SL-B251-I by Sugatsune, ivory. Technical drawing



For further dimensions and details see technical drawing .

Included in delivery:

  • 1 piece push-button fastener 140-060-016 made of robust polyamide, ivory
  • 1 piece locking plate
  • 1 piece spacer ring
  • 1 piece snap fastener
  • 6 pieces pan-head chipboard screw 3 x 14 mm


Additional Information:


Manufacturer reference number:

  • Article number: 140-060-016
  • Item number: SL-B251-I
  • EAN number: 4510932059558


Manufacturer:Sugatsune / LAMP® (Japan)

SUGATSUNE, The manufacturer of the brand LAMP®
