Push-button lock for thick furniture doors from 22 to 25 mm, surface: brown, SL-B251-BR for motorhome conversion, yacht interior construction, caravan furniture

Practical push-button lock (pressure latch) for thick furniture doors 22 mm (55/64") - 25 mm (63/64"), made of robust polyamide (PA, nylon), surface: brown, SL-B251-BR

Application:

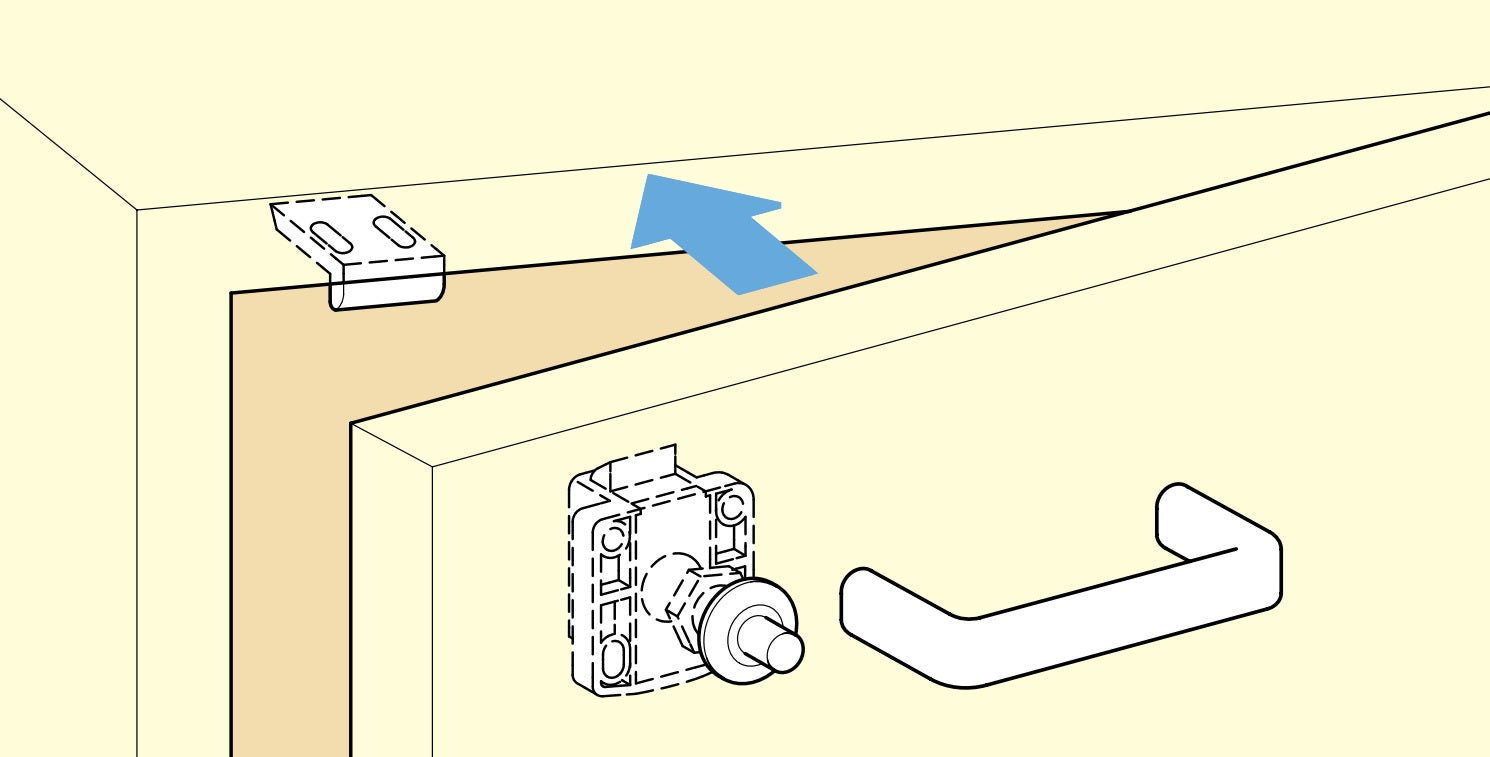

Push latch for motorhome conversions, yacht interiors, caravan furniture and much more.

The push-button closure SL-B251-BR has a push button with a sturdy sliding latch.

Its compact design requires only a 15 mm hole and hardly protrudes, allowing for a simple front design.

The integrated spring mechanism keeps the door securely closed with approximately 16 kgf – even during vibrations in vehicle or marine applications.

A spacer ring allows adjustment to door thicknesses from 18 to 21 mm and ensures a play-free fit.

The wear-resistant polyamide housing is lightweight, corrosion-resistant and insensitive to moisture.

The high-quality push-button fasteners 140-060-017 are ideal for, among others:

• Shopfitting
• Exhibition furniture
• Furniture doors
• Succeed
• Cabinet doors
• Lightweight furniture
• Kitchen wall cabinets
• Motorhome conversion
• Yacht interior fittings
• Caravan furniture

Material:

• The push-button fasteners 140-060-017 are made of robust polyamide (PA, nylon)
• Polyamide is ideal for furniture fittings and industrial fittings because it is robust, corrosion-resistant, sound-dampening and slippery, allowing for durable and easily movable fittings.

Surface:

• Brown
• Brown conveys a feeling of warmth and comfort, creating a cozy and inviting atmosphere, ideal for living and dining areas
• Brown goes well with wood and is a versatile, neutral color that combines well with other colors and materials and exudes timeless elegance

Assembly:

• The fastening is carried out using the six screws included in delivery (pan-head chipboard screw 3 x 14 mm)

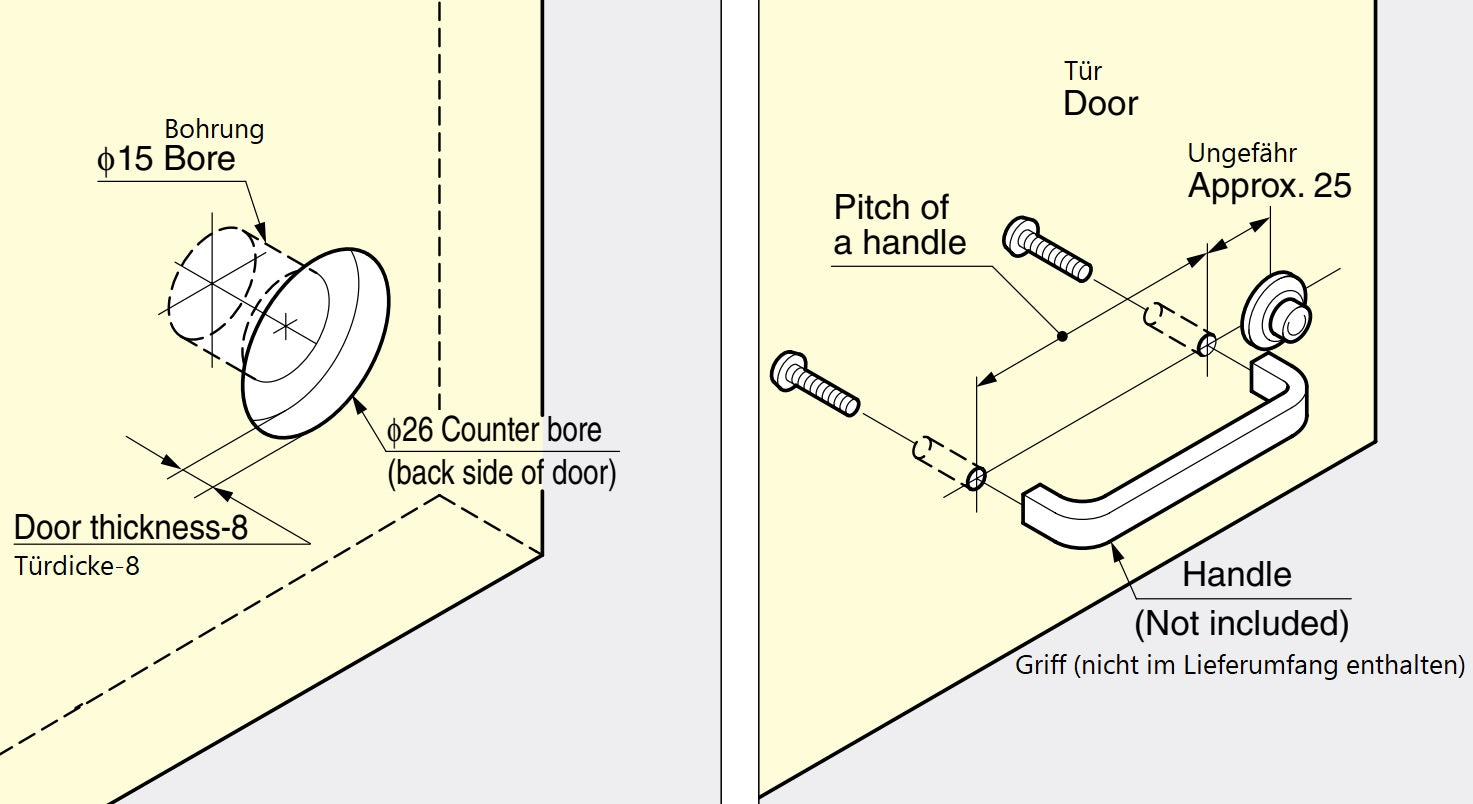

• First, a main hole with a diameter of ⌀15 mm (19/32″) must be drilled
• Then a counterbore with a diameter of 26 mm (1-1/32″) and a depth = door thickness − 8 mm must be made on the inside of the door
• The push button is then fastened in the hole with the nut
• The bolt body is screwed into the pre-marked slotted holes using four 3 x 14 mm chipboard screws, with the spacer ring being inserted depending on the door thickness
• The counter plate is then aligned on the front of the body and screwed in place so that the latch snaps into place neatly

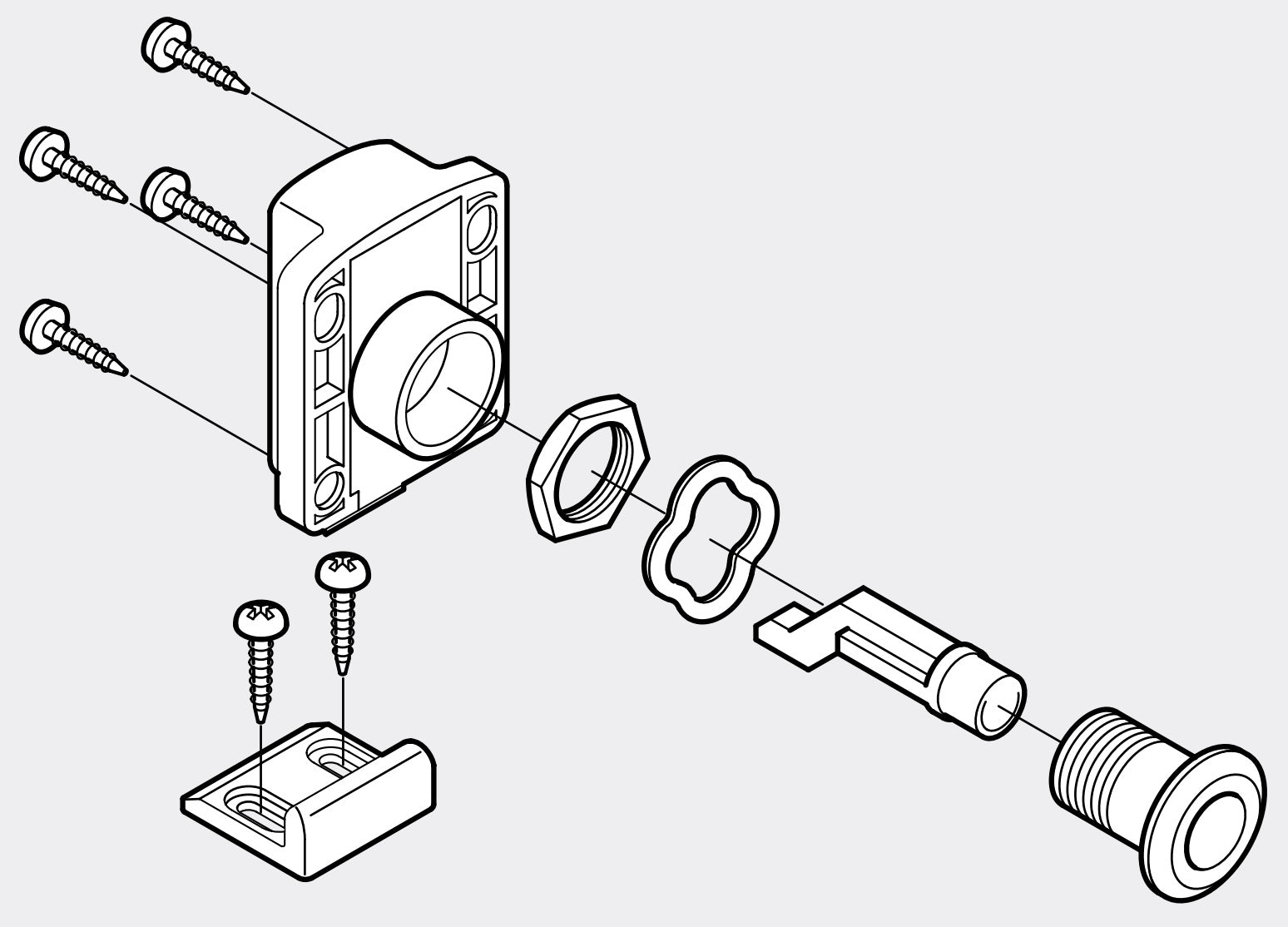

• Finally, the locking function is checked and, if necessary, fine-tuned via the elongated holes (for further details see assembly drawing ).

Characteristics:

• Weight: 23.5 g
• Load capacity: 156.8 N (16 kp)
• Size: 26 mm (1-1/32″)

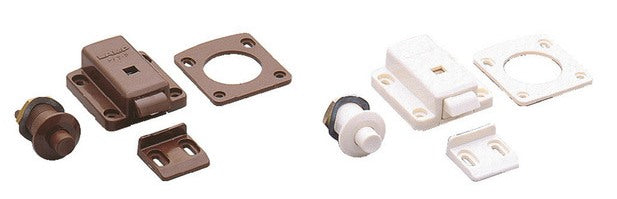

• Available in colors: ivory and brown
• Available for normal doors (18-21 mm) and for thick doors (22-25 mm)
• easy to assemble
• practical
• stable
• Keeps doors securely closed by spring force
• Quiet opening at the push of a button
• Easy adjustment to different door thicknesses
• Corrosion-resistant, impact-resistant polyamide
• High holding force of around 16 kgf
• Suitable for furniture, vehicles and marine
• Low weight
• brown
• robust
• abrasion-resistant
• durable
• resistant to many chemicals
• heat-resistant
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Length of the push-button closure: 40 mm (1-37/64″)
• Width: 36 mm (1-27/64″)
• Depth: 15 mm (19/32″)
• Diameter of the push button: ⌀20.5 mm (13/16″)

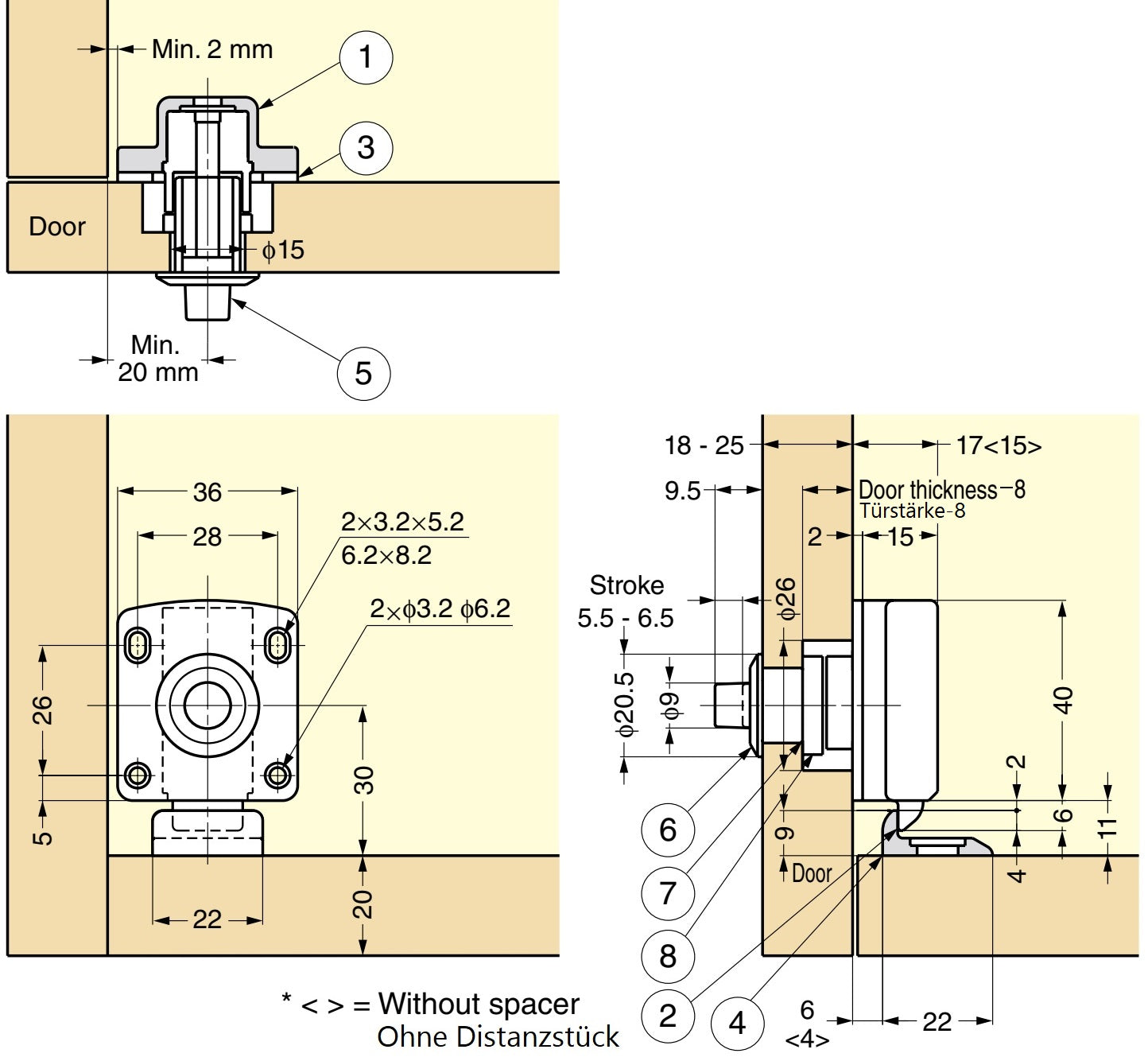

For further dimensions and details see technical drawing .

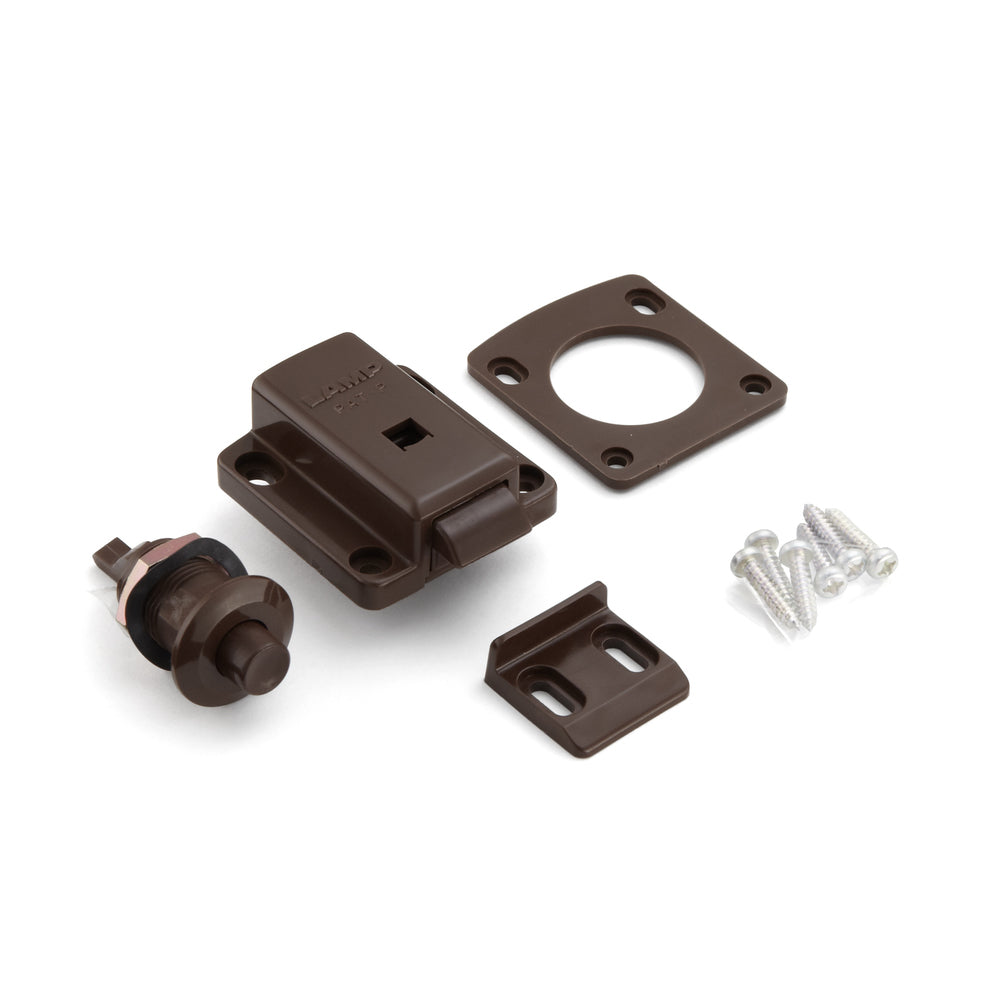

Included in delivery:

• 1 piece push-button fastener 140-060-017 made of robust polyamide, brown
• 1 piece locking plate
• 1 piece spacer ring
• 1 piece snap fastener
• 6 pieces pan-head chipboard screw 3 x 14 mm

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article number: 140-060-017
• Item number: SL-B251-BR
• EAN number: 4510932059565

Manufacturer:Sugatsune / LAMP® (Japan)
