Practical connecting rod, design: for three folding consoles, EB-907561 and EB-907572 for Robust Soft by ROCA and EB-DA folding console

Practical connecting rod for one-handed operation, made of robust aluminum alloy (aluminum), surface: anodized, EB-907561 and EB-907572, design: for three folding consoles

Application:

Connecting lever for one-hand operation for Robust Soft from ROCA and EB-DA folding console.

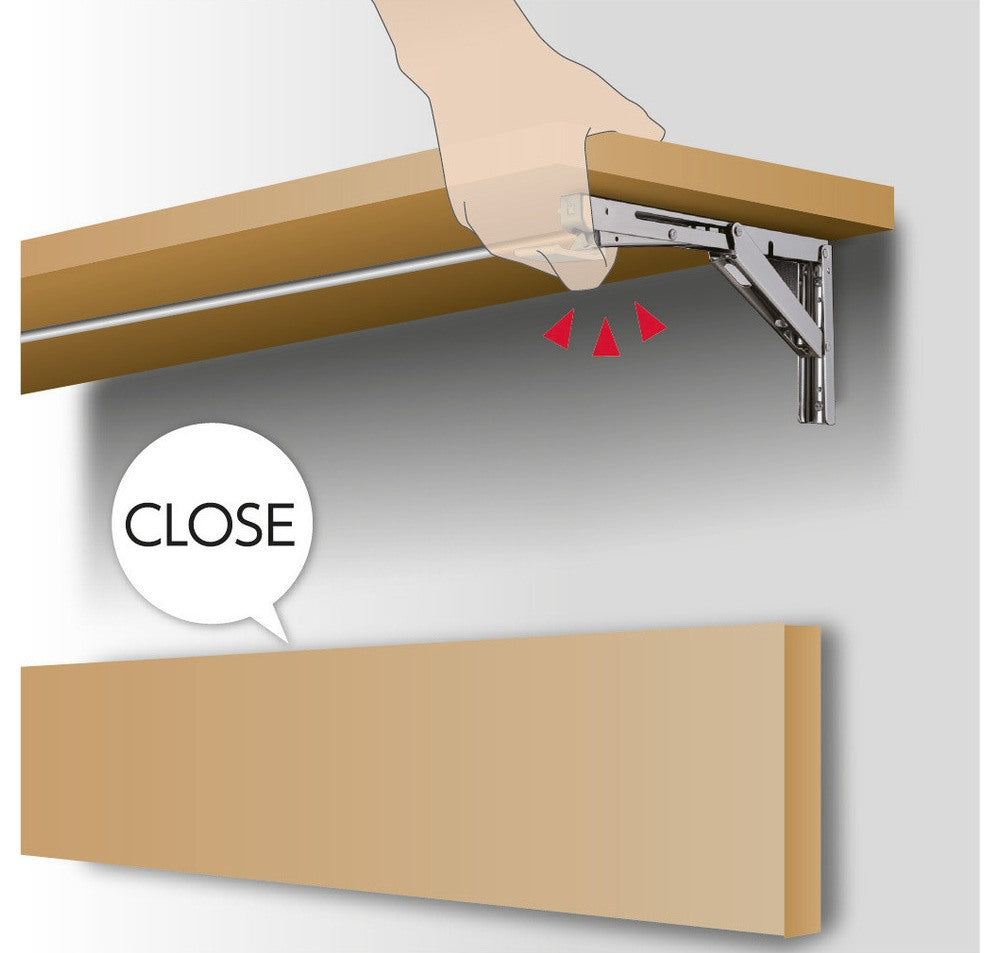

Three folding consoles can be operated simultaneously with one hand.

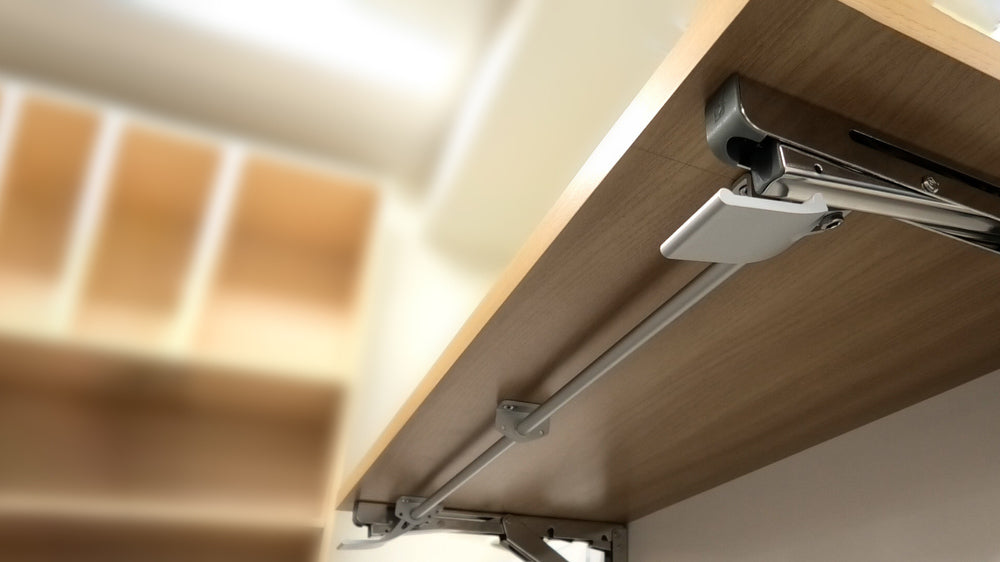

The practical connecting rod made of aluminum alloy, aluminum, robust connects three Sugatsune EB-DA or three ROCA Robust Soft folding consoles to a synchronized unit.

The coupling allows wide folding tables to be folded in and out with just one hand.

The aluminum rod can be shortened (cut to length) to the desired width and remains torsion-free.

An optional center bearing prevents deflection for spans over 700 mm (27-9/16″).

The high-quality connecting rods 120-046-396 and 120-046-397 are ideal for, among others:

• Robust Soft by ROCA and EB-DA folding console

Material:

• The connecting rods 120-046-396 and 120-046-397 are made of robust aluminum alloy (aluminum)
• Aluminum alloy offers excellent corrosion resistance and durability, making it ideal for use in furniture fittings
• It is also lightweight yet strong, making it easy to handle and install without compromising stability

Surface:

• Anodized
• Anodized surfaces offer increased durability and corrosion resistance, making them particularly long-lasting and easy to maintain, ideal for high-traffic areas such as kitchens and bathrooms
• In addition, their metallic appearance and variety of colors give modern interiors a stylish and high-quality appearance

Assembly:

• The fastening is done with 4.5 mm lens head self-tapping screws (not included)
• Before installation, the connecting rod must be shortened to the clear distance between the lever axes of the EB-DA or ROCA Robust Soft consoles minus 39 mm (1-17/32″)
• The shortened rod must then be inserted into the two lever arms via the supplied guide bushings and secured with the split pins

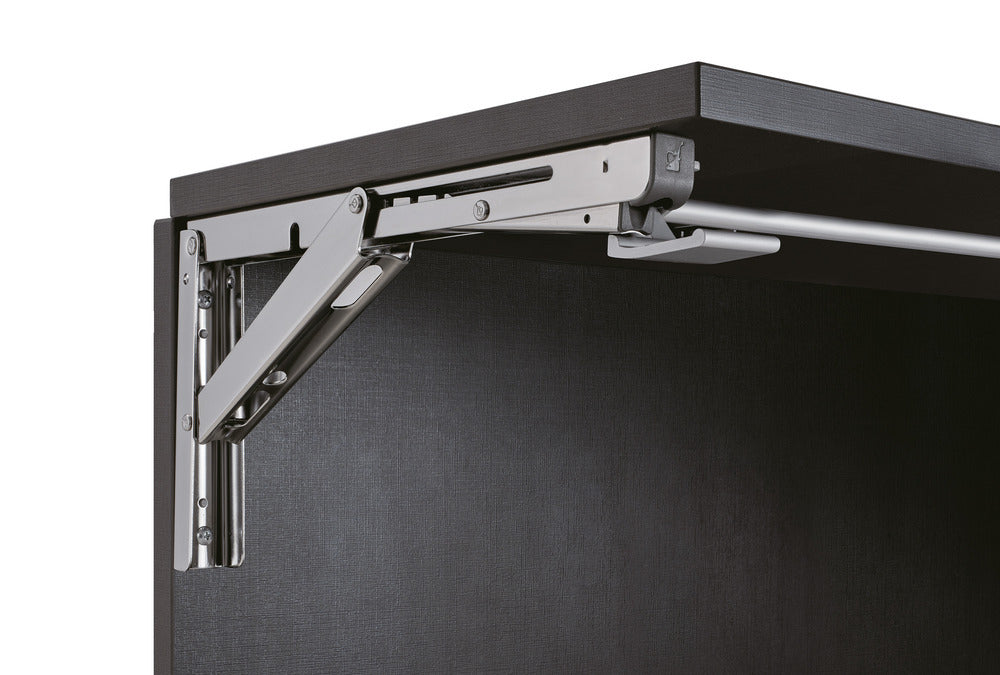

• The lever arms must be aligned flush with the outer tabs of the consoles and screwed tightly with 4.5 mm lens head self-tapping screws
• The mounting plates must lie flat; uneven surfaces may need to be underpinned to avoid distortion

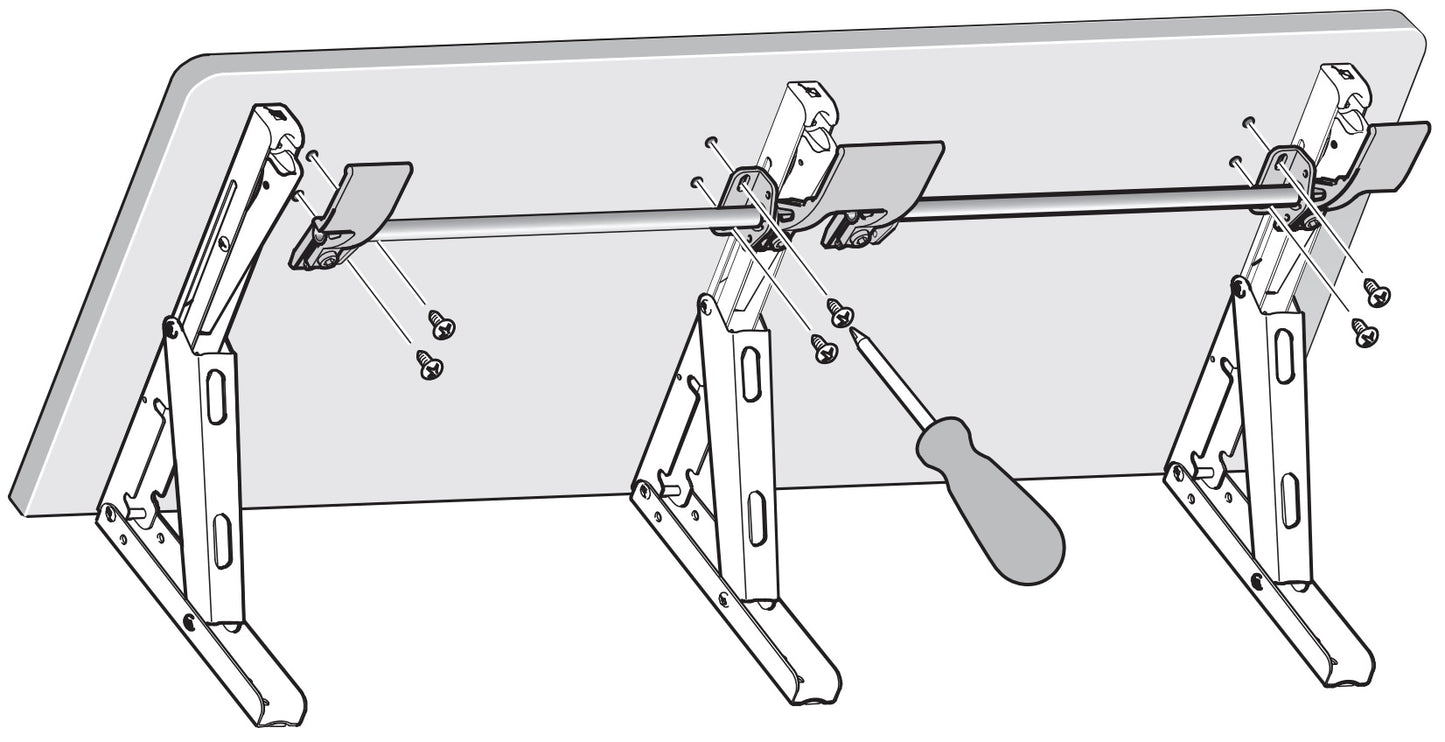

• For spans over 700 mm (27-9/16″), the optional center bearing must be screwed centrally to prevent the rod from bending (for further details see assembly drawing ).

Characteristics:

• Version: for three folding consoles
• Weight: 414 g
• Size: 1500 mm (59-1/16″)
• Available in two versions: for two folding consoles and for three folding consoles
• easy to assemble
• practical
• stable
• Multiple levers for one-handed operation
• Maximum distance between folding consoles: 1539 mm (60-19/32″)
• Rod can be individually shortened (cut to length)
• Can be retrofitted to existing EB-DA or ROCA Robust folding consoles
• anodized
• aluminum alloy
• aluminum
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Connecting rod length: 1500 mm (59-1/16″)
• Material thickness of the connecting rod: ⌀10 mm (25/64″)
• Lever arm length: 66 mm (2-19/32″)
• Depth of lever arm: 48 mm (1-57/64″)

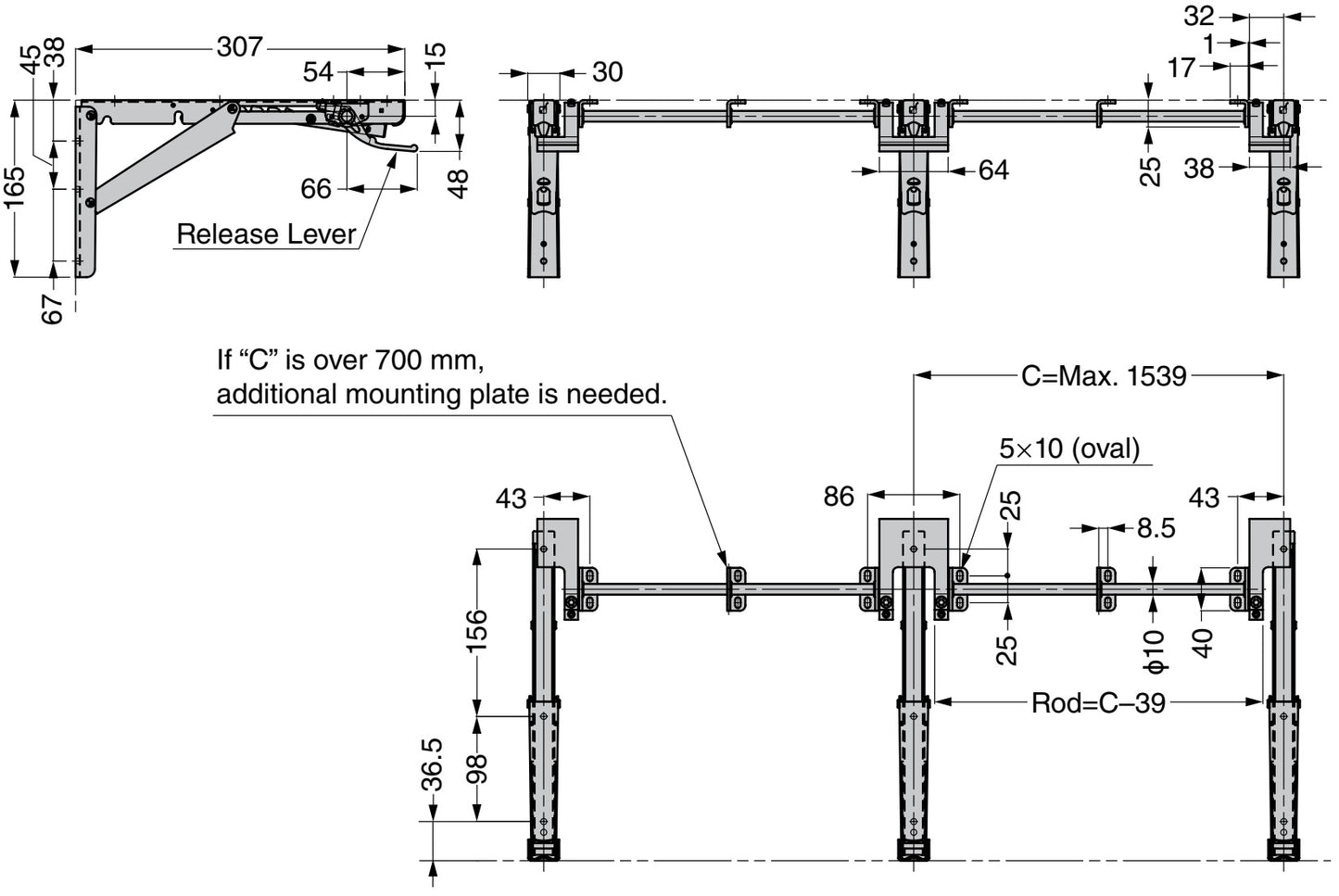

For further dimensions and details see technical drawing .

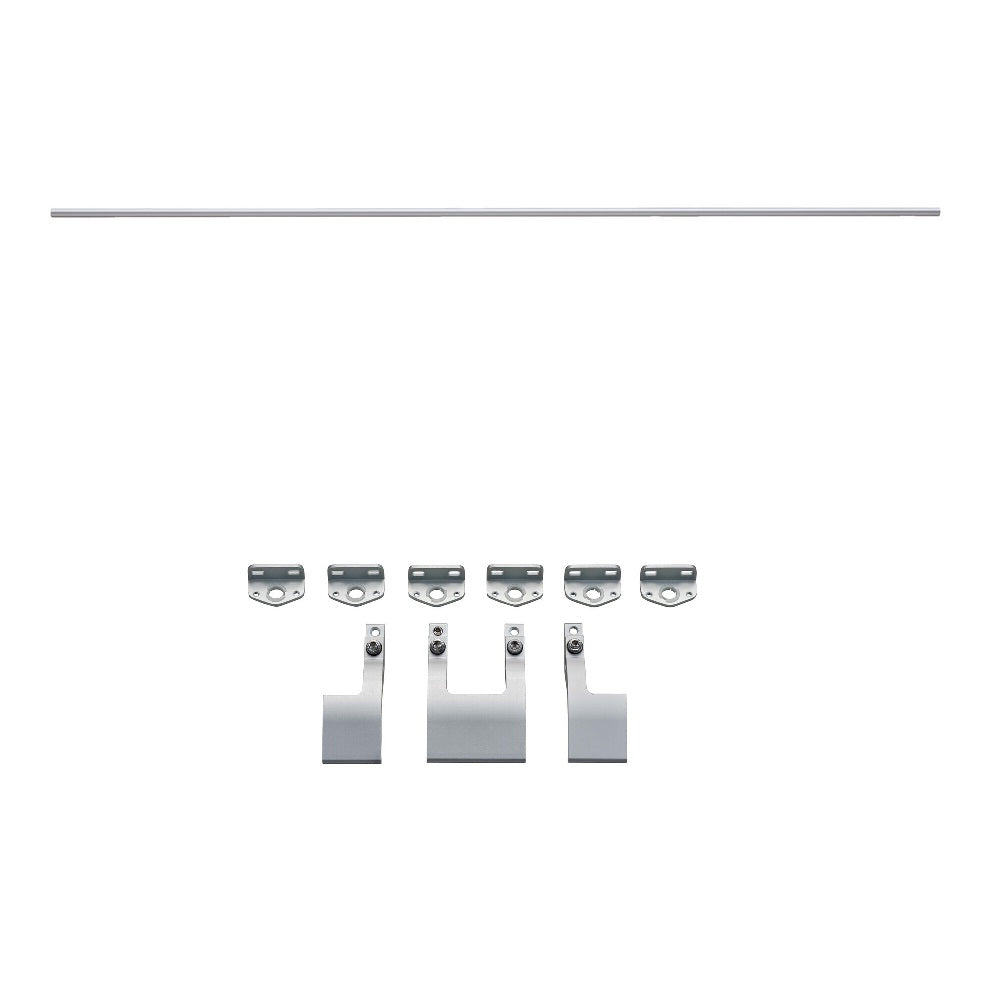

Included in delivery:

• 1 piece connecting rod 120-046-396 and 120-046-397 made of robust aluminum alloy, anodized, design: for three folding consoles
• Three lever arms made of aluminum alloy
• Six guide bushings made of aluminum alloy
• Please note that the mounting screws are not included in delivery

Watch product video:

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article number: 120-046-396 and 120-046-397
• Item number: EB-907561 and EB-907572
• EAN number: 4510932219884 and 4510932219891

Manufacturer:Sugatsune / LAMP® (Japan)
