Non-magnetic push-to-open latch MC-28 from SUGATSUNE / Lamp (Japan). Door opener spring latch, automatic touch latch for furniture, screw-mounted with counterpiece and screws.

Non-magnetic, purely mechanical pressure catch MC-28, push-to-open from SUGATSUNE / Lamp (Japan).

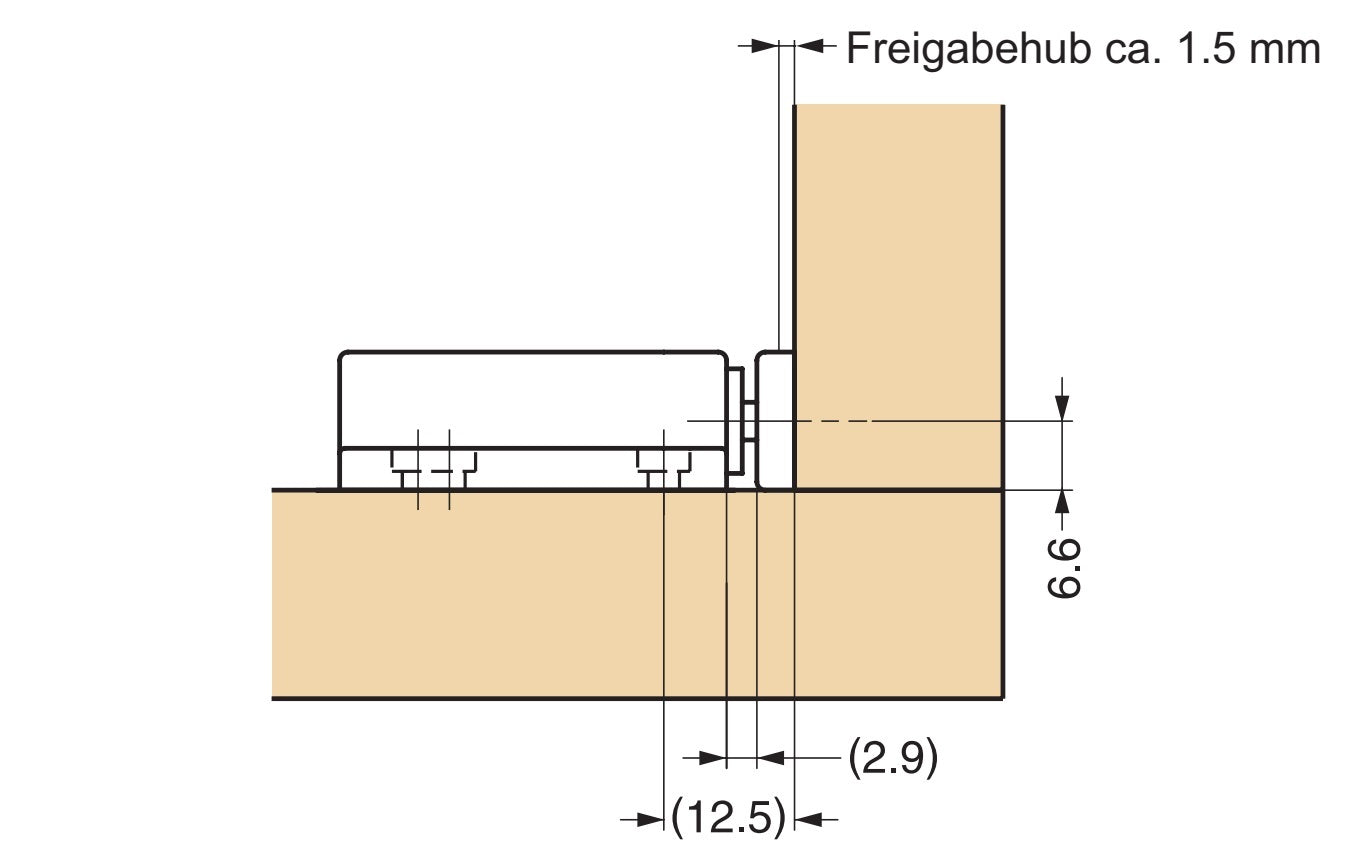

Application: Door opener spring catch, automatic touch latch for furniture for screwing with counterpart and screws. Suitable for all push-to-open applications, particularly strong holding due to the non-magnetic catch. The pressure fastener is ideal for applications with increased holding force requirements, as well as for vehicles, boats, aircraft, mobile homes and caravans. Perfect fit for the downward opening flaps. Assembly: For overlay doors, a 3 mm gap must be left between the door and the frame. [caption id="attachment_106601" align="alignnone" width="420"] Non-magnetic mechanical push-to-open latch MC-28 from SUGATSUNE / Lamp. Assembly drawing[/caption] Characteristics :

• No handle required, simply push against the door to open or close
• Non-magnetic for higher holding power
• Passes the 30,000 x opening and closing test
• Holding force: 29 N (3 kp)
• Weight: 15 g
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Length: 46 mm
• Height: 13.2 mm
• Width: 36.3 mm
• Distance between mounting holes: 20.5 mm and 22 mm

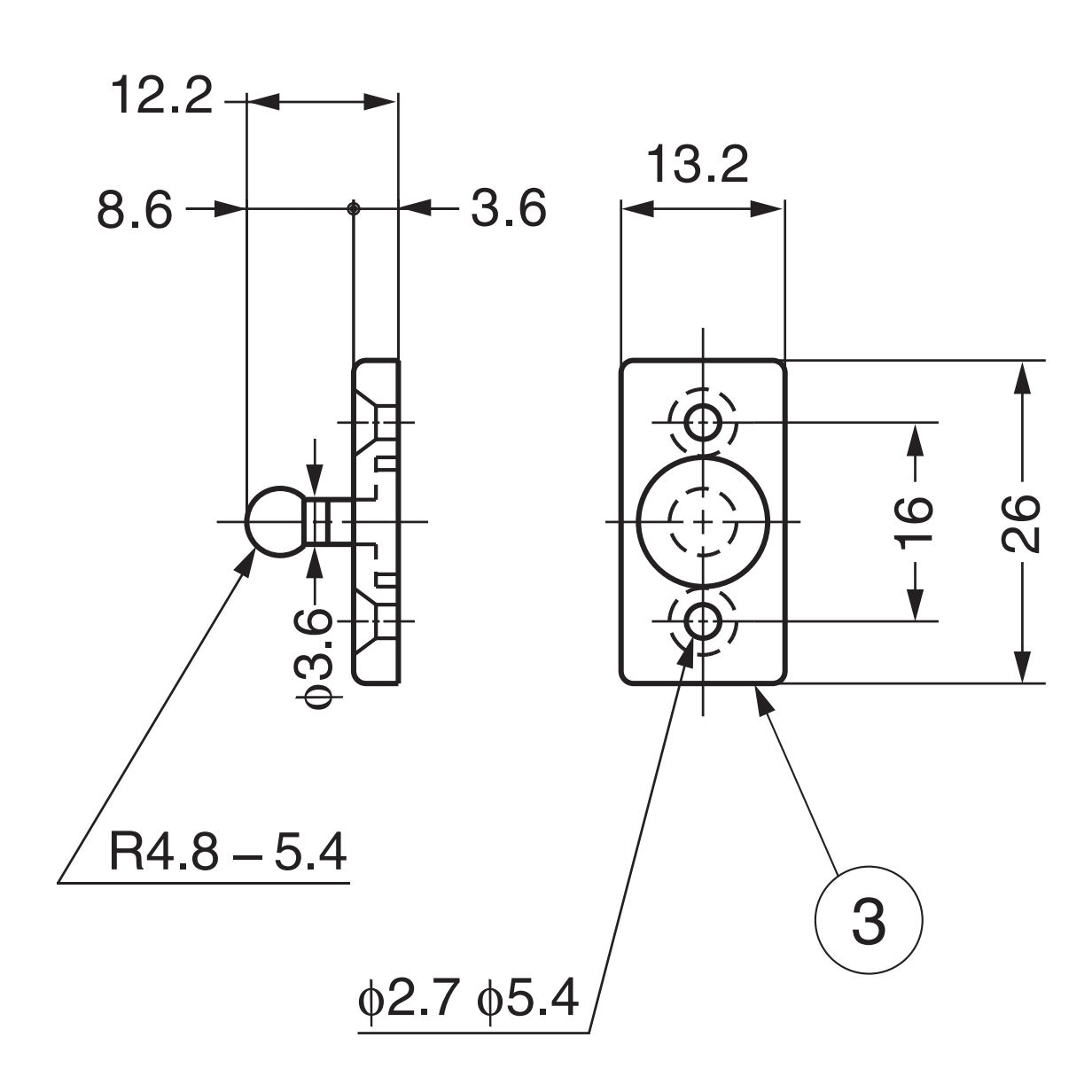

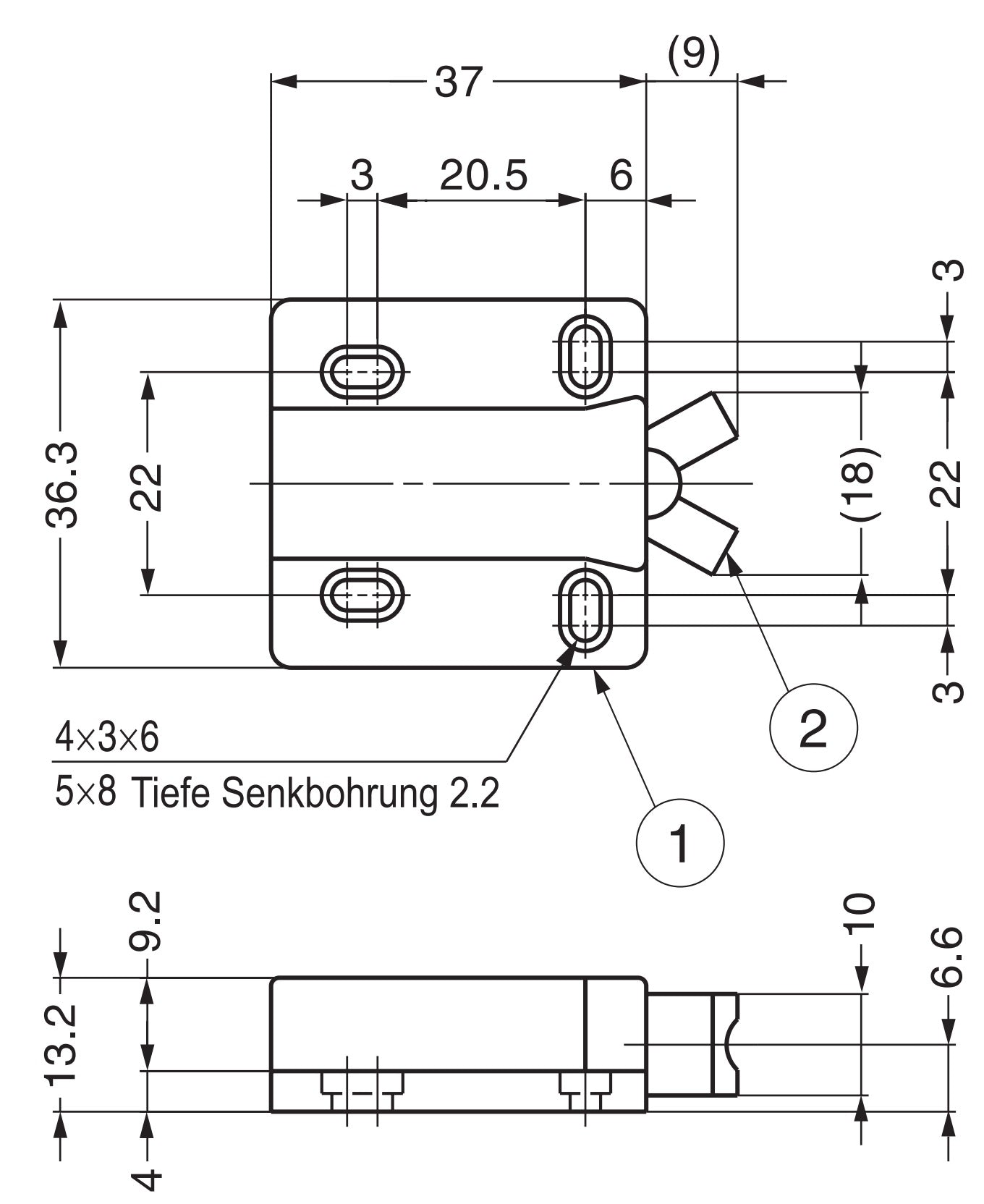

[caption id="attachment_106583" align="alignnone" width="420"] Non-magnetic mechanical push-to-open latch MC-28 from SUGATSUNE / Lamp. Technical drawing[/caption] The scope of delivery includes:

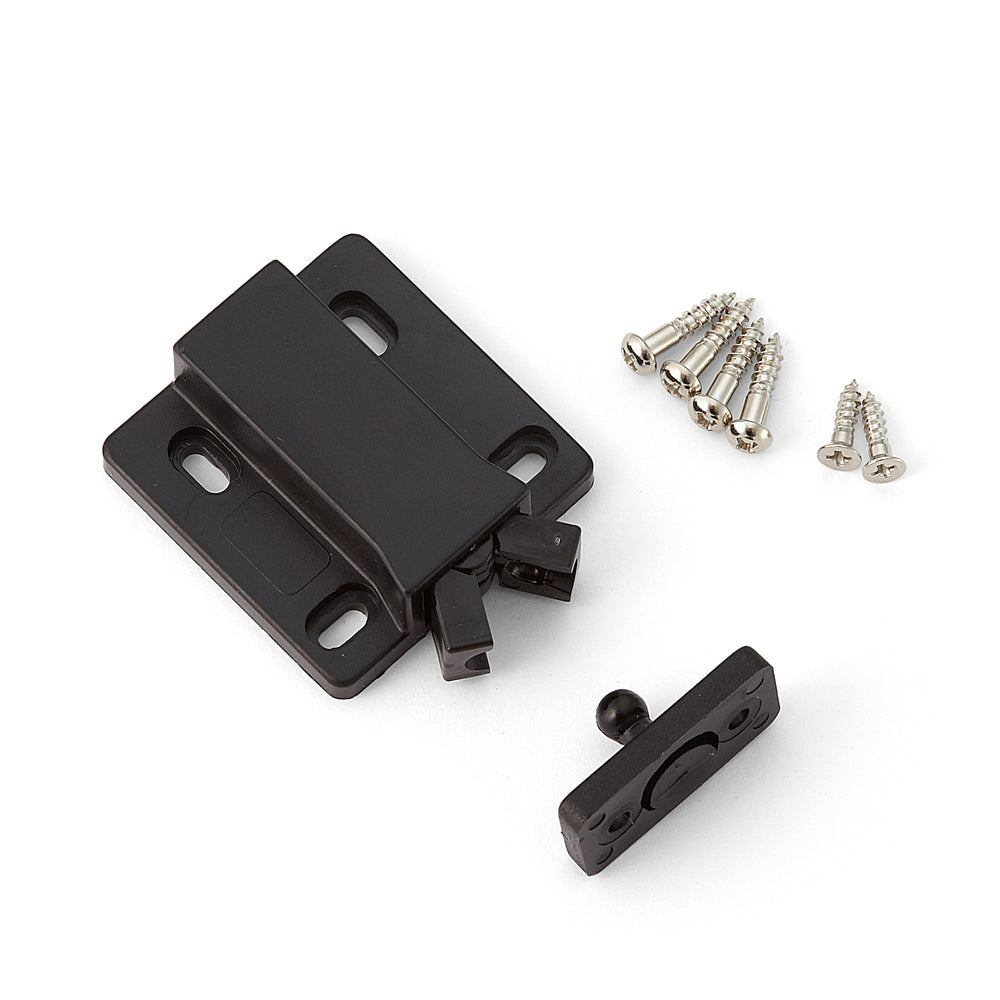

• 1 piece pressure snap MC-28
• 1 piece counterpart
• 6 wood screws

Material:

• Housing: ABS
• Temples: Polyacetal (POM)
• Counterpart: Polyamide (PA)

Surface:

• Color: black

Manufacturer reference number:

• Article number: 140-059-203
• Item number: MC-28
• EAN number: 4510932016834

Manufacturer: Sugatsune / LAMP® (Japan)
