2 pieces of corrosion-resistant, robust mounting brackets, made of solid stainless steel, load capacity: 8 kg, surface: glossy polished, 60 mm (2.4"), SU-60M. Shelf brackets for shelves, trays, and much more, from Sugatsune / LAMP® (Japan)

2 pieces of 3 mm thick mounting brackets, made of solid stainless steel (SUS304, V2A), surface: glossy polished, SU-60M, size: 60 mm (2.4")

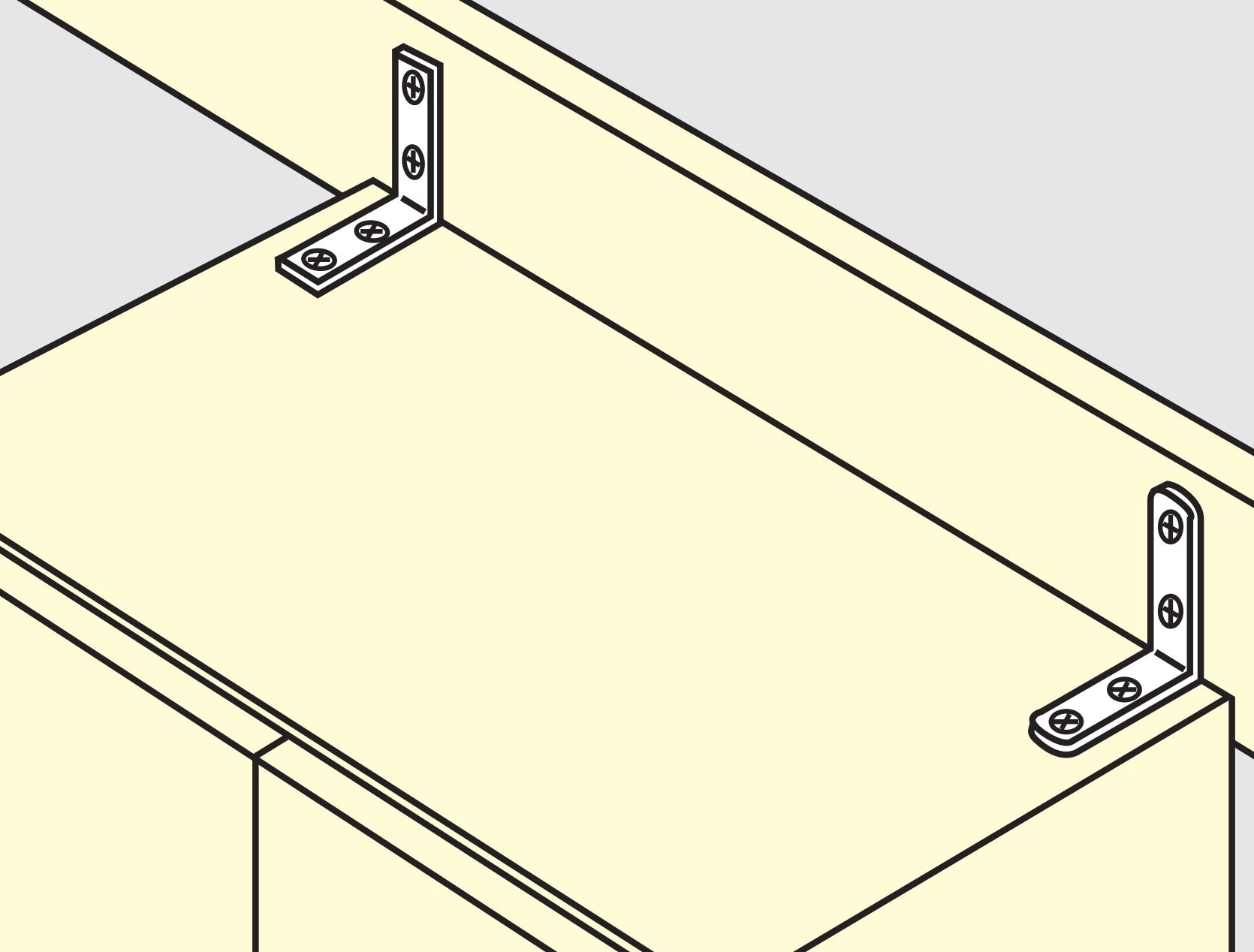

Application: Shelf brackets for shelves, trays and much more. [caption id="attachment_147481" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SU-60M, 60 mm, from Sugatsune, load capacity: 8 kg, glossy polished. Application example[/caption] The SU-60M mounting brackets are made of solid 3 mm (1/8″) thick SUS304 stainless steel. The SU-60M shelf brackets combine high load capacity with excellent corrosion resistance. The SU-60M shelf bracket is very stable, has an excellent load capacity of 8 kg, and a support surface length of 60 mm (2.4″). [caption id="attachment_147491" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SU-60M, 60 mm, from Sugatsune, load capacity: 8 kg, glossy polished. Available in three sizes: 30 mm, 45 mm, and 60 mm, and with two finishes: satin matte and glossy polished.[/caption] The high-quality SU-60M mounting brackets are ideal for, among other things:

• partition
• shelf
• yachts
• boats
• ships
• Outdoor area
• shelf
• shelf

Material:

• The SU-60M mounting brackets are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Shiny polished
• Shiny polished surfaces on furniture fittings and components improve the aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and impurities

Assembly:

• The mounting is done using the screws included in delivery (countersunk head screw 3.5 x 20 mm)
• The fastening screws are also made of stainless steel
• The mounting brackets SU-60M have four mounting holes with a diameter of ⌀4 mm (5/32″), with countersink

Characteristics:

• Weight: 43 g
• Load capacity: 8 kg (for two pieces)
• Size: 60 mm (2.4″)

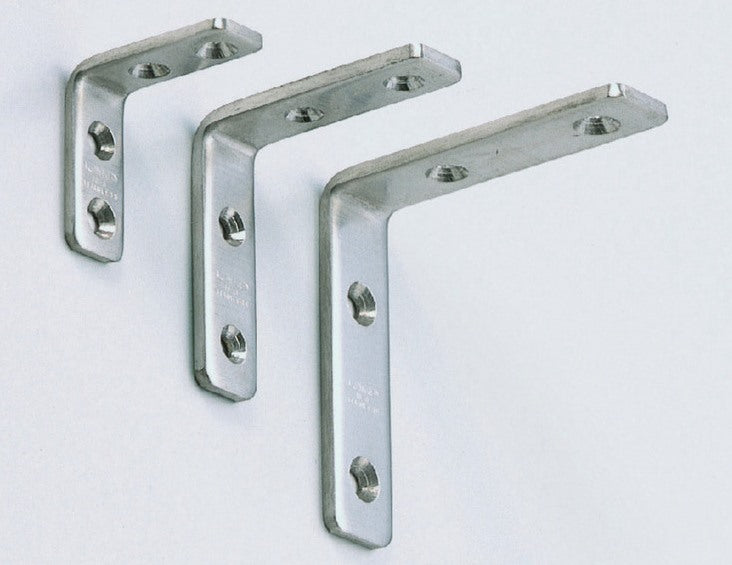

• Available in three sizes: 30 mm, 45 mm and 60 mm, and with two finishes: satin matt and glossy polished
• easy to assemble
• practical
• stable
• Material thickness: 3 mm (1/8″)
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

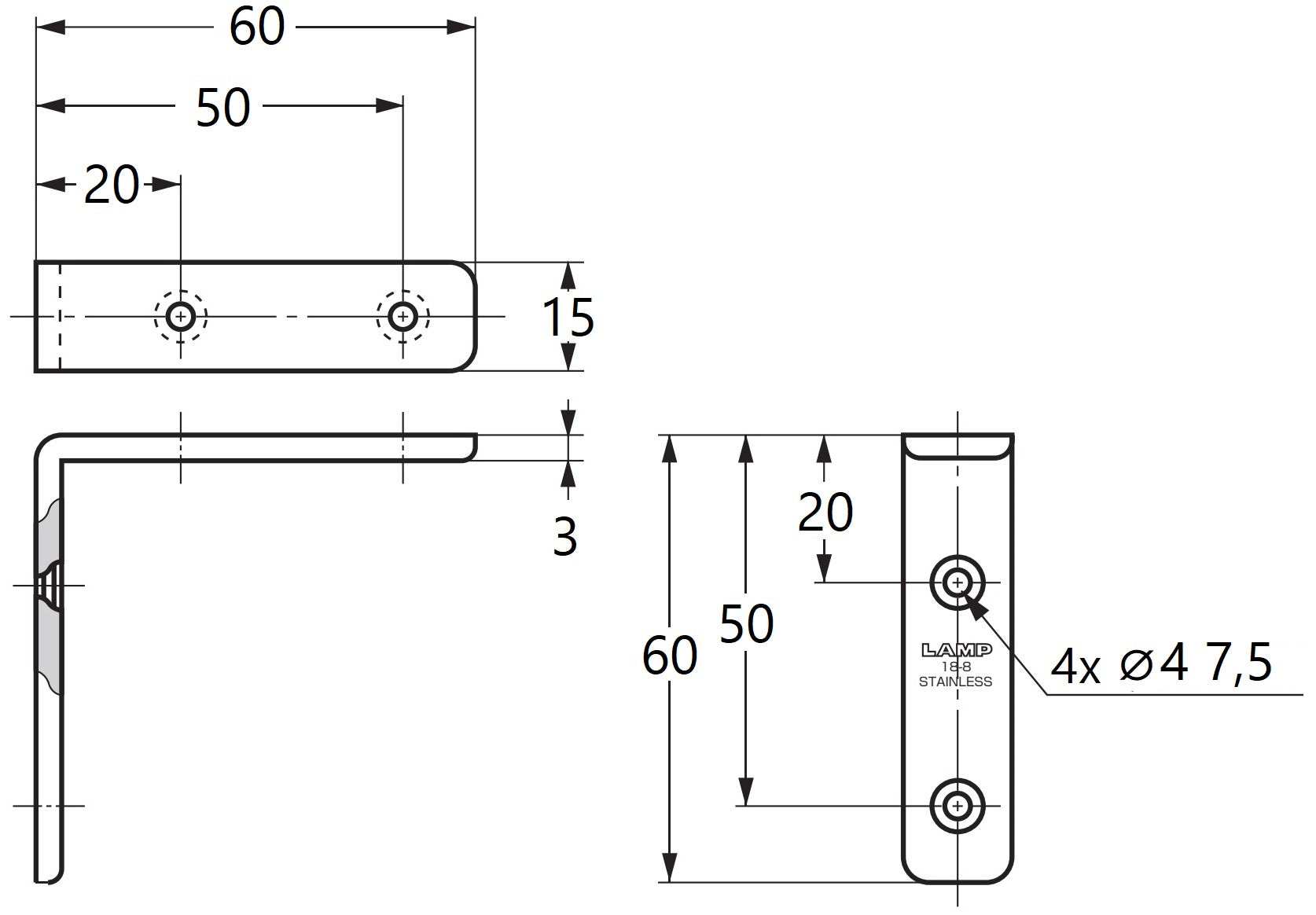

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 60 mm (2.4″)
• Width: 15 mm (19/32″)
• Depth: 60 mm (2.4″)
• Material thickness: 3 mm (1/8″)

[caption id="attachment_147501" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SU-60M, 60 mm, from Sugatsune, load capacity: 8 kg, glossy polished. Technical drawing[/caption] Included in delivery:

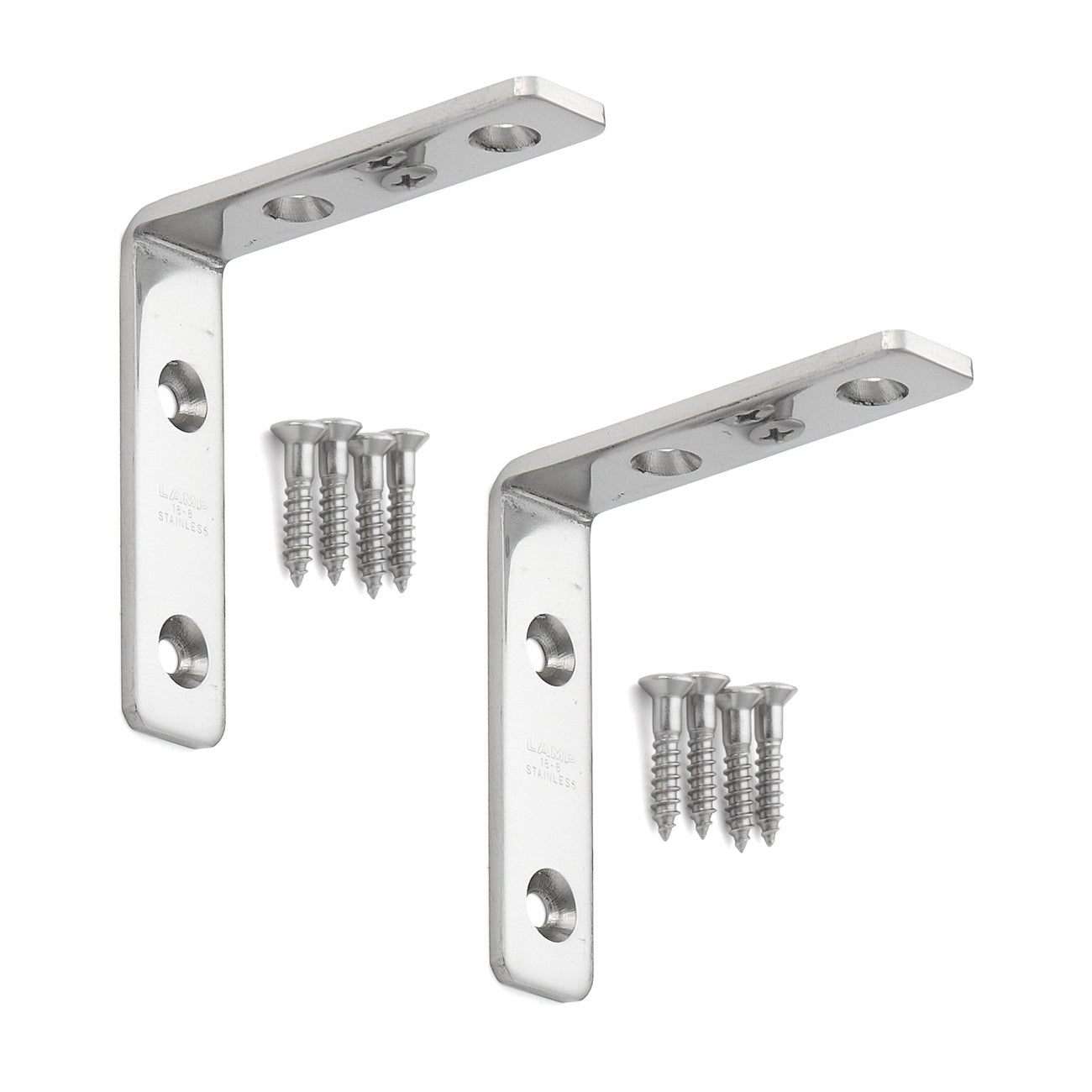

• two mounting brackets SU-60M made of solid stainless steel, shiny polished
• 4 pieces of raised countersunk head screws 3.5 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 120-030-067
• Item number: SU-60M
• EAN number: 4510932730129

Manufacturer: Sugatsune / LAMP® (Japan)
