2 pieces of corrosion-resistant, robust mounting brackets, made of solid stainless steel, load capacity: 16 kg, finish: satin matte, SV-55S. Shelf brackets for partition walls, shelves, and much more, from Sugatsune / LAMP® (Japan)

2 strong mounting brackets, coated with silicone, made of solid stainless steel (SUS304, V2A), surface: satin matt, SV-55S

Application: Shelf brackets for partition walls, shelves and much more. The SV-55S mounting brackets are made of solid 3 mm (1/8″) thick SUS304 stainless steel. [caption id="attachment_146502" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SV-55S, from Sugatsune, load capacity: 16 kg, satin finish. Available in three sizes: 40 mm, 55 mm, and 80 mm, and with two finishes: satin finish and high gloss polish. The SV-55S shelf brackets combine high load capacity with excellent corrosion resistance. The SV-55S shelf bracket is very stable, has an excellent load capacity of 16 kg, and a support surface length of 55 mm (2.2″). The high-quality mounting brackets SV-55S are ideal for, among others:

• shelf
• yachts
• boats
• ships
• Outdoor area
• partition
• shelf

Material:

• The SV-55S mounting brackets are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Satin matt
• Matte surfaces are less sensitive to fingerprints and dirt, making them easier to maintain
• They also give objects a modern, elegant look and harmonize well with different materials and colors

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk screw)
• The fastening screws are also made of stainless steel
• The SV-55S mounting brackets have four mounting holes with a diameter of ⌀3.8 mm (5/32″), with countersink (for further details see mounting drawing )

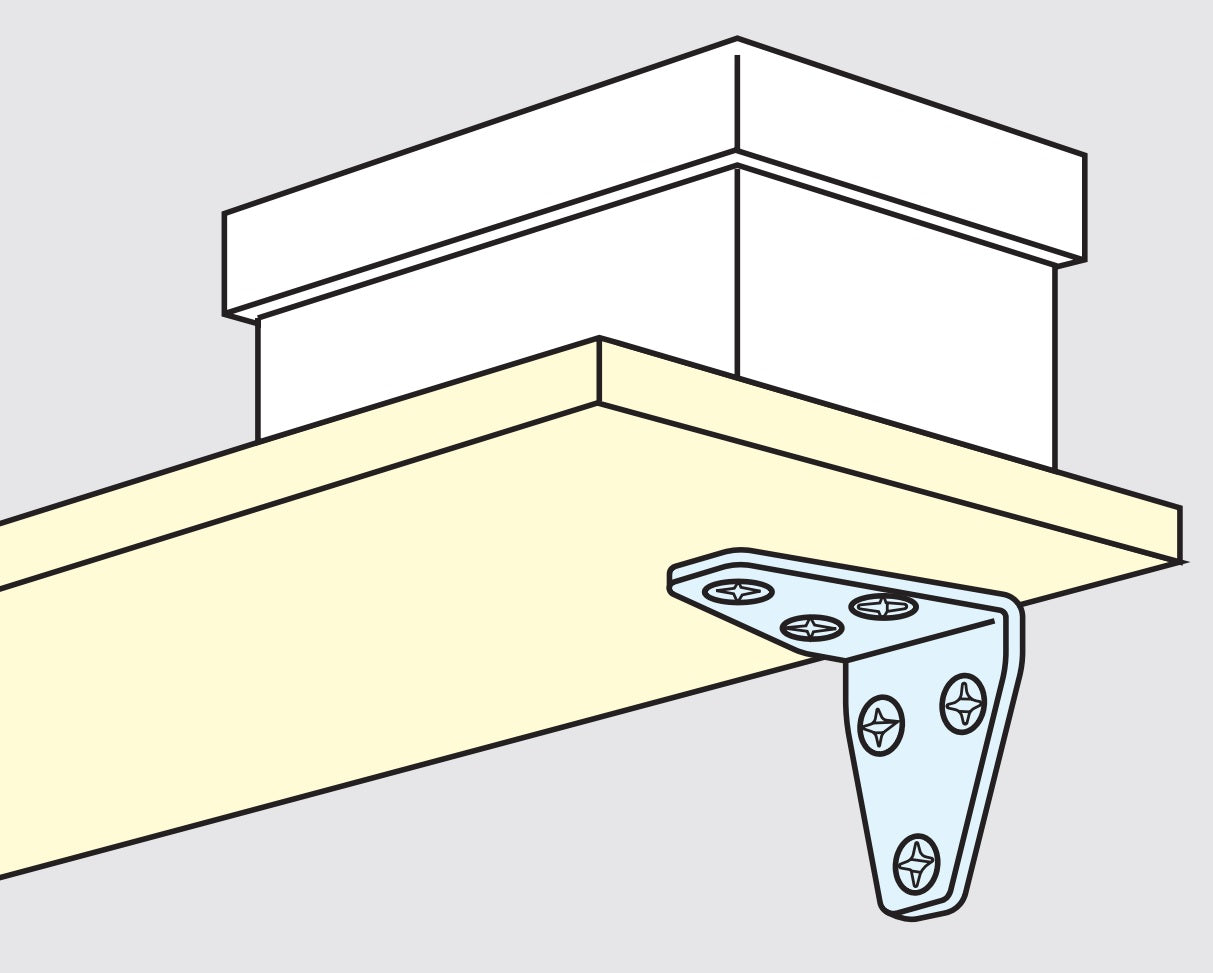

[caption id="attachment_146512" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SV-55S, from Sugatsune, load capacity: 16 kg, satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 65 g
• Load capacity: 16 kg (for two pieces)
• Size: 55 mm (2.2″)
• Available in three sizes: 40 mm, 55 mm and 80 mm, and with two finishes: satin matt and glossy polished
• easy to assemble
• practical
• stable
• Material thickness: 3 mm (1/8″)
• satin matt
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 55 mm (2.2″)
• Width: 36.5 mm (1-7/16″)
• Depth: 55 mm (2.2″)
• Material thickness: 3.8 mm (5/32″)

[caption id="attachment_146522" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SV-55S, from Sugatsune, load capacity: 16 kg, satin finish. Technical drawing[/caption] Included in delivery:

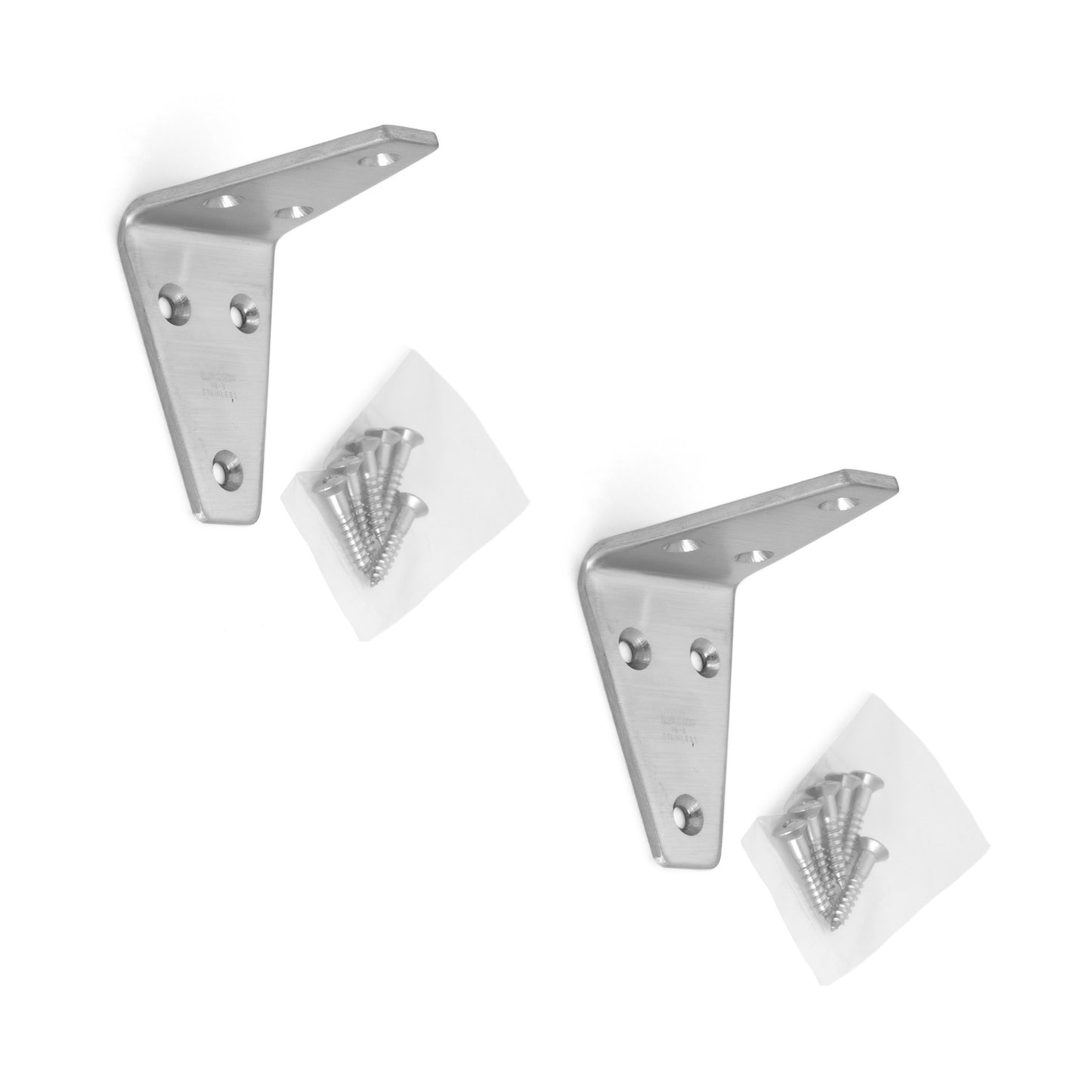

• two mounting brackets SV-55S made of solid stainless steel, satin matt
• 4 pieces countersunk head screw made of stainless steel

Manufacturer reference number:

• Article number: 120-030-061
• Item number: SV-55S
• EAN number: 4510932002721

Manufacturer: Sugatsune / LAMP® (Japan)
