2 pieces of corrosion-resistant, robust mounting brackets, made of solid stainless steel, load capacity: 16 kg, surface: glossy polished, SV-40M. Shelf brackets for partition walls, shelves, and much more, from Sugatsune / LAMP® (Japan)

2 strong mounting brackets, coated with silicone, made of solid stainless steel (SUS304, V2A), surface: glossy polished, SV-40M

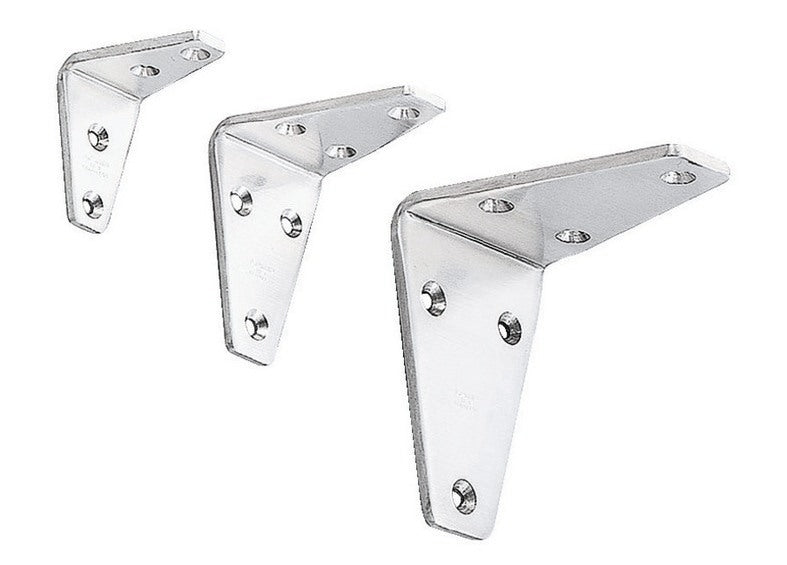

Application: Shelf brackets for partition walls, shelves and much more. The SV-40M mounting brackets are made of solid 3 mm (1/8″) thick SUS304 stainless steel. [caption id="attachment_146449" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SV-40M, from Sugatsune, load capacity: 16 kg, glossy polished. Available in three sizes: 40 mm, 55 mm, and 80 mm, and with two finishes: satin matte and glossy polished.[/caption] The SV-40M shelf brackets combine high load capacity with excellent corrosion resistance. The SV-40M shelf bracket is very stable, has an excellent load capacity of 16 kg, and a support surface length of 40 mm (1.6″). The high-quality SV-40M mounting brackets are ideal for, among other things:

• shelf
• yachts
• boats
• ships
• Outdoor area
• partition
• shelf

Material:

• The SV-40M mounting brackets are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Shiny polished
• Shiny polished surfaces on furniture fittings and components improve the aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and impurities

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk screw)
• The fastening screws are also made of stainless steel
• The SV-40M mounting brackets have four mounting holes with a diameter of ⌀3.3 mm (1/8″), with countersink (for further details see mounting drawing )

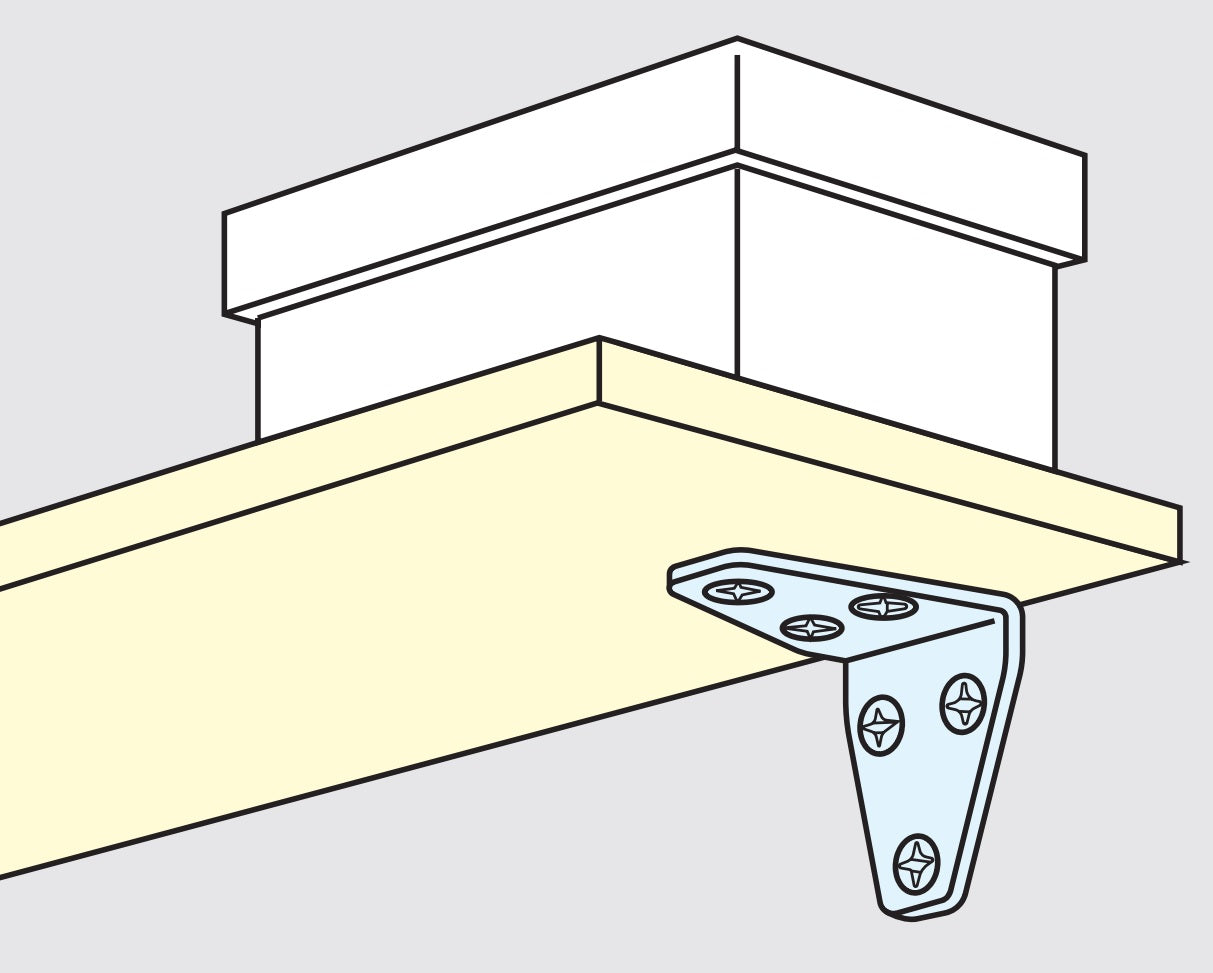

[caption id="attachment_146459" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SV-40M, from Sugatsune, load capacity: 16 kg, glossy polished. Assembly drawing[/caption] Characteristics:

• Weight: 33 g
• Load capacity: 16 kg (for two pieces)
• Size: 40 mm (1.6″)
• Available in three sizes: 40 mm, 55 mm and 80 mm, and with two finishes: satin matt and glossy polished
• easy to assemble
• practical
• stable
• Material thickness: 3 mm (1/8″)
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 40 mm (1.6″)
• Width: 25 mm (63/64″)
• Depth: 40 mm (1.6″)
• Material thickness: 3.3 mm (1/8″)

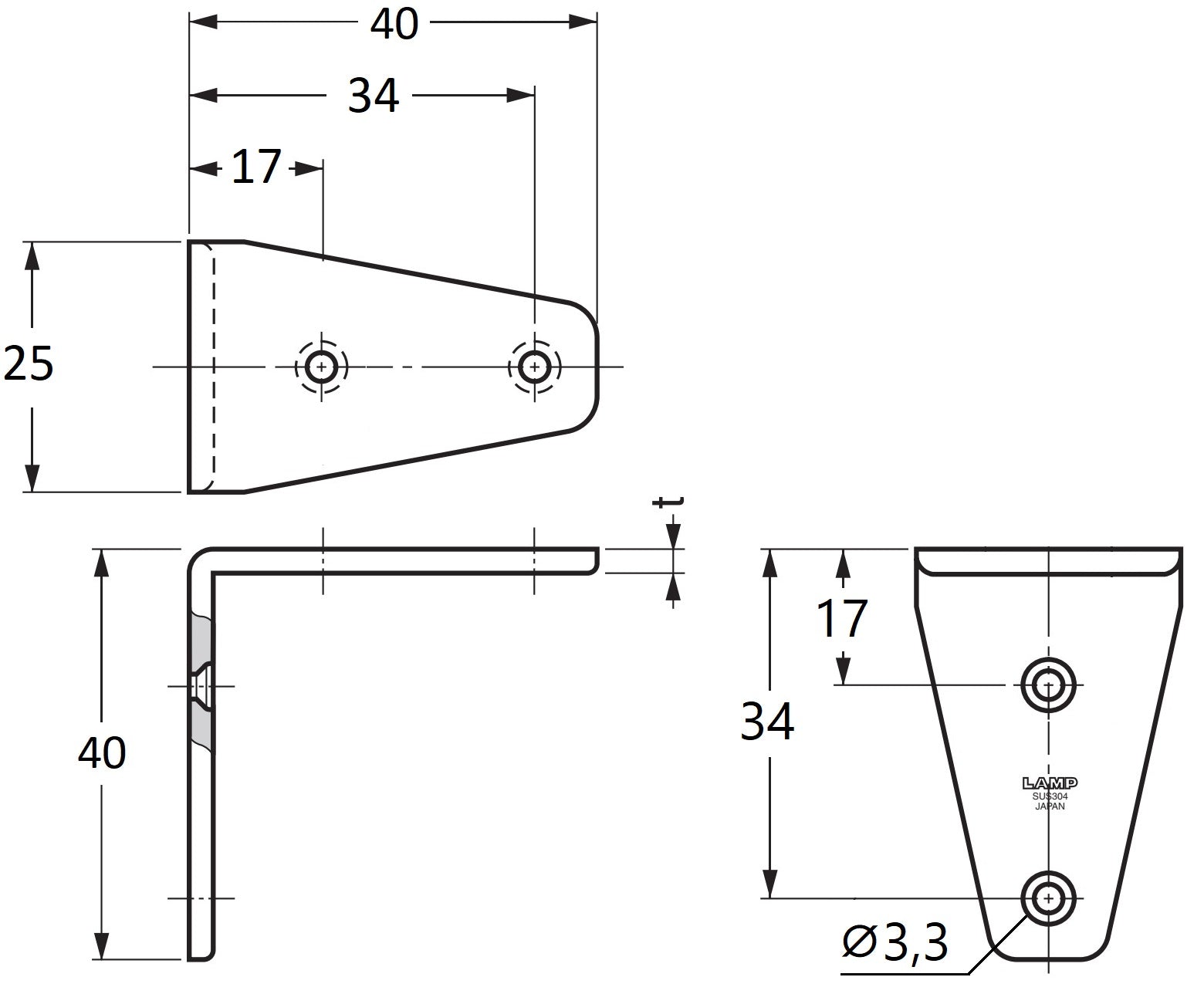

[caption id="attachment_146469" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SV-40M, from Sugatsune, load capacity: 16 kg, glossy polished. Technical drawing[/caption] Included in delivery:

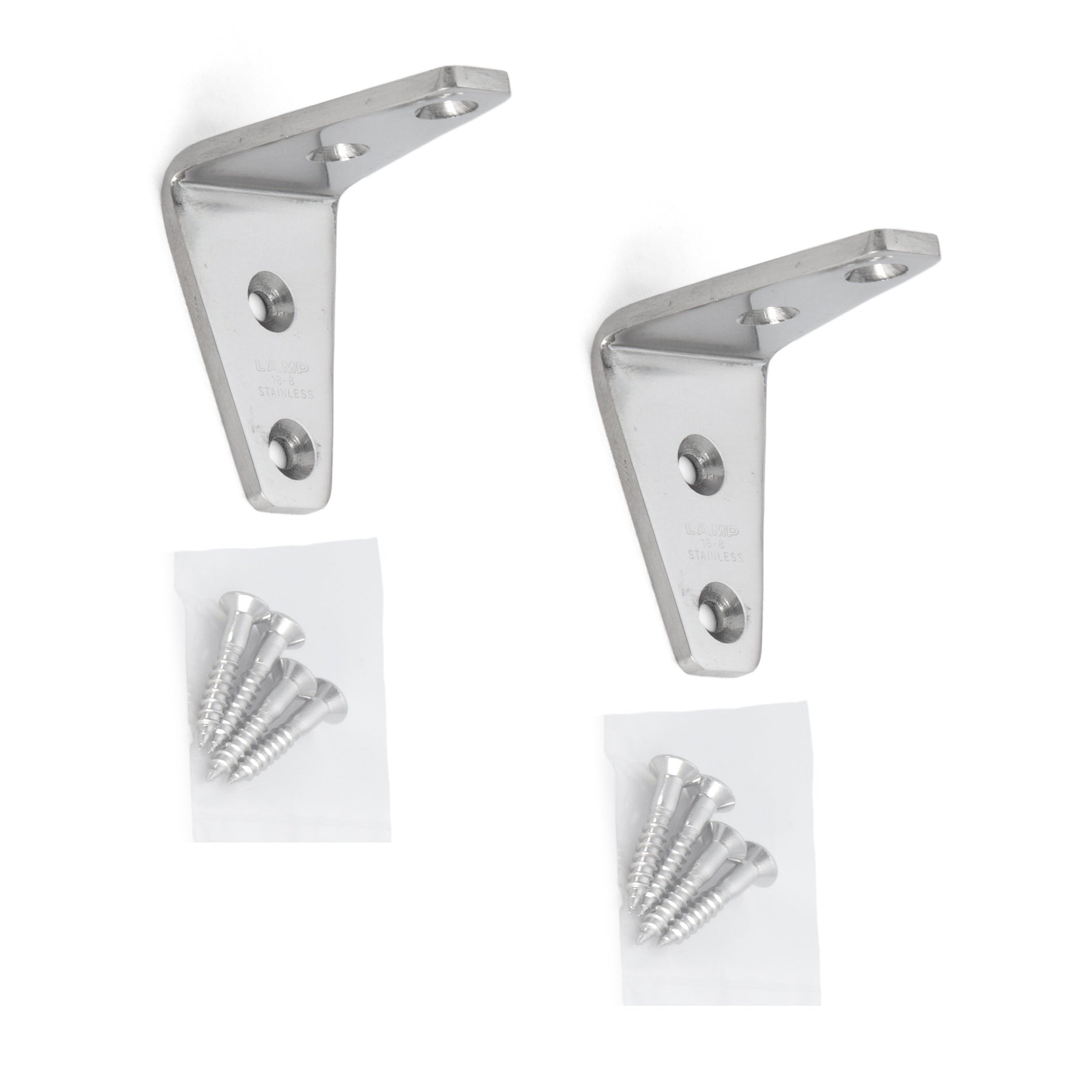

• two mounting brackets SV-40M made of solid stainless steel, shiny polished
• 4 pieces countersunk head screw made of stainless steel

Manufacturer reference number:

• Article number: 120-030-056
• Item number: SV-40M
• EAN number: 4510932730082

Manufacturer: Sugatsune / LAMP® (Japan)
