2 pieces of corrosion-resistant, robust mounting brackets, made of solid stainless steel, load capacity: 28 kg, surface: glossy polished, 180 mm (7.1"), XL-SA01-180M. Shelf brackets for shelves and much more, from Sugatsune / LAMP® (Japan)

2 pieces of 8 mm thick mounting brackets, made of solid stainless steel (SUS304, V2A), surface: glossy polished, XL-SA01-180M, size: 180 mm (7.1")

Application: Shelf brackets for shelves and much more. The XL-SA01-180M mounting brackets are made of solid 8 mm (5/16″) thick SUS304 stainless steel. [caption id="attachment_147042" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, XL-SA01-180M, 180 mm, from Sugatsune, load capacity: 28 kg, glossy polished. Available in four sizes: 120 mm, 150 mm, 180 mm, and 240 mm, and with two finishes: satin matte and glossy polished.[/caption] The XL-SA01-180M shelf brackets combine high load capacity with excellent corrosion resistance. The shelf bracket XL-SA01-180M is very stable, has an excellent load capacity of 28 kg, and a support surface length of 180 mm (7.1″). The high-quality mounting brackets XL-SA01-180M are ideal for, among others:

• partition
• shelf
• yachts
• boats
• ships
• Outdoor area
• shelf

Material:

• The mounting brackets XL-SA01-180M are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Shiny polished
• Shiny polished surfaces on furniture fittings and components improve the aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and impurities

Assembly:

• The fastening is carried out using the screws included in the delivery (countersunk head self-tapping screw 5 x 30 mm)
• The fastening screws are also made of stainless steel
• The mounting brackets XL-SA01-180M have six mounting holes with a diameter of ⌀5.2 mm (13/64″), with countersunk

Characteristics:

• Weight: 510 g
• Load capacity: 28 kg (for two pieces)
• Size: 180 mm (7.1″)
• Available in four sizes: 120 mm, 150 mm, 180 mm and 240 mm, and with two finishes: satin matt and glossy polished
• easy to assemble
• practical
• stable
• Material thickness: 8 mm (5/16″)
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

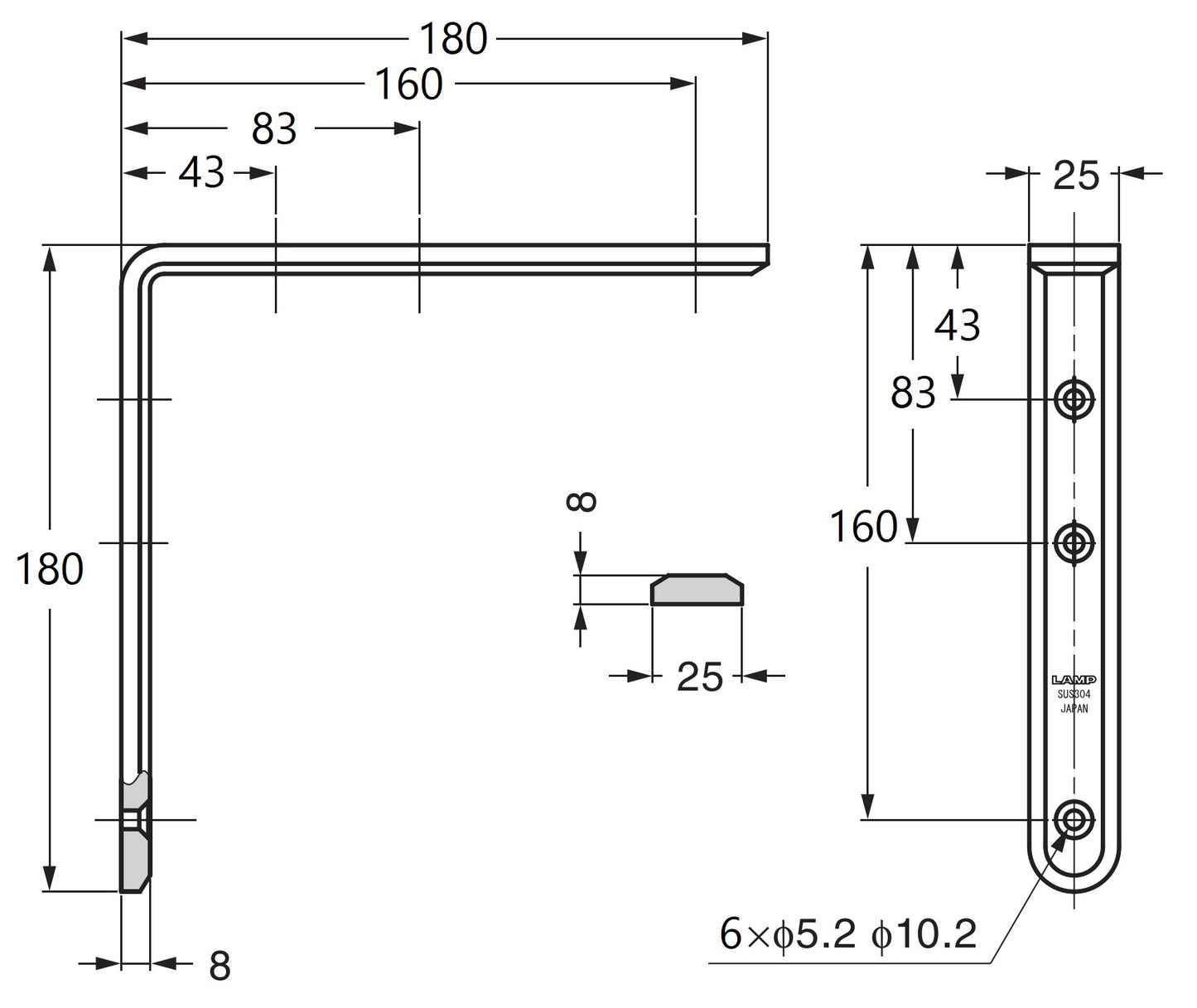

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 180 mm (7.1″)
• Width: 25 mm (63/64″)
• Depth: 180 mm (7.1″)
• Material thickness: 8 mm (5/16″)

[caption id="attachment_147052" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, XL-SA01-180M, 180 mm, from Sugatsune, load capacity: 28 kg, glossy polished. Technical drawing[/caption] Included in delivery:

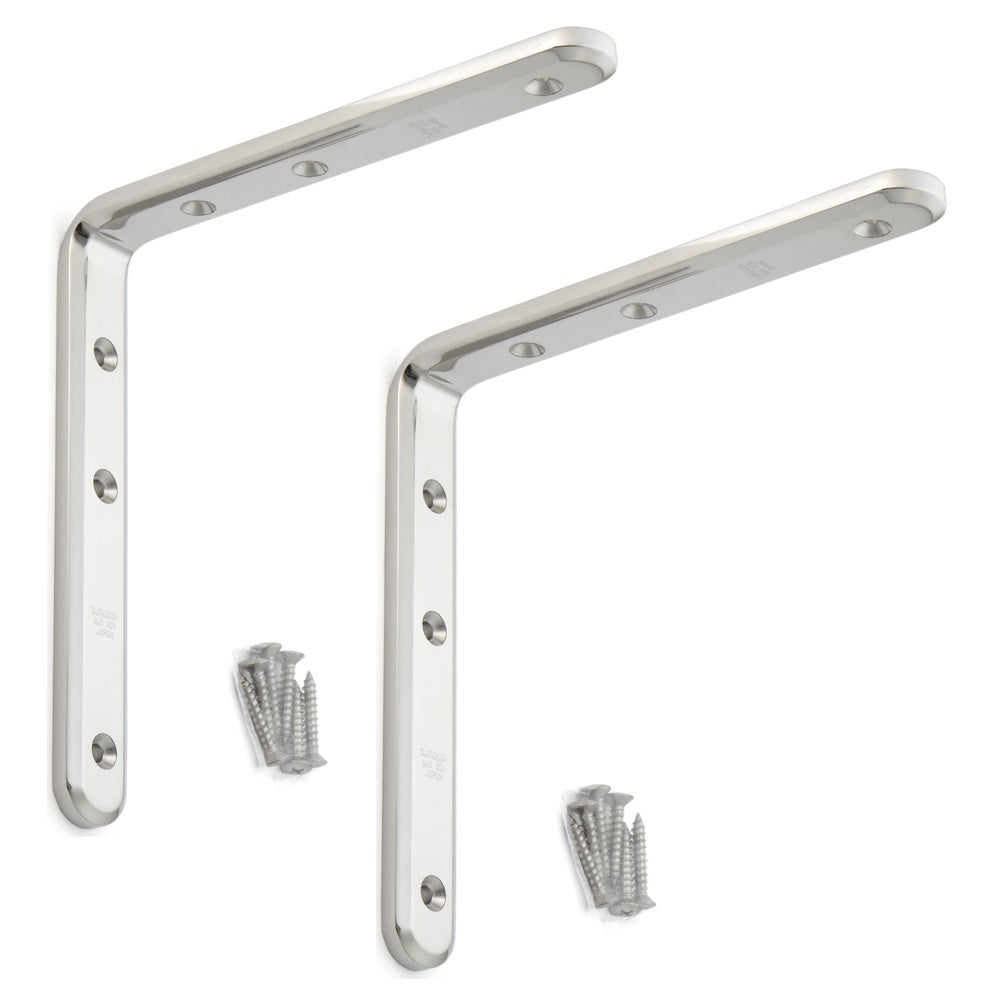

• two mounting brackets XL-SA01-180M made of solid stainless steel, shiny polished
• 6 pieces of raised countersunk head self-tapping screws 5 x 30 mm made of stainless steel

Manufacturer reference number:

• Article number: 120-030-309
• Item number: XL-SA01-180M
• EAN number: 4510932014205

Manufacturer: Sugatsune / LAMP® (Japan)
