2 pieces of corrosion-resistant, robust mounting brackets, made of solid stainless steel, load capacity: 46 kg, surface: satin matte, 120 mm (4.8"), XL-SA01-120S. Shelf brackets for shelves and much more, from Sugatsune / LAMP® (Japan)

2 pieces of 8 mm thick mounting brackets, coated with silicone, made of solid stainless steel (SUS304, V2A), surface: satin matt, XL-SA01-120S, size: 120 mm (4.8")

Application: Shelf brackets for shelves and much more. The XL-SA01-120S mounting brackets are made of solid 8 mm (5/16″) thick SUS304 stainless steel. [caption id="attachment_146836" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, XL-SA01-120S, 120 mm, from Sugatsune, load capacity: 46 kg, satin finish. Available in four sizes: 120 mm, 150 mm, 180 mm, and 240 mm, and with two finishes: satin finish and high gloss polish. The XL-SA01-120S shelf brackets combine high load capacity with excellent corrosion resistance. The shelf bracket XL-SA01-120S is very stable, has an excellent load capacity of 46 kg, and a support surface length of 120 mm (4.8″). The high-quality mounting brackets XL-SA01-120S are ideal for, among other things:

• partition
• shelf
• yachts
• boats
• ships
• Outdoor area
• shelf

Material:

• The mounting brackets XL-SA01-120S are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Satin matt
• Matte surfaces are less sensitive to fingerprints and dirt, making them easier to maintain
• They also give objects a modern, elegant look and harmonize well with different materials and colors

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk screw)
• The fastening screws are also made of stainless steel
• The mounting brackets XL-SA01-120S have four mounting holes with a diameter of ⌀5.2 mm (13/64″), with countersunk

Characteristics:

• Weight: 330 g
• Load capacity: 46 kg (for two pieces)
• Size: 120 mm (4.8″)

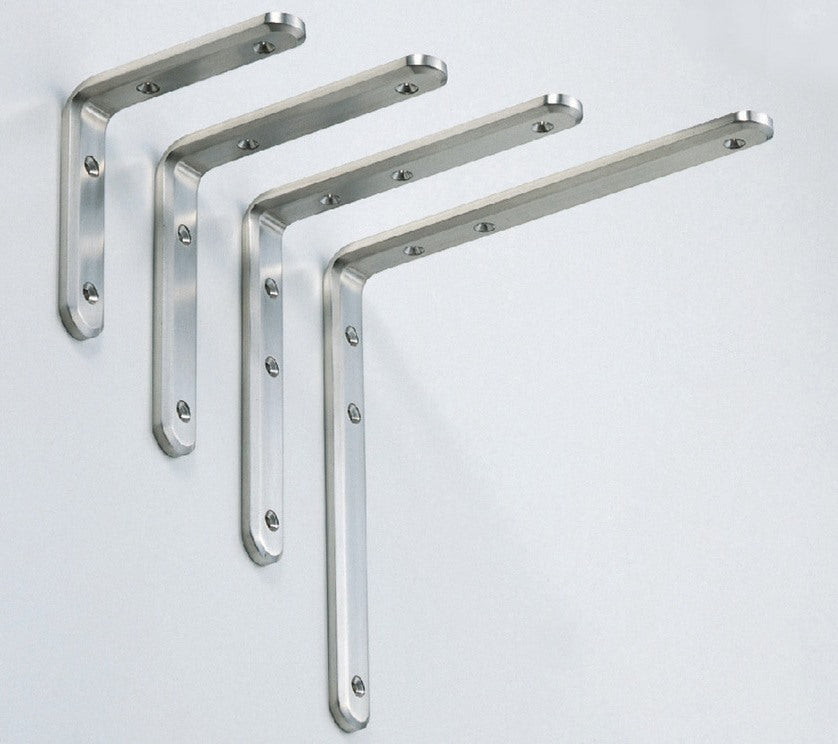

• Available in four sizes: 120 mm, 150 mm, 180 mm and 240 mm, and with two surfaces: satin matt and glossy polished
• easy to assemble
• practical
• stable
• Material thickness: 8 mm (5/16″)
• satin matt
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

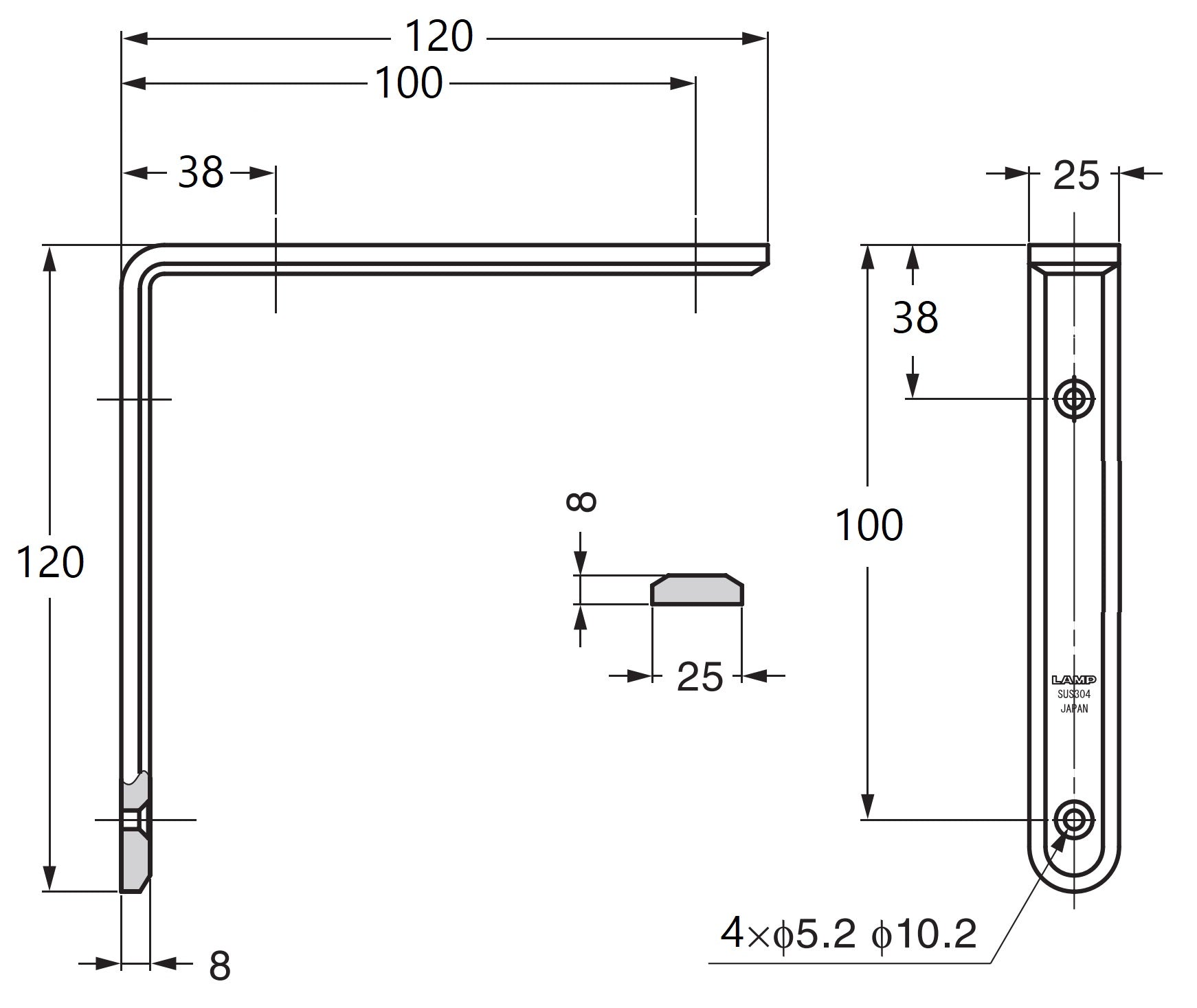

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 120 mm (4.8″)
• Width: 25 mm (63/64″)
• Depth: 120 mm (4.8″)
• Material thickness: 8 mm (5/16″)

[caption id="attachment_146846" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, XL-SA01-120S, 120 mm, from Sugatsune, load capacity: 46 kg, satin finish. Technical drawing[/caption] Included in delivery:

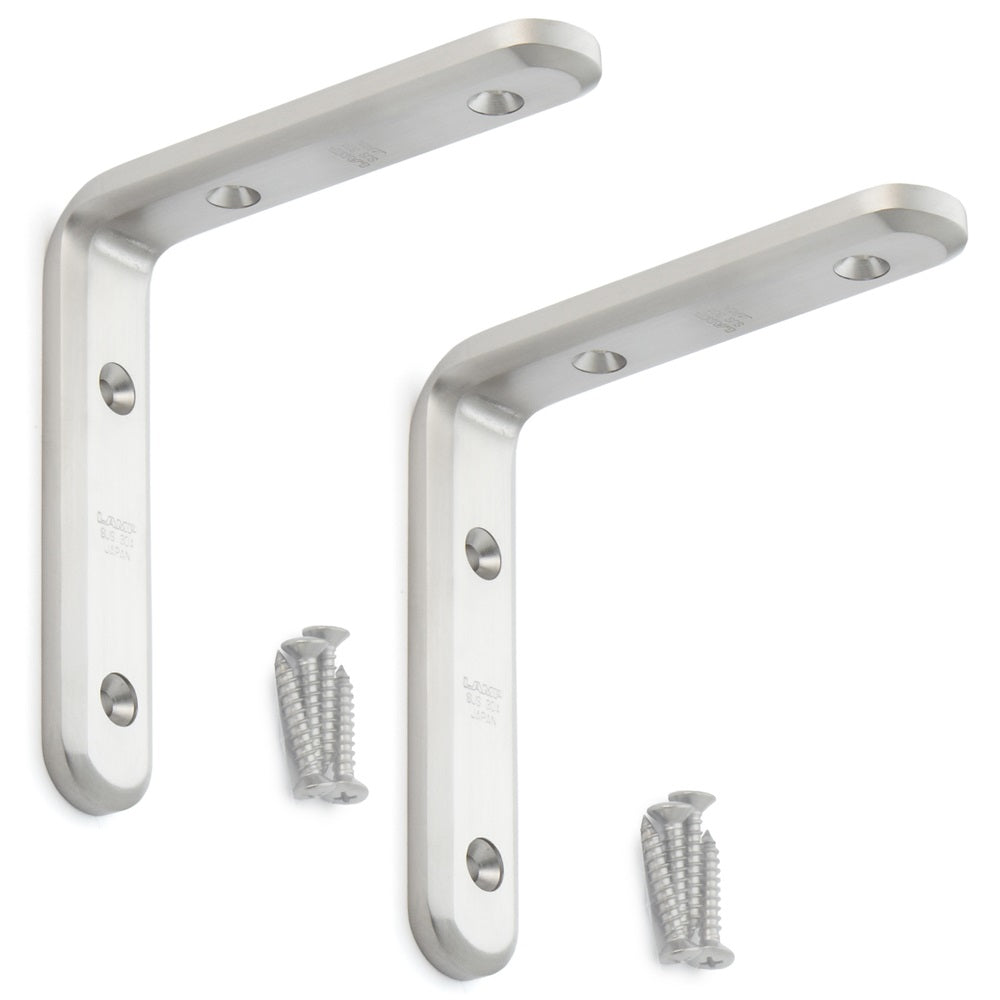

• two mounting brackets XL-SA01-120S made of solid stainless steel, satin matt
• 4 pieces countersunk head screw made of stainless steel

Manufacturer reference number:

• Article number: 120-030-303
• Item number: XL-SA01-120S
• EAN number: 4510932014151

Manufacturer: Sugatsune / LAMP® (Japan)
