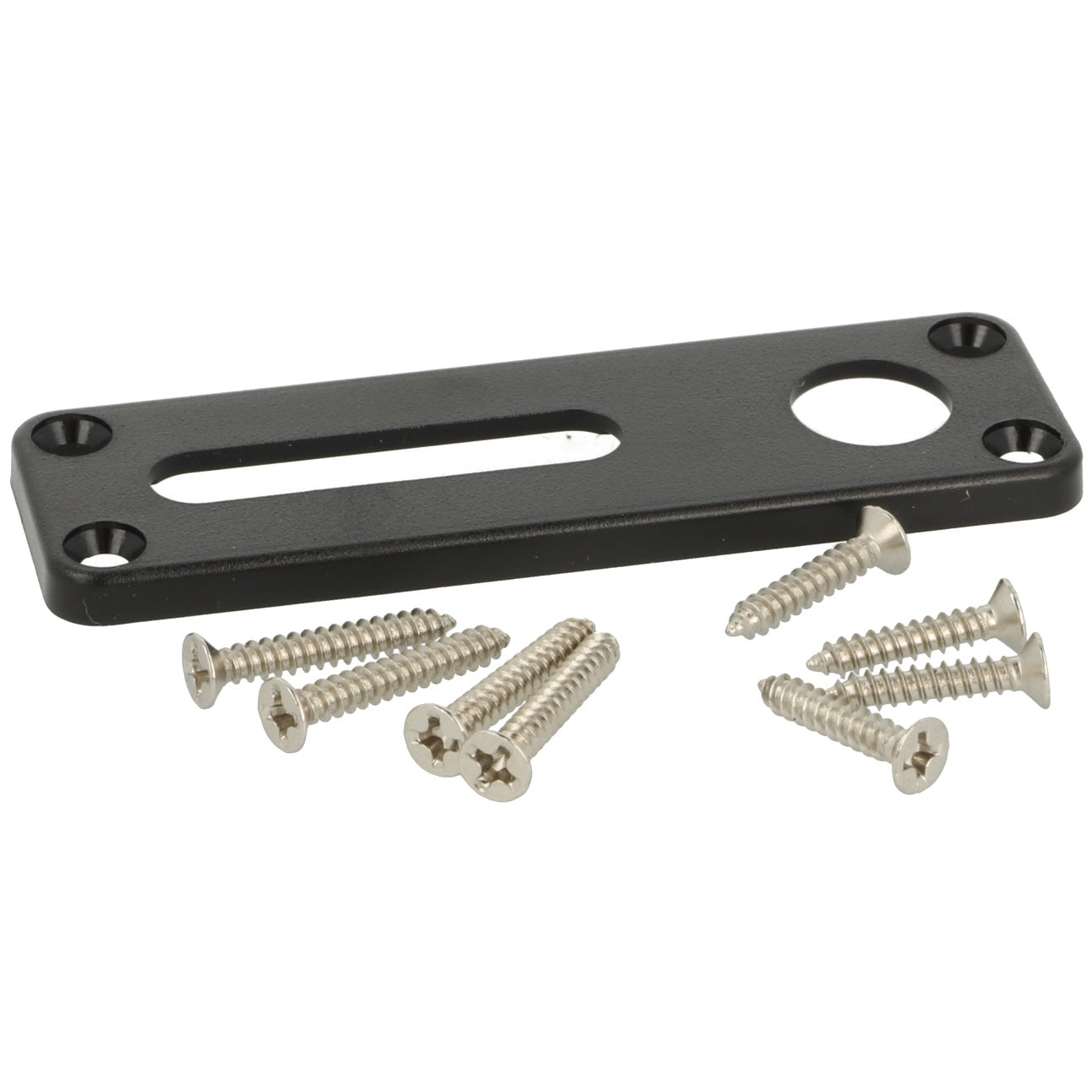

Mounting plate, 77 mm (3.1″) 14.08.245. Plastic mounting plate, matte black, for furniture combination lock, from SISO Denmark

Plastic mounting plate 14.08.245

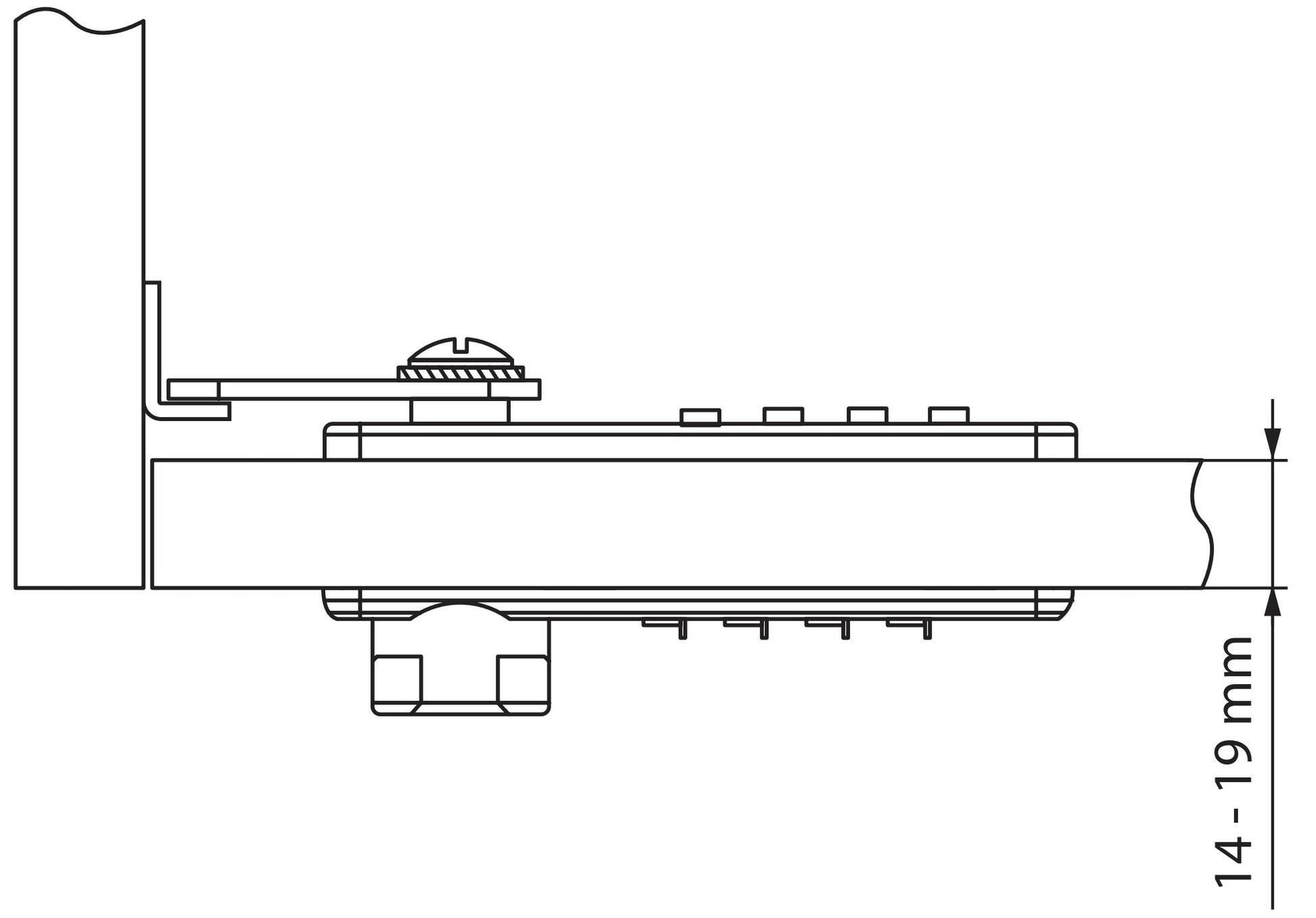

Application: [caption id="attachment_48298" align="alignnone" width="420"] Mounting plate from SISO, 14.08.245 (77 mm), matte black. Application[/caption] Mounting plate made of plastic, matt black, for furniture combination lock. The mounting plates 14.08.245 are suitable for mounting the combination locks 14.08.240 and 14.08.241 in wooden doors with a thickness of 14 to 19 mm. The high-quality mounting plates 14.08.245 are suitable for:

• Furniture combination lock
• locker cabinet
• wooden cabinet
• locker
• school locker
• University locker
• locker cabinet
• School furniture
• Hospital furniture
• Office furniture
• Mailbox
• Shopfitting

Material: The high-quality mounting plates 14.08.245 are made of robust plastic Surface:

• matte black

Assembly:

• The mounting is done using the screws included in delivery (3 x 16 mm and 3 x 20 mm)
• After the lock and mounting plate have been installed, the bolt is fixed to the lock using the screw and washer included with the lock (see assembly drawing for further details).

[caption id="attachment_48311" align="alignnone" width="420"] Mounting plate from SISO, 14.08.245 (77 mm), matte black. Assembly drawing[/caption] Characteristics:

• Size: 77 mm (3.1″)
• For wooden doors with a thickness of 14 to 19 mm
• Robust
• Made of plastic
• Black Matte
• High brand quality from UMAXO®

Dimensions: For further dimensions and details see technical drawing .

• Width of the mounting plate: 77 mm (3-1/32″)
• Height: 24 mm (30/32″)
• Distance between mounting holes: 68 mm (2-22/32″) x 15 mm (19/32″)

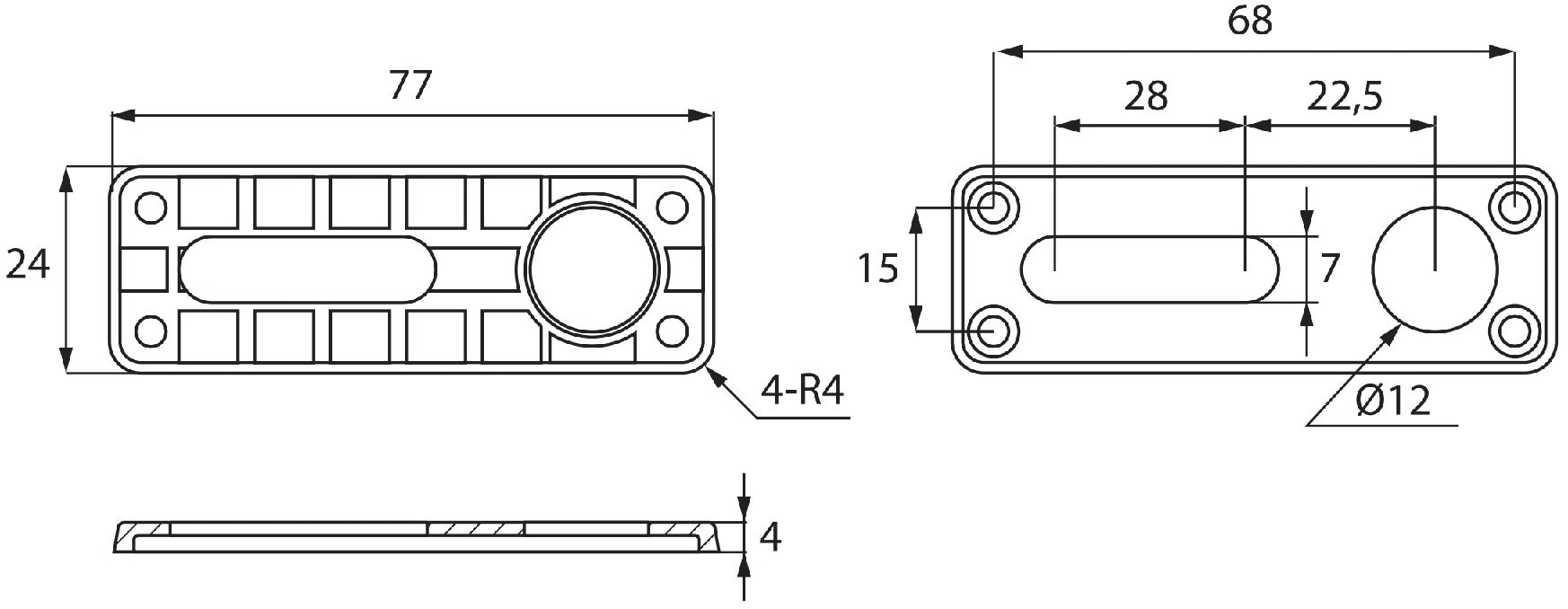

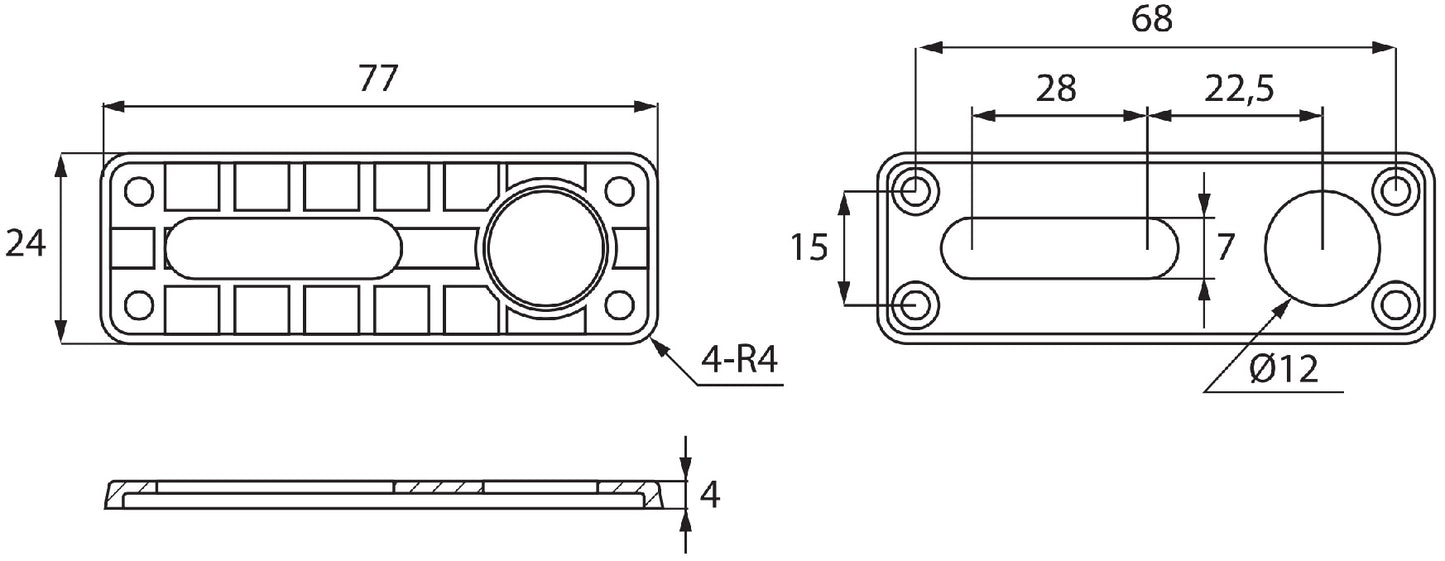

[caption id="attachment_48324" align="alignnone" width="420"] Mounting plate from SISO, 14.08.245 (77 mm), matte black. Technical drawing[/caption] Included in delivery:

• 1 piece mounting plate
• 8 pieces of fastening screws 3 x 16 mm and 3 x 20 mm

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.08.245-0
• Article number: 14.08.245
• EAN number: 5704866488327

Manufacturer: SISO Denmark
