Compact magnetic push-button catch, including counterplate, surface: white, 25 mm (63/64″), design: with 2 plungers, ML-30WW for furniture doors, cabinet doors

Compact, space-saving magnetic push-button catch, made of metal and robust plastic (metal and plastic), surface: white, ML-30WW, size: 25 mm (63/64″), design: with 2 plungers

Application:

Space-saving double door opener for furniture doors, cupboard doors and much more.

The 2 plungers are mounted in the same housing and allow 2 doors to be operated with just one fitting.

The ML-30WW magnetic push-button catch enables convenient opening and closing of handleless furniture doors by pressing.

The ML-30WW double door opener has a plunger extension travel of 8.5 mm (21/64″).

Thanks to its compact plastic housing, the ML-30WW magnetic pressure catch can be discreetly screwed onto the body side.

The counterplate of the ML-30WW magnetic push-to-close latch has four pointed tenons at the corners that engage the wood surface. This allows the counterplate to be securely attached with just one screw.

The high-quality magnetic push-button catches 140-050-056 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic snap fasteners 140-050-056 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The fastening is carried out using the four screws included in the delivery (wood screws 3.1 x 13 mm (2 round-head wood screws and 2 countersunk-head wood screws))
• The magnetic pressure catch ML-30WW has 2 mounting holes
• The distance between the mounting holes is 64 mm (2-33/64″)
• The catch is screwed onto the side of the body
• The minimum distance between the door and the furniture body is 4 mm

Characteristics:

• Version: with 2 plungers
• Weight: 42 g
• Load capacity: 11.8 N (1.3 kp)
• Size: 25 mm (63/64″)

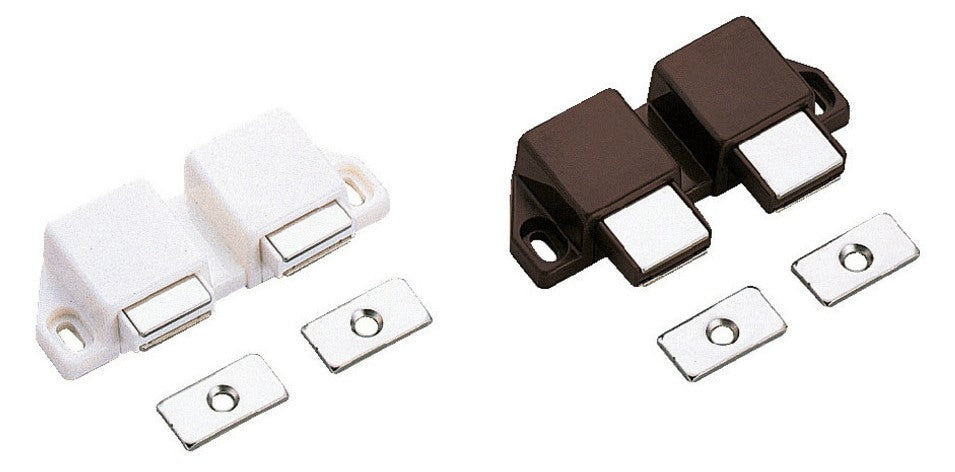

• Available in 2 colors: white and brown
• easy to assemble
• practical
• stable
• Ram travel: 8.5 mm (21/64″)
• Minimum door gap: 4 mm
• white
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap closure width: 75 mm (2-61/64″)
• Depth of the magnetic snap fastener: 25 mm (63/64″)
• Height: 16 mm (5/8″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

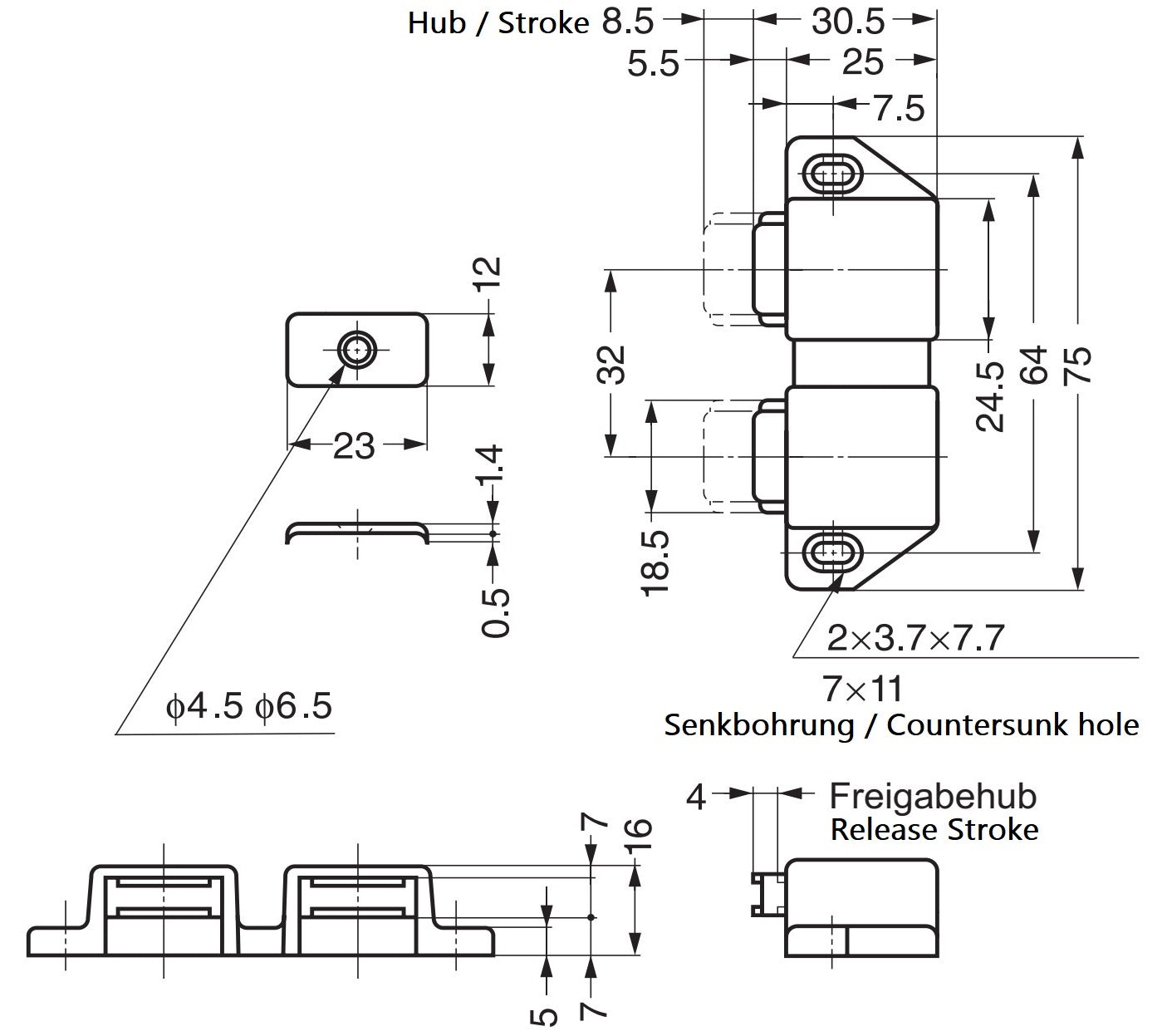

For further dimensions and details see technical drawing .

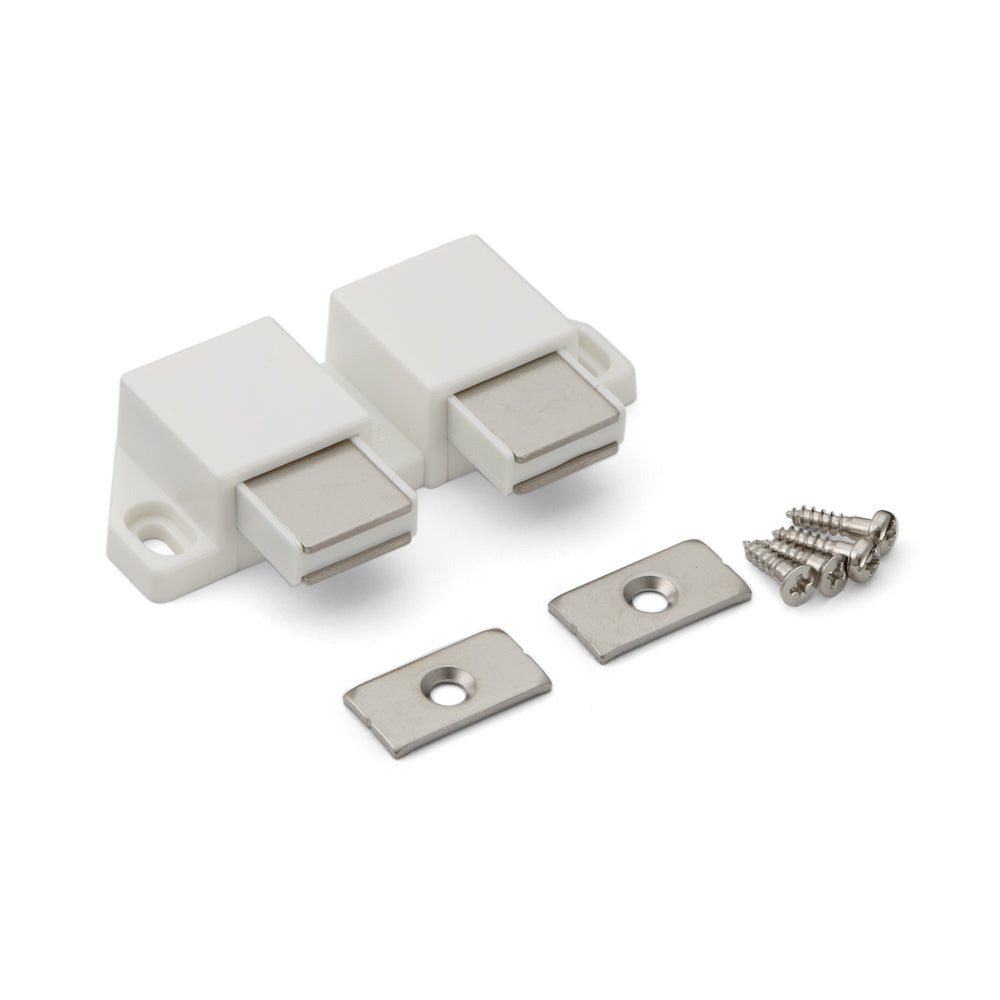

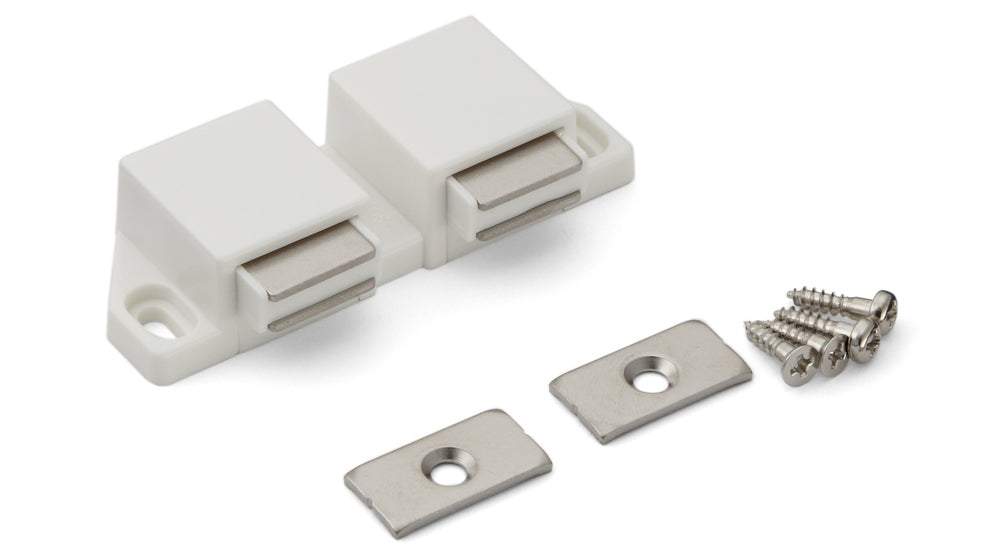

Included in delivery:

• 1 piece magnetic pressure catch 140-050-056 made of metal and robust plastic, white, design: with 2 plungers
• 2 pieces counter plate made of steel, nickel-plated
• 4 wood screws 3.1 x 13 mm (2 round-head wood screws and 2 countersunk-head wood screws)

Manufacturer reference number:

• Article number: 140-050-056
• Item number: ML-30WW
• EAN number: 4510932016964

Manufacturer:Sugatsune / LAMP® (Japan)
