High-quality zinc alloy case handle with spring, 148 mm (5.9") PT-148. Zinc alloy folding handle for devices, cases, suitcases, amplifiers, and speakers, from Sugatsune / LAMP® (Japan)

Suitcase handle made of solid zinc alloy, grey, PT-148

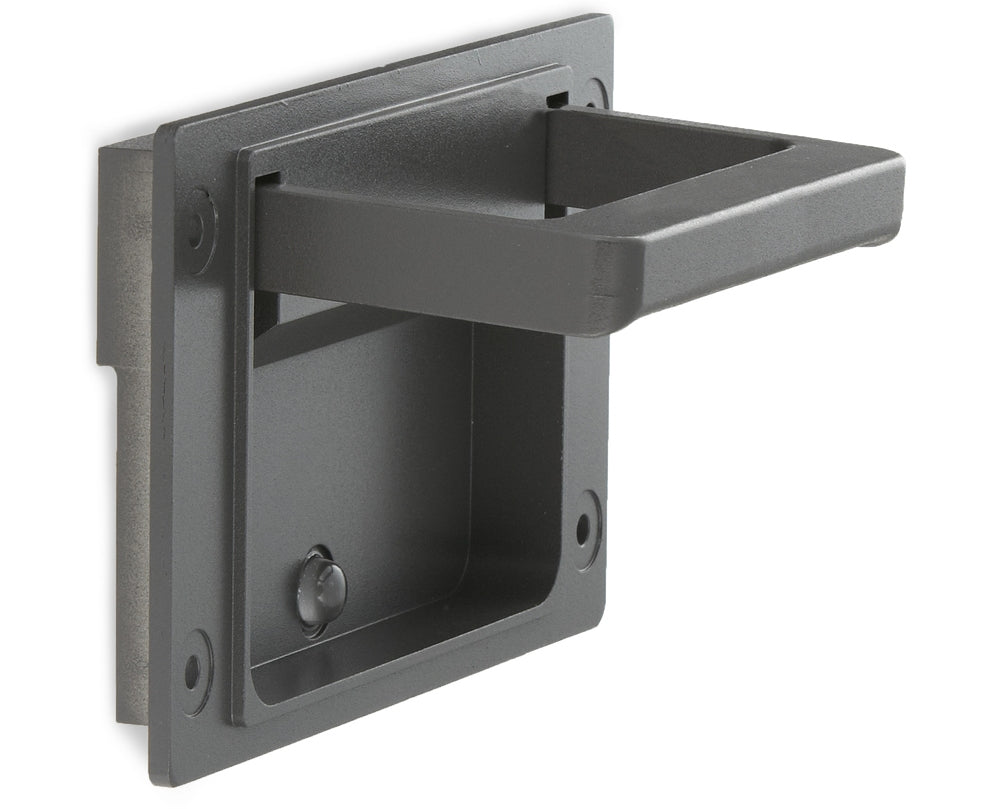

Application: Folding handle made of zinc alloy for devices, cases, suitcases, amplifiers, speakers. [caption id="attachment_115763" align="alignnone" width="420"] High-quality zinc alloy suitcase handle with spring, PT-148, 148 mm, from Sugatsune, gray. Application[/caption] The folding handle is folded closed after use by the built-in spring. The high-quality PT-148 suitcase handles are ideal for, among others:

• Luggage case
• Boxing
• Devices
• Cases
• Suitcase
• amplifier
• Boxing

Material:

• The high-quality suitcase handles PT-148 are made of solid zinc alloy (ZDC)
• Handle: made of elastomer (TPE)
• Spring: made of steel
• Mounting bracket: made of steel

Surface:

• Gray
• Handle: Black

Assembly:

• The PT-148 case handle can be mounted either on top or inside
• For internal mounting, a cutout in the surface measuring 110 mm (4-21/64″) x 80 mm (3-5/32″) must be made
• For surface mounting, a cutout in the surface measuring 120 mm (4-23/32″) x 80 mm (3-5/32″) must be made (for further details see installation drawing ).

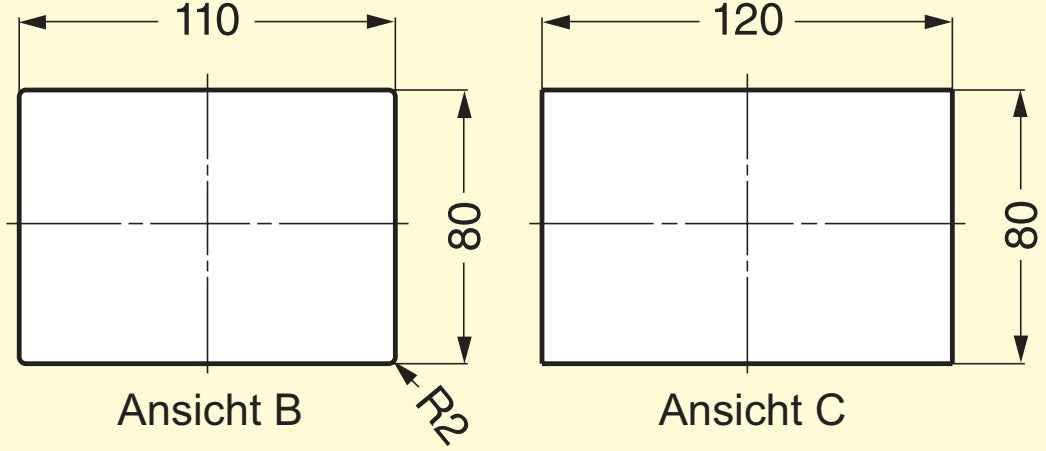

[caption id="attachment_115777" align="alignnone" width="420"] High-quality zinc alloy suitcase handle with spring, PT-148, 148 mm, from Sugatsune, gray. Assembly drawing[/caption] Characteristics:

• Weight: 645 g
• Load capacity: 490 N (50 kp)
• Size: 148 mm (5.9″)
• High quality
• Reliable
• Stable
• Robust
• Gray
• High brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Length of the suitcase handle: 148 mm (5-53/64″)
• Width: 90 mm (3-35/64″)
• Depth: 20 mm (25/32″)
• Inner width of the folding handle: 92 mm (3-5/8″)

[caption id="attachment_115791" align="alignnone" width="420"] High-quality zinc alloy suitcase handle with spring, PT-148, 148 mm, from Sugatsune, gray. Technical drawing[/caption] Included in delivery:

• 1 piece suitcase handle PT-148 made of solid zinc alloy, grey

Manufacturer reference number:

• Article number: 100-019-183
• Item number: PT-148
• EAN number: 4510932011075

Manufacturer: Sugatsune / LAMP® (Japan)
