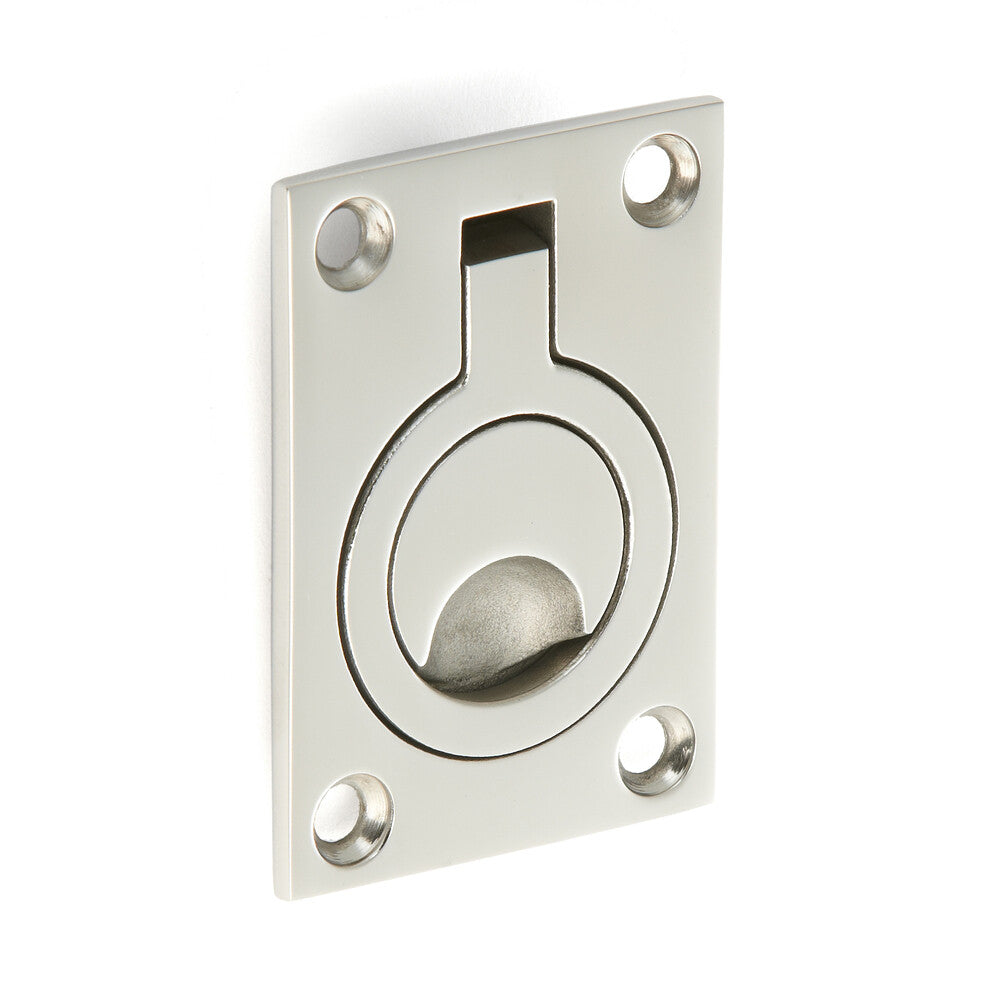

Folding ring-shaped stainless steel handle V4A, 62.5 mm (2.5") 26901. Folding ring-shaped handle made of the finest corrosion-free stainless steel V4A (SUS316), suitable for humid, harsh, and highly corrosive environments from Sugatsune / LAMP® (Japan)

High-quality folding ring handle made of stainless steel V4 (SUS316), shiny surfaces, diameter Φ 40 mm 26901

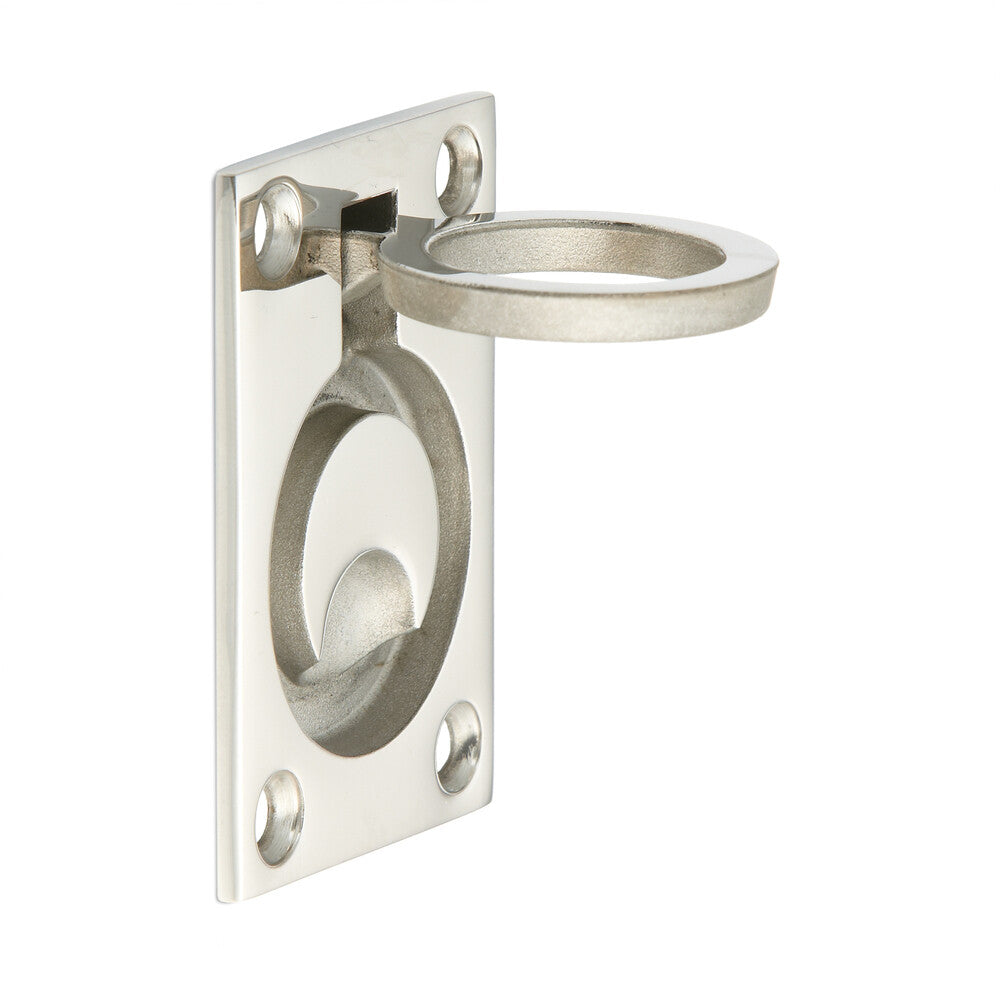

Application: [caption id="attachment_39276" align="alignnone" width="420"] Sugatsune's foldable ring-shaped V4A stainless steel handle, 26901 (62.5 mm). Application[/caption] Foldable ring-shaped handle made of the finest corrosion-free stainless steel V4A (SUS316), suitable for humid, harsh and highly corrosive environments. The folding handles are perfect for applications where the handle needs to remain hidden. When folded, the ring handles are flush with the surface. The stainless steel SUS316 gives the handles unique properties. The corrosion-free handles 26901 are ideal for:

• cleanroom
• Production facilities
• Cruise ships
• yachts
• boats
• ships
• Outdoor area
• coastal facilities
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: The rust-proof folding ring handles 26901 are made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, furniture fittings and industrial fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Foldable ring handle made of SUS316 stainless steel is also ideal for use in swimming pools, shipbuilding, chemical industry, etc. Surface:

• Shiny polished

Assembly:

• The fastening is done with screws (not included)
• The folding handle must be placed so that the joint is in the upper position
• For assembly, the surface must be milled out ( see drawing )

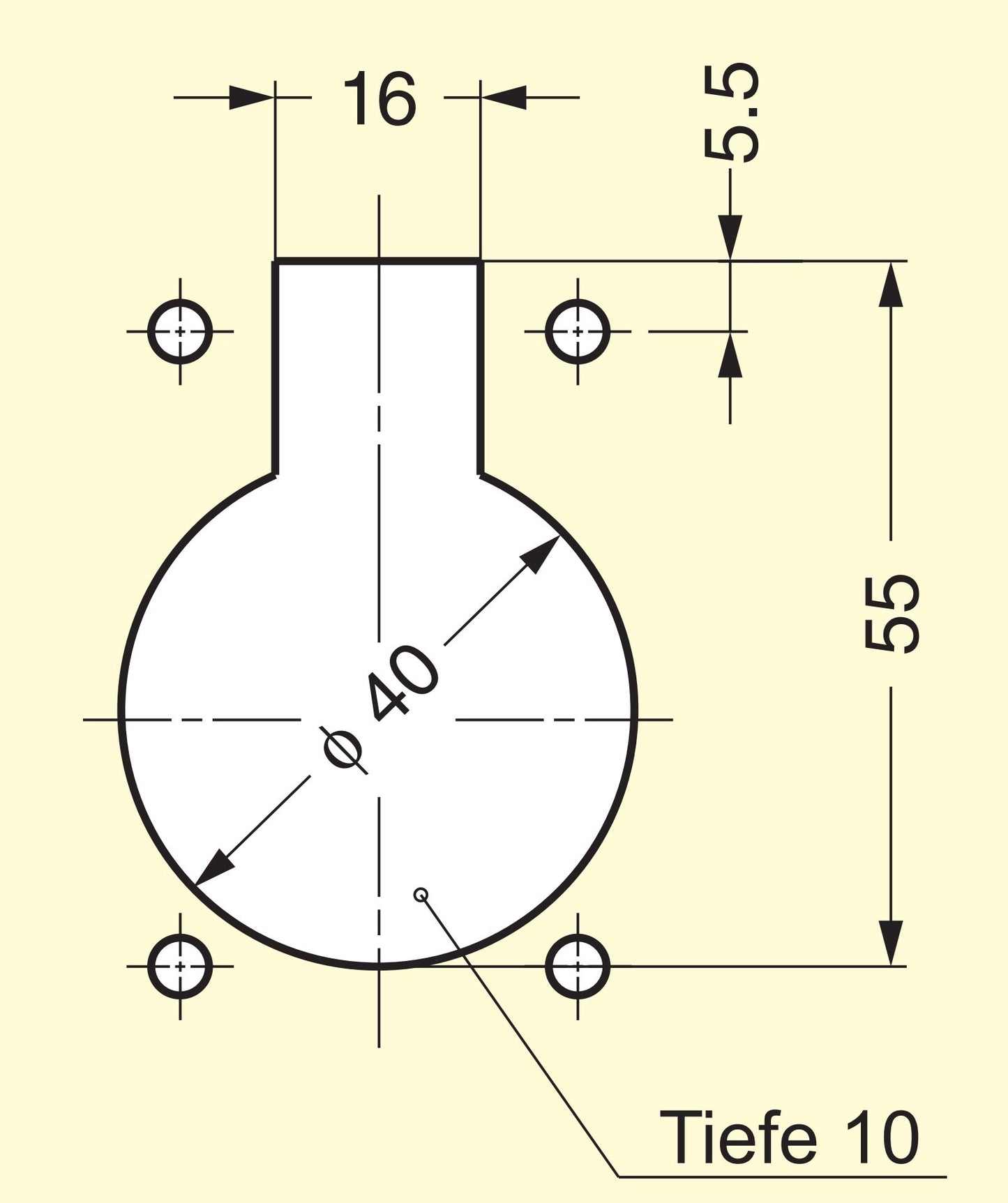

[caption id="attachment_39289" align="alignnone" width="420"] Sugatsune's V4A folding ring-shaped stainless steel handle, 26901 (62.5 mm). Cutout for mounting.[/caption] Characteristics:

• Weight: 85 g
• Size: 62.5 mm (2.5″)
• Stainless steel
• Particularly corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Length: 62.5 mm (2.47″)
• Grip width: 44 mm (1.74″)
• Grip depth: 9 mm (0.36″)
• Distance between the drill holes: 49.5 mm (1.95″) and 31 mm (1.23″)
• Depth of cutout: 10 mm (0.4″)
• Screw hole diameter: Φ4.5 mm (0.18″)

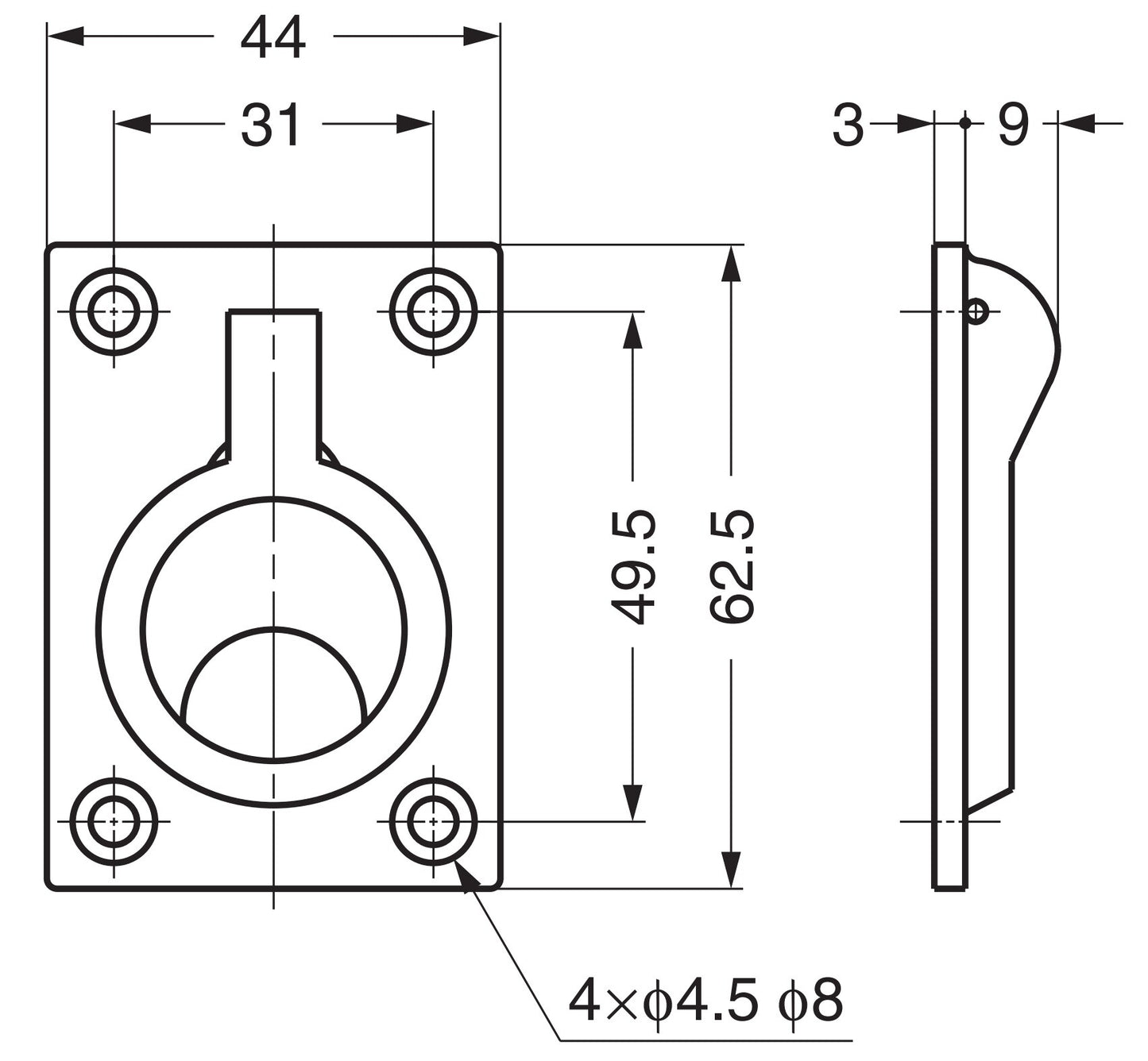

[caption id="attachment_39263" align="alignnone" width="420"] Sugatsune's folding ring-shaped V4A stainless steel handle, 26901 (62.5 mm). Technical drawing[/caption] Included in delivery:

• 1 piece ring-shaped handle 26901 made of stainless steel SUS316 (V4A)

Manufacturer reference number:

• Article number: 100-096-010
• Article name: 26901
• EAN number: 4510932010993

Manufacturer: SUGATSUNE / LAMP® (Japan)
