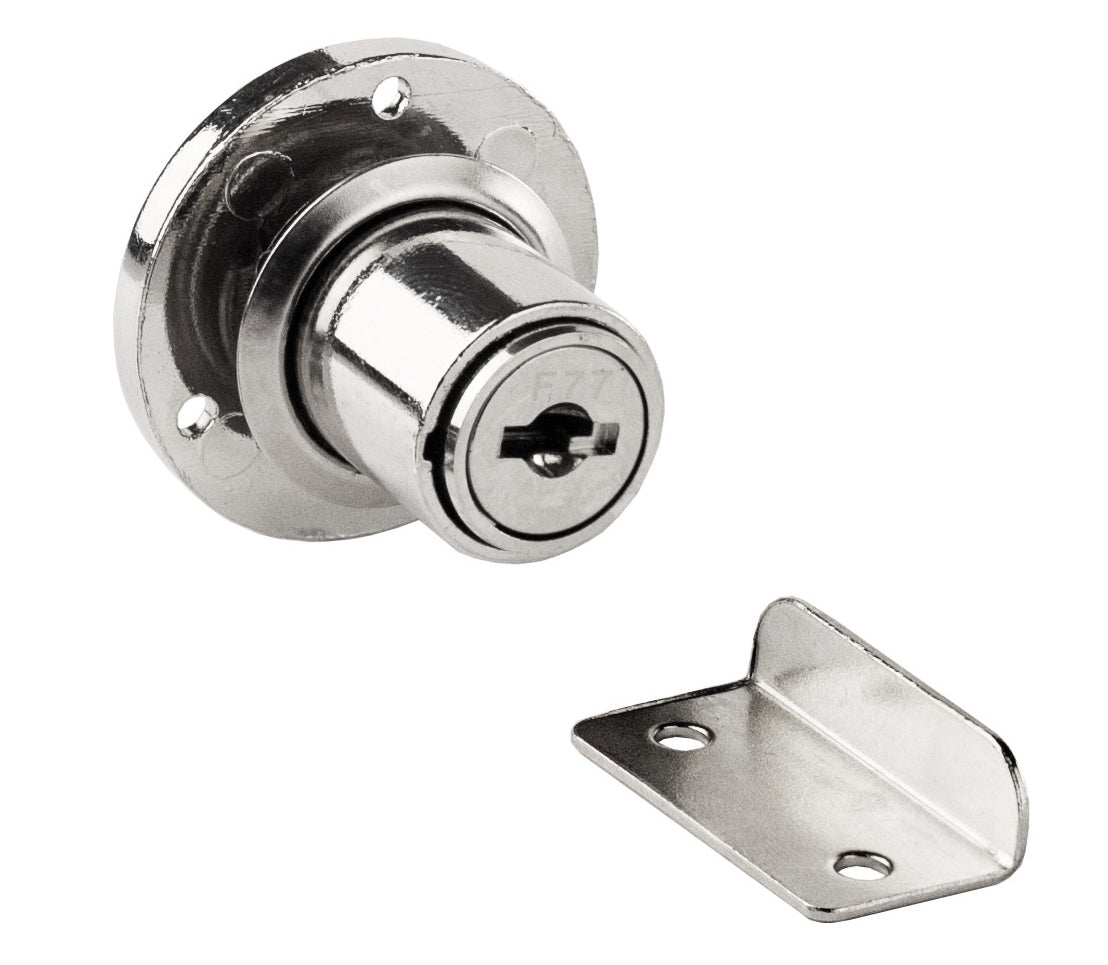

High-quality flap lock, made of Zamak, version: without master key system, 14.03.005-0 for flaps, sliding doors, cabinets

Robust flap lock, with cylinder rosette and two keys, including strike plate, made of solid die-cast zinc, surface: nickel-plated, 14.03.005-0, version: without master key system

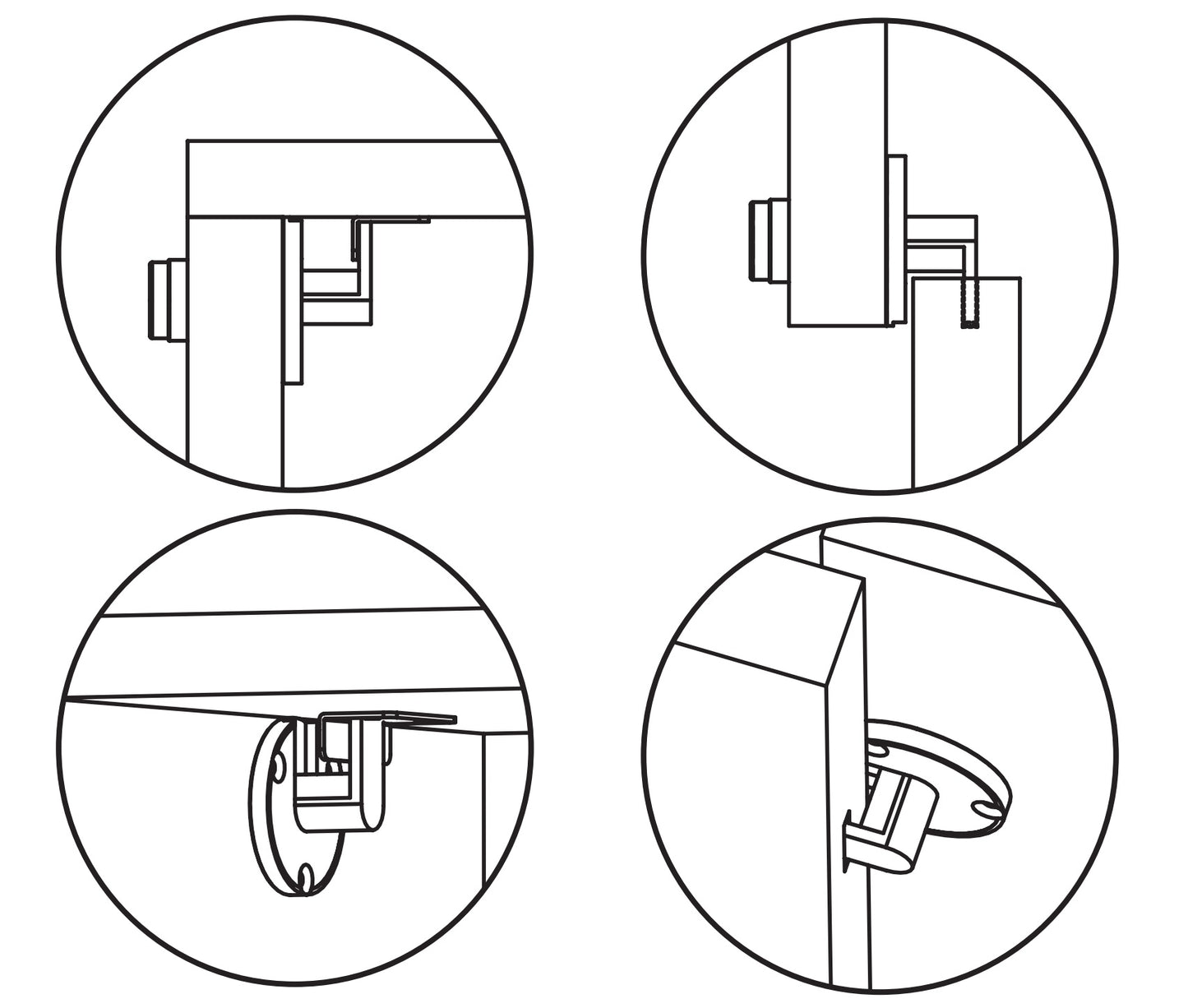

Application:

Inlet flap lock for flaps, sliding doors, cabinets and much more.

Locks without a master key system can only be opened with the corresponding individual key.

To close the flap lock 14.03.005-0, the locking cylinder must be pressed and then the key must be turned 90 degrees (push-turn bolt).

The inlet flap lock has a permanently mounted pin cylinder.

No locking required: key can be removed in open and closed positions.

The high-quality flap locks 14.03.005-0 are ideal for, among others:

• Furniture
• Office furniture
• Succeed
• Sliding doors
• Cabinets

Material:

• The flap locks 14.03.005-0 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often cheaper than solid brass or stainless steel fittings without compromising on quality

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that is modern yet timeless
• They are also easy to maintain, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• The fastening is done with wood screw 3 mm screws (not included)
• Flap lock 14.03.005-0 is for screwing
• For the installation of the flap lock, a hole with a diameter of ⌀20 mm (25/32″) must be drilled

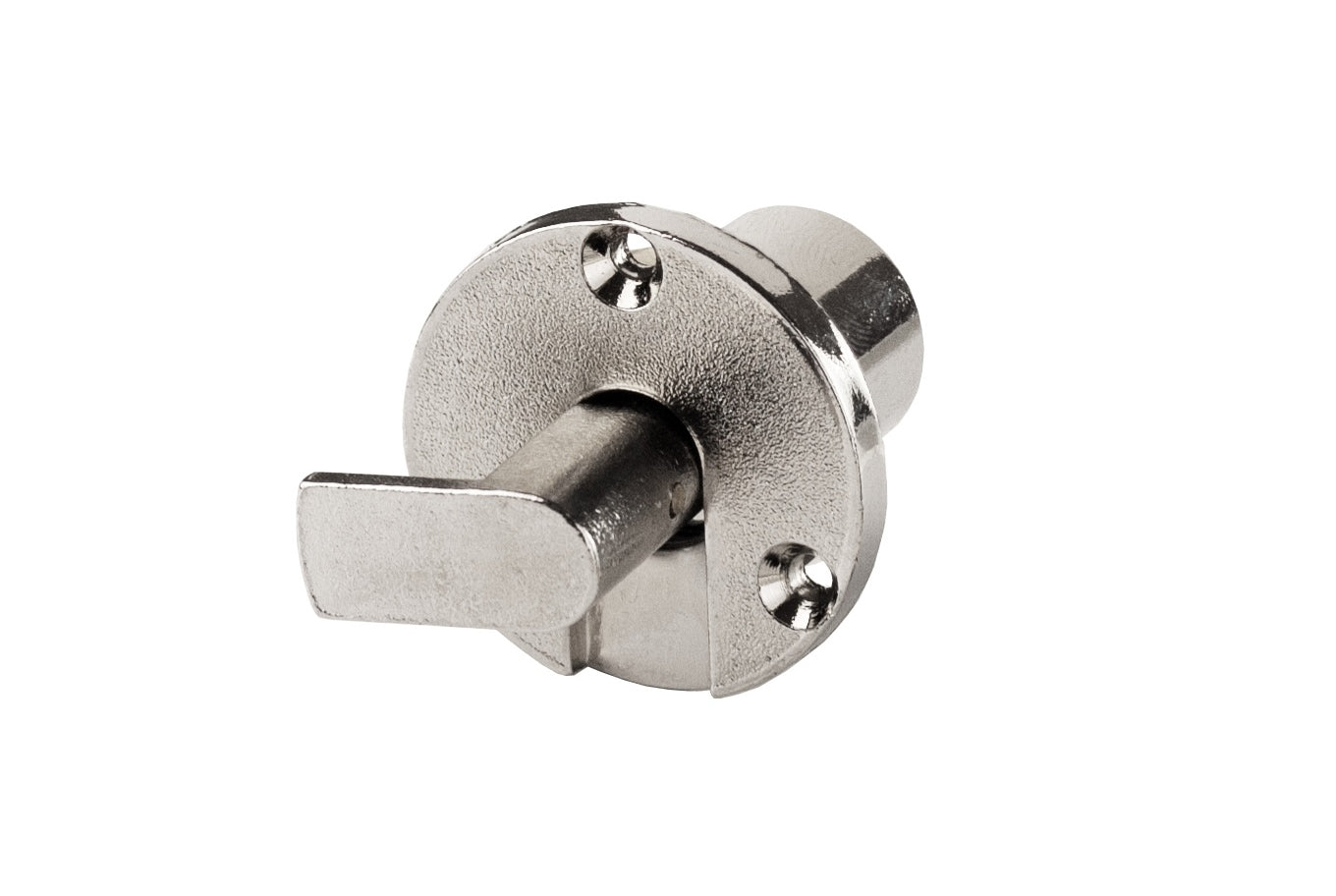

• The mounting plate of the flap lock 14.03.005-0 has three mounting holes with a diameter of ⌀3 mm
• The strike plate has two mounting holes with a diameter of ⌀3 mm (for further details see assembly drawing )

Characteristics:

• Version: without master key system
• Weight: 85 g
• Size: 19 mm (3/4″)
• Available with master key system J11 or without master key system
• easy to assemble
• practical
• stable
• high quality
• without locking force
• with permanently mounted pin cylinder
• Cylinder shape: round cylinder
• Closing movement: 90 degrees
• 2.5 mm stroke
• 400 different key variants
• nickel-plated
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

The dimensions:

• Diameter of the flap lock: ⌀19 mm (3/4″)
• Mounting plate diameter: ⌀35 mm (1-3/8″)
• Diameter of the cylinder rosette: ⌀25 mm (63/64″)
• Strike plate width: 30 mm (1-3/16″)
• Cylinder length: 24 mm (15/16″)
• Depth of the latch: 15 mm (19/32″)

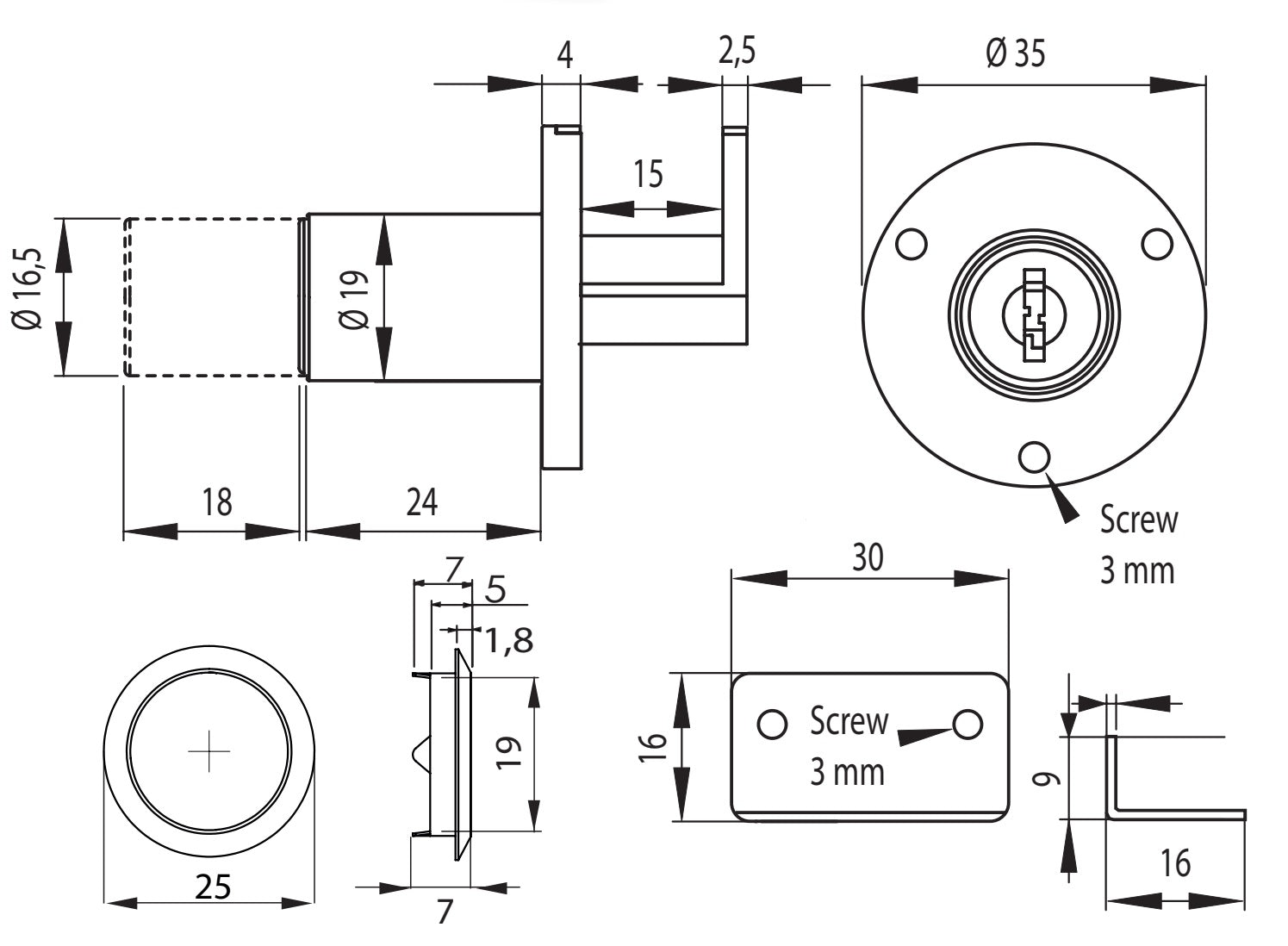

For further dimensions and details see technical drawing .

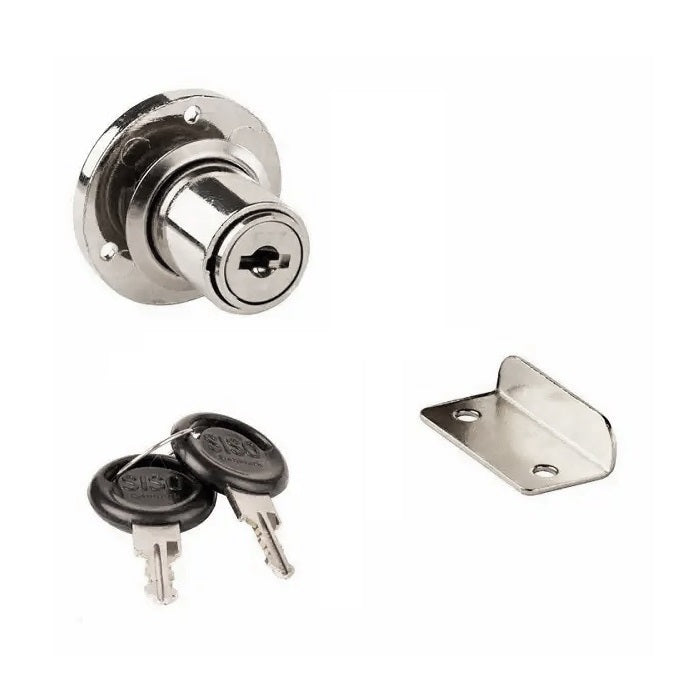

Included in delivery:

• 1 piece flap lock 14.03.005-0 made of solid zinc die-cast, nickel-plated, version: without master key system

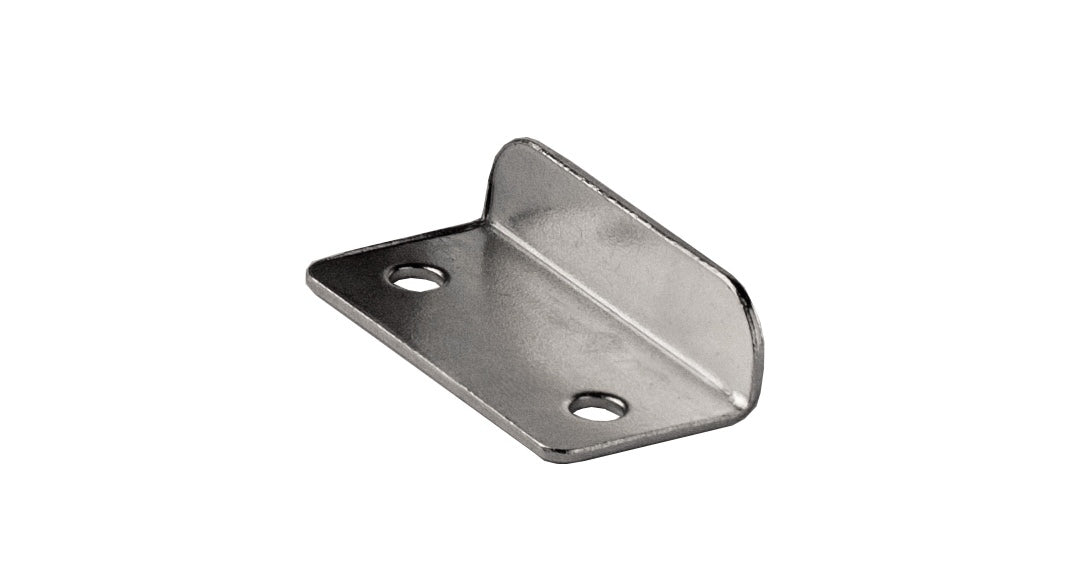

• 1 piece locking plate
• Two keys
• 1 piece cylinder rosette

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.03.005-0
• EAN number: 5704866034289

Manufacturer: SISO Denmark
