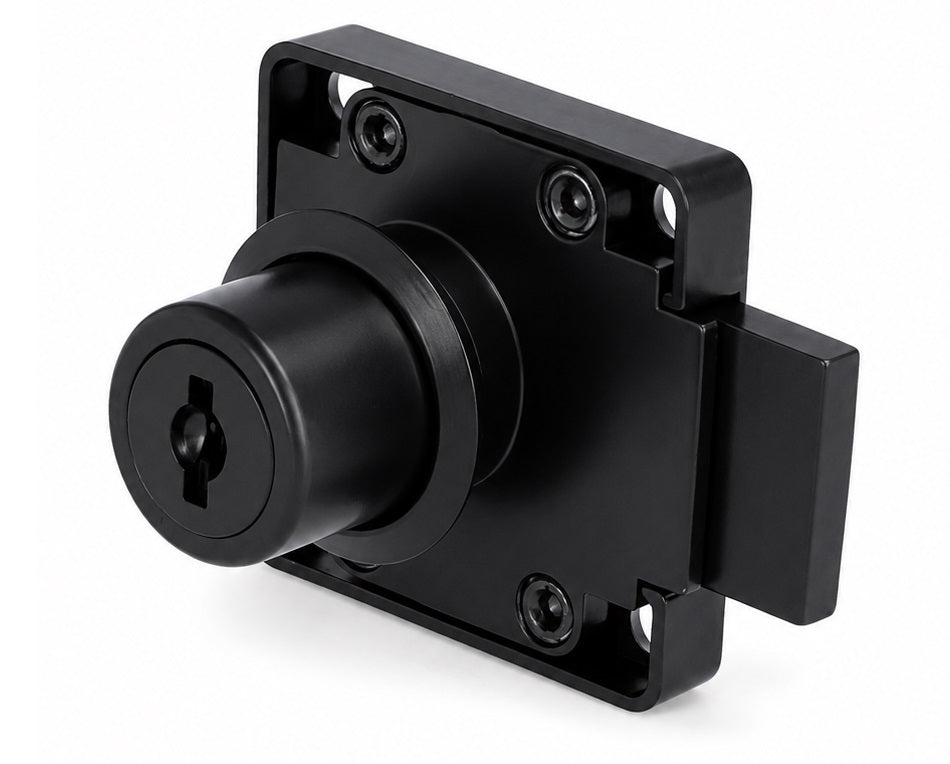

High-quality robust box lock, made of solid die-cast zinc, surface: black, 14.01.062-5, diameter: ⌀19 mm (3/4″), version: left-closing

Application:

Robust surface-mounted lock for cabinet doors, furniture doors, office cabinets, filing cabinets and much more.

Version: left-closing. Left-closing means that the furniture hinges are on the left side of the door and the door handle and lock are on the right side (view from outside on the closed door).

The surface-mounted lock 14.01.062-5 is used for reliable locking of furniture doors and cabinet doors made of wood or wood-based materials.

The left-closing version is specially designed for left-hinged doors and thus enables a suitably aligned locking. The cylinder with ⌀19 mm (3/4″) and 22 mm (55/64″) length allows compact mounting and is suitable for numerous typical furniture constructions.

The keyed alike D20 version allows the use of the same key for several correspondingly coded locks, thus simplifying the operation of larger furniture systems.

The compact 40 x 40 mm (1-37/64″) lock housing requires little mounting space on the inside of the furniture door.

The high-quality surface-mounted locks 14.01.062-5 are ideal for, among other things:

• Wooden cabinets
• Sideboards
• Storage furniture
• Cabinet doors
• Furniture doors
• Office cabinets
• Filing cabinets

Material:

• The surface-mounted locks 14.01.062-5 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that appears durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use

Surface:

• Black
• Black surfaces exude timeless elegance and can help make a room appear more luxurious and stylish
• While interior styles may change, black always remains a safe choice that can easily adapt to new trends
• Black surfaces can be used in various rooms, be it in the kitchen, living room or office

Mounting:

• Mounting is done with countersunk wood screws ⌀3.5 to ⌀4 mm, length: 15 to 16 mm (not included)
• First, the position of the lock on the inside of the left furniture door must be determined based on the backset of 25 mm (63/64″)
• After that, a suitable through-hole for the ⌀19 mm (3/4″) cylinder must be made
• The box lock is guided with the cylinder through the hole and aligned with the four mounting holes on the inside of the door
• Then the lock is fastened with four suitable countersunk wood screws

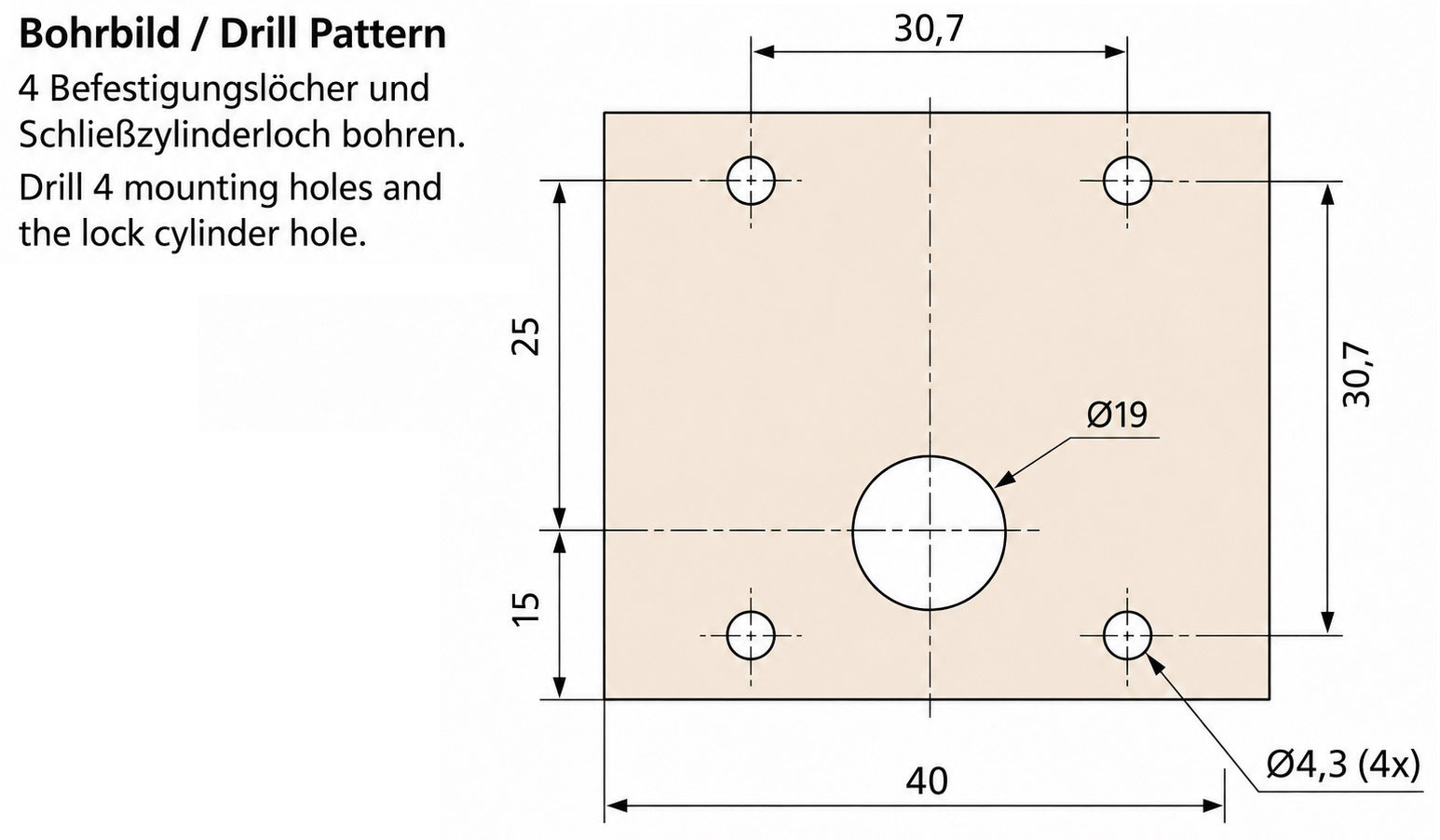

• The matching strike plate or counterpart is positioned on the furniture carcass so that the 20 mm (25/32″) wide bolt can engage without tension when locking (for more details see mounting drawing)

Features:

• Version: left-closing
• Weight: 96 g
• Available in 2 colors: nickel-plated and black, in 2 versions: left-closing and right-closing, and in 2 types: keyed alike and keyed different
• easy to mount
• practical
• stable
• Keyed alike D20
• Cylinder ⌀19 mm (3/4″)
• Backset 25 mm (63/64″)
• Compact housing 40 x 40 mm (1-37/64″)
• Four mounting holes ⌀4.3 mm
• Hole spacing 30.7 x 30.7 mm (1-13/64″)
• Bolt width 20 mm (25/32″)
• Surface mounting
• Mechanical locking
• Suitable for wooden furniture
• black
• Zamak
• Die-cast zinc
• high brand quality from UMAXO®

Dimensions:

• Housing: 40 x 40 mm (1-37/64″)
• Cylinder diameter: ⌀19 mm (3/4″)
• Cylinder length: 22 mm (55/64″)
• Backset: 25 mm (63/64″)
• Mounting hole spacing horizontal and vertical: 30.7 mm (1-13/64″)
• Mounting holes: ⌀4.3 mm
• Bolt width: 20 mm (25/32″)
• Bolt projection: 9 mm
• Bolt thickness: 3.7 mm (9/64″)

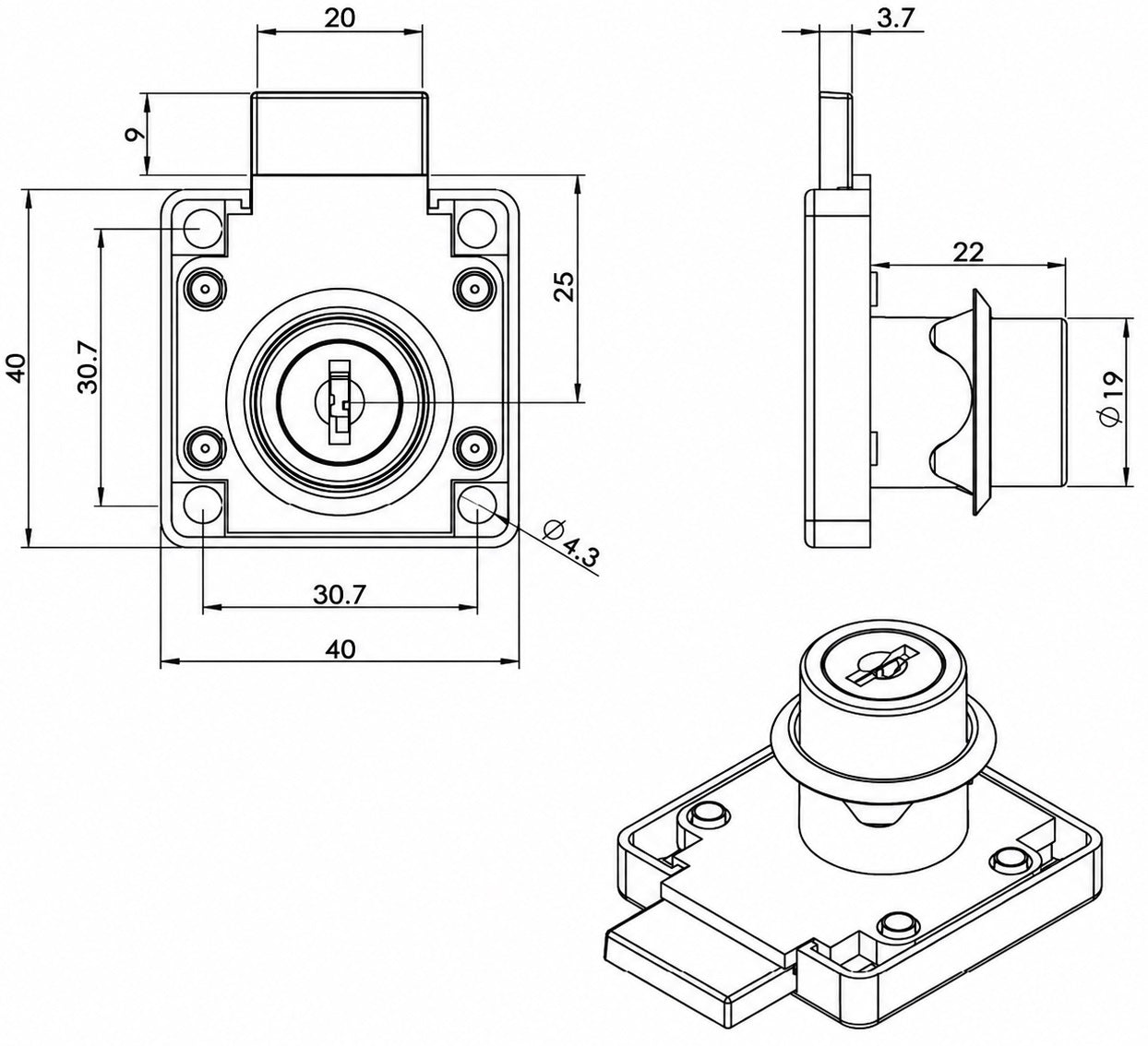

For further dimensions and details see technical drawing.

Included in delivery:

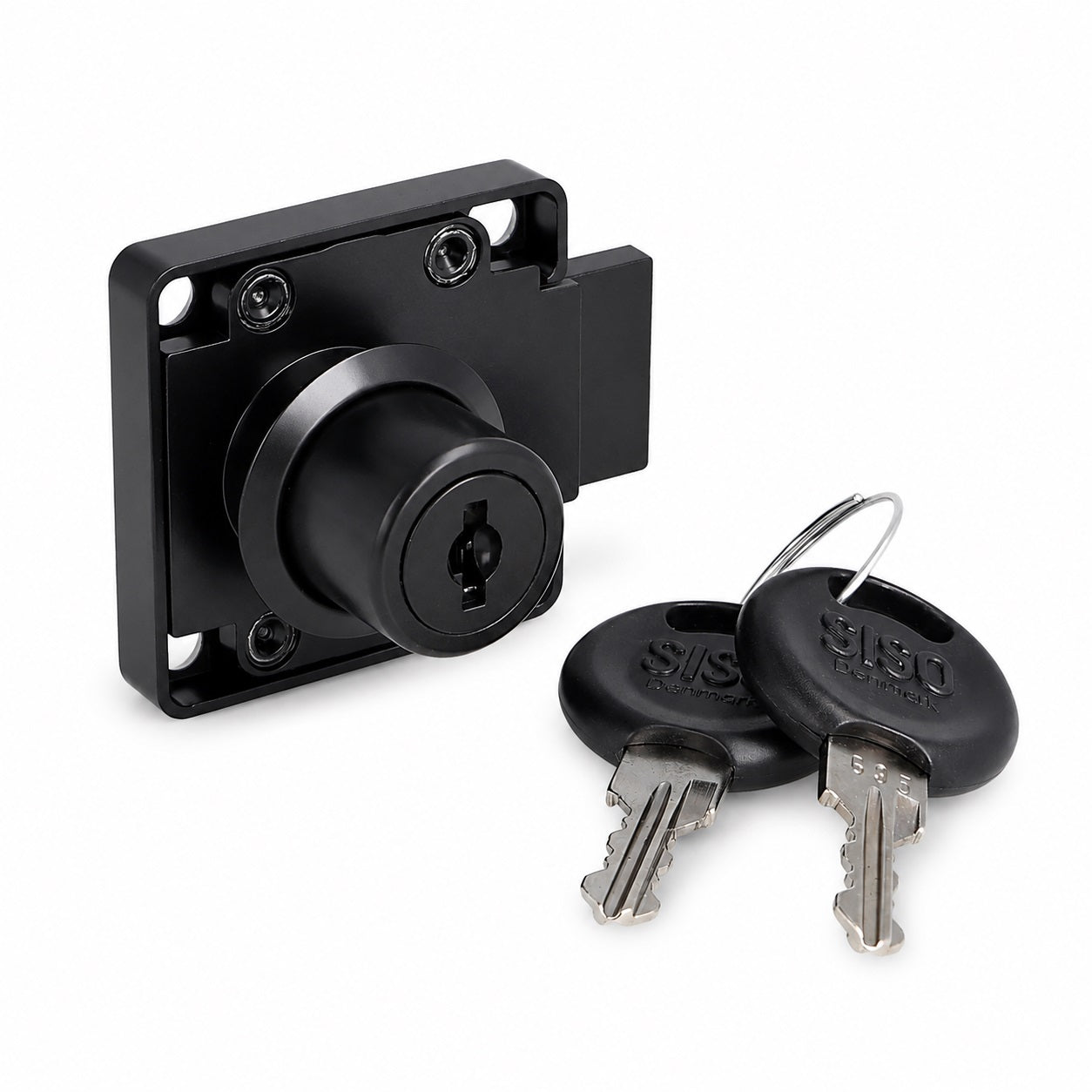

• 1 piece surface-mounted lock 14.01.062-5 made of solid die-cast zinc, black
• 2 pieces keys with black plastic handle
• Please note that no mounting screws are included

Additional information:

• Download Reach Declaration

Manufacturer's reference numbers:

• Article identification number: 14.01.062-5
• GTIN number (EAN, UPS): 5704866504942

Manufacturer: SISO Denmark
