Robust flap stay, made of metal and robust plastic (metal and plastic), surface: white, HDS-30HL-WT (180-109-275), version: left

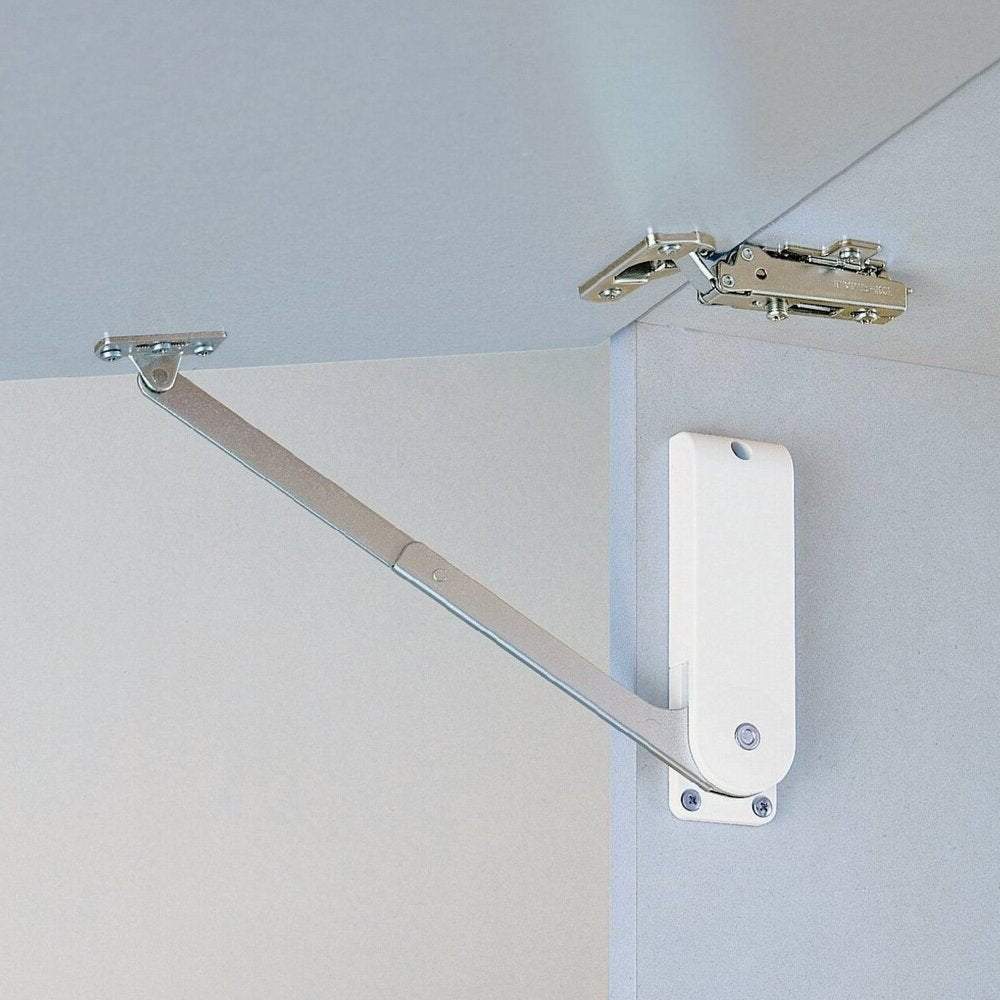

Application:

Stable flap support for lift-up flaps, kitchen furniture and much more.

Version: left. Only the left side is included in the scope of delivery.

The flap stay HDS-30HL-WT () is a soft-down flap stay for upward-opening wooden furniture flaps.

It slows down the closing movement of the flap and thus prevents it from slamming shut.

The integrated catch mechanism securely holds the flap in the closed position on the cabinet.

In the open position, the fitting supports a stable end position at an opening angle of 80°.

The heavy H-version is designed for flaps with a torque of 24.5 to 29.4 N·m per pair, making it suitable for larger or heavier lift-up flaps.

The fitting can be combined with a piano hinge, strap hinge, or suitable cup hinge, allowing for controlled, high-quality flap movement in furniture construction.

The high-quality flap stays HDS-30HL-WT (180-109-275) are ideally suited for, among other things:

• Furniture flaps
• Wooden flaps
• Cabinet flaps
• Wall cabinets
• Wall-mounted cabinets
• Living room furniture
• Lift-up flaps
• Kitchen furniture

Material:

• The flap fittings 180-109-275 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use
• Lever arm of the flap fitting: nickel-plated

Mounting:

• Fastening is done using the six screws included in the scope of delivery (self-tapping pan head screw 3.5 x 15 mm)
• First, the torque of the flap must be calculated and checked to ensure that the version matches the weight and height of the flap
• After that, the hinges must be correctly mounted, and the flap must open and close smoothly before installing the flap stay
• The flap stay HDS-30HL-WT is attached to the right cabinet side panel according to the mounting drawing with screws ⌀ 3.5 x 15 mm.
• The flap stay has 3 mounting holes. The distance between the mounting holes is 126 mm (4-61/64″) and 28 mm (1-7/64″)
• The distance between the center of the fitting and the inner front edge is 35 mm (1-3/8″)
• The mounting plate is first pre-fixed to the flap via the slotted hole.
• Then the flap is opened and closed so that the position of the mounting plate can be adjusted to ensure smooth and even movement.
• Finally, the mounting plate is firmly screwed in via the round holes, and all screws are checked for a tight fit. The distance between the mounting holes is 32 mm (1-17/64″) (for more details see mounting drawing)

Features:

• Version: left
• Weight: 300 g
• Load capacity: 14.7 N (1.5 kp)
• Size: 140 mm (5-33/64″)
• easy to mount
• practical
• stable
• Model H for heavy flaps
• For upward-opening wooden flaps
• Soft-down function when closing
• Integrated damper against slamming
• Integrated catch mechanism for closed position
• Holding function in fully open position
• Opening angle 80°
• Suitable for piano hinge, strap hinge or cup hinge
• Torque range 24.5 to 29.4 N·m per pair
• white
• robust
• high brand quality from Sugatsune / LAMP®

Dimensions:

• Length of the flap fitting: 140 mm (5-33/64″)
• Width: 40 mm (1-37/64″)
• Depth: 20 mm (25/32″)

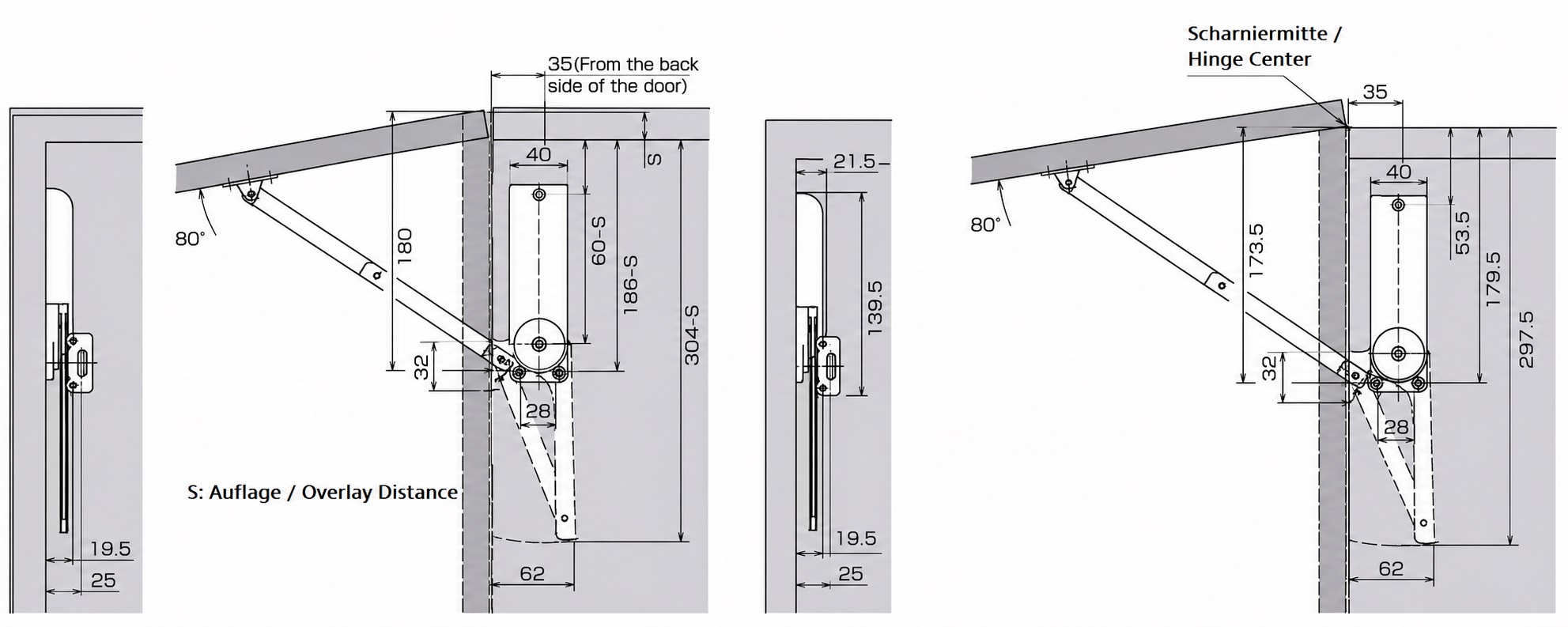

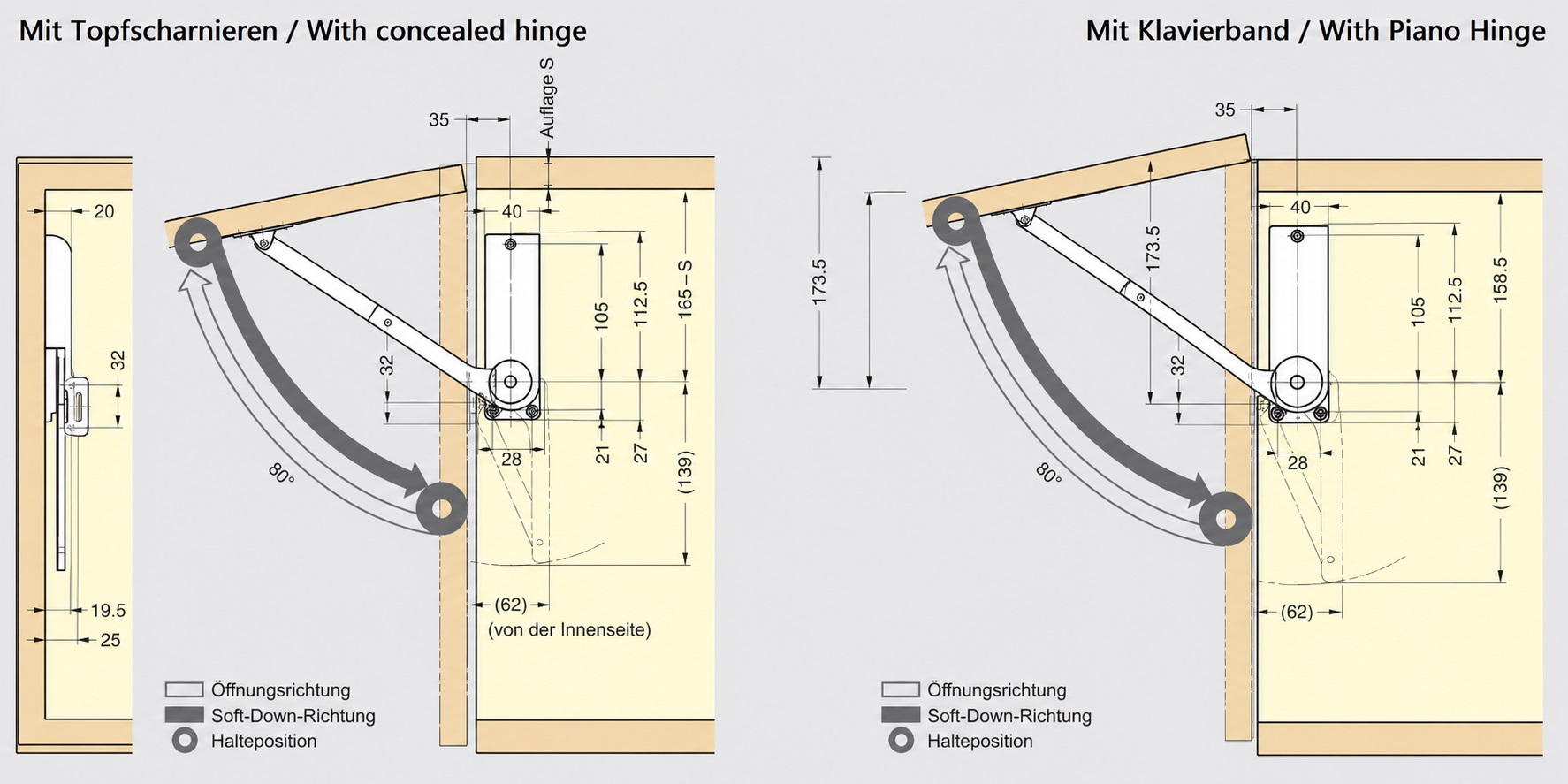

For further dimensions and details, see technical drawing.

Included in delivery:

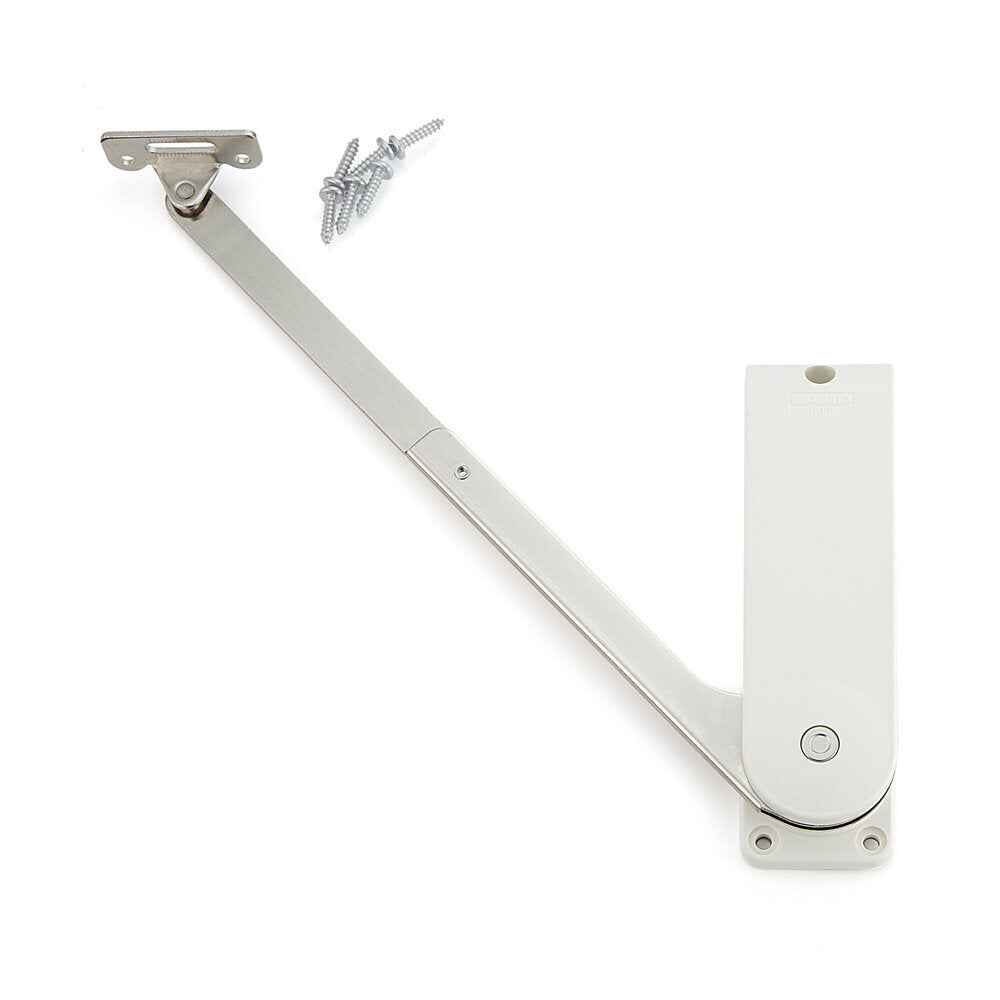

• 1 piece flap stay HDS-30HL-WT (180-109-275) made of metal and robust plastic, white
• 6 pieces self-tapping pan head screw 3.5 x 15 mm

Additional information:

• Download installation instructions.

Manufacturer's reference numbers:

• Item identification number: 180-109-275
• Item number: HDS-30HL-WT
• GTIN number (EAN, UPS): 4510932024273

Manufacturer: Sugatsune / LAMP® (Japan)
