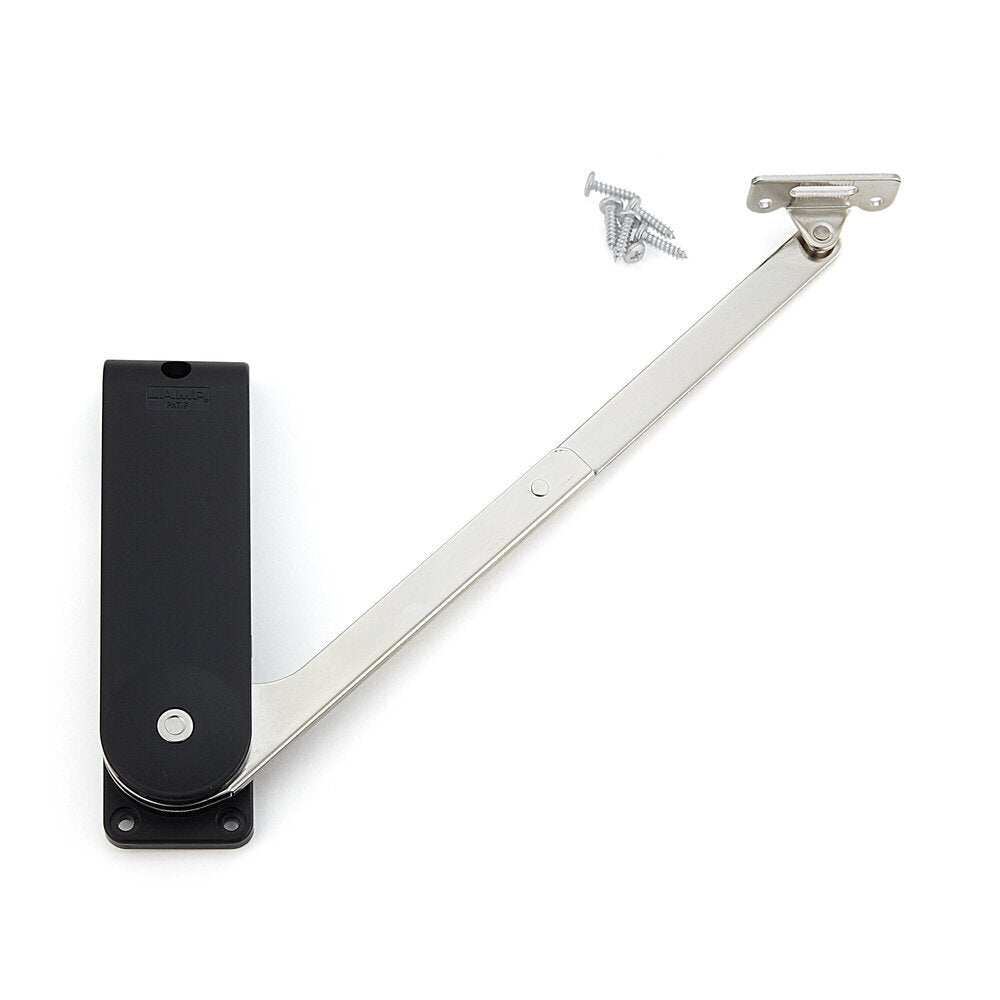

Robust flap stay, made of metal and robust plastic (metal and plastic), finish: black, HDS-30MR-BL (180-104-080), version: right

Application:

Sturdy flap support for lift-up flaps, kitchen furniture and much more.

Version: right. Only the right side is included in the scope of delivery.

The flap stay HDS-30MR-BL (180-104-080) is a soft-down flap stay for upward-opening wooden furniture flaps.

It brakes the closing movement of the flap and thus prevents it from slamming shut.

The integrated catch mechanism securely holds the flap in the closed position on the cabinet body.

In the open position, the fitting supports a stable end position at an opening angle of 80°.

This version is suitable for medium-sized and medium-heavy lift-up flaps with a torque of 19.6 to 24.4 N·m per pair.

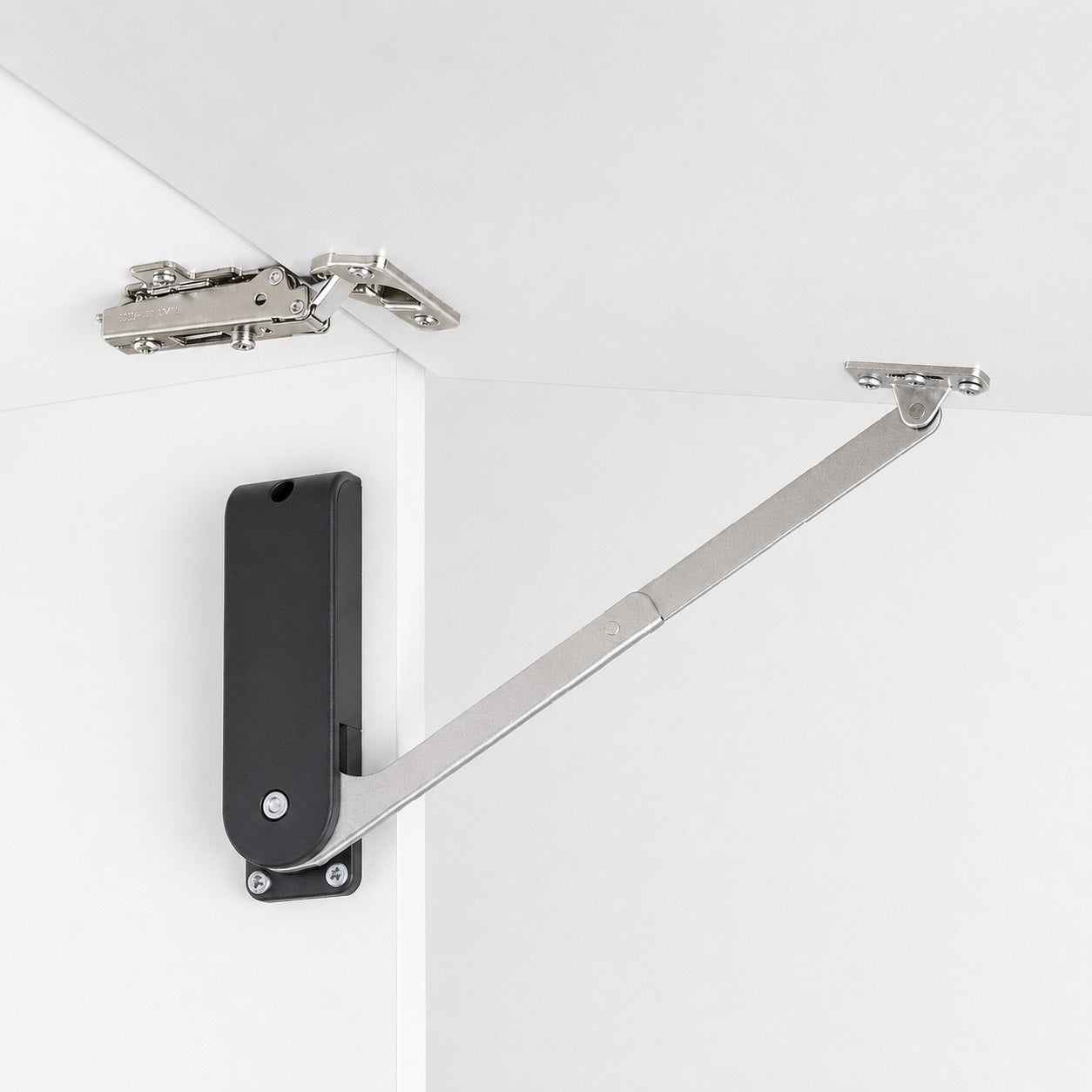

The fitting can be combined with a piano hinge, strap hinge or suitable cup hinge and enables a controlled, high-quality flap movement in furniture construction.

The high-quality flap fittings HDS-30MR-BL (180-104-080) are ideally suited for, among other things:

• Furniture flaps
• Wooden flaps
• Cabinet flaps
• Wall cabinets
• Hanging cabinets
• Home furniture
• Lift-up flaps
• Kitchen furniture

Material:

• The flap fittings 180-104-080 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Black
• Black surfaces exude timeless elegance and can help a room appear more luxurious and stylish
• While furnishing styles may change, black always remains a safe choice that can easily adapt to new trends
• Black surfaces can be used in various rooms, be it in the kitchen, living room or office
• Lever arm of the flap fitting: nickel-plated

Mounting:

• Mounting is done using the six screws included in the scope of delivery (self-tapping pan head screw 3.5 x 15 mm)
• First, the torque of the flap must be calculated and checked to ensure that the version matches the weight and height of the flap
• Then the hinges must be correctly mounted, and the flap must open and close smoothly before installing the flap stay

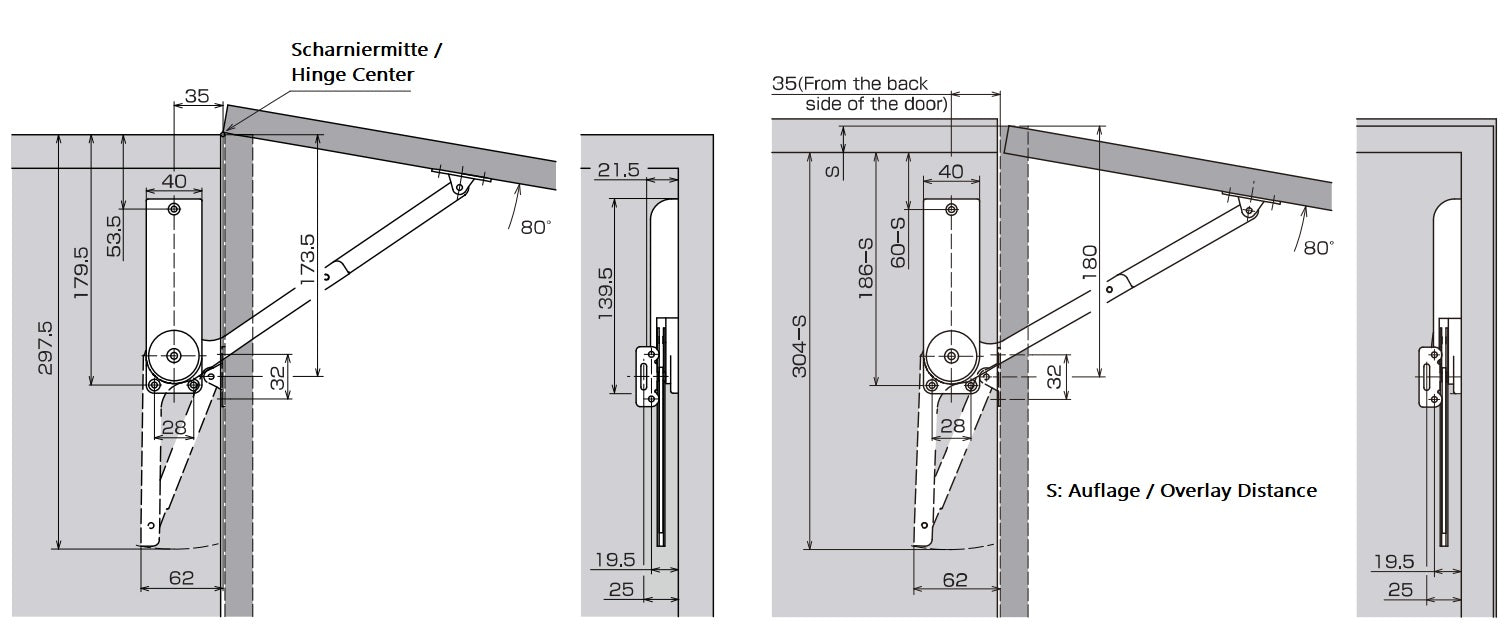

• The flap stay HDS-30MR-BL is attached to the right cabinet side panel according to the mounting drawing with screws ⌀ 3.5 x 15 mm
• The flap stay has 3 mounting holes. The distance between the mounting holes is 126 mm (4-61/64″) and 28 mm (1-7/64″)
• The distance between the center of the fitting and the inner front edge is 35 mm (1-3/8″)
• The mounting plate is first pre-fixed to the flap via the slotted hole
• Then the flap is opened and closed so that the position of the mounting plate can be adjusted to ensure smooth and even movement
• Finally, the mounting plate is screwed down firmly via the round holes and all screws are checked for a secure fit. The distance between the mounting holes is 32 mm (1-17/64″) (for more details, see mounting drawing)

Features:

• Version: right
• Weight: 294 g
• Load capacity (carrying capacity): 9.75 N (1 kp)
• Size: 140 mm (5-33/64″)
• Torque 19.6 to 24.4 N·m per pair, for medium-sized and medium-heavy lift-up flaps
• Easy to mount
• Practical
• Stable
• For upward-opening wooden flaps
• Soft-down function when closing
• Integrated damper to prevent slamming
• Integrated catch mechanism for closed position
• Holding function in fully open position
• Tested for 50,000 opening and closing cycles
• Opening angle 80°
• Suitable for piano hinge, strap hinge or cup hinge
• Black
• Robust
• High brand quality from Sugatsune / LAMP®

Dimensions:

• Length of the flap fitting: 140 mm (5-33/64″)
• Width: 40 mm (1-37/64″)
• Depth: 20 mm (25/32″)

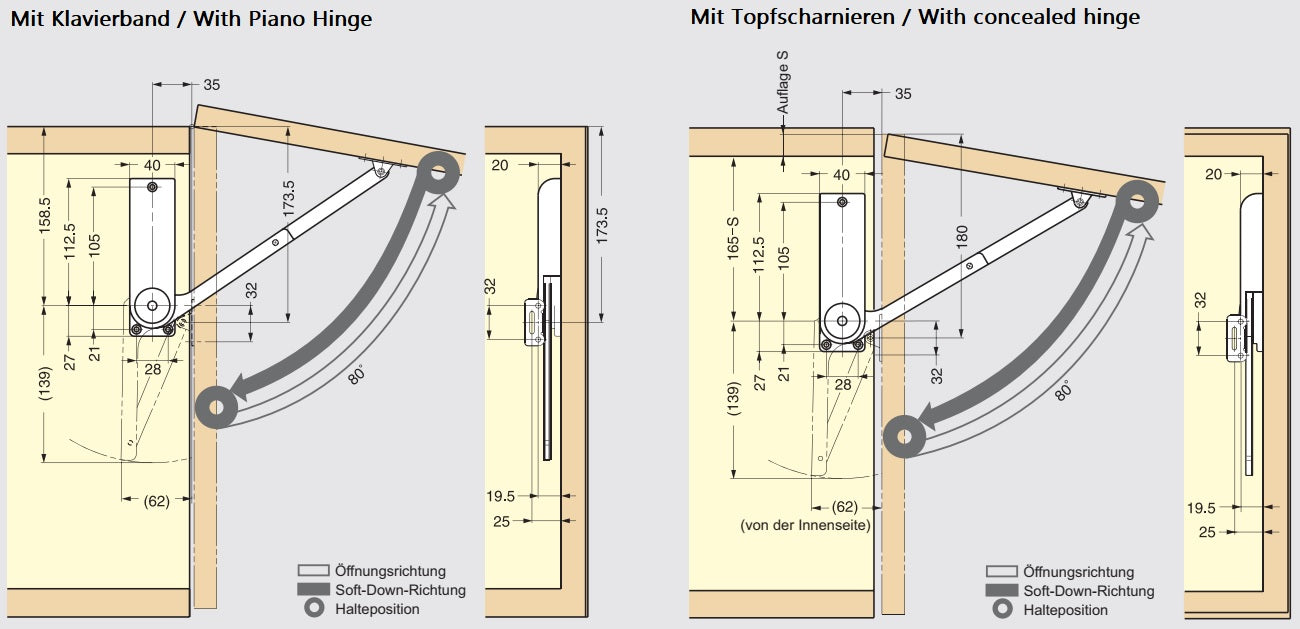

For further dimensions and details see technical drawing.

Included in scope of delivery:

• 1 piece flap stay HDS-30MR-BL (180-104-080) made of metal and robust plastic, black
• 6 pieces self-tapping pan head screw 3.5 x 15 mm

Additional information:

• Download mounting instructions.

Manufacturer's reference numbers:

• Item identification number: 180-104-080
• Item number: HDS-30MR-BL
• GTIN number (EAN, UPS): 4510932024228

Manufacturer: Sugatsune / LAMP® (Japan)
