Robust flap stay, made of metal and durable plastic (metal and plastic), surface: black, HDS-30HR-BL (180-104-082), version: right

Application:

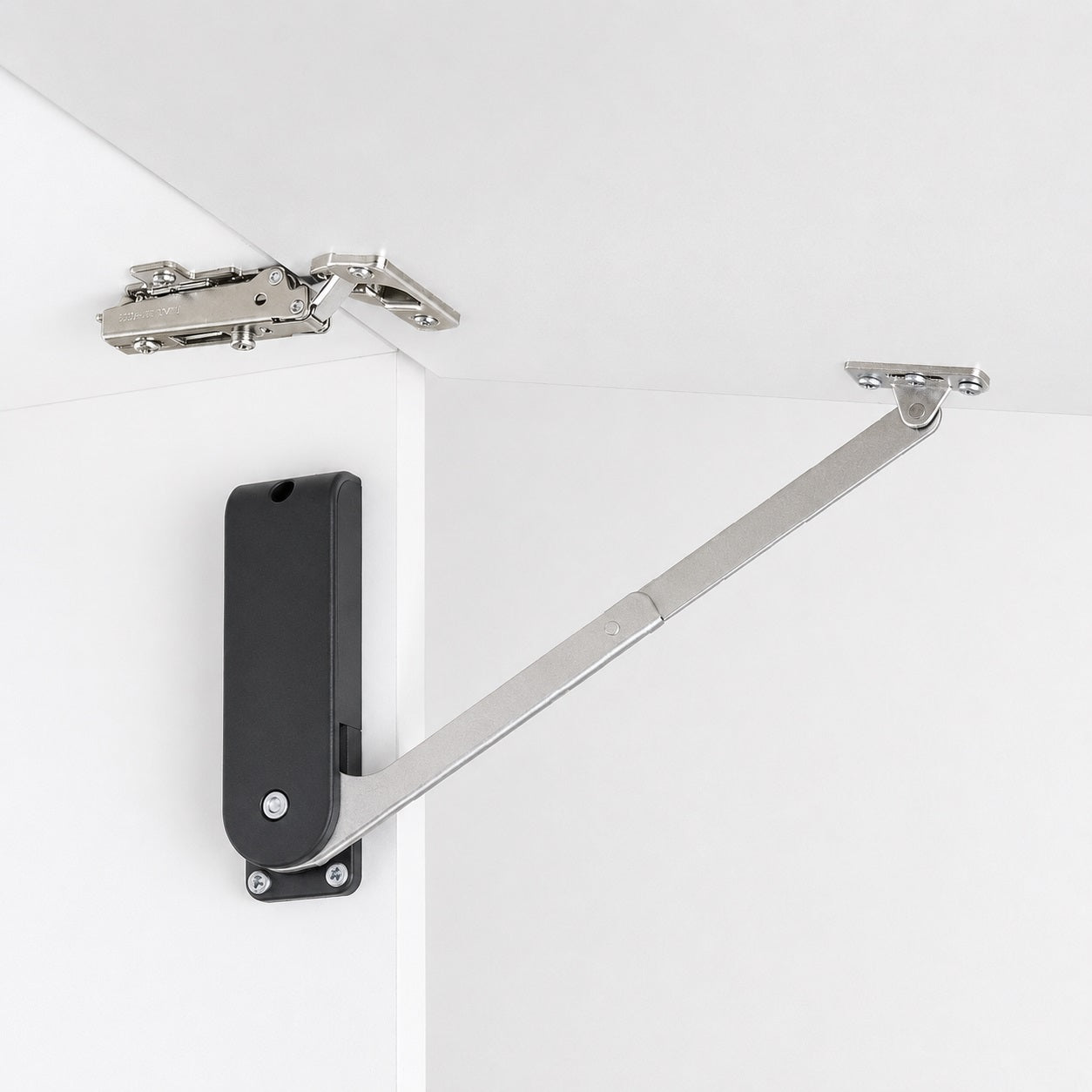

Sturdy flap stay for upward-opening flaps, kitchen furniture and much more.

Version: right. Only the right side is included in the scope of delivery.

The flap stay HDS-30HR-BL (180-104-082) is a soft-down flap stay for upward-opening wooden furniture flaps.

It slows down the closing movement of the flap and thus prevents it from slamming shut.

The integrated catch mechanism securely holds the flap in the closed position on the cabinet body.

In the open position, the fitting supports a stable end position with an opening angle of 80°.

The heavy-duty H-version is designed for flaps with a torque of 24.5 to 29.4 N·m per pair, making it suitable for larger or heavier upward-opening flaps.

The fitting can be combined with piano hinges, continuous hinges or suitable cup hinges and enables a controlled, high-quality flap movement in furniture construction.

The high-quality flap stays HDS-30HR-BL (180-104-082) are ideal for, among other things:

• Furniture flaps
• Wooden flaps
• Cabinet flaps
• Wall cabinets
• Overhead cabinets
• Home furniture
• Upward-opening flaps
• Kitchen furniture

Material:

• The flap stays 180-104-082 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Black
• Black surfaces radiate timeless elegance and can help to make a room appear more luxurious and stylish
• While interior styles may change, black always remains a safe choice that can easily adapt to new trends
• Black surfaces can be used in various rooms, be it in the kitchen, living room or office
• Lever arm of the flap stay: nickel-plated

Mounting:

• Mounting is done using the six screws included in the scope of delivery (self-tapping pan head screw 3.5 x 15 mm)
• First, the torque of the flap must be calculated and checked so that the version matches the weight and height of the flap
• Then the hinges must be correctly mounted, and the flap must open and close smoothly before installing the flap stay

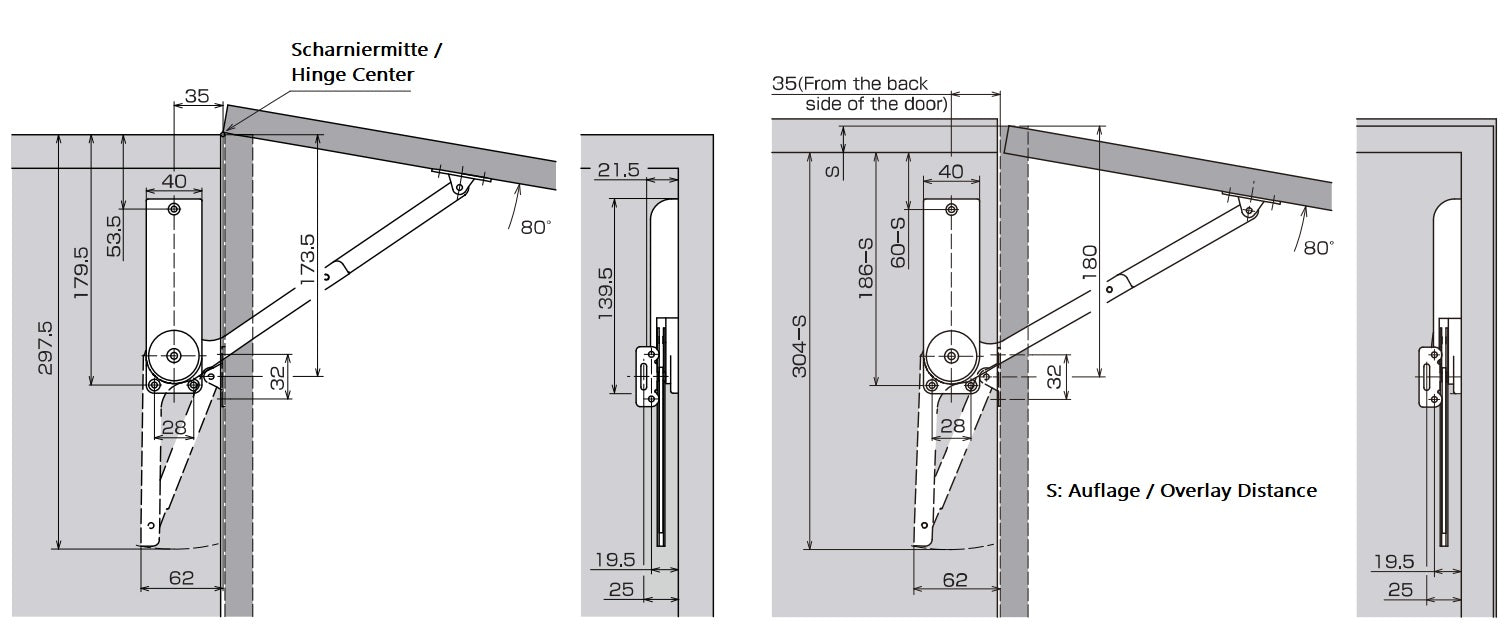

• The flap stay HDS-30HR-BL is attached to the right cabinet side panel according to the mounting drawing with screws ⌀ 3.5 x 15 mm
• The flap stay has 3 mounting holes. The distance between the mounting holes is 126 mm (4-61/64″) and 28 mm (1-7/64″)
• The distance between the center of the fitting and the inner front edge is 35 mm (1-3/8″)
• The mounting plate is first pre-fixed to the flap via the slotted hole
• Then the flap is opened and closed so that the position of the mounting plate can be adjusted to ensure smooth and even movement
• Finally, the mounting plate is firmly screwed in via the round holes and all screws are checked for a tight fit. The distance between the mounting holes is 32 mm (1-17/64″) (for more details see mounting drawing)

Features:

• Version: right
• Weight: 300 g
• Load capacity: 14.7 N (1.5 kp)
• Size: 140 mm (5-33/64″)
• Easy to assemble
• Practical
• Stable
• Model H for heavy flaps
• For upward-opening wooden flaps
• Soft-down function when closing
• Integrated damper against slamming shut
• Integrated catch mechanism for closed position
• Holding function in fully open position
• Tested for 50,000 opening and closing cycles
• Opening angle 80°
• Suitable for piano hinges, continuous hinges or cup hinges
• Torque range 24.5 to 29.4 N·m per pair
• Black
• Robust
• High brand quality from Sugatsune / LAMP®

Dimensions:

• Length of the flap stay: 140 mm (5-33/64″)
• Width: 40 mm (1-37/64″)
• Depth: 20 mm (25/32″)

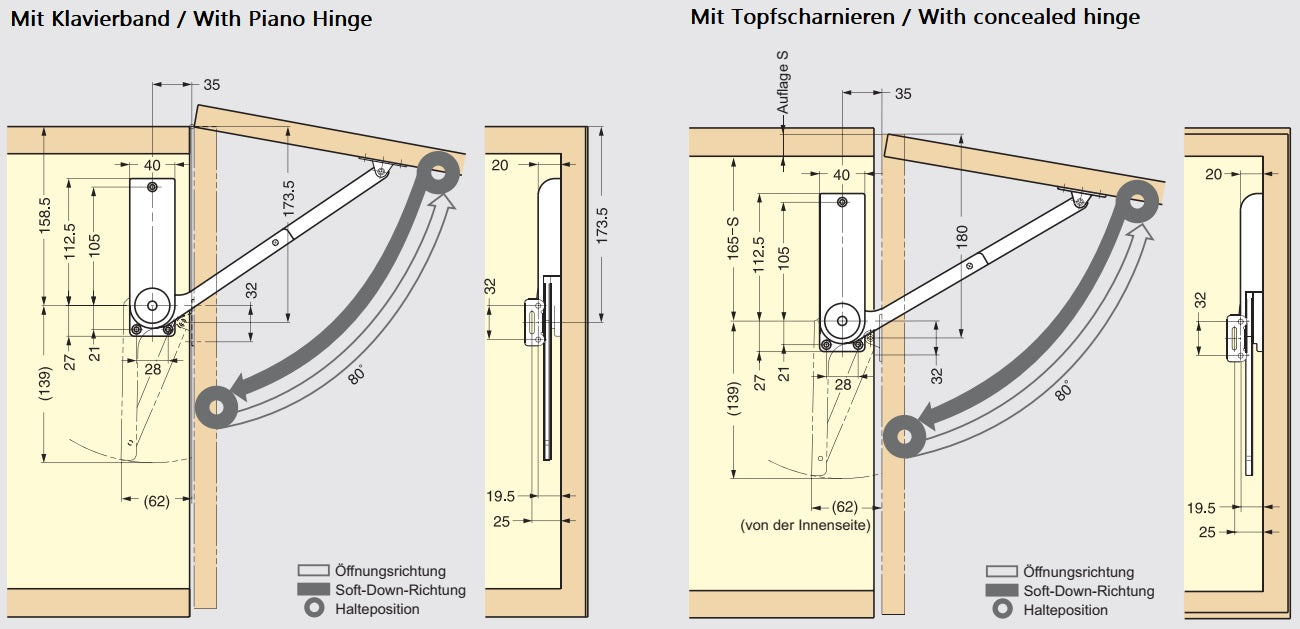

For further measurements and details see technical drawing.

Included in the scope of delivery:

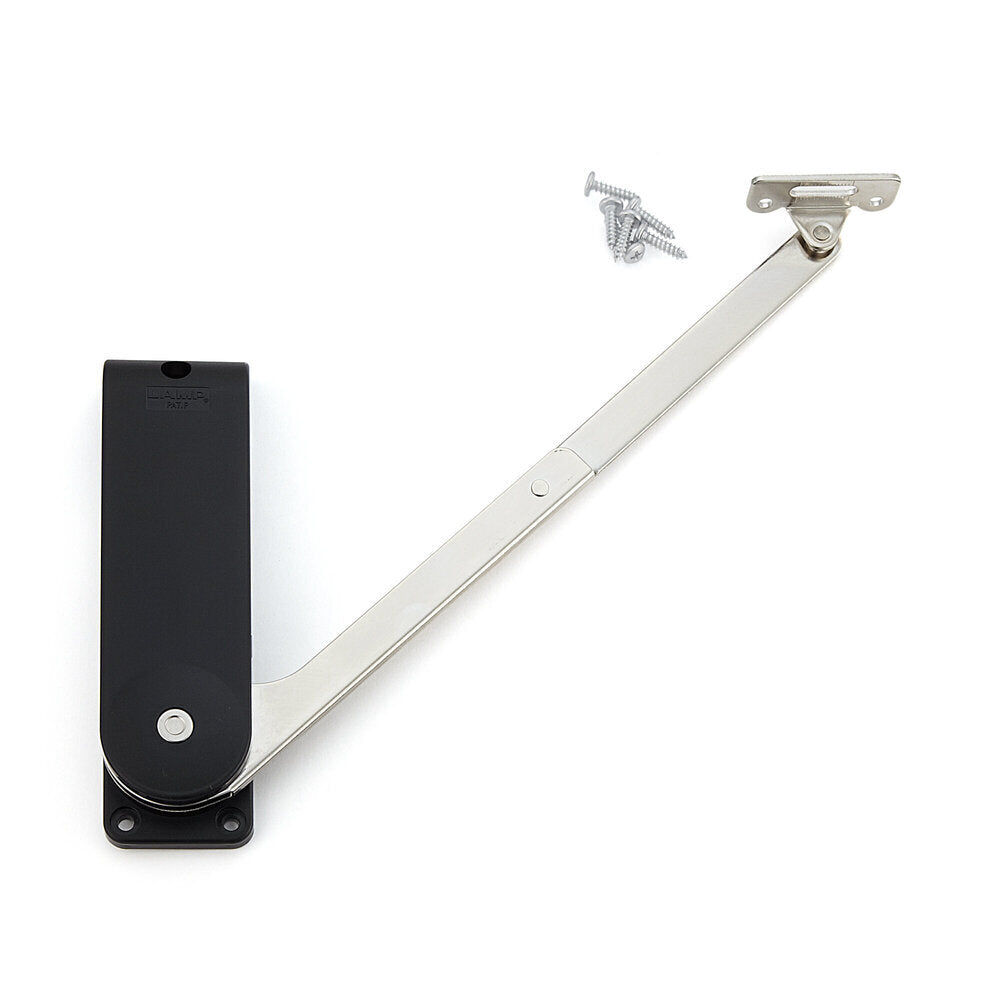

• 1 piece flap stay HDS-30HR-BL (180-104-082) made of metal and robust plastic, black
• 6 pieces self-tapping pan head screw 3.5 x 15 mm

Additional information:

• Download mounting instructions.

Manufacturer's reference numbers:

• Article identification number: 180-104-082
• Article number: HDS-30HR-BL
• GTIN number (EAN, UPS): 4510932024266

Manufacturer: Sugatsune / LAMP® (Japan)
