High-quality push-button handle, made of Zamak, surface: black, 14.03.071-0 for yachts, caravans, private jets

Practical push-button handle 14.03.071-0, with spring damper for gentle closing and self-locking lock, made of solid die-cast zinc, surface: black

Application:

Solid handle closure with self-locking lock and soft-close for yachts, caravans, private jets and much more.

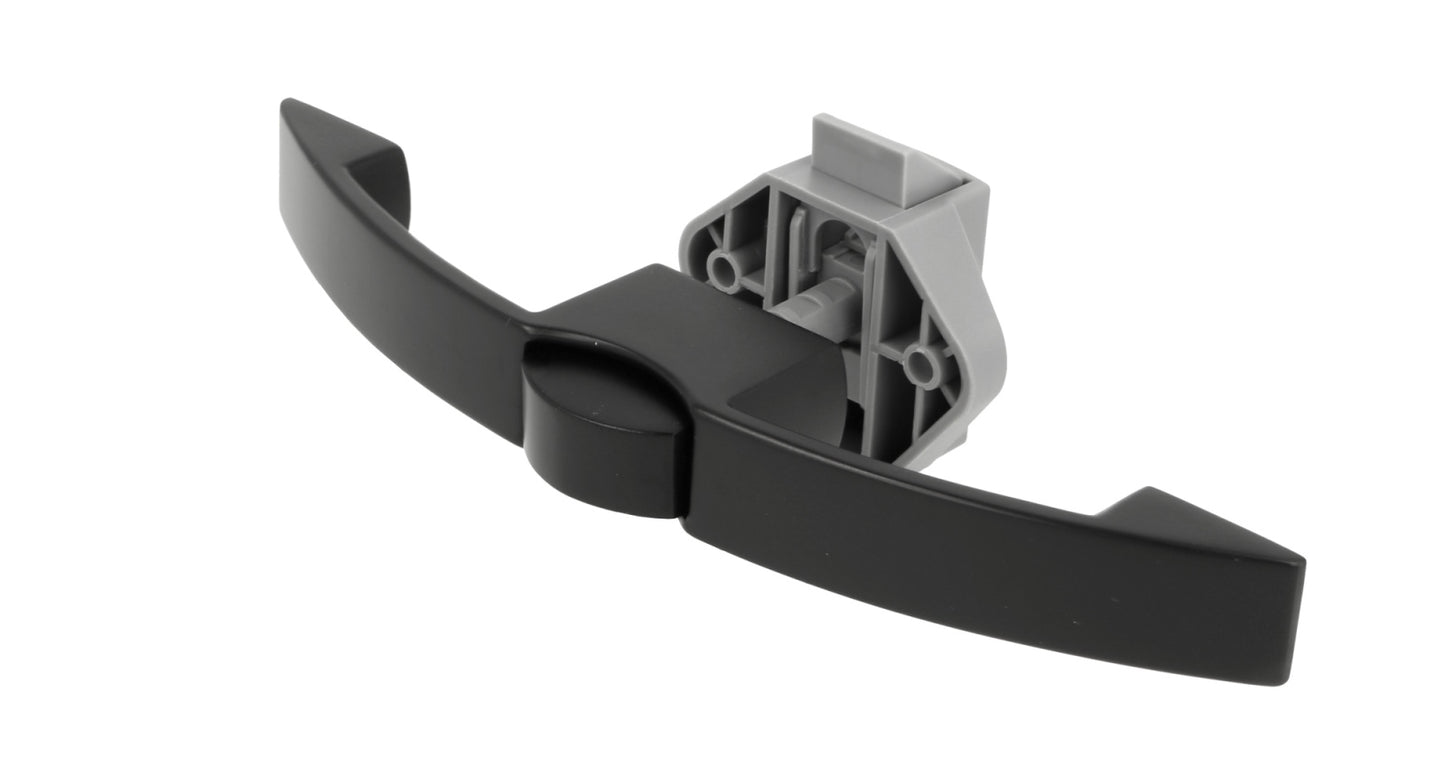

The high-quality push-button handle 14.03.071-0 is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

The handle lock 14.03.071-0 is suitable for door thicknesses between 14 mm (35/64″) and 16 mm (5/8″).

To open the furniture door, the button of the push-button handle 14.03.071-0 must be pressed and the push-button handle must be released.

The handle lock 14.03.071-0 serves as a practical handle with a depth of 26 mm (1-1/32″).

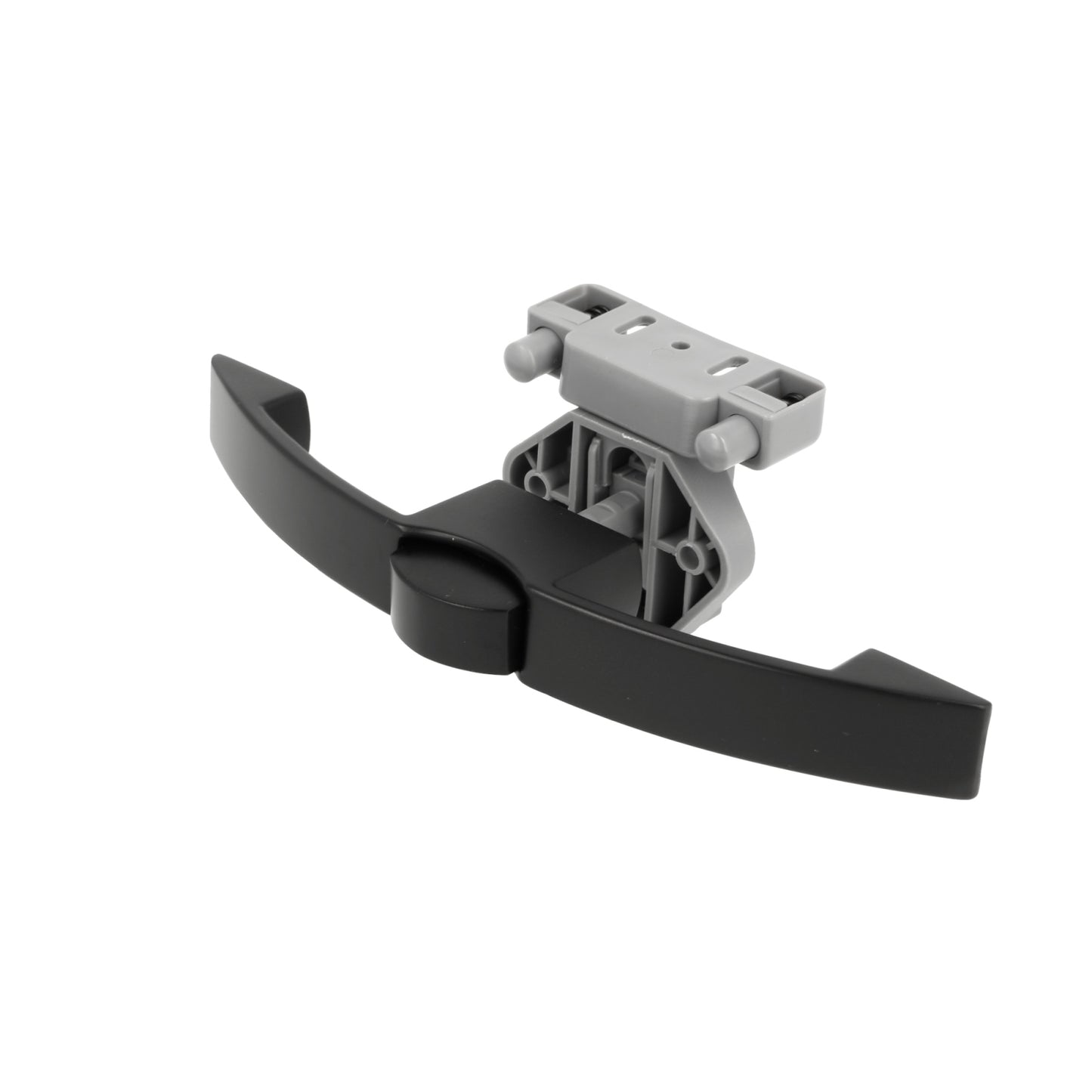

The special feature of the push-button handle 14.03.071-0 is that the counterpart (strike plate) features two spring-loaded buffers. When closing, these buffers ensure that the door closes gently and makes no noise during travel or flight.

These features make the push-button handle 14.03.071-0 ideal for ships, private aircraft, mobile homes and caravans.

The high-quality push-button handles 14.03.071-0 are ideal for, among others:

• Caravan
• Boat
• Motorhome
• Superyacht
• Camper Van
• yacht
• Caravan
• private jet

Material:

• The push-button handles 14.03.071-0 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often cheaper than solid brass or stainless steel fittings without compromising on quality

Surface:

• Black
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish
• While interior design styles may change, black always remains a safe choice that can easily be adapted to new trends
• Black surfaces can be used in different rooms, be it the kitchen, living room or office

Assembly:

• The attachment is done using the seven screws included in delivery
• For installation, two holes with a diameter of ⌀5 mm (13/64″) and one hole with a diameter of ⌀12 mm (15/32″) must be drilled in the front

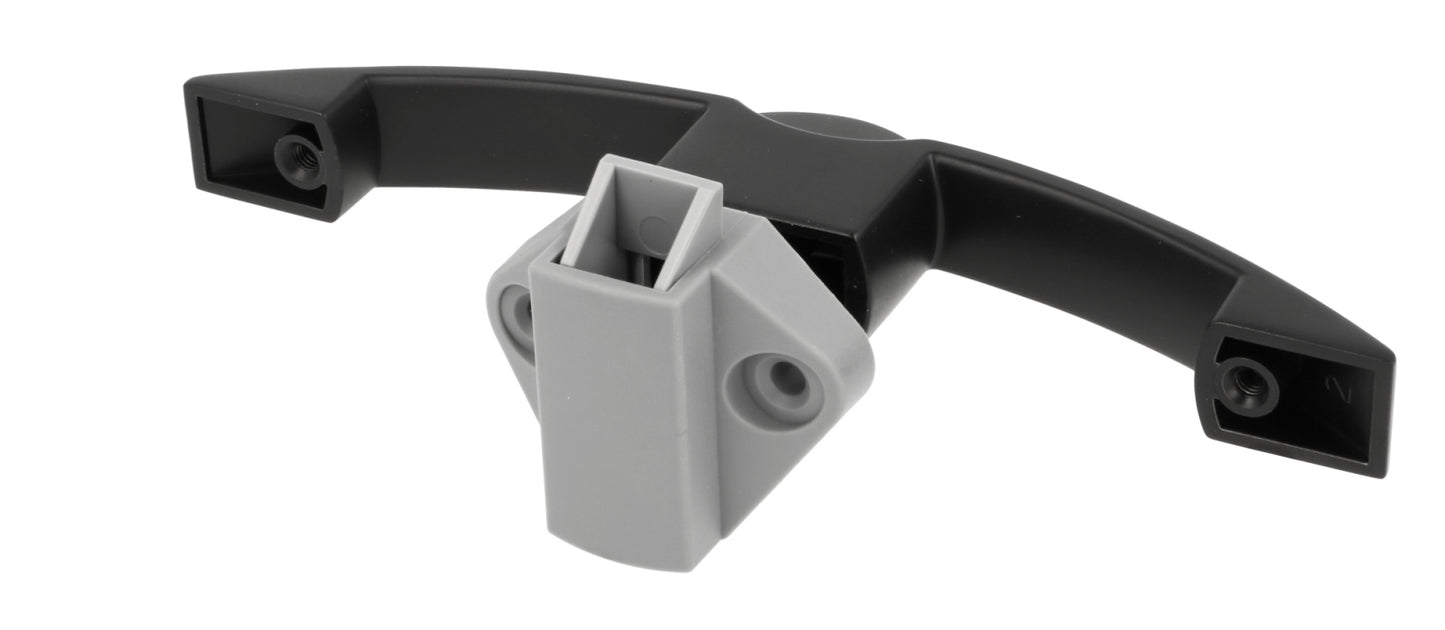

• The handle lock 14.03.071-0 is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the body side using the screws provided (for further details see assembly drawing ).

Characteristics:

• Weight: 173 g
• Size: 162 mm (6-3/8″)
• Available in three surface colors: chrome, black and stainless steel look
• easy to assemble
• practical
• stable
• Modern design
• high-quality optics
• Suitable for inset and overlay furniture doors
• The push-button handles 14.03.071-0 appear solid and high-quality
• black
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

The dimensions:

• Push-button handle width: 162 mm (6-3/8″)
• Height: 17 mm (43/64″)
• Handle depth: 26 mm (1-1/32″)

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece push-button handle 14.03.071-0 made of solid die-cast zinc, black
• Seven fastening screws
• 1 piece lock made of ABS, color: gray
• 1 piece counterpart made of ABS with spring-loaded buffers, color: gray
• 1 piece latch made of ABS, color: gray

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.03.071-0
• EAN number: 5704866513005

Manufacturer: SISO Denmark
