High-quality brass snap fastener with handle function, surface: gold-colored, glossy polished, design: square, TLP-S-BB-G and TLP-LBM(W). Solid snap fastener for yachts and much more, from Sugatsune / LAMP® (Japan).

Exclusive push-button closure TLP-S-BB-G and TLP-LBM(W), made of solid and robust brass, surface: gold-colored, shiny polished, design: square

Application:

Solid snap fastener for yacht and much more.

The square design offers a modern, clean aesthetic as well as high stability and facilitates precise assembly thanks to straight edges and symmetrical shapes.

The high-quality push-button closure TLP-S-BB-G and TLP-LBM(W) is a furniture handle with a locking function and, when recessed, ensures that furniture doors or cabinet doors do not open accidentally while driving or flying.

When closed, the push button is recessed and thus protects against collisions.

The push button TLP-S-BB-G and TLP-LBM(W) is suitable for door thicknesses between 19 mm (3/4″) and 30 mm (1-3/16″).

To open the furniture door, the handle of the push-button lock TLP-S-BB-G and TLP-LBM(W) must be pressed and thus released.

When opened, the TLP-S-BB-G and TLP-LBM(W) push button serves as a practical handle with a length of 13 mm (33/64″).

These features make the TLP-S-BB-G and TLP-LBM(W) snap fasteners ideal for private boats, aircraft, mobile homes and caravans.

The high-quality snap fasteners TLP-S-BB-G and TLP-LBM(W) are ideal for, among others:

• Caravan
• private plane
• Caravan
• Boat
• Motorhome
• Superyacht
• Camper Van
• yacht

Material:

• The push button fasteners TLP-S-BB-G and TLP-LBM(W) are made of solid and robust brass
• Brass components, fasteners and furniture fittings are particularly durable and corrosion-resistant, making them ideal for long-term use
• They offer an elegant, timeless look that is equally appealing in classic and modern interior styles
• In addition, brass is ideal for hygienic applications due to its antibacterial properties

Surface:

• Gold-colored, shiny polished
• Gold-colored surfaces give rooms a luxurious and elegant character that radiates warmth and exclusivity
• They reflect light in a subtle way, creating a welcoming atmosphere.
• They can also be combined in a variety of ways with different colors and materials to emphasize modern or classic designs.

Assembly:

• The mounting is carried out using the six screws included in the delivery (screws: three round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm).
• For mounting, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the hole is 40 mm (1-37/64″)
• The push button TLP-S-BB-G and TLP-LBM(W) is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the cabinet side using the supplied screws. The vertical clearance between the door edge and the strike plate is 2.5 mm (3/32") (see assembly drawing for further details).

Characteristics:

• Design: square
• Weight: 131 g
• Load capacity: 10 kg (23 lbs)
• Size: 35 mm (1-3/8″)
• Available in three surface colors: gold, chrome and matt nickel
• easy to assemble
• practical
• stable
• Elaborately finished surface
• Exclusive, high-quality look
• Suitable for inset and overlay furniture doors
• The snap fasteners TLP-S-BB-G and TLP-LBM(W) appear solid and extremely high-quality
• gold-colored, shiny polished
• solid
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Height and width of the snap fastener: 35 mm (1-3/8″) x 35 mm (1-3/8″)
• Diameter of the push button: ⌀16 mm
• Knob handle length: 13 mm (33/64″)

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece snap fastener TLP-S-BB-G and TLP-LBM(W) made of solid and robust brass, gold-colored, shiny polished, design: square
• Six screws: three round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm made of stainless steel

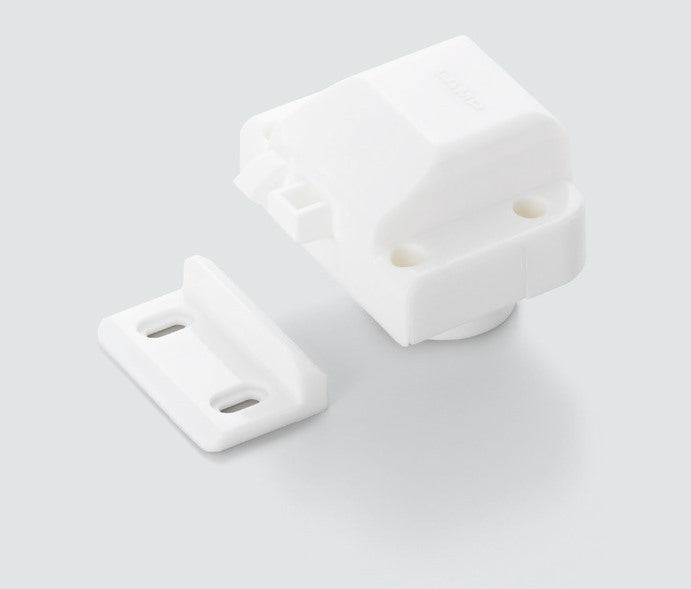

• 1 piece housing
• 1 piece counterpart

Watch product video:

Additional Information:

• Download assembly instructions

Manufacturer reference number:

• Article number: 140-014-265 and 140-064-430
• Item number: TLP-S-BB-G and TLP-LBM(W)
• EAN number: 4510932056830 and 4510932217323

Manufacturer: Sugatsune / LAMP® (Japan)
