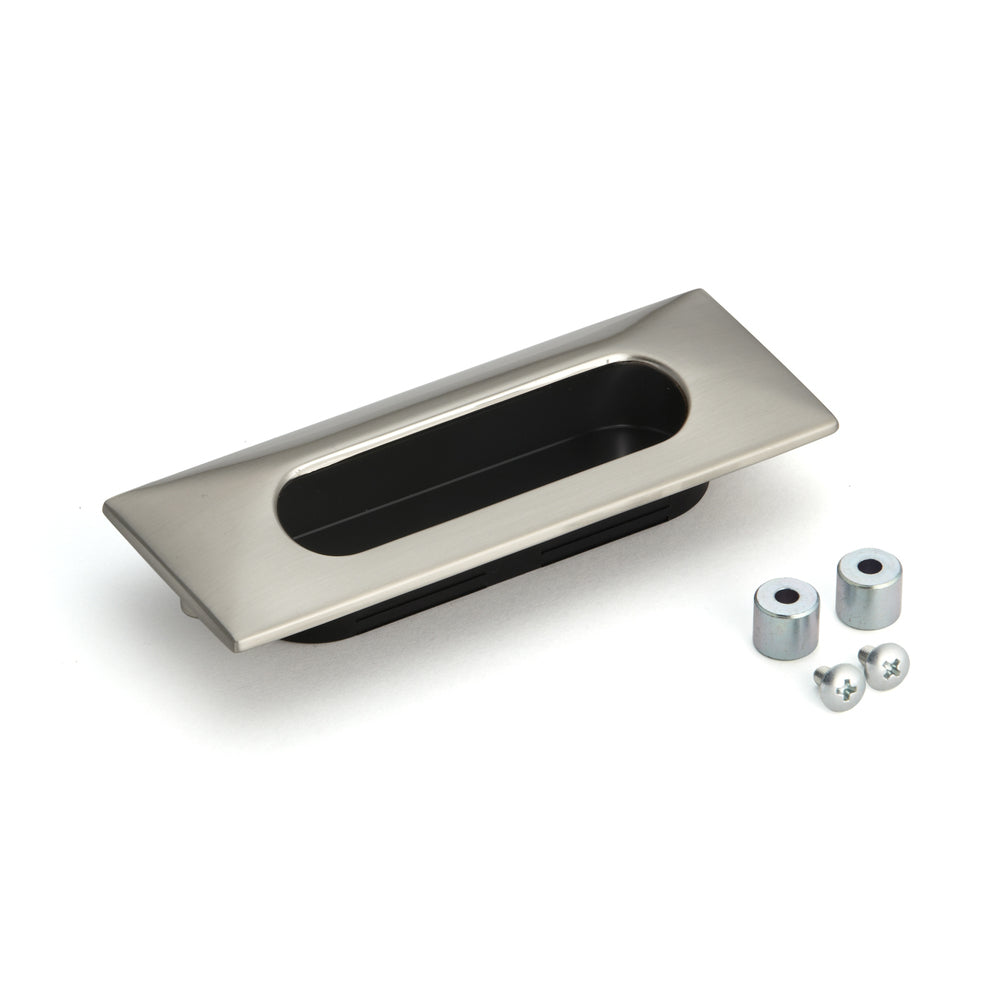

Hochwertige rechteckige Griffmuschel aus massiver Zinklegierung, Oberfläche: Weißbronze, satiniert matt, 130 mm (5,2″) UTZ-130WB. Möbelgriff UTZ-130WB für Schubkasten, Schrank, Büromöbel, Schlafzimmermöbel, Küchenmöbel, von Sugatsune / LAMP® (Japan)

High-quality handle shell made of solid zinc alloy, surface: nickel-plated, satin matt UTZ-130WB

Application: Furniture handle UTZ-130WB for drawers, cupboards, office furniture, bedroom furniture, kitchen furniture. The UTZ-130WB furniture handle can be installed in both sheet metal (using the spacers included in delivery) and wood. The high-quality UTZ-130WB handle shells are ideal for, among other things:

• drawer
• Wardrobe
• Office furniture
• bedroom furniture
• kitchen furniture
• Living room cabinet

Material:

• The high-quality UTZ-130WB handle shells are made of solid zinc alloy (ZDC)
• Inner casing: plastic (HIPS), black
• Spacer: steel

Surface:

• Nickel-plated, satin matt

Assembly:

• The fastening is carried out using the screws included in the delivery (truss head screw M4 x 8 mm (for sheet metal))
• For installation, a cutout in the front measuring 99 mm (3-57/64″) x 33 mm (1-19/64″) must be made
• Furthermore, two holes must be drilled with a distance of 116 mm (4-9/16″) for the screws
• When mounting in sheet metal, the spacer must be used
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

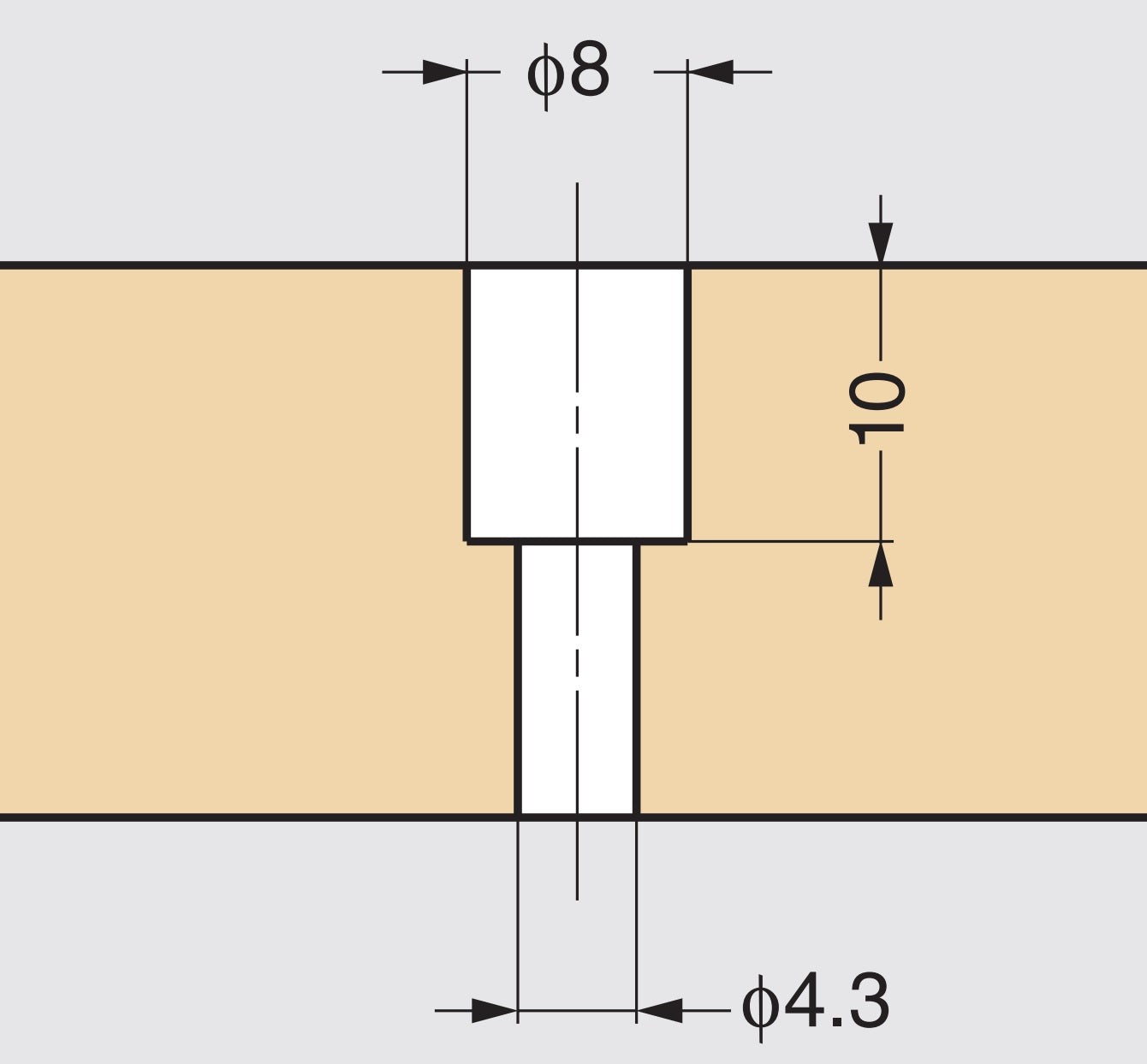

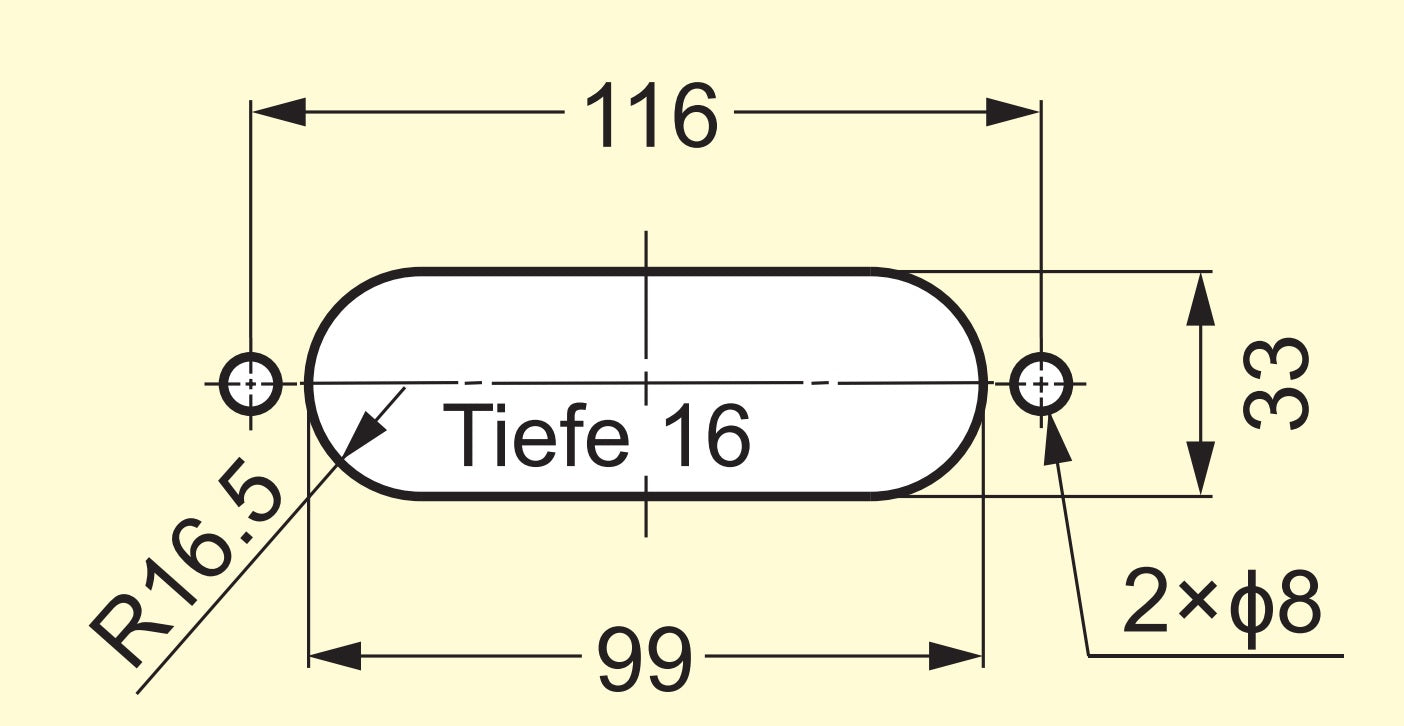

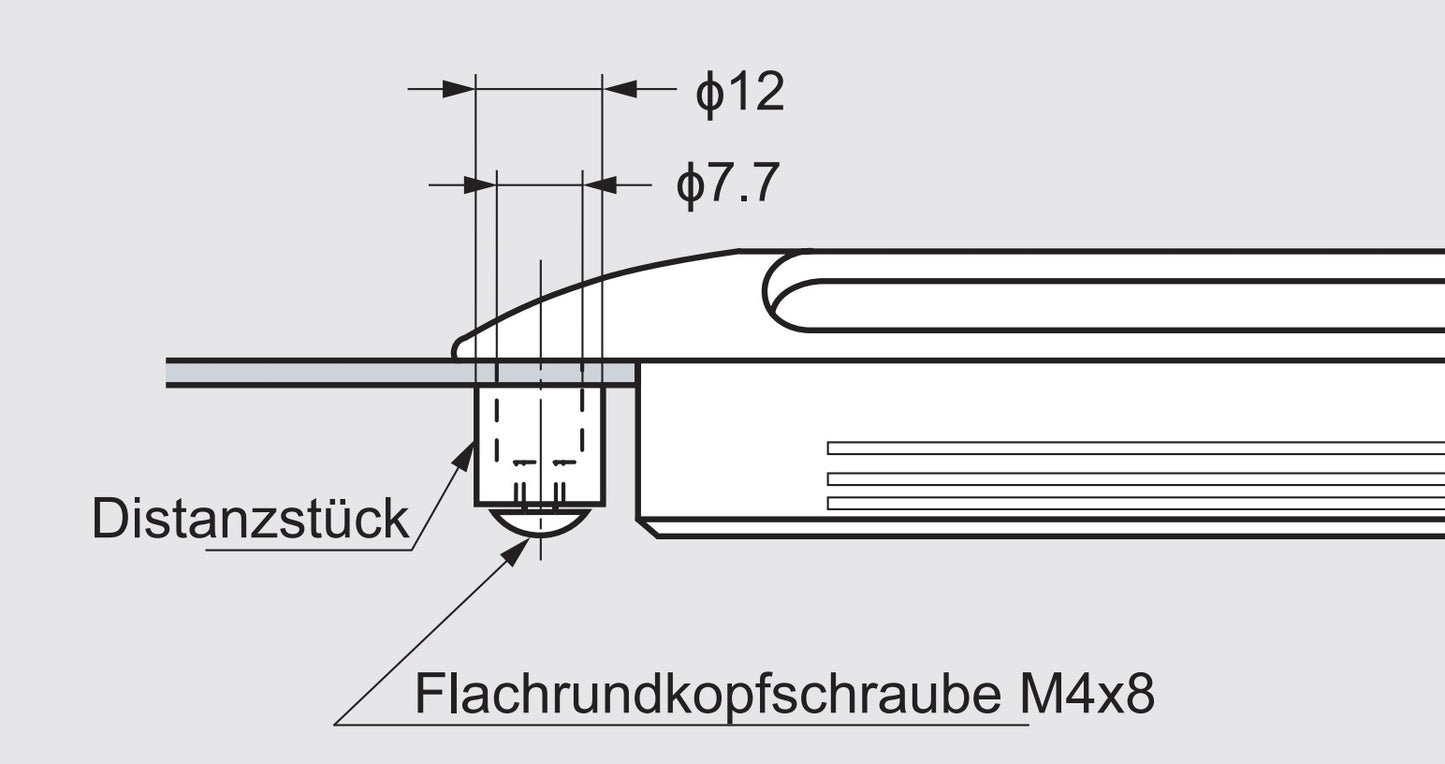

[caption id="attachment_106860" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: nickel-plated, satin matte, UTZ-130WB, 130 mm, by Sugatsune, nickel-plated, satin matte. Assembly drawing[/caption] [caption id="attachment_106878" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, surface: nickel-plated, satin matte, UTZ-130WB, 130 mm, by Sugatsune, nickel-plated, satin matte. Drawing of sheet metal installation[/caption] [caption id="attachment_106896" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: nickel-plated, satin matte, UTZ-130WB, 130 mm, by Sugatsune, nickel-plated, satin matte. Drawing of installation in wood[/caption] Characteristics:

• Weight: 105 g
• Size: 130 mm (5.2″)
• Elaborately processed
• Ergonomic
• Solid
• Robust
• White bronze, satin matt
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Width of the grip shell (L): 130 mm (5-1/8″)
• Height: 50 mm (1-31/32″)
• Distance between mounting holes (P): 116 mm (4-9/16″)
• Grip width: 84 mm (3-5/16″)
• Depth of grip area: 16 mm (5/8″)

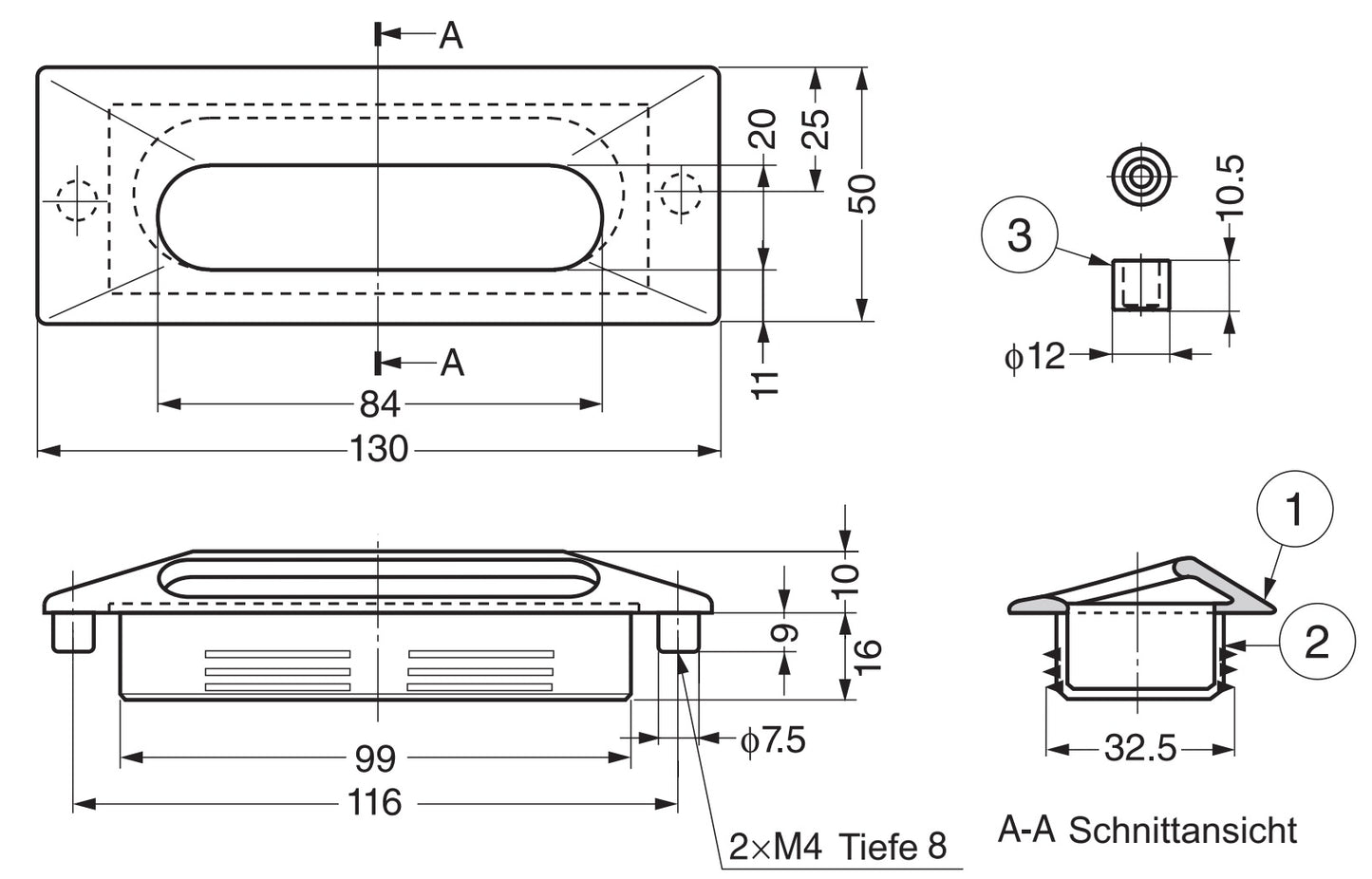

[caption id="attachment_106914" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: nickel-plated, satin matte, UTZ-130WB, 130 mm, by Sugatsune, nickel-plated, satin matte. Technical drawing[/caption] Included in delivery:

• 1 piece UTZ-130WB handle shell made of solid zinc alloy, nickel-plated, satin matt
• 2 pcs. truss head screw M4 x 8 mm (for sheet metal)
• 2 pieces spacer for sheet metal

Manufacturer reference number:

• Article number: 100-010-225
• Item number: UTZ-130WB
• EAN number: 4510932003858

Manufacturer: Sugatsune / LAMP® (Japan)
