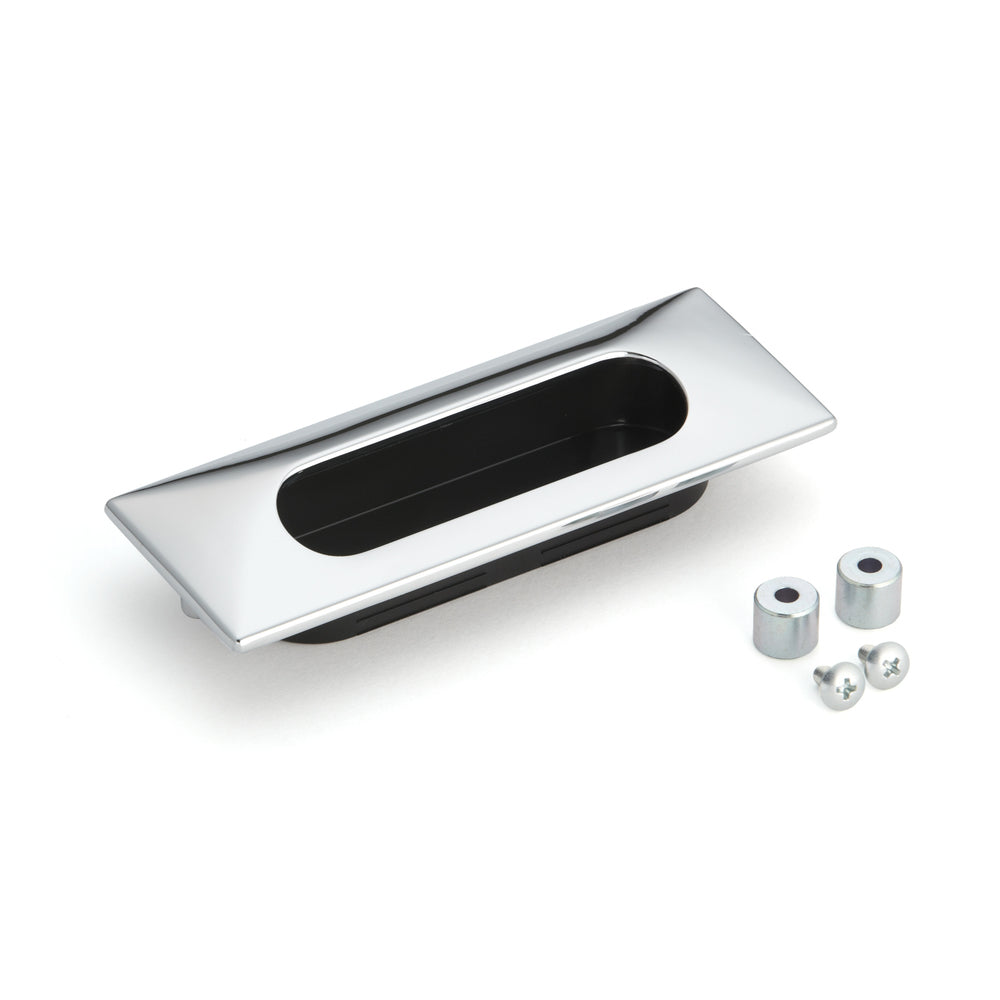

High-quality rectangular recessed pull made of solid zinc alloy, surface: chrome-plated, 130 mm (5.2") UTZ-130CR. Furniture handle UTZ-130CR for sheet metal, wood, drawers, cabinets, office furniture, and bedroom furniture, by Sugatsune / LAMP® (Japan)

High-quality handle shell made of solid zinc alloy, surface: chrome-plated UTZ-130CR

Application: Furniture handle UTZ-130CR for sheet metal, wood, drawer, cupboard, office furniture, bedroom furniture. The UTZ-130CR furniture handle can be installed in both sheet metal (using the spacers included in delivery) and wood. The high-quality UTZ-130CR handle shells are ideal for, among other things:

• sheet metal
• Wood
• drawer
• Wardrobe
• Office furniture
• bedroom furniture
• Living room cabinet
• kitchen furniture

Material:

• The high-quality UTZ-130CR handle shells are made of solid zinc alloy (ZDC)
• Inner casing: plastic (HIPS), black
• Spacer: steel

Surface:

• Chrome-plated

Assembly:

• The fastening is carried out using the screws included in the delivery (truss head screw M4 x 8 mm (for sheet metal))
• For installation, a cutout in the front measuring 99 mm (3-57/64″) x 33 mm (1-19/64″) must be made
• Furthermore, two holes must be drilled with a distance of 116 mm (4-9/16″) for the screws
• When mounting in sheet metal, the spacer must be used
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

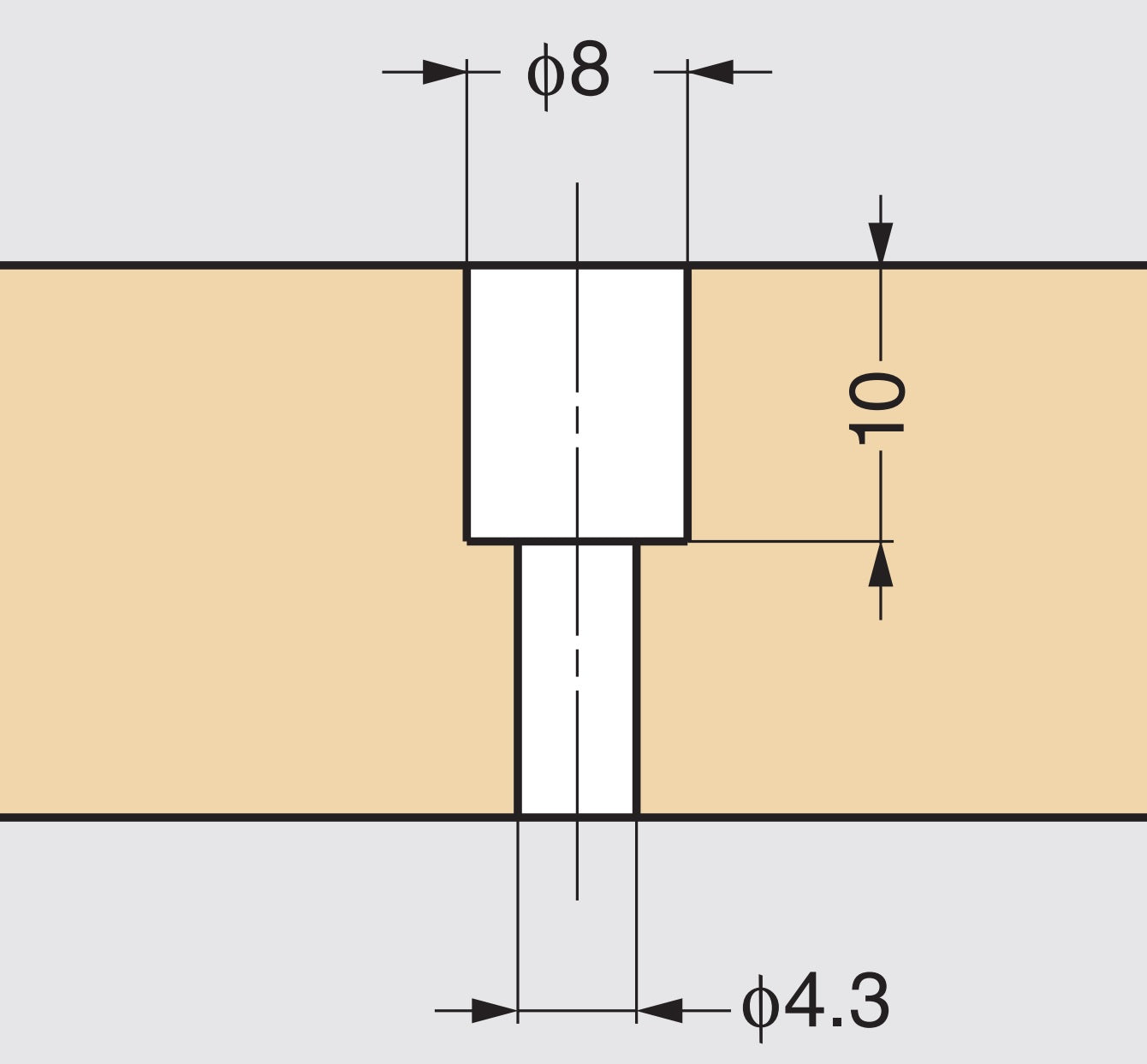

[caption id="attachment_106952" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, surface: chrome-plated, UTZ-130CR, 130 mm, by Sugatsune, chrome-plated. Assembly drawing[/caption] [caption id="attachment_106970" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, surface: chrome-plated, UTZ-130CR, 130 mm, by Sugatsune, chrome-plated. Drawing for mounting on sheet metal.[/caption] [caption id="attachment_106988" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, surface: chrome-plated, UTZ-130CR, 130 mm, by Sugatsune, chrome-plated. Drawing for mounting on wood.[/caption] Characteristics:

• Weight: 105 g
• Size: 130 mm (5.2″)
• Elaborately processed
• Ergonomic
• Solid
• Robust
• Chrome-plated
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Width of the grip shell (L): 130 mm (5-1/8″)
• Height: 50 mm (1-31/32″)
• Distance between mounting holes (P): 116 mm (4-9/16″)
• Grip width: 84 mm (3-5/16″)
• Depth of grip area: 16 mm (5/8″)

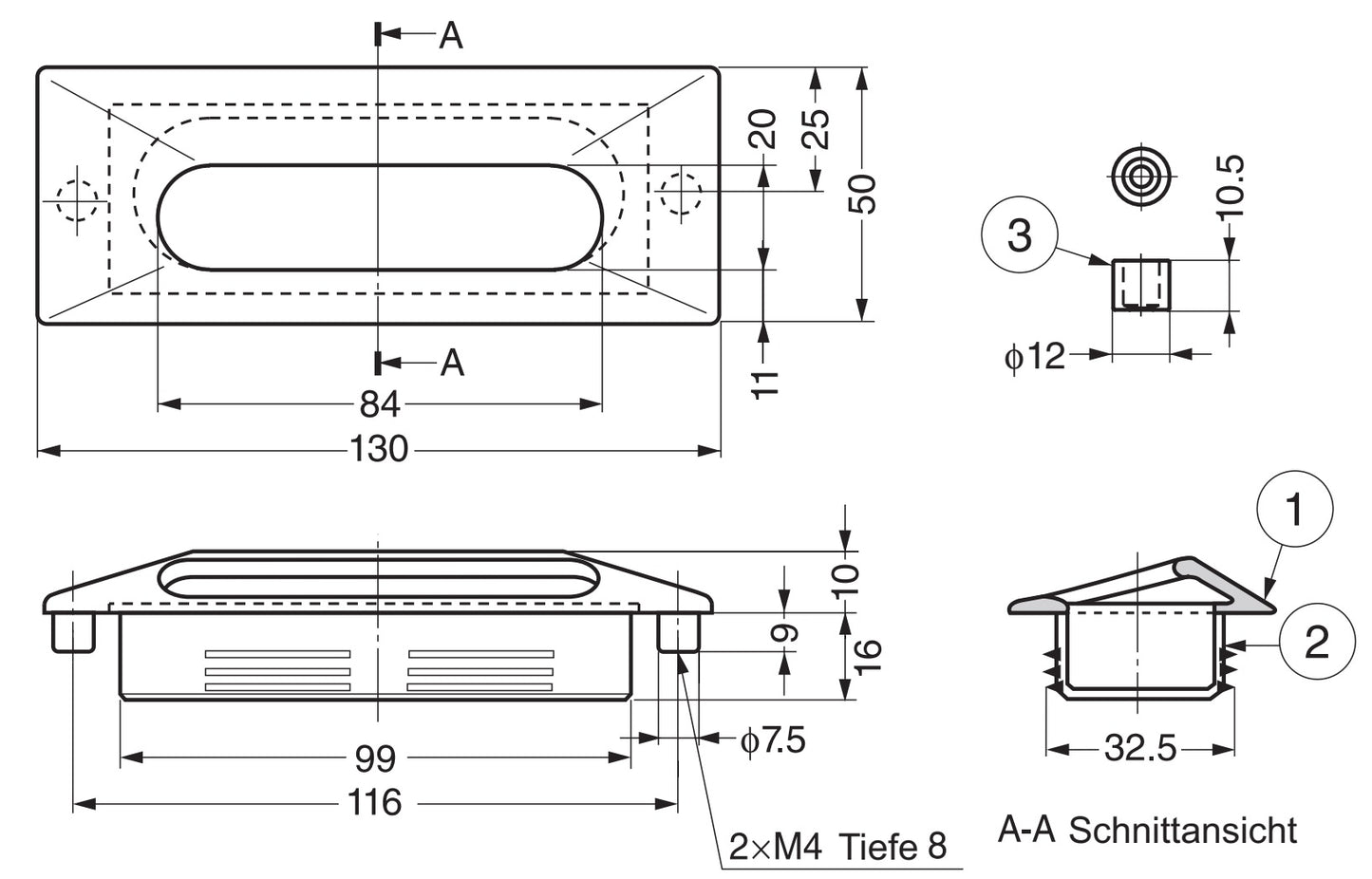

[caption id="attachment_107006" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, surface: chrome-plated, UTZ-130CR, 130 mm, by Sugatsune, chrome-plated. Technical drawing[/caption] Included in delivery:

• 1 piece UTZ-130CR handle shell made of solid zinc alloy, chrome-plated
• 2 pcs. truss head screw M4 x 8 mm (for sheet metal)
• 2 pieces spacer for sheet metal

Manufacturer reference number:

• Article number: 100-010-226
• Item number: UTZ-130CR
• EAN number: 4510932003865

Manufacturer: Sugatsune / LAMP® (Japan)
