2 Stück hochwertige Edelstahlmontagehalterung aus SUS304 (V2A) für Edelstahlgriffe mit rundem Profil und Durchmesser Φ9 mm (23/64″) H-42-Z-9. Edelstahlunterlegscheibe H-42-Z-9 aus SUS304 (V2A) für Yacht, Edelstahlküche, von Sugatsune / LAMP® (Japan)

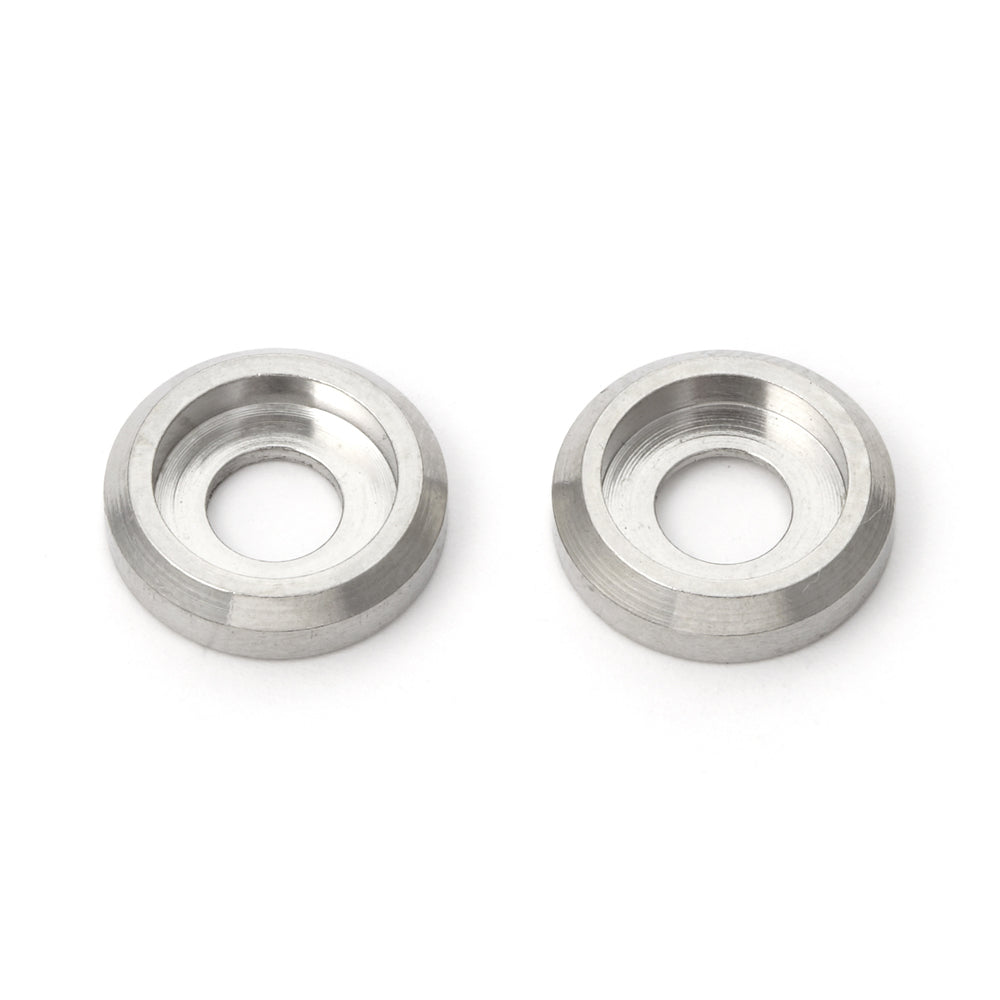

2 pieces of high-quality solid stainless steel mounting bracket made of stainless steel SUS304 (V2A) H-42-Z-9

Application: Stainless steel washer H-42-Z-9 made of SUS304 (V2A) for yacht, stainless steel kitchen. The stainless steel washer is perfect for attaching stainless steel handles with a round profile and a diameter of Φ9 mm (23/64″). The high-quality stainless steel mounting brackets H-42-Z-9 are ideal for:

• yacht
• stainless steel kitchen
• boat
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture
• doctor's office

Material:

• The high-quality stainless steel mounting brackets H-42-Z-9 are made of stainless steel SUS304 (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is done with M5 screws (not included)
• The stainless steel mounting brackets are mounted under the stainless steel furniture handle and screwed with the screws belonging to the stainless steel handle

Characteristics:

• Weight: 3.5 g
• Size: 3 mm (0.2″)
• Completed design
• Ergonomic
• Robust
• Made of SUS304 (V2A)
• Shiny polished
• High brand quality from Sugatsune / LAMP®

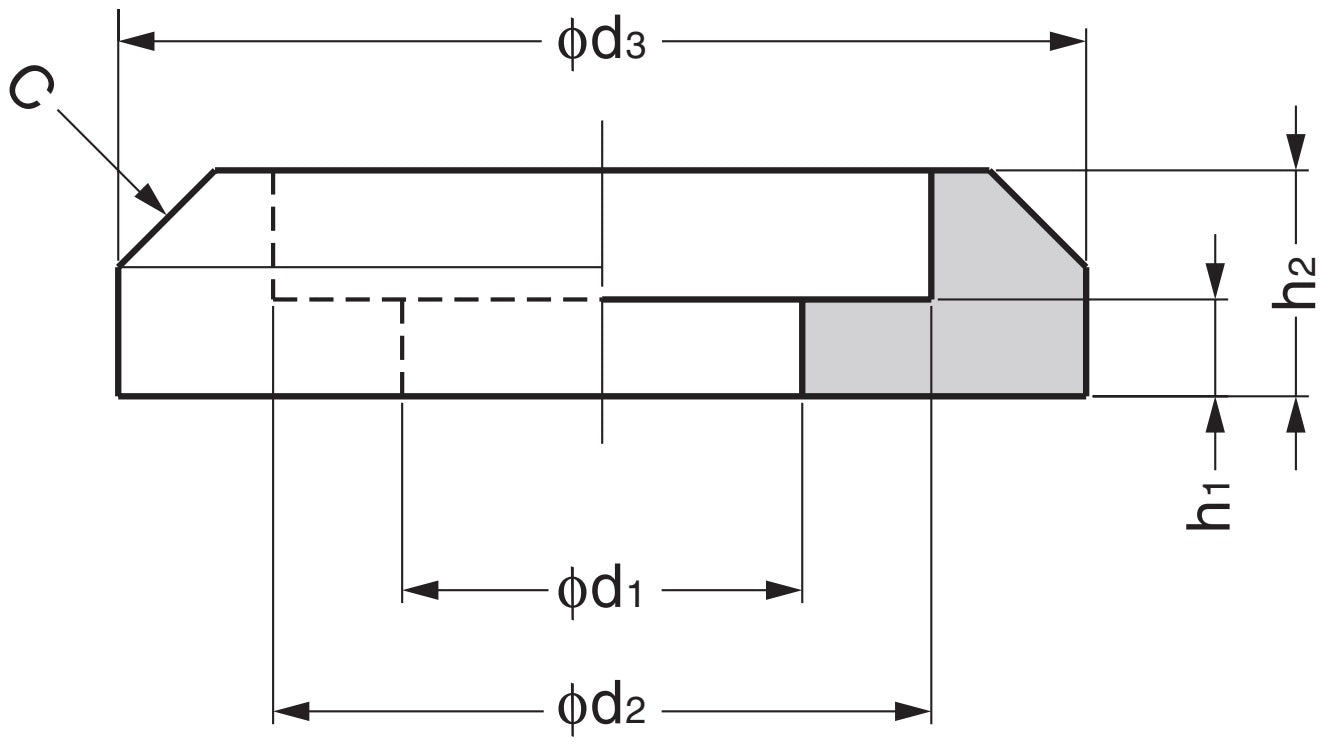

Dimensions: For further dimensions and details see technical drawing .

• Height of stainless steel mounting bracket (h2): 3 mm (1/8″)
• Mounting hole diameter (d1): Φ5.2 mm (13/64″)
• Diameter of the opening for handle installation (d2): Φ9.2 mm (23/64″)
• Handle holder diameter (d3): Φ13 mm (33/64″)

[caption id="attachment_90822" align="alignnone" width="420"] High-quality stainless steel mounting bracket made of SUS304 (V2A) for stainless steel handles with a round profile and a diameter of 9 mm (2364"), H-42-Z-9, 3 mm, from Sugatsune, glossy polished. Technical drawing[/caption] Included in delivery:

• 2 pieces stainless steel mounting bracket H-42-Z-9 made of stainless steel SUS304 (V2A)

Manufacturer reference number:

• Article number: 100-010-572
• Item number: H-42-Z-9
• EAN number: 4510932000895

Manufacturer: Sugatsune / LAMP® (Japan)
