High-quality, corrosion-resistant, full-extension telescopic slides made of stainless steel. Removable drawer slides for harsh and humid environments. 37mm drawer slides from Sugatsune / LAMP® (Japan)

€33,99 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Nominal length 200mm, extension travel 200mm 250mm, extension travel 243mm 300mm, extension travel 305mm 350mm, extension travel 355mm 400mm, extension travel 406mm 450mm, extension travel 457mm 500mm, extension travel 508mm 550mm, extension travel 559mm 600mm, extension travel 610mm

Quantity

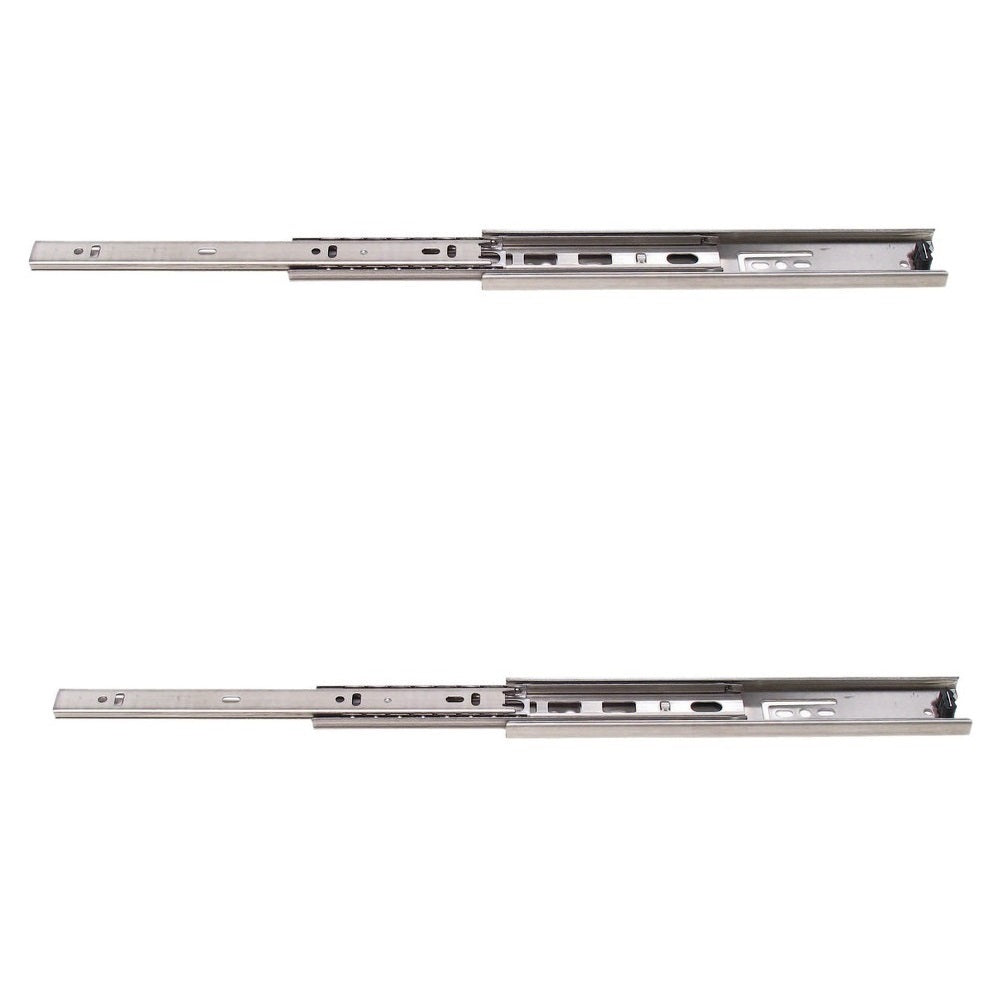

Removable full extension drawer slides 37 mm wide, made of stainless steel SUS304 (V2A).

Application: These corrosion-resistant drawer slides are ideal for harsh and humid environments and can be used on ships and boats, among other places. [caption id="attachment_31156" align="alignnone" width="420"]

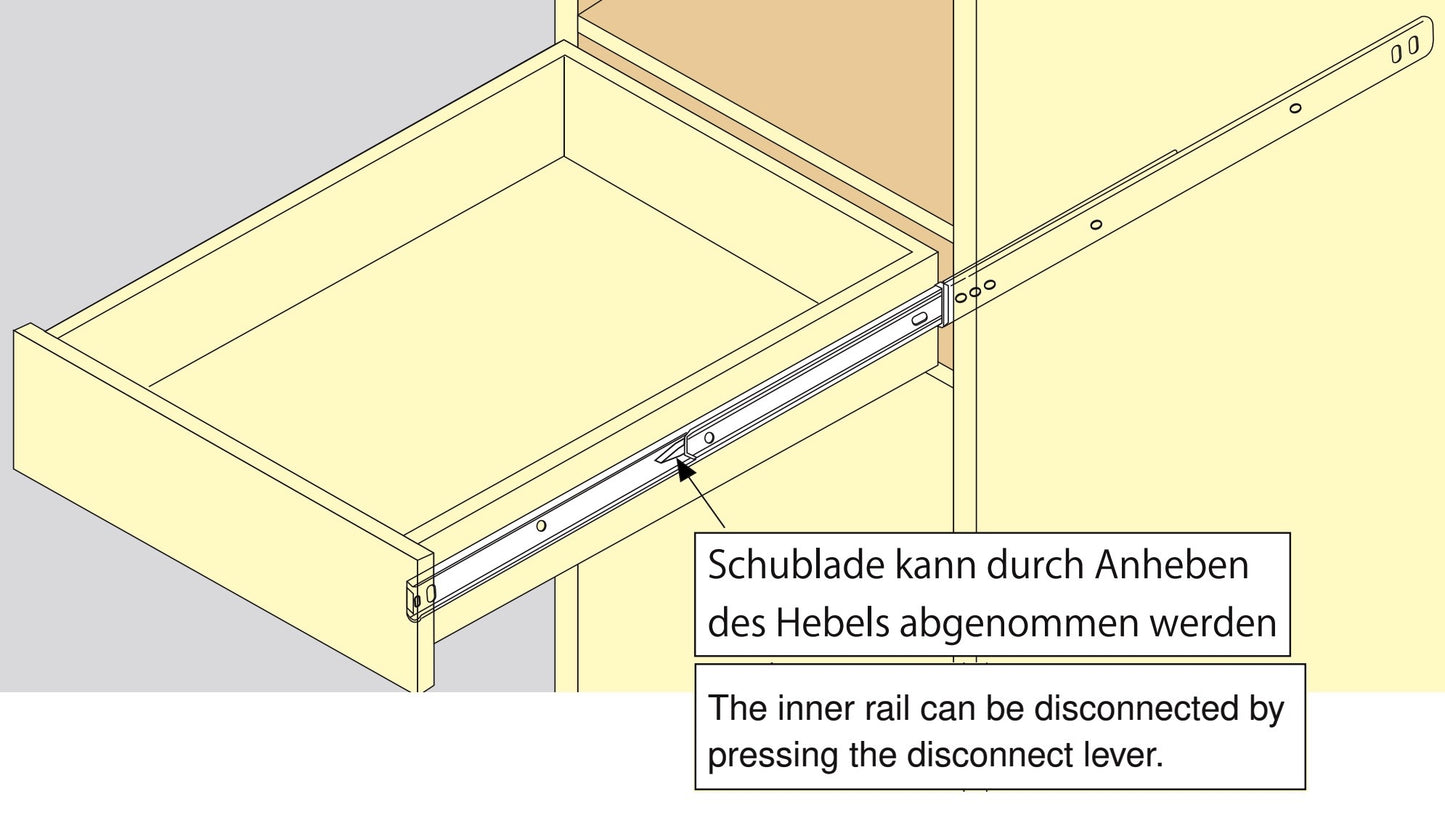

Removable full-extension drawer slides, 37 mm wide, made of SUS304 (V2A) stainless steel ESR-3813-20. Application example[/caption] These high-quality, rust-proof full extension drawers made of V2A (SUS304) stainless steel are also suitable for bathrooms, saunas, swimming pools, laboratories, food processing rooms and the medical sector. The load capacity per pair is up to 45 kg depending on the nominal length. Particularly practical: the drawer can be easily removed if necessary by operating the lever on the side (see picture). The guide rails have a buffer element for the end position, which reduces noise when the drawer closes. These full-extension drawers also feature a locking mechanism. The drawer is held in place when closed. The two guide rails can be used on both the left and right side. Assembly: The drawer rails are mounted on the sides of the body and the drawer. The guide rails are mounted using M4 lens head, flat head or truss head screws. In order to access the mounting holes, the guide must be moved to the middle position. Characteristics:

Type: Full extension
Load capacity: 29 - 45 kg, depending on the nominal length (see table)
The drawer can be removed
Width: 37 mm
With buffer for quiet closing
With locking function
Can be installed on the left and right side
Corrosion-resistant
Durable and stable

Included in delivery:

Two pieces (one pair) full extension drawers made of stainless steel SUS304 (V2A)

Material:

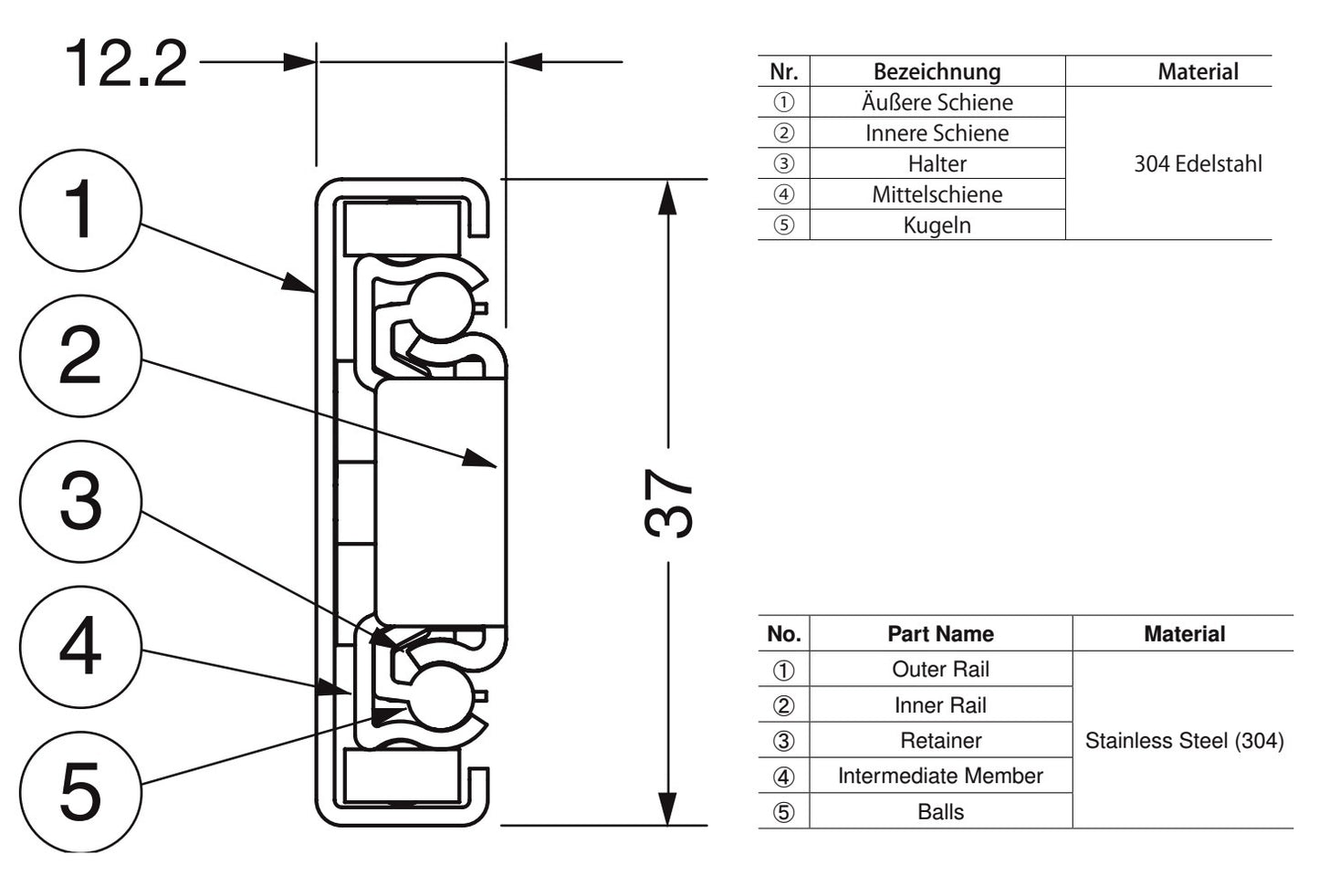

All components (outer rail, inner rail, carriage, middle rail and the balls) made of stainless steel ( see illustration ):

[caption id="attachment_31204" align="alignnone" width="419"]

Material: Removable full-extension drawer slides, 37 mm[/caption] Surface:

Not coated

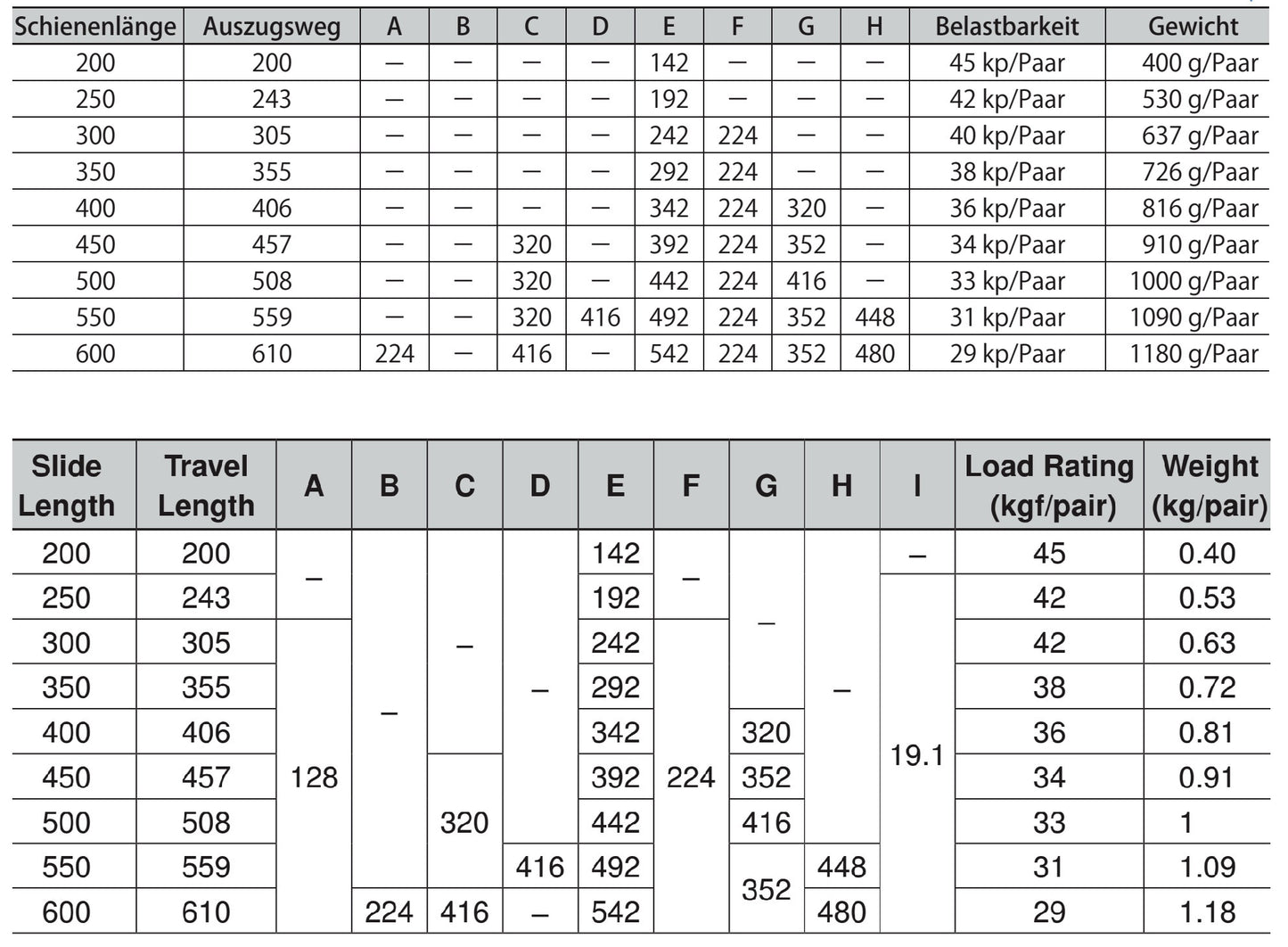

Dimensions: For dimensions see technical drawing (mm) and the table with data : [caption id="attachment_31168" align="alignnone" width="420"]

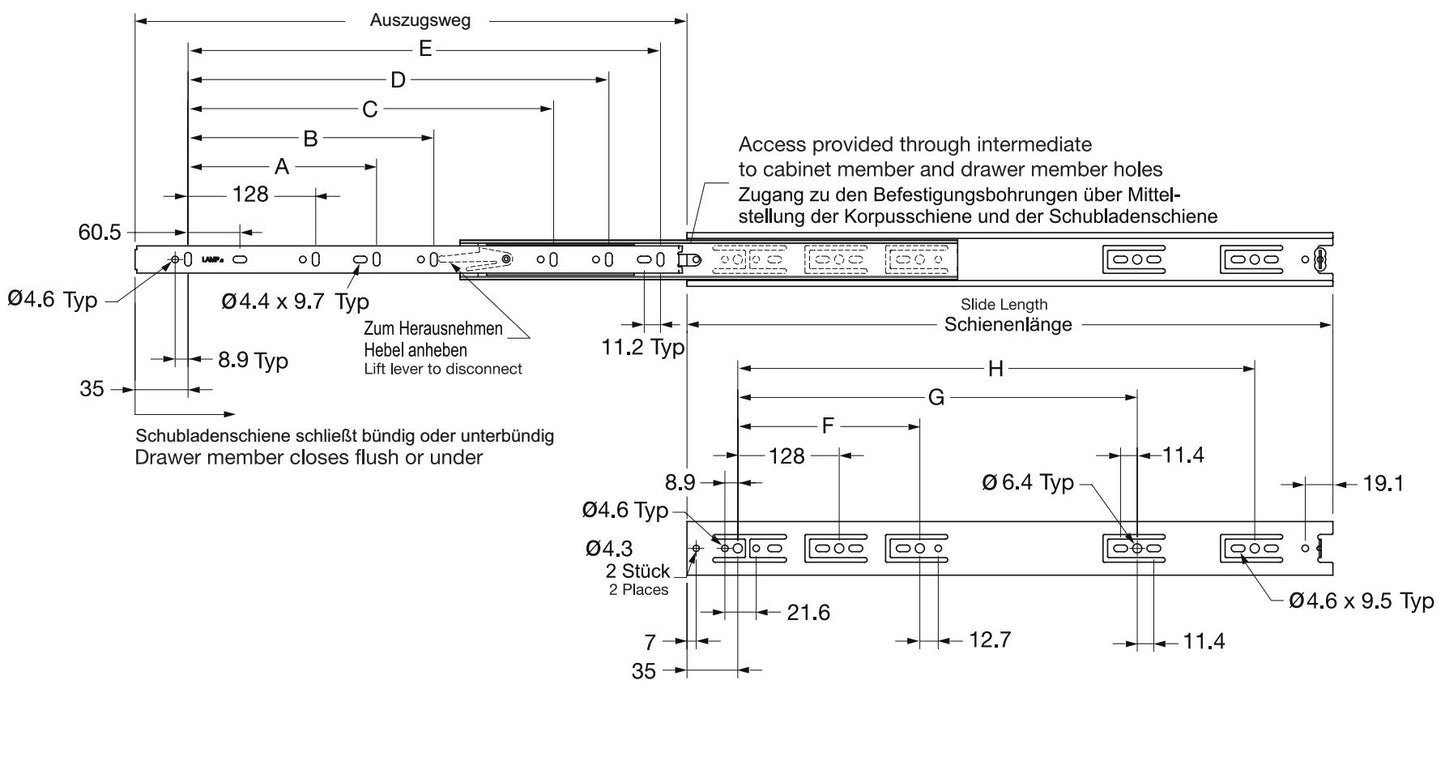

Technical drawing: Removable full-extension drawer slides, 37 mm, made of SUS304 stainless steel[/caption] [caption id="attachment_31360" align="alignnone" width="420"]
